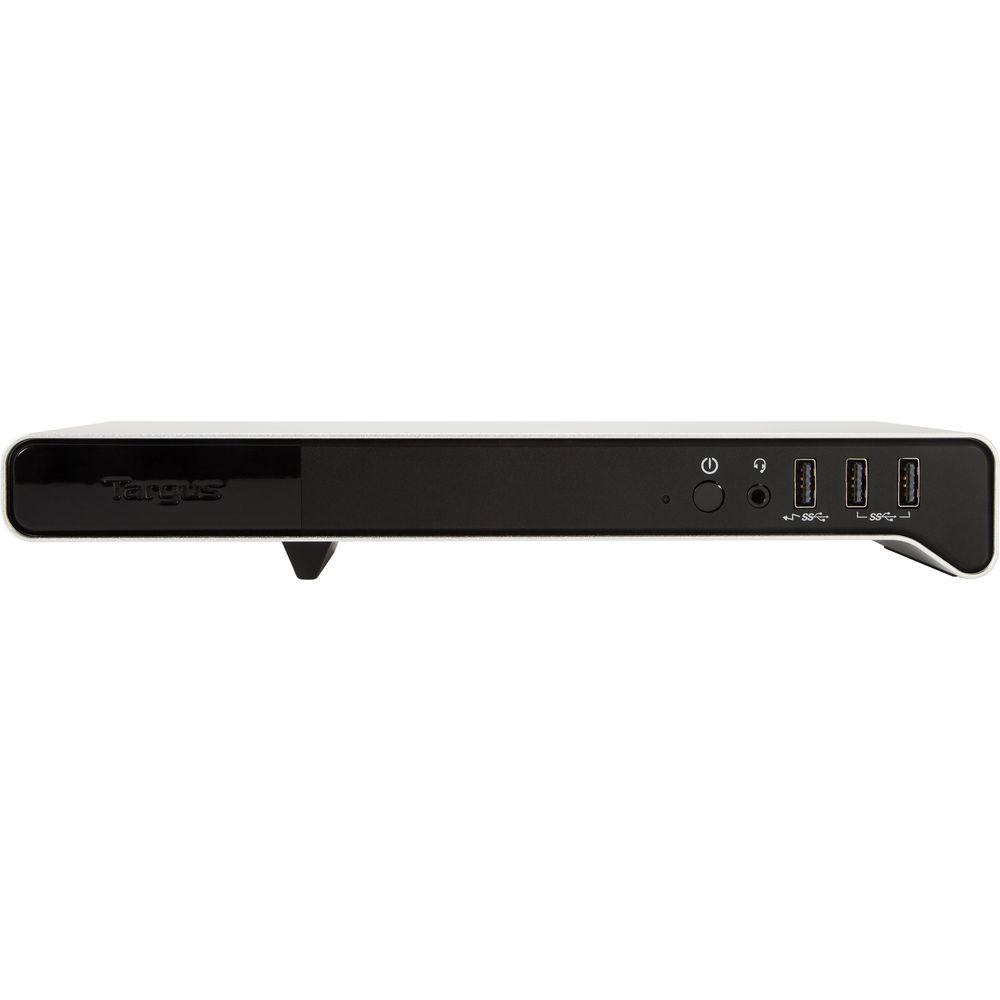

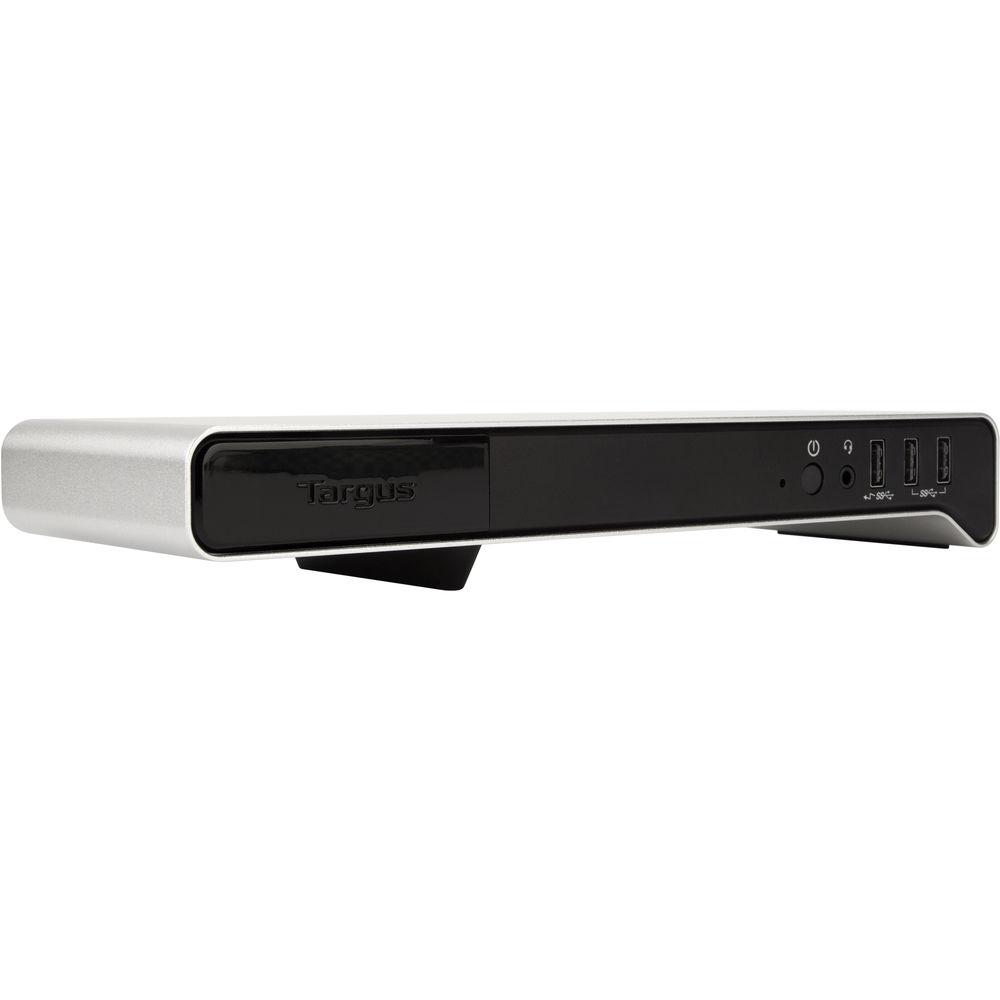

User Manual for Targus Thunderbolt 2 Universal Docking Station Click to enlarge the picture
Contents of the user manual for the Targus Thunderbolt 2 Universal Docking Station
- Product category: Docking Stations & Port Replicators Targus
- Brand: Targus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Targus Docking Stations & Port Replicators
 |
User manual for the Targus Thunderbolt 2 Universal Docking Station contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Targus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Targus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Targus product will considerably shorten its lifespan!
|
Product description Link past, present, and future technologies to your Windows or Mac system at speeds up to 20 Gb/s with just one Thunderbolt cable using the Thunderbolt 2 Universal Docking Station from Targus. This docking station has two built-in Thunderbolt 2 ports and allows you to access data on both legacy and future devices by providing seven host ports for USB 3.0 at speeds up to 5 Gb/s, as well as one USB 3.0 charging port. These USB ports may be used to connect peripherals such as external storage, optical drives, printers, memory card readers, and more. Additionally, while one of the Thunderbolt 2 ports is used to connect this dock to your system, the remaining free port supports the daisy chaining of up to six total Thunderbolt 2 and Thunderbolt devices.

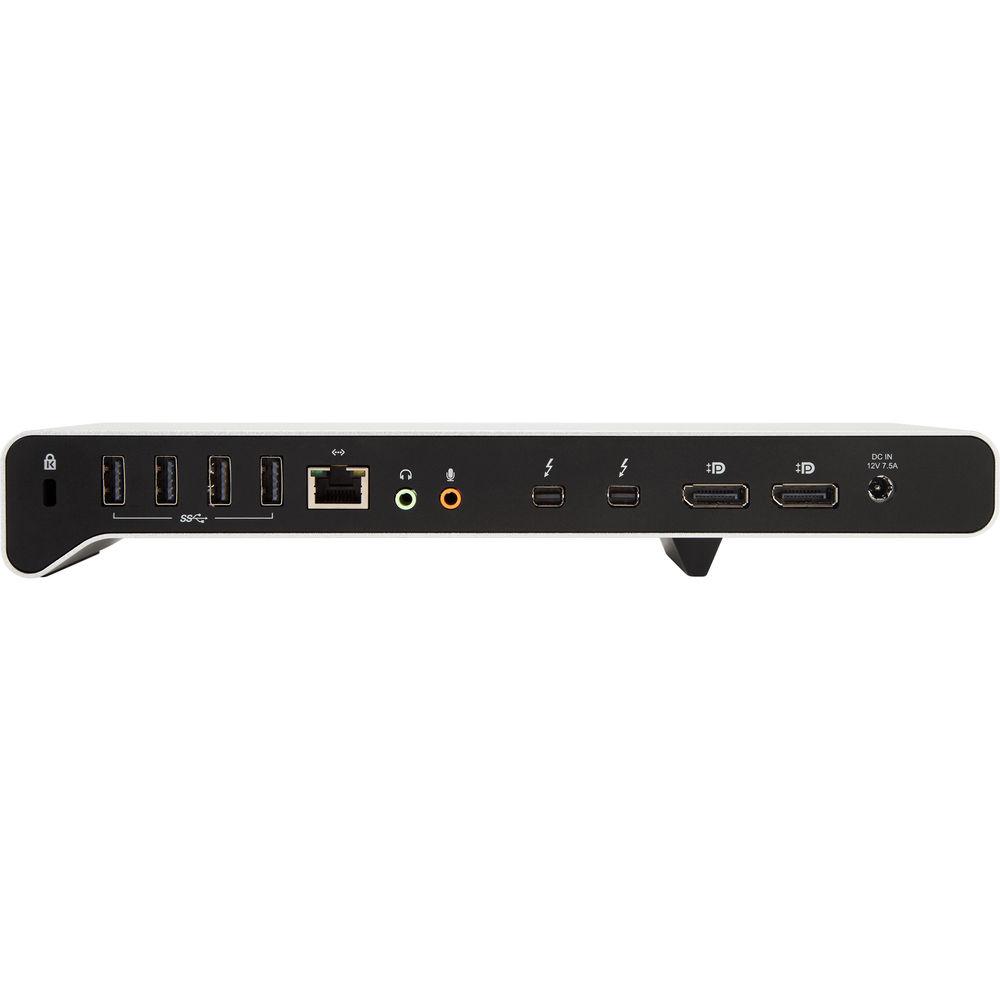

The dock also supports single and dual display configurations through its dual DisplayPort outputs, with the option of using a single 4K UHD display at resolutions up to 3840 x 2160 @ 30 fps, or dual 2K displays. Wired network connectivity is provided using the Gigabit Ethernet port and 3.5mm audio output and microphone input jacks allow users to connect devices such as speakers, headphones, and microphones to this dock. The Thunderbolt 2 Universal Docking Station is protected by a limited 3-year warranty. - 2 x Thunderbolt 2 ports @ 20 Gb/s (10 Gb/s x 2 channels)
- 2 x DisplayPort outputs for a single 4K HD up to 3840 x 2160 @ 30 fps resolution or dual 2K displays
- 1 x Gigabit Ethernet port for wired access
- 7 x USB 3.0 ports for USB peripherals
- 1 x USB 3.0 powered port for fast device charging
- Universal compatibility with Mac and Windows operating systems
- Extruded aluminum shell with a floating, non-slip base
UPC: 092636313753 In the Box Targus Thunderbolt 2 Universal Docking Station Limited 3-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Targus Thunderbolt 2 Universal Docking Station in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTargus DOCK210USZ Specs | | | USB | 7 x USB 3.1 Gen 1 Type-A
1 x USB 3.1 Gen 1 Type-A | | Thunderbolt | 2 x Thunderbolt 2 | | Ethernet | 1 x RJ45 (10/100/1000 Mbps) | | FireWire | None | | Display | 2 x DisplayPort | | Audio | 1 x 1/8" / 3.5 mm Headphone
1 x 1/8" / 3.5 mm Microphone | | Memory Card Slots | None | | | | Maximum Resolution Supported | 3840 x 2160 (Single Display) | | Data Transfer Rate | 40 Gb/s Thunderbolt 3
5 Gb/s USB 3.0/USB 3.1 Gen 1 | | Operating System Support | Windows, macOS/OS X | | | | Dimensions | 3.74 x 10.43 x 1.65" / 9.5 x 26.49 x 4.19 cm | | Weight | 1.7 lb / 0.8 kg | | | | Package Weight | 4.1 lb | | Box Dimensions (LxWxH) | 12.9 x 5.8 x 3.4" |
