User Manual for Targus Universal USB 3.0 DV4K Docking Station with Power Click to enlarge the picture
Contents of the user manual for the Targus Universal USB 3.0 DV4K Docking
- Product category: Docking Stations & Port Replicators Targus
- Brand: Targus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Targus Docking Stations & Port Replicators
|
User manual for the Targus Universal USB 3.0 DV4K Docking contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Targus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Targus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Targus product will considerably shorten its lifespan!
|

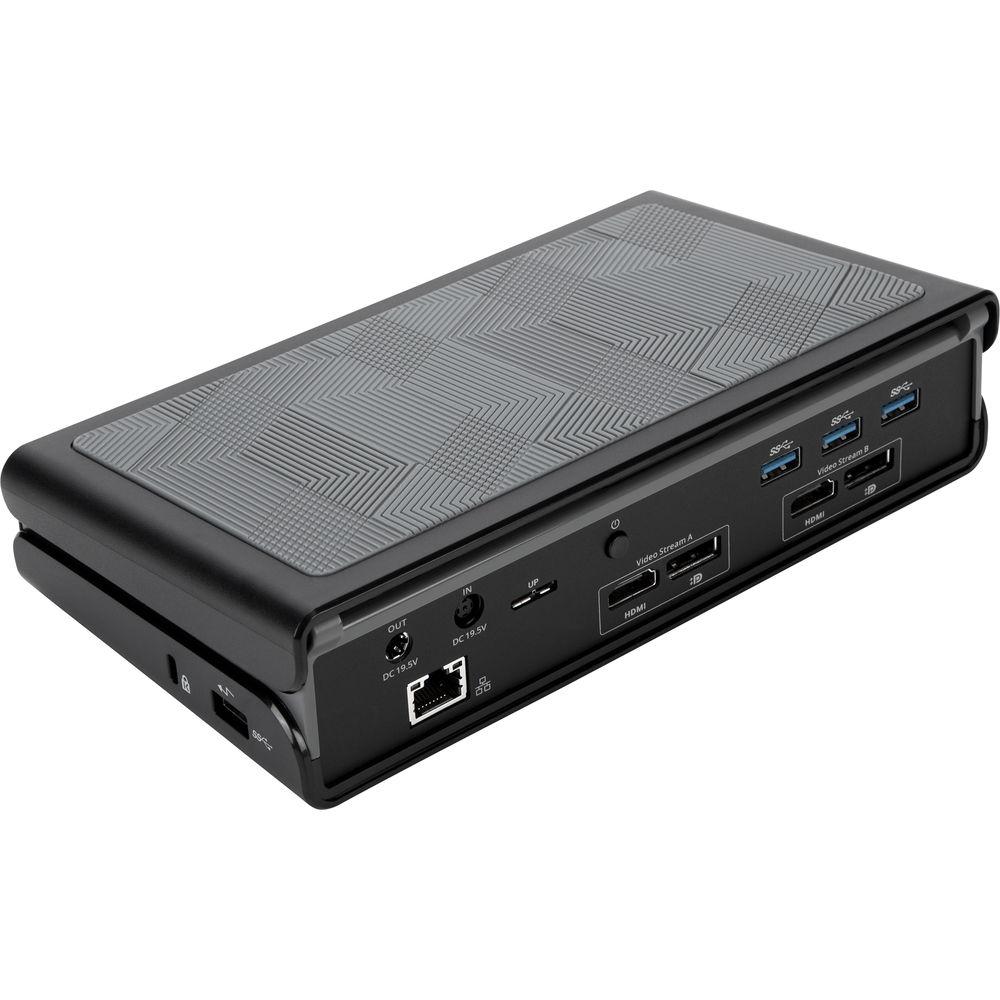

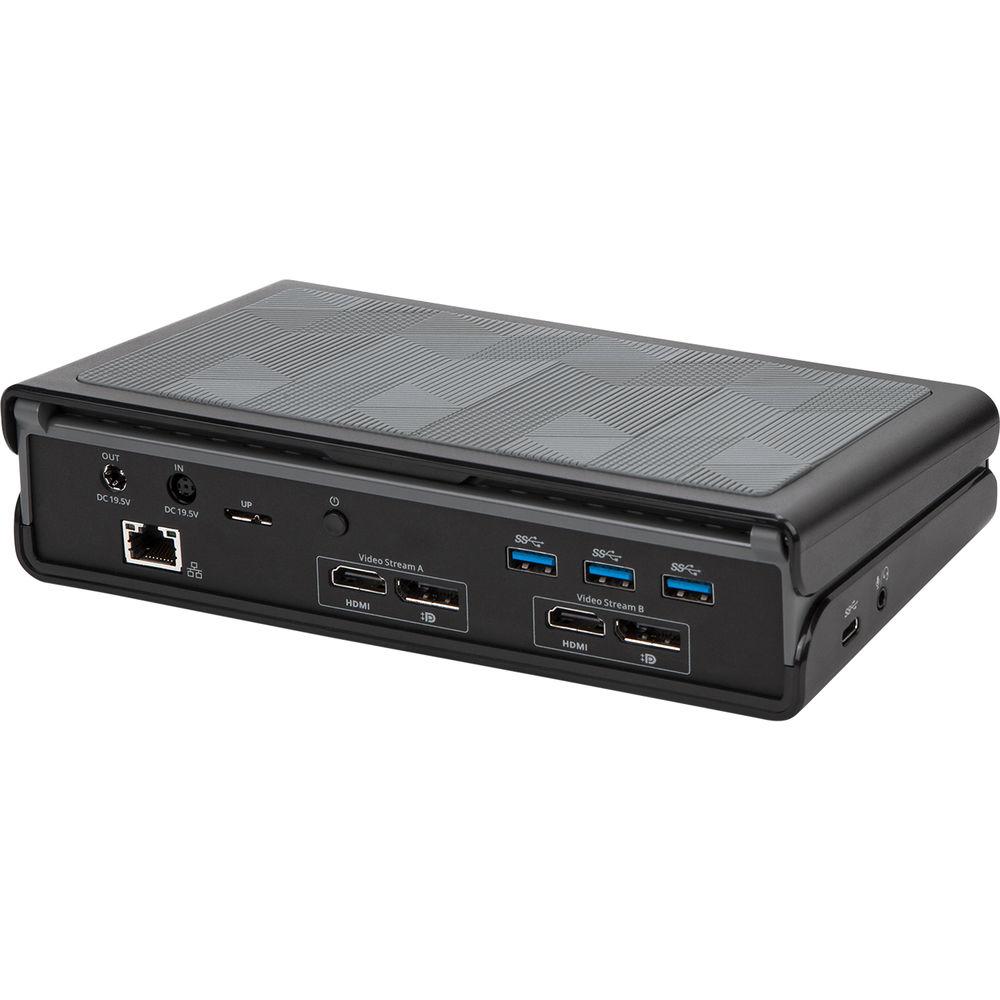

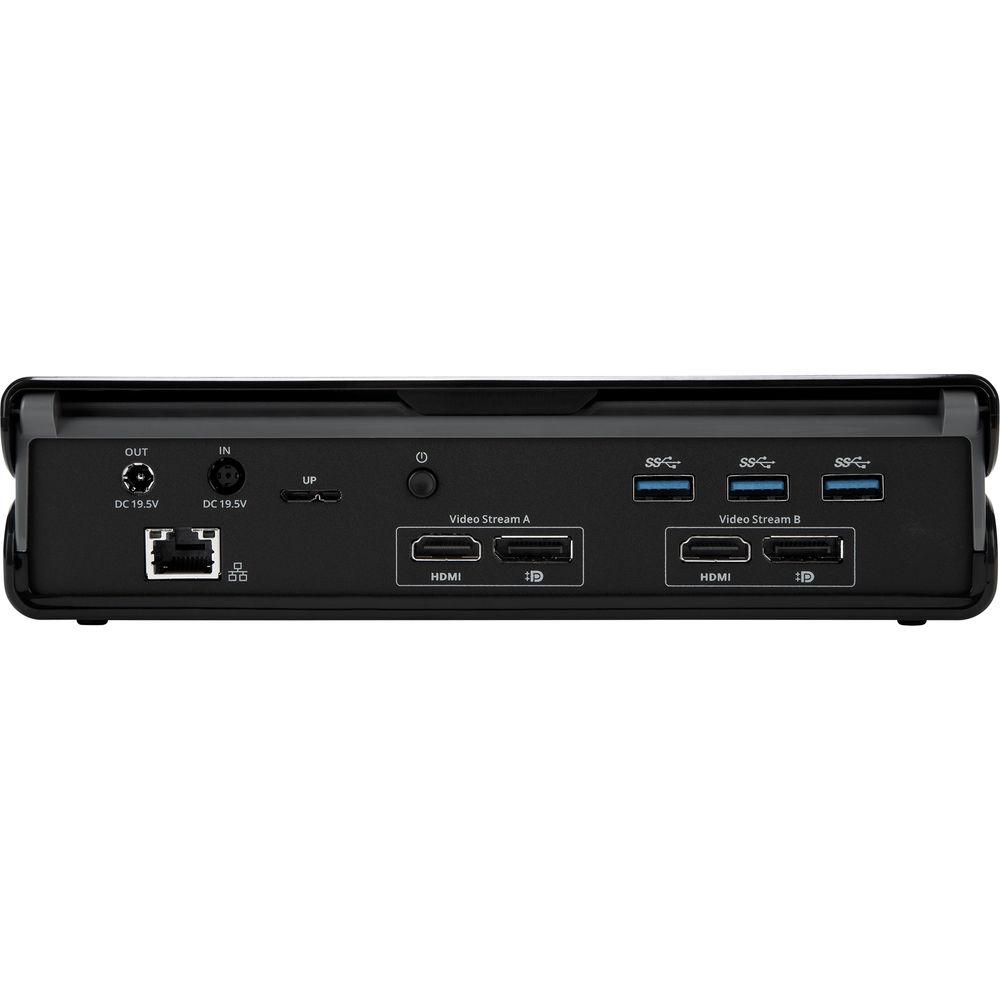

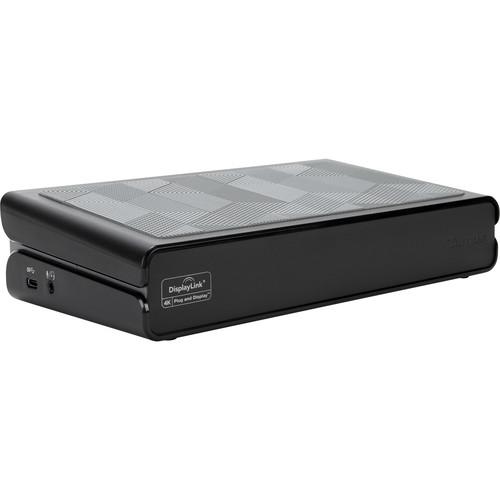

Product description Designed for shrinking desktops and tight spaces, the Universal USB 3.0 DV4K Docking Station with Power from Targus connects to your host Windows, Mac, or Android device using its micro-USB 3.0 port and included micro-USB to USB Type-A cable. This dock allows users to connect a variety of peripherals to their system using its one USB 3.0 Type-C port, four USB 3.0 Type-A ports (one powered for device charging) two HDMI 2.0 ports, two DisplayPort 1.2a++ ports, one Gigabit Ethernet port, and one 3.5mm headphone/mic jack. It also delivers integrated power and charging for many laptops that are compatible with 19 VDC. To help accommodate laptop charging, a variety of charging tips are included, which are stored in a removable case that fits inside the dock. Also included is a 120W AC adapter and a 3.3' DC host power and charging cable. Protection is provided by a limited 3-year warranty. General Features - Supports dual cinema 4K displays (4096 x 2160, 60 Hz, and 24 bpp) using the DisplayLink DL-6950 chipset
- Dual DisplayPort 1.2a++ with MST, dual HDMI 2.0, or one of each external monitor port
- 19 VDC laptop power and charging up to 90W

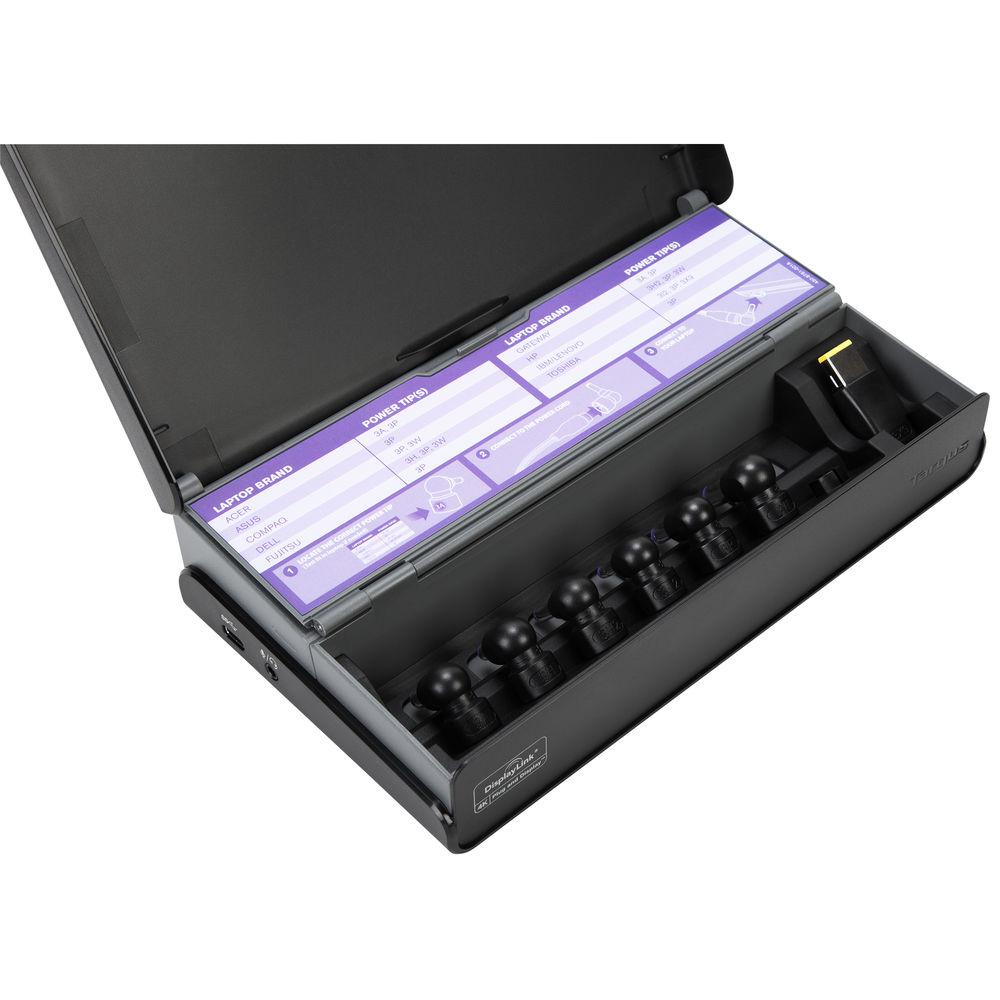

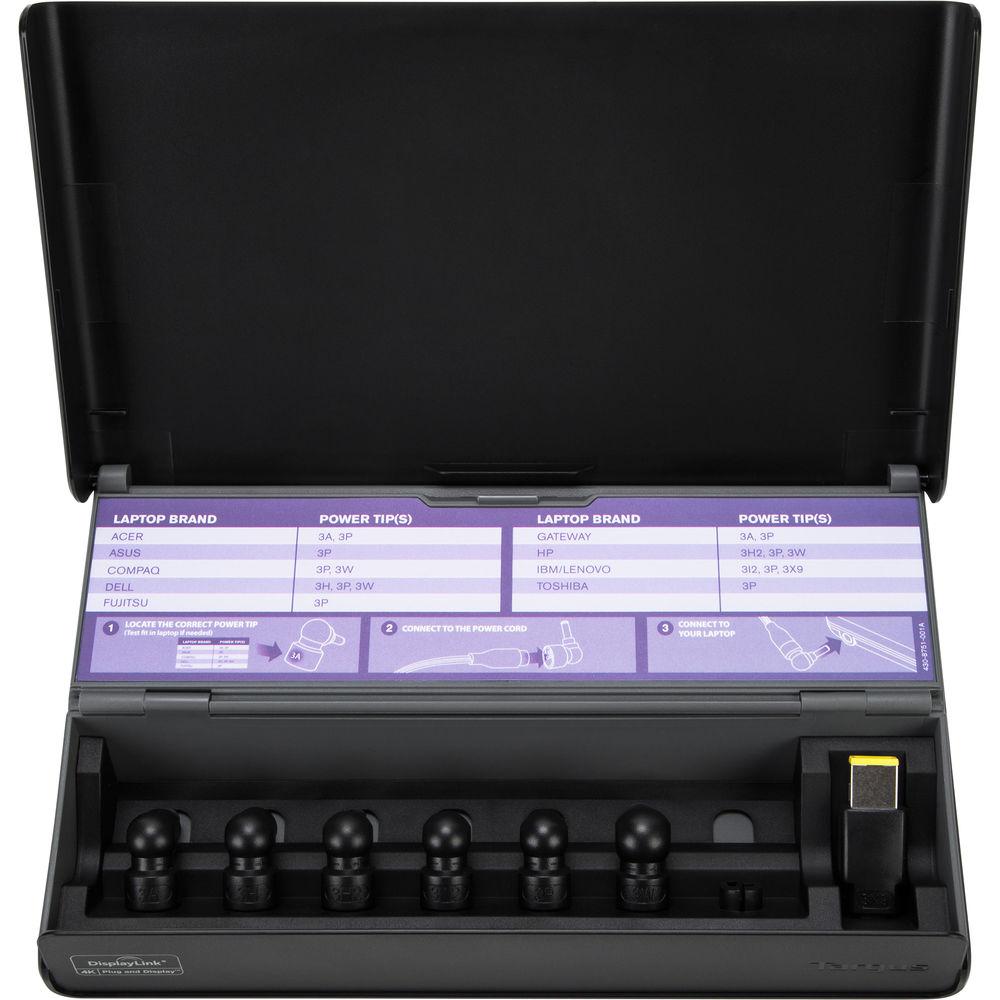

- Removable standalone tip compartment

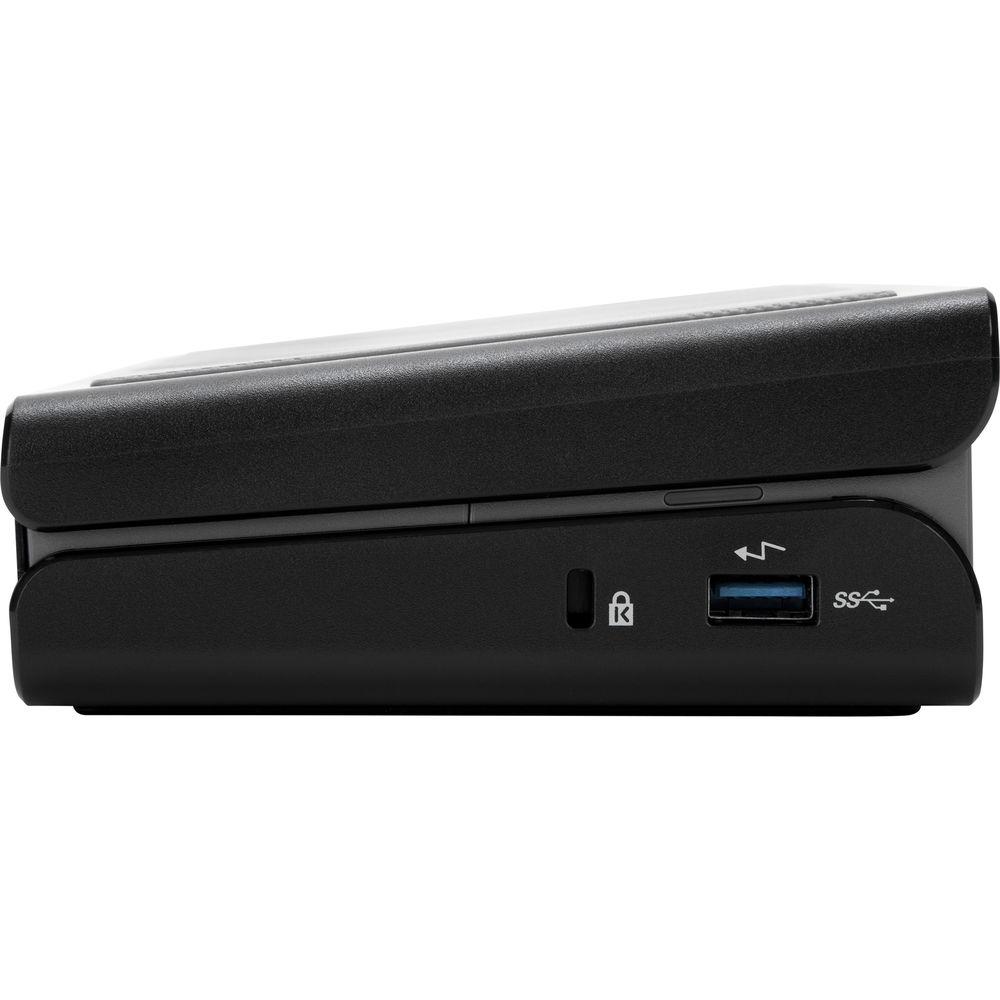

- Integrated lock slot accommodates industry-standard security locks
- Wedge design for laptop mounting
- Includes detachable 3.3' micro-USB 3.0 to USB 3.0 Type-A cable
- Includes 120W AC adapter and power-connected purple LED light
- Includes detachable 3.3' DC host power and charging cable
- Dual Displays
- Boost productivity by adding up to two monitors to your workstation. With two, or even three displays (if you include your laptop screen) connected to your docking station, it's faster and easier to switch between your spreadsheet and email or compare documents side-by-side.
- Innovative Design
- A compact, sleek, and industrial design with metallic details make this dock a sure fit for shrinking desktops and tight spaces. Elements like stacked ports add functionality in a reduced footprint, while the raised grooves on the non-slip, angled top surface create a comfortable typing angle for the laptop while offering passive cooling.
- All About the Ports

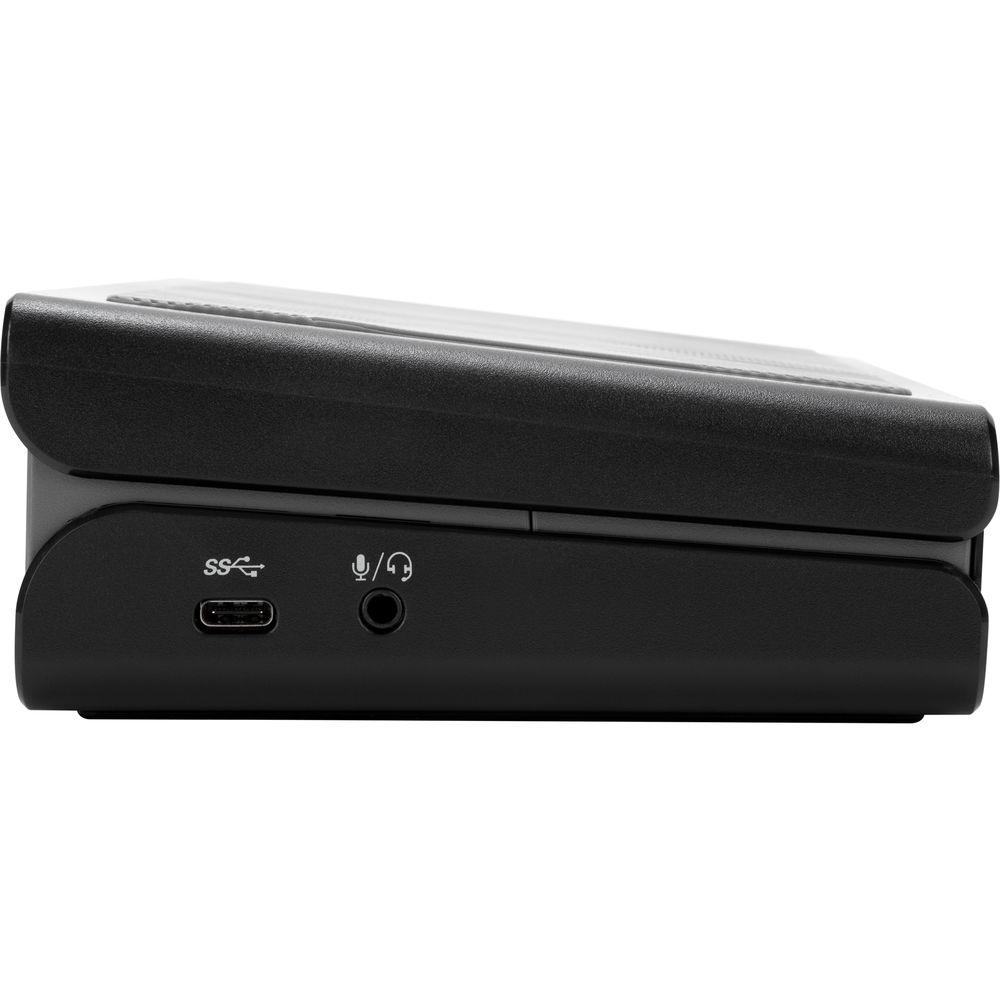

- Five USB 3.0 ports make it simple to add keyboards, external drives, and other peripherals to customize your workspace experience. The dock also includes a powered USB 3.0 port for charging your smartphone, tablet, or other devices, and a USB 3.0 Type-C port.
- Supported Operating Systems
- Windows 10, 8.1, 8, and 7, Mac OS X 10.10, 10.9, and 10.8, and Android 5.1 and 5.0
UPC: 092636322403 In the Box Targus Universal USB 3.0 DV4K Docking Station with Power Charging Tips & Case 120W AC Adapter DC Host Power and Charging Cable (3.3' / 1.0m) Micro-USB 3.0 to USB 3.0 Type-A Cable (3.3' / 1.0m) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Targus Universal USB 3.0 DV4K Docking Station with Power in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTargus Universal DV4K Docking Station Specs | USB | 1 x USB 3.1 Gen 1 Type-C 4 x USB 3.1 Gen 1 Type-A | Thunderbolt | None | Ethernet | 1 x RJ45 (10/100/1000 Mbps) | FireWire | None | Display | 2 x DisplayPort 1.2a (Female) 2 x HDMI 2.0 (Female) | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Combo | Memory Card Slots | None | | System Connection | 1 x USB 3.1 Gen 1 Micro-B Female | Connection Type | Detachable Cable | | Chipset | DisplayLink DL-6950 | Number of Displays Supported | 2 | Maximum Resolution Supported | 4096 x 2160 at 60 Hz (Dual Display) | Data Transfer Rate | 5 Gb/s USB 3.0/USB 3.1 Gen 1 | Operating System Support | Android, Windows, macOS/OS X | UASP Support | No | | Power Source | AC Adapter | Power Port | Barrel Connector (Unspecified Diameter) (Input) Barrel Connector (Unspecified Diameter) (Output) | DC Input Power | 19.5 VDC | | Cable Length | 3.28' / 1 m | LED Indicator | Power | Lock Slot | Yes | Dimensions | 8.3 x 4.8 x 2" / 21.08 x 12.19 x 5.08 cm | Weight | 1.5 lb / 0.7 kg | | Package Weight | 3.2 lb | Box Dimensions (LxWxH) | 9.12 x 6.5 x 4.38" |
