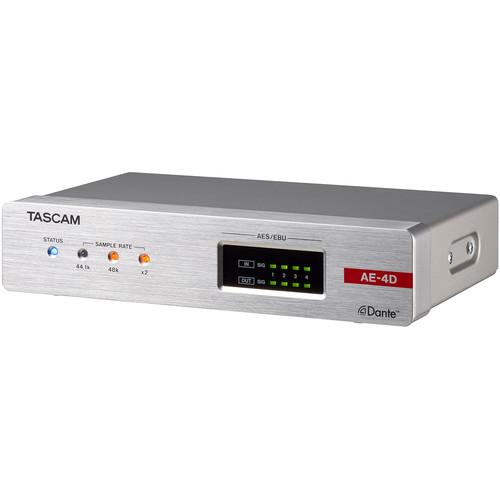

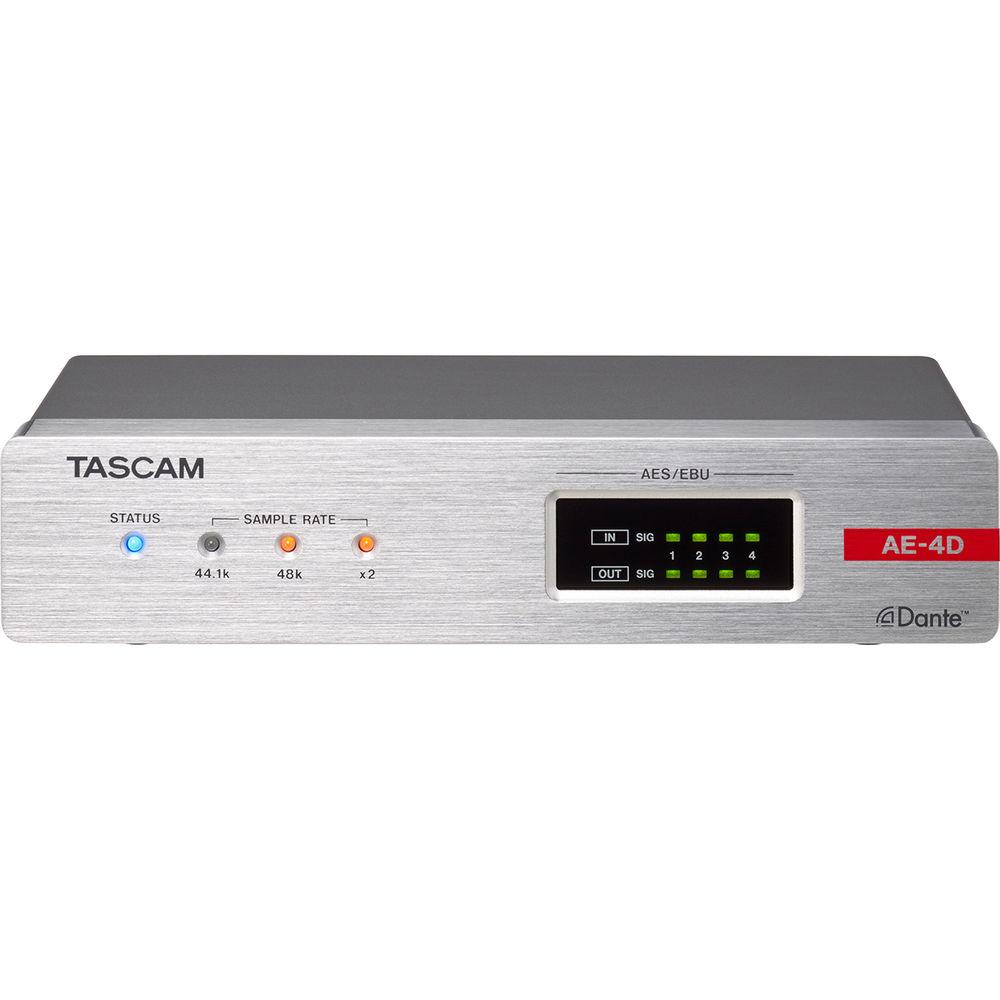

Product description The AE-4D AES/EBU Input/Output Dante Converter with Built-In DSP Mixer from Tascam can be used to convert 4-channel AES/EBU input signals into 4-channel Dante output signals, or the other way around for pro-audio applications.
The AE-4D AES/EBU Input/Output Dante Converter features Level control and is compatible with a Dante Domain Manager software, which offers security functions, enables the use of wide-area networks, and easy access to Dante systems using already established network infrastructures. With the AES67 mode, connection to AES67 network systems is also possible. Two installation brackets are included. - 4 x AES/EBU inputs/outputs
- Supports PoE (Power over Ethernet)
- Up to 24-bit/96 kHz sample rate
- Supports Dante daisy chain; this allows two Dante Compact Processor models to be connected without a network switch
- Compatible with Dante Domain Manager and Dante AES67 mode
- Flexible scene preset function allows to work in different area situations (up to 50 presets)
- Two types of user-control software available for Windows/Mac/iOS/Android devices:For integrators: input/output routing selection, DSP/design/scene settings of the complete system, etc.For end-users: simple app design for only the necessary functions such as area-volume settings, etc.
- Equipped with indicators that show LAN/Dante connection status and sample rate
- Equipped with signal indicators that monitor digital input/output signals
- Configurable reference level (via remote control only)
- Surface-mount adapters for installation under desks included
In the Box Tascam AE-4D AES/EBU Input/Output Dante Converter with Built-In DSP Mixer 2 x Installation Brackets Limited 1-Year Warranty for Parts, 90-Day Warranty for Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Tascam AE-4D AES EBU Input Output Dante Converter with Built-In DSP Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTascam AE-4D Specs | | | Formats Supported | 16/24-Bit, 44.1/48 kHz; 4 Channels

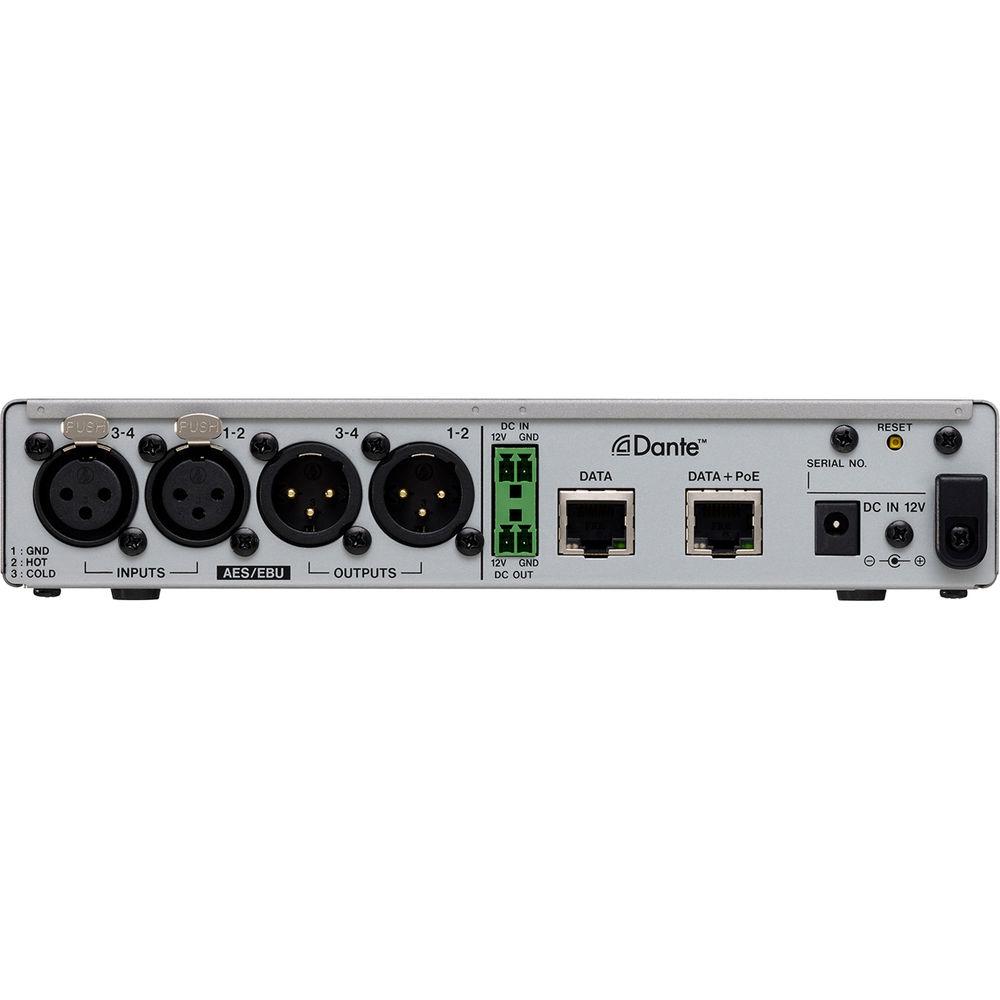

16/24-Bit, 88.2/96 kHz; 2 Channels (Double Speed) | | | | Connector | RJ-45 | | Transmission Protocol | Dante | | Gigabit Ethernet | 1000 BASE-T (IEEE 802.3ab) | | Cable | Category 5e or Faster STP Cables | | | | Connector | 2 x 3-Pin XLR (Channels 1, 2, 3, and 4) AES/EBU | | Input Impedance | 110 Ohms | | Format | AES3-2003/IEC60958-4 (AES/EBU) | | Sampling Frequencies | 32 to 192 kHz (Sampling Rate Converter is Always on) | | | | Connector | 2 x 3-Pin XLR Male (Channels 1, 2, 3, and 4) AES/EBU | | Output Impedance | 110 Ohms | | Format | AES3-2003/IEC60958-4 (AES/EBU) | | Supported Sampling Rate | 44.1, 48, 88.2, and 96 kHz | | | | Power | PoE class 0
Tascam PS-P1220E AC Adapter (sold separately) | | Power Consumption | 3 W | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Dimensions (W x H x D) | 8.4 x 1.7 x 5.4" / 21.4 x 4.4 x 13.6 cm | | Weight | 28 oz / 795 g |
