User Manual for Tascam BO-16DX IN Rackmount 16-Channel XLR Female to DB25 Adapter Click to enlarge the picture
Contents of the user manual for the Tascam BO-16DX IN Rackmount 16-Channel XLR
- Product category: Networked Audio Systems Tascam
- Brand: Tascam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tascam Networked Audio Systems
 |
User manual for the Tascam BO-16DX IN Rackmount 16-Channel XLR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tascam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tascam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tascam product will considerably shorten its lifespan!
|
Product description The Tascam BO-16DX/IN is a rackmount 16-channel XLR female to DB25 designed to deliver multi-channel conversion between D-Sub 25-pin and XLR 3-pin female for system installers, A/V technicians, and audio engineers in houses of worship, clubs, restaurants, and live stage applications. Its 16 channels of I/O include 16 XLR 3-pin female connectors and two DB25 female connectors. The enclosure occupies 1 RU and allows rotatable orientation to avoid unnecessary stress on cables. The reversible rack ears enable the BO-16DX/IN to be positioned with either the XLR or DB25 connectors facing forward. Being passive, it requires no power source. A rackmount screw kit is included for easy installation. - Ideal for interfacing between stage boxes, FOH and monitor mixing consoles, audio over IP converters, and more

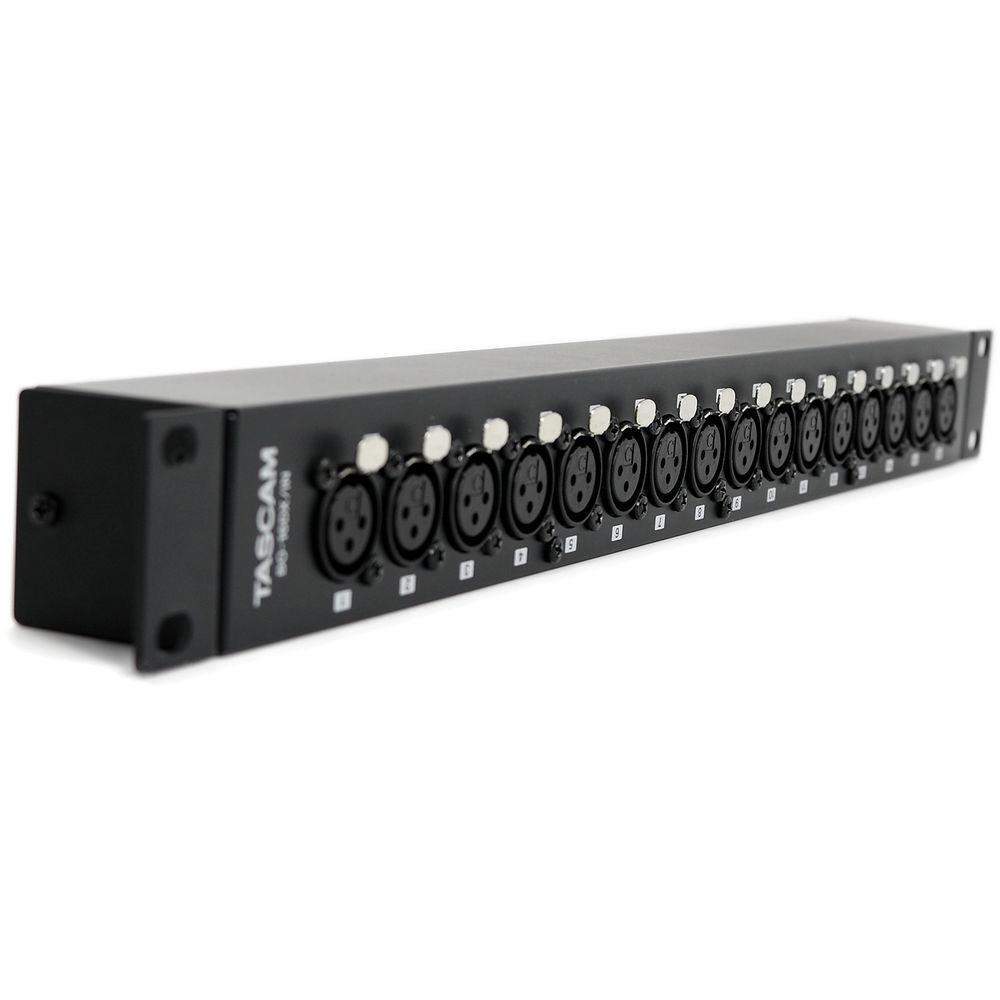

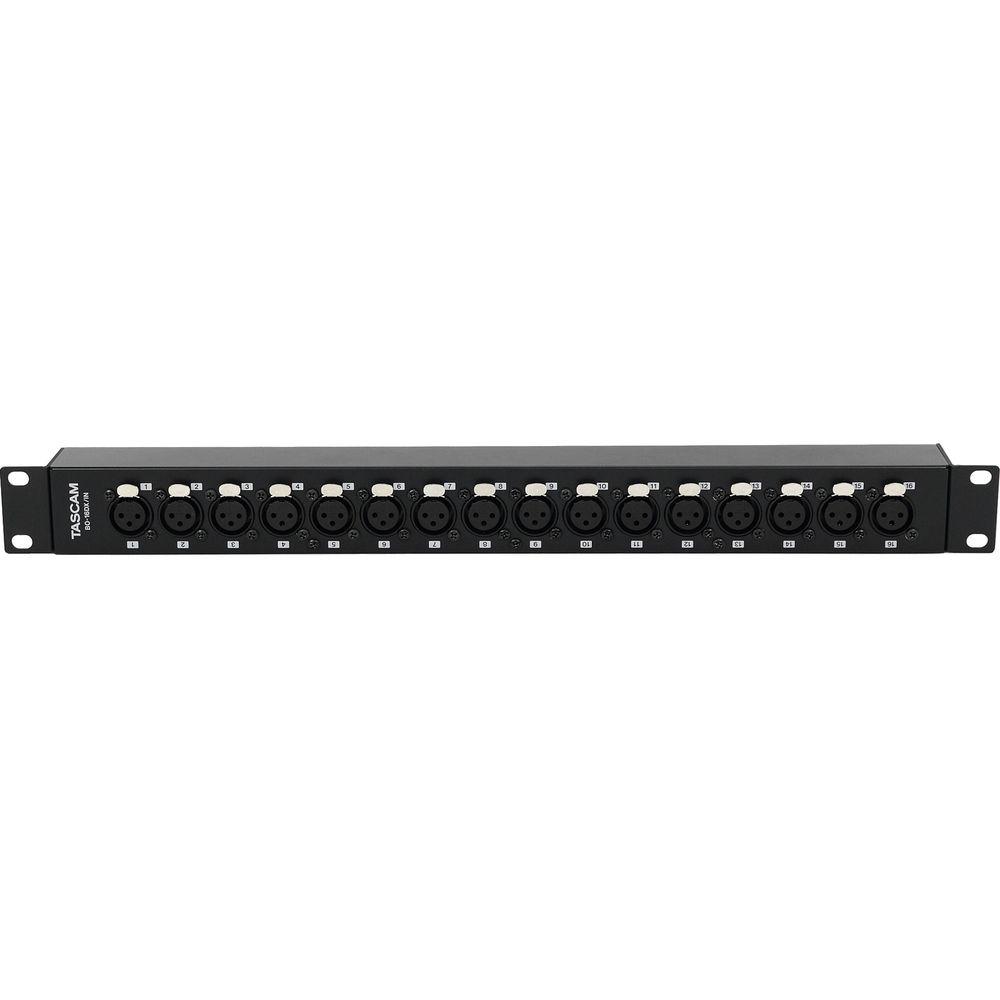

- 16 analog input channels via 16 XLR female connectors

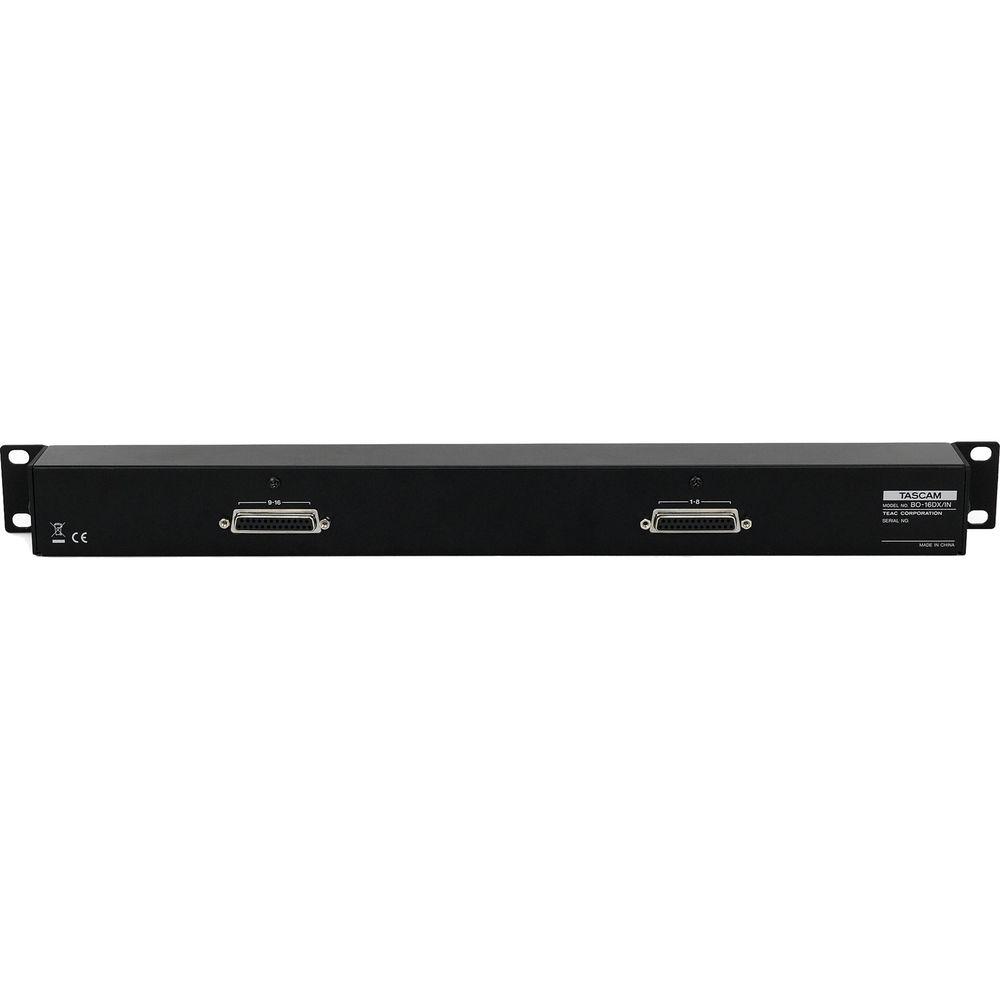

- 16 analog output channels via two DB25 female connectors
- Mount in either of two 180° rotations to simplify cable runs and avoid unnecessary stress on cables
- Reversible rack ears can be positioned to face forward or backward so that either the XLR or DB25 connectors are front facing
- Shallow depth uses minimal rack space
- Passive design requires no power source
- Includes rackmount screw kit
UPC: 043774033560 In the Box Tascam BO-16DX/IN Rackmount 16-Channel XLR Female to DB25 Adapter Rackmount Screw Kit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tascam BO-16DX IN Rackmount 16-Channel XLR Female to DB25 Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTascam BO-16DX/IN Specs | Inputs | 16 x XLR 3-pin female | | Outputs | 2 x DB25 female | | Other Connectors | 4 x 4-40 UNC inch-type attachment screws | | Dimensions (W x H x D) | 19.0 x 1.7 x 2.1" / 482.6 x 44.1 x 54.5 mm | | Weight | 2 lb / 0.9 kg | | | | Package Weight | 3.7 lb | | Box Dimensions (LxWxH) | 21.4 x 5.5 x 4.95" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 69 owners. Add your rating and experience with the product.
