User Manual for Tascam BO-32DE Rackmount 32-Channel DB25 to Euroblock I O Adapter Click to enlarge the picture
Contents of the user manual for the Tascam BO-32DE Rackmount 32-Channel DB25 to
- Product category: Networked Audio Systems Tascam
- Brand: Tascam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tascam Networked Audio Systems
 |
User manual for the Tascam BO-32DE Rackmount 32-Channel DB25 to contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tascam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tascam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tascam product will considerably shorten its lifespan!
|

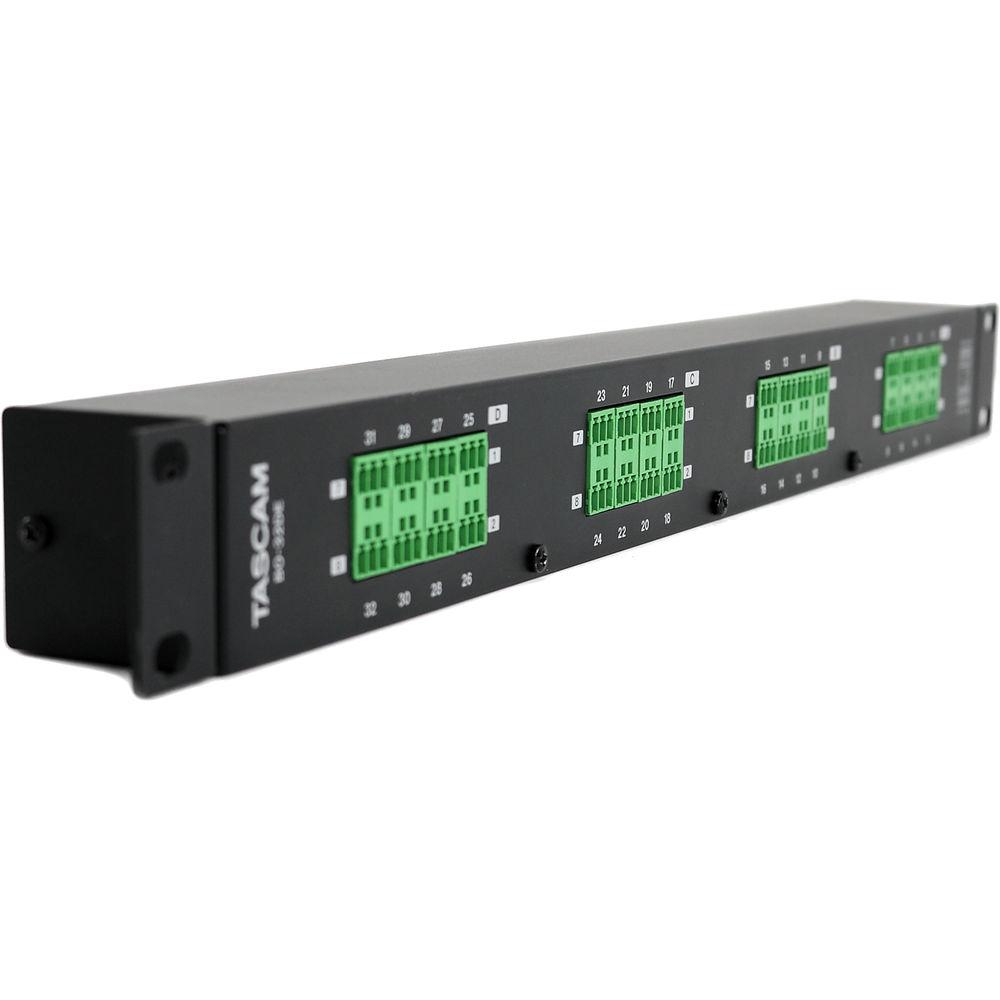

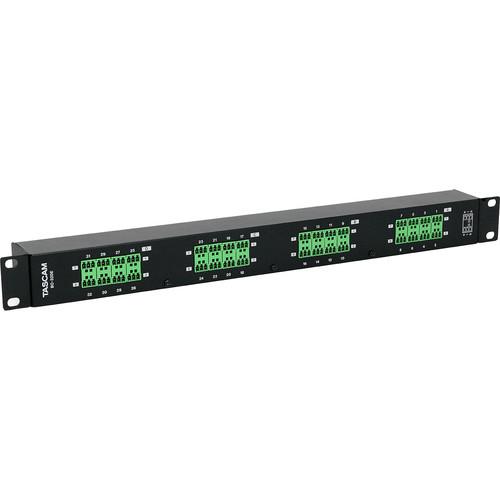

Product description The Tascam BO-32DE is a passive rackmount 32-channel DB25 to Euroblock I/O adapter designed to deliver multi-channel conversion between D-Sub 25-pin and Euroblock for system installers, A/V technicians, and audio engineers in houses of worship, clubs, restaurants, and live stage applications. Its 32 channels of I/O include 16 Euroblocks and four DB25 connectors, all of which can be used as inputs or outputs. The enclosure occupies 1 RU and allows rotatable orientation to avoid unnecessary stress on cables. The reversible rack ears enable the BO-32DE to be positioned with either the Euroblock or DB25 connectors facing forward. 32 Euroblock plug tabs, a cable kit, and a rackmount screw kit are included. - Ideal for providing connectivity between CD players, digital audio players, microphone preamps, zone mixers, distribution amplifiers, audio over IP converters, and more

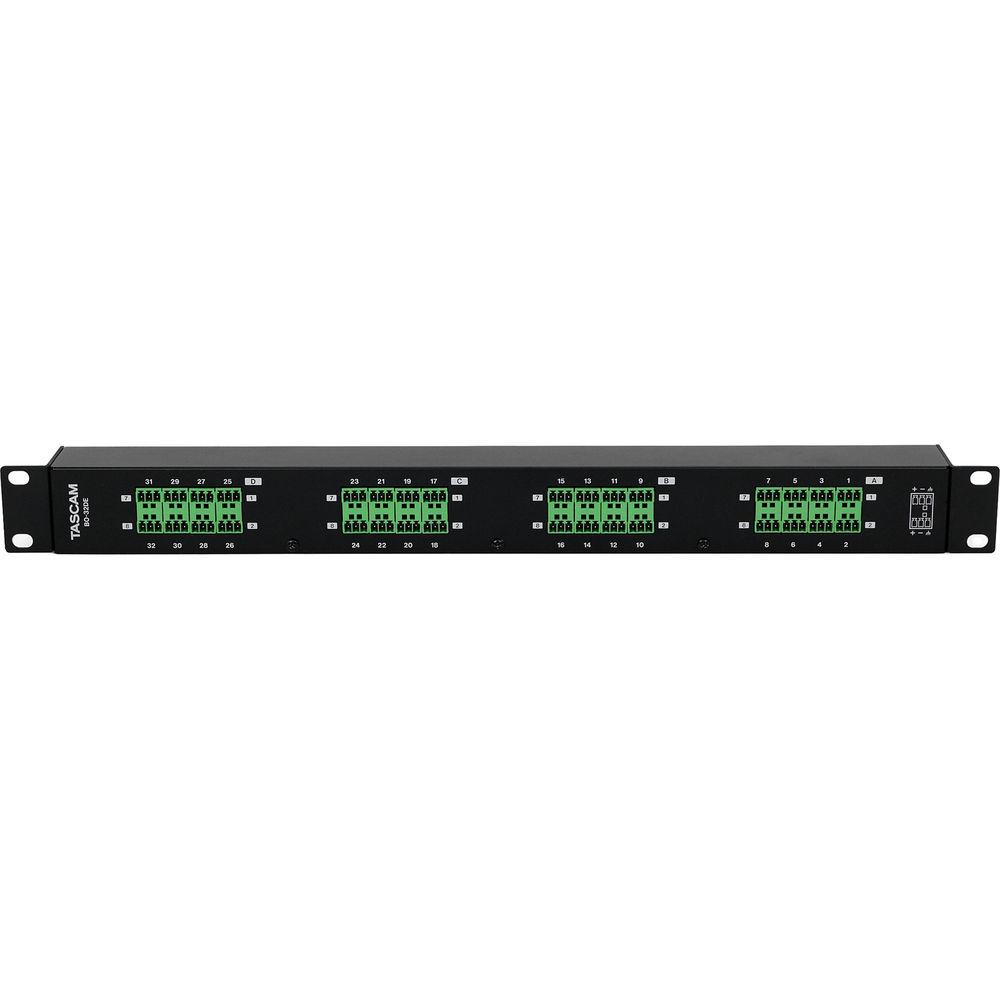

- 16 Euroblock balanced connectors

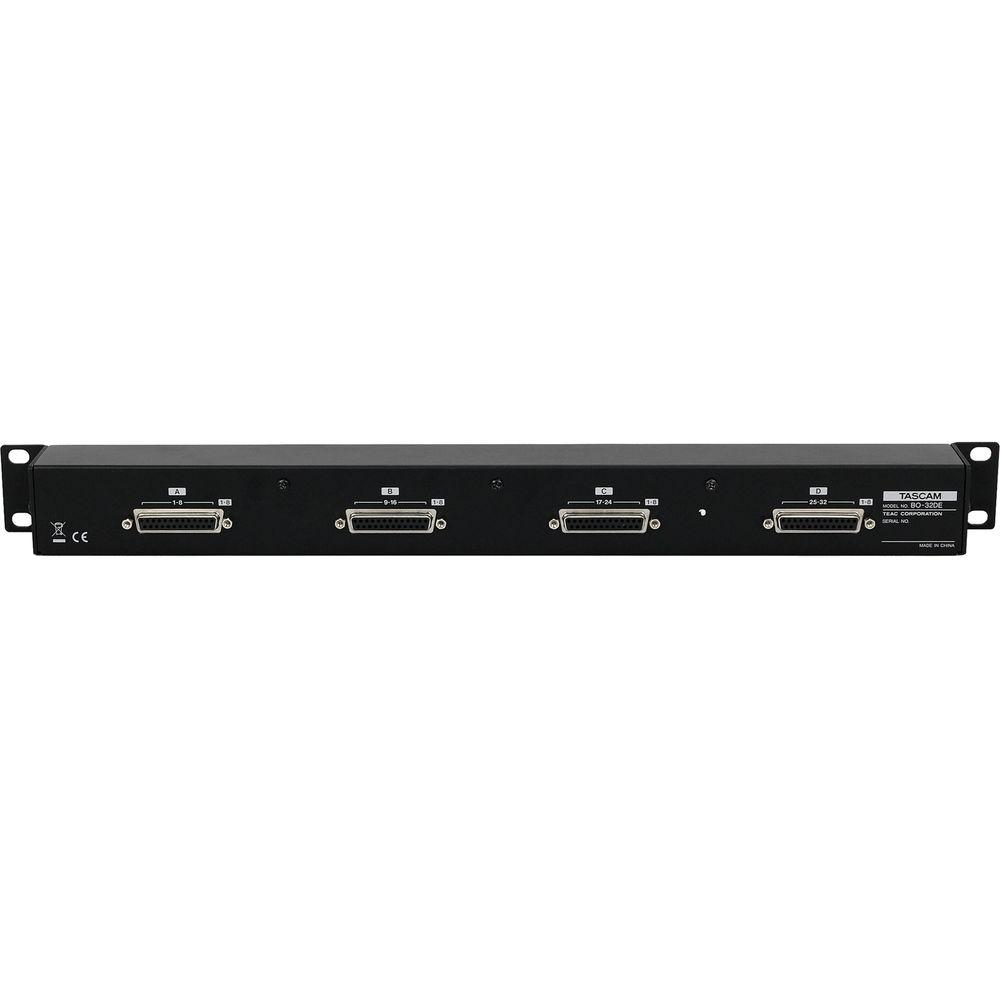

- Four DB25 balanced connectors
- Connectors function as inputs or outputs to accommodate a range of routing scenarios
- Mount in either of two 180° rotations to simplify cable runs and avoid unnecessary stress on cables
- Reversible rack ears can be positioned to face forward or backward so that either the Euroblock or DB25 connectors are front facing
- Shallow 2" depth uses minimal rack space
- Passive design requires no power source
- Includes 32 Euroblock plug tabs, cable kit, and rackmount screw kit
UPC: 043774033546 In the Box Tascam BO-32DE Rackmount 32-Channel DB25 to Euroblock I/O Adapter 32 x Euroblock Plug Tabs Cable Kit Rackmount Screw Kit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tascam BO-32DE Rackmount 32-Channel DB25 to Euroblock I O Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTascam BO-32DE Specs | I/O Connectors | 16 x Euroblock balanced connectors, 3.81 mm pitch
4 x DB25 balanced connectors (D-Sub 25-pin) | | Other Connectors | 8 x 4-40 UNC inch-type attachment screws | | Dimensions (W x H x D) | 19.0 x 1.7 x 2.0" / 482.6 x 44.1 x 50.8 mm | | Weight | 2 lb / 0.9 kg | | | | Package Weight | 3.7 lb | | Box Dimensions (LxWxH) | 21.0 x 5.5 x 4.9" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 71 owners. Add your rating and experience with the product.
