User Manual for Tascam CD-200BT Rackmount CD Player With Bluetooth Receiver Click to enlarge the picture
Contents of the user manual for the Tascam CD-200BT Rackmount CD Player With
- Product category: CD/DVD/Blu-Ray Recorders & Players Tascam
- Brand: Tascam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tascam CD/DVD/Blu-Ray Recorders & Players
 |
User manual for the Tascam CD-200BT Rackmount CD Player With contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tascam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tascam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tascam product will considerably shorten its lifespan!
|

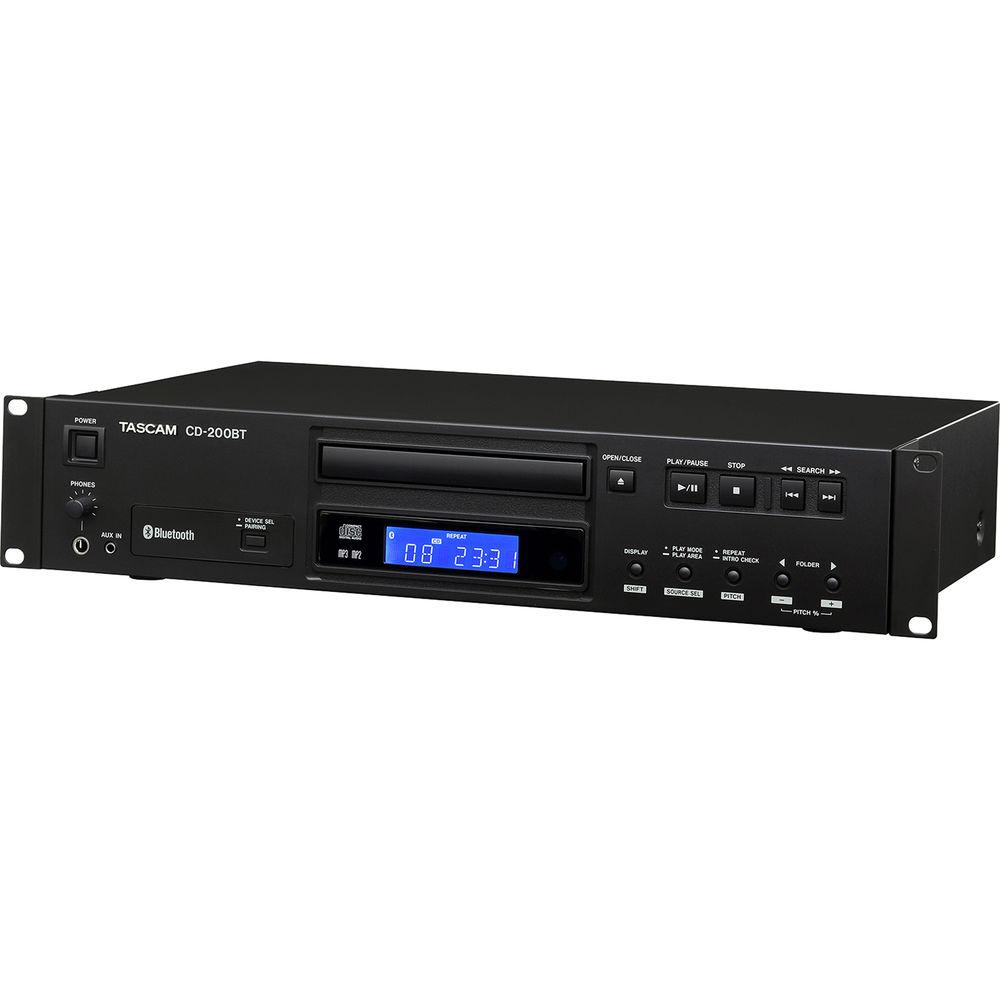

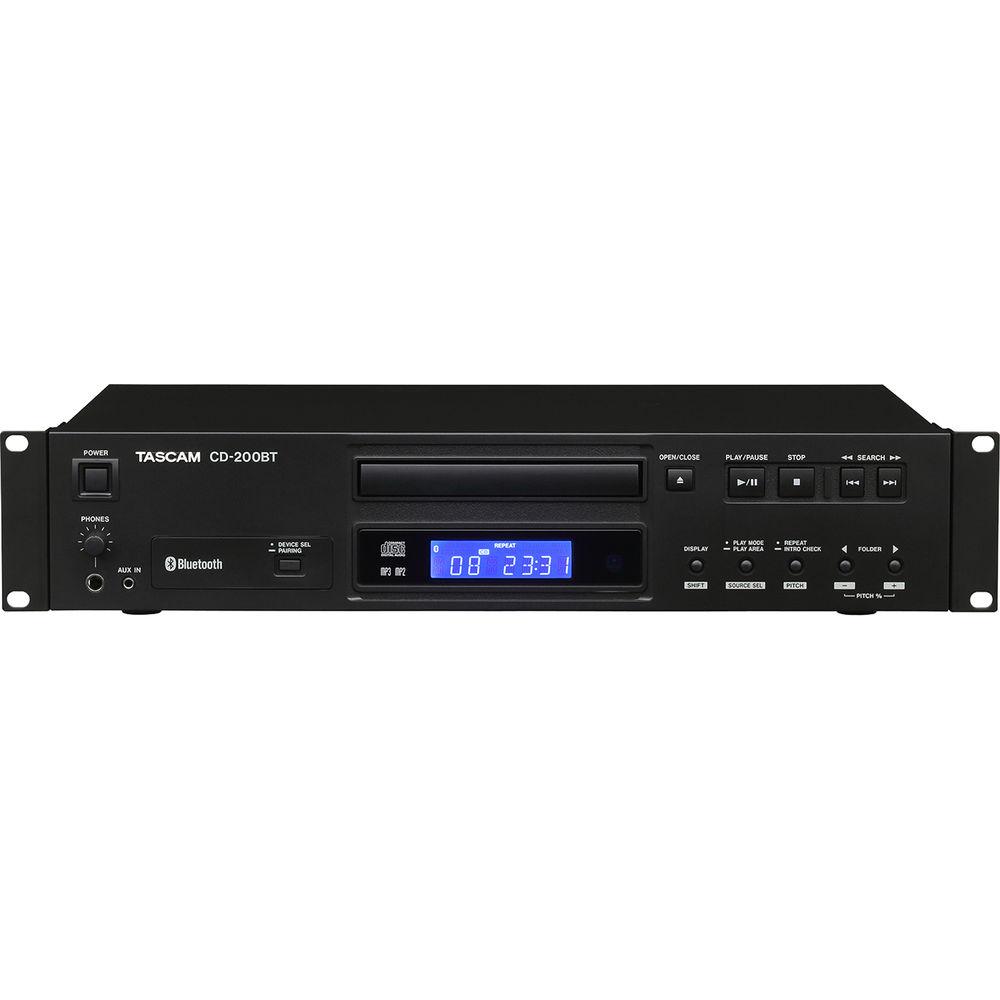

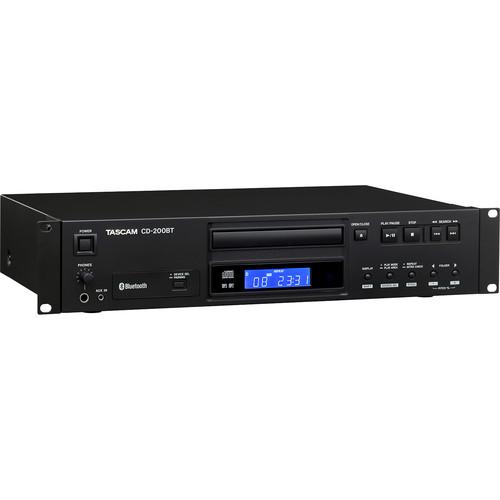

Product description The CD-200BT Rackmount CD Player With Bluetooth Receiver from Tascam allows you to playback CDs, CD-Rs, CD-RWs, and WAV, MP2 and MP3 data CDs in addition to audio from Bluetooth enabled devices. While you can only pair one Bluetooth device to the CD-200BT at a time, you can register up to 8 devices, allowing you to switch between them quickly. Bluetooth is only available to analog outputs and will not transmit via digital coaxial or optical outputs.
The CD drive itself is designed and built by TEAC and features a 10-second shockproof memory, keeping your playback protected from vibrations and CD skips. The CD-200BT also has an auxiliary 3.5mm stereo mini-jack input for integrating another sound source. The unit has a variety of output options including stereo analog RCA outputs and digital coaxial and optical outs. A front-panel 1/4" headphone output with independent volume control allows you to use the CD-200BT for personal listening. The unit can be controlled with the included remote control and is rackmountable with the included rackmount screw kit. - Wireless Playback from Bluetooth Devices
- Through the antenna located in the front of the CD-200BT, audio file playback signals can be received from a variety of Bluetooth compatible devices. The types of files that can be played back depend on the transmitting device; so any file type that can be played back by iTunes, Windows Media Player, smartphone player apps and other music applications can be played through this unit. Bluetooth playback uses a wireless connection, so no new wiring is necessary to use compatible audio sources as long as they are in signal-range, allowing easy and speedy playback
- Device Selection Function
- Bluetooth playback requires pairing. Normally, pairing is one to one, but the CD-200BT has a device selection function that can be used to pair with multiple transmitting devices. By registering devices to be used in advance, you can switch smoothly between transmission devices for playback with minimal connection interruption time (only one device can be used for playback at a time). In addition, since the name of the transmission device currently being used for audio playback can be shown on the display, you can check the connection status within this unit
- A2DP Playback
- A variety of different profiles are used for Bluetooth transmission depending on the application. The CD-200BT supports the A2DP (Advanced Audio Distribution Profile) for music playback, and SBC (Sub Band Codec), a standard A2DP codec. In addition, it supports the aptX codec, making high quality wireless audio playback possible. The aptX codec also has an error recovery function, so audio is much less likely to be interrupted, compared to ordinary SBC transmission
- CD Drive Designed and Built by TEAC
- The CD-200BT's CD drive is designed by TEAC
- 10-Second Shockproof Memory
- The 10-second shockproof memory prevents skipping from vibration and other causes. Data stored in the player's memory can be played back without skipping, preventing undesired interruptions
- Additional Features
-
- Up to eight Bluetooth transmission devices can be paired at a time for quick switching
- The name of the transmission device currently being used for playback can be displayed
- aptX, AAC and SBC codecs are supported, and the codec being used can be displayed
- SCMS-T is supported using Bluetooth (A2DP), so audio with content protection can be received
- Bluetooth antenna in the front for stable Bluetooth connections
- High-quality CD drive designed for audio by TEAC
- 10-second shockproof memory prevents skipping from vibrations and other causes
- CD drive supports playback of CD-DA and WAV/MP3/MP2 files (data CD)
- Supports CD text and ID3 tags, so text information, including artist, album and track names, can be shown
- Four playback modes (continuous, shuffle, program and single)
- Repeat playback function (all or single)
- Folder repeat playback (data CD)
- Switch between display of track elapsed time, track and disc remaining time (audio CD)
- +/-14% pitch control function(audio CD/data CD)
- Intro check function can be used to play the first 10 seconds of songs in order (audio CD/data CD)

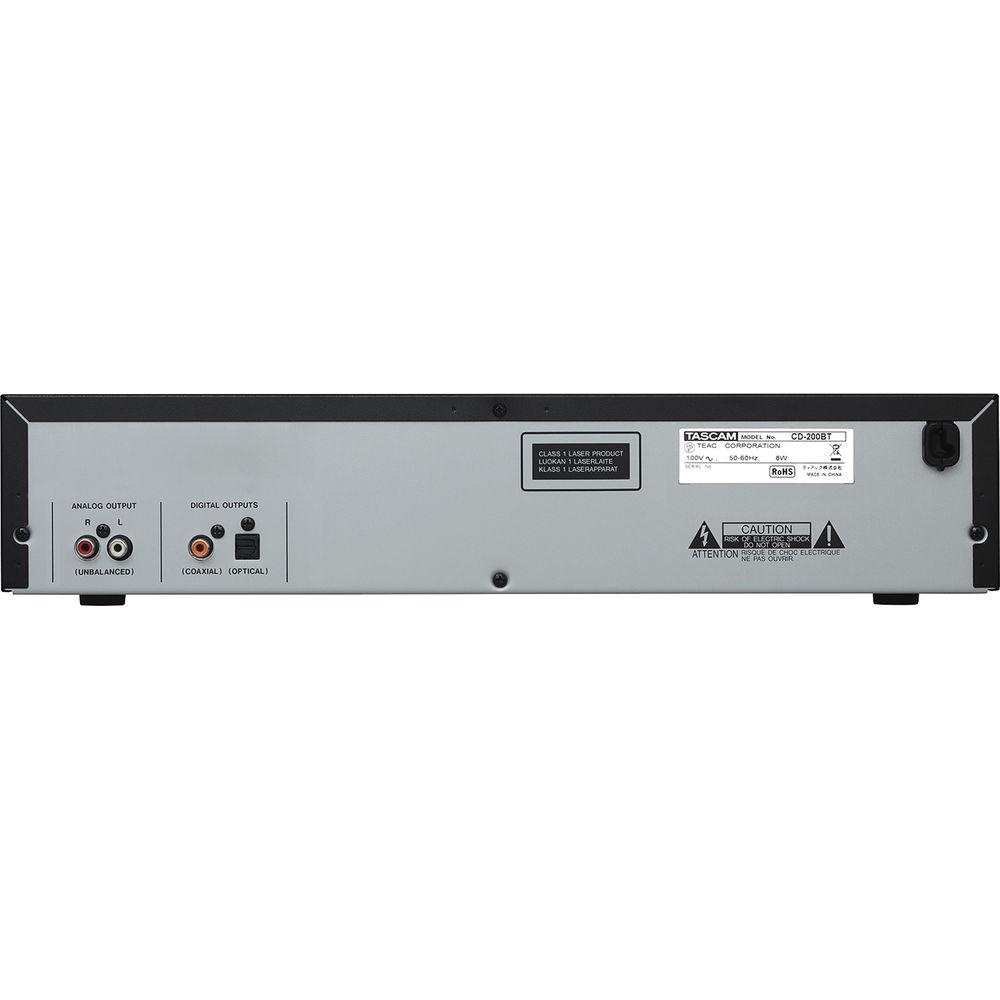

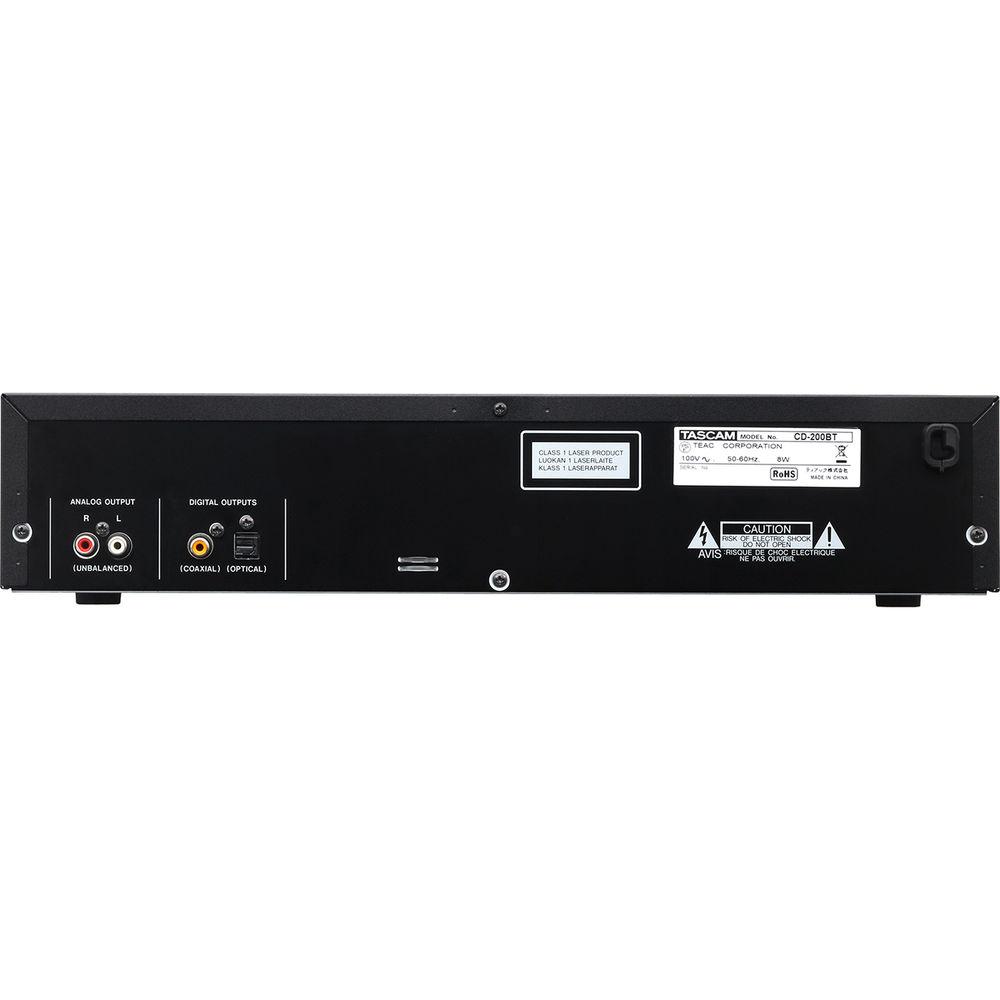

- RCA analog outputs and COAXIAL/OPTICAL digital outputs
- Stereo mini jack input on the front for portable audio devices
- 2U EIA rack-mount size

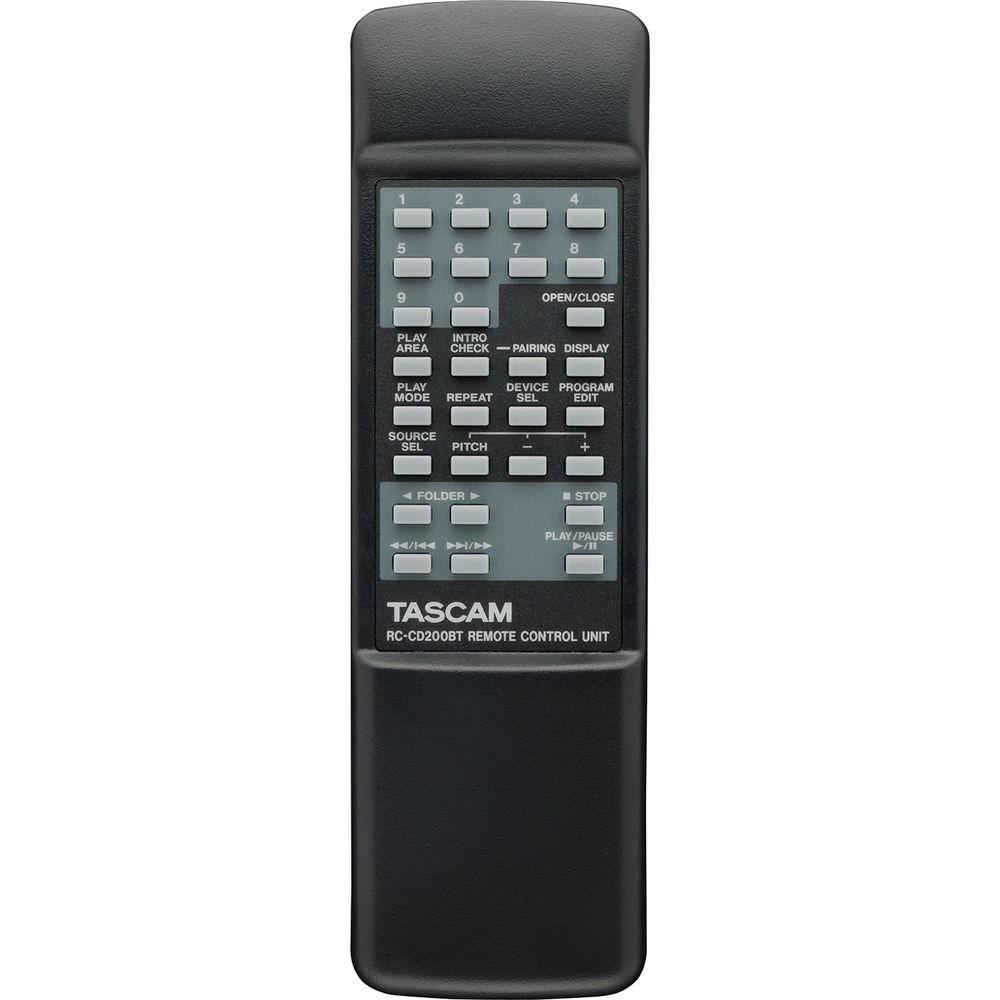

- Wireless remote controller with 10-key included
- Paring and device selection can be conducted with the included wireless remote control
- Headphone output
- RoHS certified
UPC: 043774029990 In the Box Tascam CD-200BT Rackmount CD Player With Bluetooth Receiver Wireless Remote Control AA Battery Rackmounting Screw Kit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tascam CD-200BT Rackmount CD Player With Bluetooth Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTascam CD-200BT Specs | Playback Media Formats | CD, CD-R, CD-RW; 3 or 4", 8 or 12 cm | | Playback Formats | CD-DA: Stereo, 44.1 kHz, 16-bit
WAV (Data CD): Stereo, 8, 16, 32, 11.025, 22.05, 44.1, 12, 24, 48 kHz, 16-bit
MP2 (Data CD): Stereo, 32, 44.1, 48 kHz; 32 to 384 kbps
MP3 (Data CD): Stereo, 32, 44.1, 48 kHz; 32 to 320 kbps, VBR | | Auxiliary Input | Connector: 1/8" (3.5 mm) stereo mini jack
Input Impedance: 22 kOhms
Nominal Input Level: -20 dBV
Maximum Input Level: -4 dBV | | Analog Output | Connector: 2x RCA pin-jack
Output Impedance: 200 Ohms
Nominal Output Level: -10 dBV (0.32 Vms)
Maximum Output Level: 6 dBV (2.0 Vms) | | Digital Output | Coaxial:
Connector: RCA pin-jack
Format: IEC60958-3 (S/PDIF)
Optical:
Connector: TOS (JEITA RC-5720C)
Format: IEC60958-3(S/PDIF) | | Bluetooth | Version: 3.0
Output Class: Class 2
Supported Profile: A2DP, AVRCP
Supported A2DP Codec: SBC, AAC, aptX
Supported Contents Protection: SCMS-T | | Headphone Output | Connector: 1/4" (6.3 mm) stereo jack
Maximum Output Level: 20 mW + 20 mW (THD 0.1%, 32 Ohms loaded) | | Frequency Response | 20 Hz to 20 kHz, +/-1 dB (playback, JEITA) | | Distortion | 0.01% or less (playback, JEITA) | | Signal to Noise Ratio | 90 dB or greater (playback, JEITA) | | Dynamic Range | 90 dB or greater (playback, JEITA) | | Channel Separation | 90 dB or greater (playback, JEITA) | | Power | North American: AC 120 V, 60 Hz
Europe: AC 230 V, 50 Hz
Australia: AC 240 V, 50 Hz | | Power Consumption | 11 W | | Operating Temperature | 41 to 95°F / 5 to 35°C | | | | Package Weight | 12.25 lb | | Box Dimensions (LxWxH) | 22.0 x 15.0 x 7.0" |
