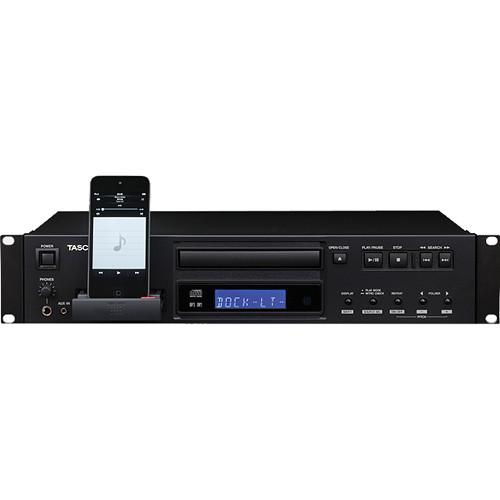

Product description The Tascam CD-200iL Professional CD Player with 30-Pin and Lightning iPod Dock is a 2 RU rackmountable media player designed for home and installed listening applications. The unit features a TEAC constructed CD-Drive with a 10 second shockproof buffer to prevent audio dropouts if a CD skips. The drive can handle a variety of file formats such as WAV, MP3, and MP2 with support for CD text and ID3 tags. Alternatively you can connect a 30-pin or Lightning connector iPod or iPhone to the unit's retractable audio interface dock for improved digital to analog conversion over the mobile device's internal soundcard. The unit also features an analog auxiliary mini stereo jack for connecting to the 1/8" input of an MP3 player or other source.
The front panel features the transport controls and an LCD display that can switch between showing information such as track elapsed time and the artist and album names. A ±14% pitch adjustment control, a repeat button, buttons for moving through the folders on a data CD, and playmode buttons that enable continuous, shuffle, and program playback modes are included on the front panel. The unit also comes with a 10-key wireless remote control.
For outputs the player features a 1/4" headphone output, analog RCA outputs, as well as coaxial and optical digital outputs for connecting to a receiver, mixer, PA system, and more. - Retractable iPod/iPhone Dock
- Provides connection and improved digital to analog conversion to either a 30-pin or Lightning connector iPod or iPhone
- 10 Second Skip Proof CD Drive Buffer
- Loads 10 seconds audio data into internal memory
- Auxiliary Input
- Enables connection to a mobile device such as a smartphone or MP3 player via 1/8" stereo mini jack
- Audio Formats
- Supports WAV, MP3, MP2
- Pitch Control
- Enables ±14% pitch control
- Intro Function
- Plays the first 10 seconds of each song on a CD
- 10-Key Wireless Remote
- Controls primary transport functions of CD player
- Folder Playback
- Enables playback of songs in specific folders when using data CDs
- Three Playback Modes
- Enables continuous, shuffle, and program playback modes
UPC: 043774030149 In the Box Tascam CD-200iL Professional CD Player with 30-Pin and Lightning iPod Dock Wireless Remote Control 2 x AA Batteries Set of Rack Mounting Screws Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tascam CD-200iL Professional CD Player with 30-Pin and Lightning iPod Dock in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTascam CD-200iL Specs | Playback Media Formats | CD, CD-ROM, CD-R, CD-RW (12 cm / 8 cm) | | File Formats | CD-DA: stereo 16-bit at 44.1 kHz resolution
WAV: stereo 8/16-bit at 8, 11.025, 12, 16, 22.05, 24, 32, 44.1, 48 kHz
MP2: stereo 32 to 384 kb/s at 32, 44.1, 48 kHz
MP3: stereo 32 to 320 kb/s VBR at 32, 44.1, 48 kHz | | | | Connector | 1/8" (3.5 mm) stereo mini jack | | Input Impedance | 22 kOhms | | Nominal Input Level | -20 dBV | | Maximum Input Level | -4 dBV | | | | Connector | RCA pin-jack | | Output Impedance | 200 Ohms | | Nominal Output Level | -10 dBV (0.32 Vms) | | Maximum Output Level | +6 dBV (2.0 Vms) | | | | Connector | RCA pin-jack | | Output Impedance | 75 Ohms | | Format | IEC60958-3 (S/PDIF) | | | | Connector Type | TOS (JEITA RC-5720C) | | Format | IEC60958-3 (S/PDIF) | | | | Connector | 1/4" (6.3 mm) stereo phone jack | | Maximum Output Level | 20 mW + 20 mW or more | | THD | 0.1% or less into 32 Ohms load) | | | | Power Requirements | 120 VAC at 60 Hz (USA/Canada)
230 VAC at 50 Hz (UK/Europe)
240 VAC at 50 Hz (Australia) | | Power Consumption | 15 W | | Memory | Backup: Elapse time / Title display setting (CD), Playback mode (CD), Program (when loaded), Current folder (when CD loaded), Current source, Repeat playback function setting (ON/OFF), Pitch control (ON/OFF, CD), Pitch control value (CD) | | Operating Temperature | 41 to 95°F (5 to 35°C) | | Installation | Inclination: 5° or less | | Dimensions (W x H x D) | 18.90 x 3.72 x 11.70" (481.0 x 94.5 x 298.0 mm) | | Weight | 11.5 lb (5.2 kg) | | | | Package Weight | 14.15 lb | | Box Dimensions (LxWxH) | 22.1 x 14.8 x 7.0" |
