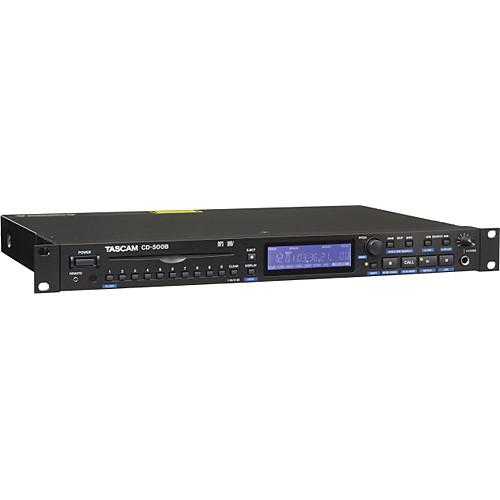

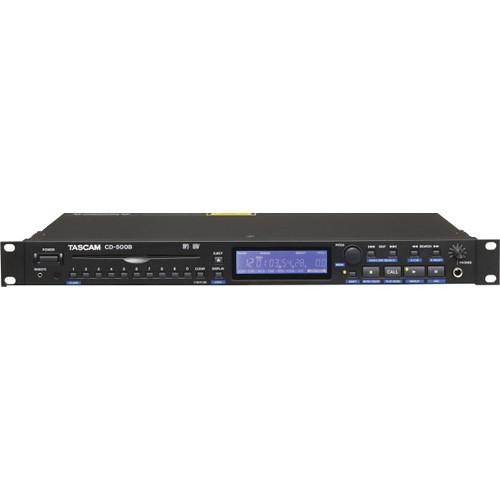

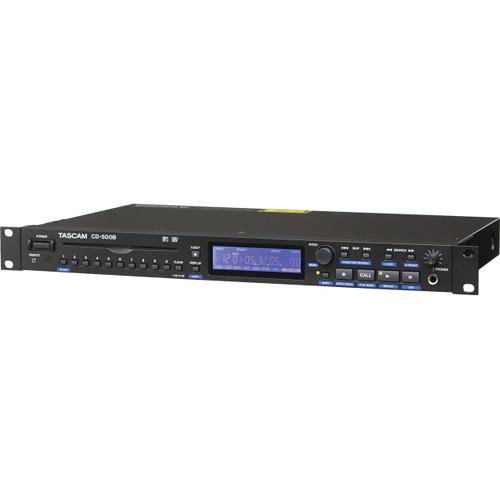

Product description The CD-500B Single-Rackspace CD Player from Tascam provides high-quality audio playback in a slim 1RU design. The player plays standard audio CDs, as well as CD-ROM discs encoded with MP3 or WAV files. The CD-500B offers a number of playback options, including single, random, A/B, program play, incremental play, power-on play, and more. An onboard LCD display shows important info, while a 10-key pad provides instant access to tracks.
The player offers stereo analog XLR and RCA outputs, as well as optical and coaxial S/PDIF digital outputs and an XLR AES/EBU digital output, allowing you to connect to a variety of sound systems. The CD-500B is designed with versatile control options in mind. A wireless remote is included, and connectors are provided for RS-232C, parallel, and footswitch control. Additional features such as fading, EOM, and more are included to provide ultimate versatility in a compact design. - Slim and lightweight 1RU chassis fits into any standard equipment rack
- Slot-loading mechanism takes up less space and is less prone to breakage than tray-loading drives
- Supports audio CDs, plus CD-ROM discs with WAV files up to 16-bit/48kHz and MP3 files up to 320kbps VBR
- Playback options include all, single, random, A/B, 99-track program, incremental play, call function, power-on play, and skip back play, plus a 16% pitch control
- Analog stereo XLR and RCA outputs are provided, which also offer mono output capability
- Optical and coaxial S/PDIF digital outputs and an XLR AES/EBU output let you connect to digital equipment
- The front-panel LCD display shows track elapsed/remain time, as well as remaining disc time and other vital info
- The 10-key pad provides instant access to CD tracks
- Frame-accurate searching, plus index search and directory search let you find the exact audio moment you need
- Fade in/out is provided with 0-10 second fade time in 0.5 second steps. Fader start and event start are also offered
- Resume and EOM functions built-in
- 3.5mm relay connectors let you perform relay playback with multiple units

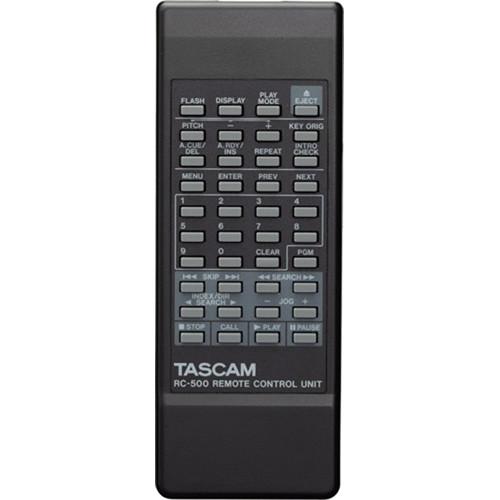

- A wireless remote is included, which can be enabled or disabled
- RS-232C, parallel, and footswitch connectors are provided for versatile wired control 1
Please Note: Footswitch sold separately close - A front-panel 1/4" headphone jack provides convenient monitoring
UPC: 043774026579 In the Box Tascam CD-500B Single-Rackspace CD Player (Balanced) Power Cord Wireless Remote 2 x AAA Batteries Rack Mounting Screw Kit Limited 1-Year Warranty User Manual PDF 4.2mbbqcacbzutbrtuutvwfcacdudeqxdsusq Table of Contents
|
Upload User Manual
Have you got an user manual for the Tascam CD-500B Single-Rackspace CD Player in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTascam CD-500B Specs | Type | Rackmount, Slot-Loading | | Compatible Discs | CD, CD-R, and CD-RW
Audio CD (CD-DA), MP3, and WAV | | Supported Bit/Sample Rates | MP3: up to 320 kb/s
WAV: up to 16-bit / 48 kHz

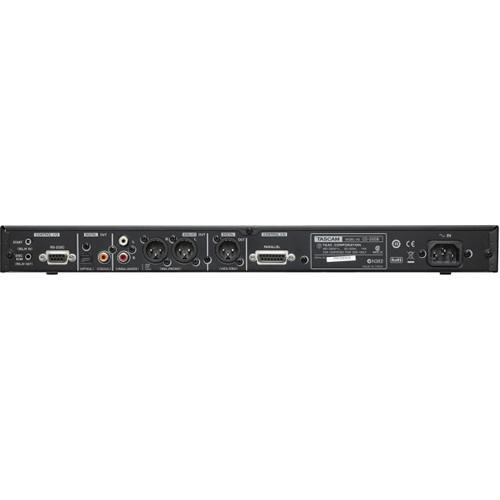

Audio CD: 16-bit / 44.1 kHz | | D to A Converters | 16-bit | | Frequency Response | 20 Hz-20 kHz (±0.5 dB) | | Dynamic Range | 95 dB or More | | Signal-to-Noise Ratio | 95 dB or More | | Total Harmonic Distortion (THD) | 0.005% or Less | | Channel Separation | 95 dB or More | | Connectors | 1 x AC Power Input
1 x Unbalanced Stereo RCA Output (2 Jacks, L/R)
1 x Balanced Stereo XLR Output (2 Jacks, L/R)
1 x Coaxial RCA S/PDIF Digital Output
1 x Optical S/PDIF Digital Output
1 x XLR AES/EBU Digital Output
1 x 9-Pin RS-232C Control Connector
1 x 15-Pin Parallel Control Connector
1 x 3.5 mm Relay In
1 x 3.5 mm Relay Out
1 x 2.5 mm Footswitch Connector
1 x 1/4" Stereo Headphone Jack | | Remote Control | Wireless Remote Included, Wired Control Possible | | Power | 100-240 VAC, 50/60 Hz
11 W Consumption | | Operating Temperature | 41-104°F / 5-40°C | | Installation | Within 30° | | Dimensions (WxHxD) | 19 x 1.75 x 11.8" / 483 x 45 x 301 mm | | Weight | 8.1 lb / 3.7 kg | | | | Package Weight | 10.2 lb | | Box Dimensions (LxWxH) | 21.6 x 15.5 x 5.35" |
