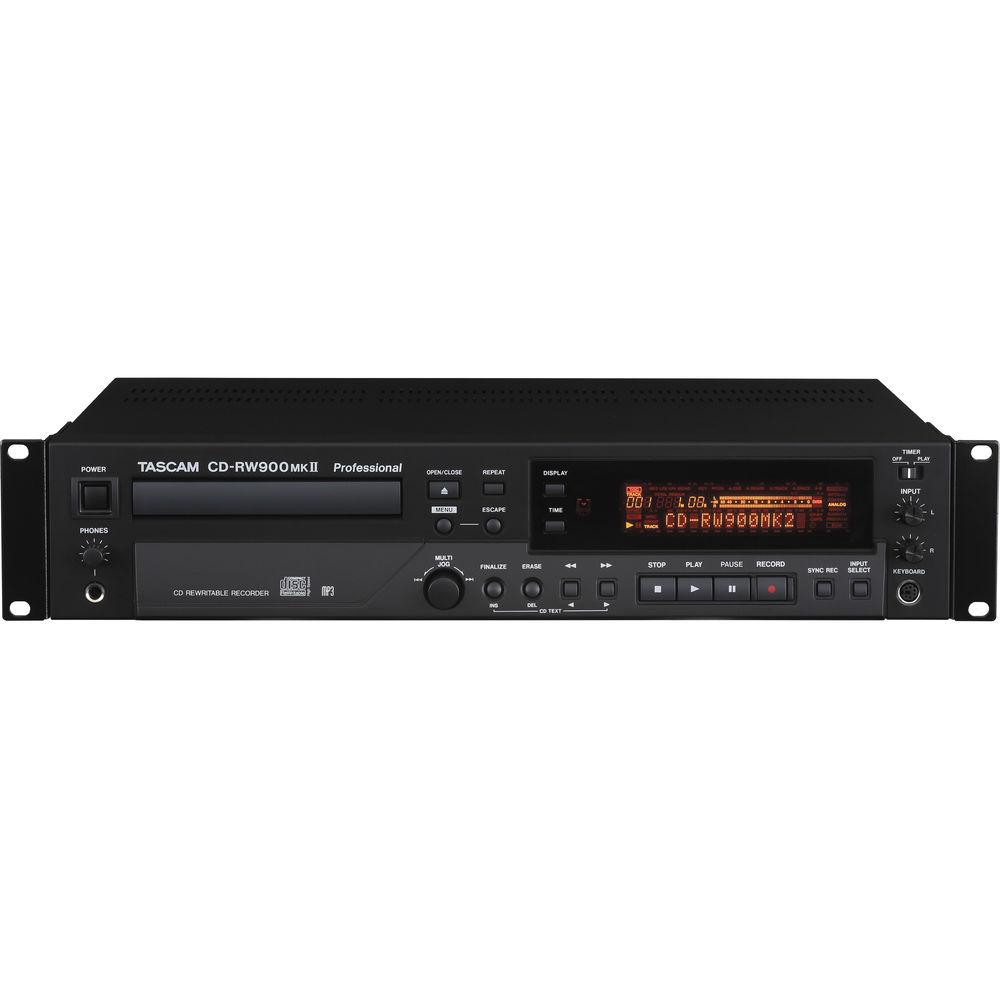

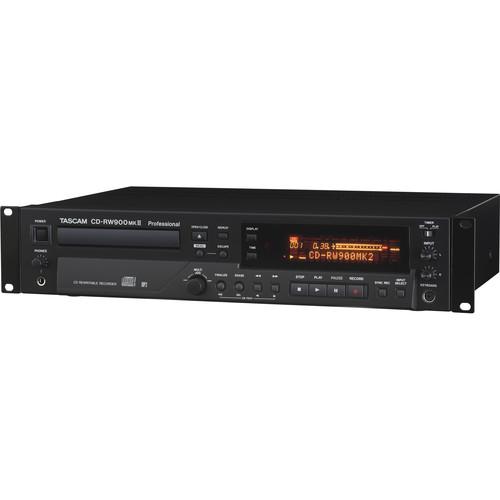

Product description The CD-RW900MKII from Tascam is a professional CD recorder that uses a high-performance AKM audio codec and features gapless recording, analog and digital inputs and more.
The recorder uses the AKM AK4528VM codec which features 24-bit AD/DA conversion for clean, clear sound quality with a frequency response of 20Hz to 20kHz +/-0.8dB. This high-performance codec captures audio with a wide dynamic range for optimal CD recording.
The CD-RW900MKII also features RCA inputs and outputs for use with analog sound sources as well as S/PDIF connectivity for use with digital mixers and processors. - Features:
-
- L/R analog and digital input leveling provides accurate level control
- Supported media: CD-R, CD-R-DA, CD-RW, CD-RW-DA
- High speed CD-RW Supports
- CD drive supports playback of CD-DA and Data-CD
- Proprietary TEAC tray drive
- OPC (optimum power control) function: Adjusting the laser power for each disc type
- Fade-in/Fade-out recording function (1 to 30 seconds, 1 seconds increments)
- Sync recording function: Automatically start/stop recording at a preset level (-24 dB to -72 dB, 6 dB increments)
- Digital volume for adjusting recording level accurately (-∞, 54.0 dB to 18.0 dB)
- Automatic track division: Automatically insert a track division at a preset condition
- Manual track division: Insert a track division by manual operation
- Time track division: Automatically insert a track division per preset interval (1 to 10 minutes, 1 minutes increments)
- Rec-mute function: Recording four seconds of silence on the disc
- Selectable maximum recording track numbers (automatically stop at preset number)
- Erase function: Erase selected track or disc (for CD-RW)
- Four playback modes (continuous, single, program, random)
- Repeat playback function (continuous, single, program, random, A-B)
- Fade-in/Fade-out playback function (OFF, 1 to 30 seconds, 1 seconds increments)
- Auto-cue function: Automatically pause by detection of a sound of start point in a track
- Auto-ready function: Automatically pause at head of next track after playback previous track
- Pitch control playback function: Pitch and speed can be varied (+/-16%, 0.1 to 1.0% increments, for CD-DA)
- Key control playback function: (b1 to b6, #1 to #6, half-note increments, for CD-DA)
- When using key control function with pitch control function, these function provides speed changing without changing pitch
- Timer playback function (external timer sold separately): Automatically begin playback when turned on
- Unfinalize function (for CD-RW): Erase TOC information of finalized CD-RW
- Time display switching (elapsed track/disc time, remaining track/disc time)
- CD-text editing supports
- PS/2 keyboard (sold separately) connection for remote control or entering a title
- SRC (sampling rate converter): Automatically convert the incoming frequency to 44.1 kHz (for 32 to 48 kHz)

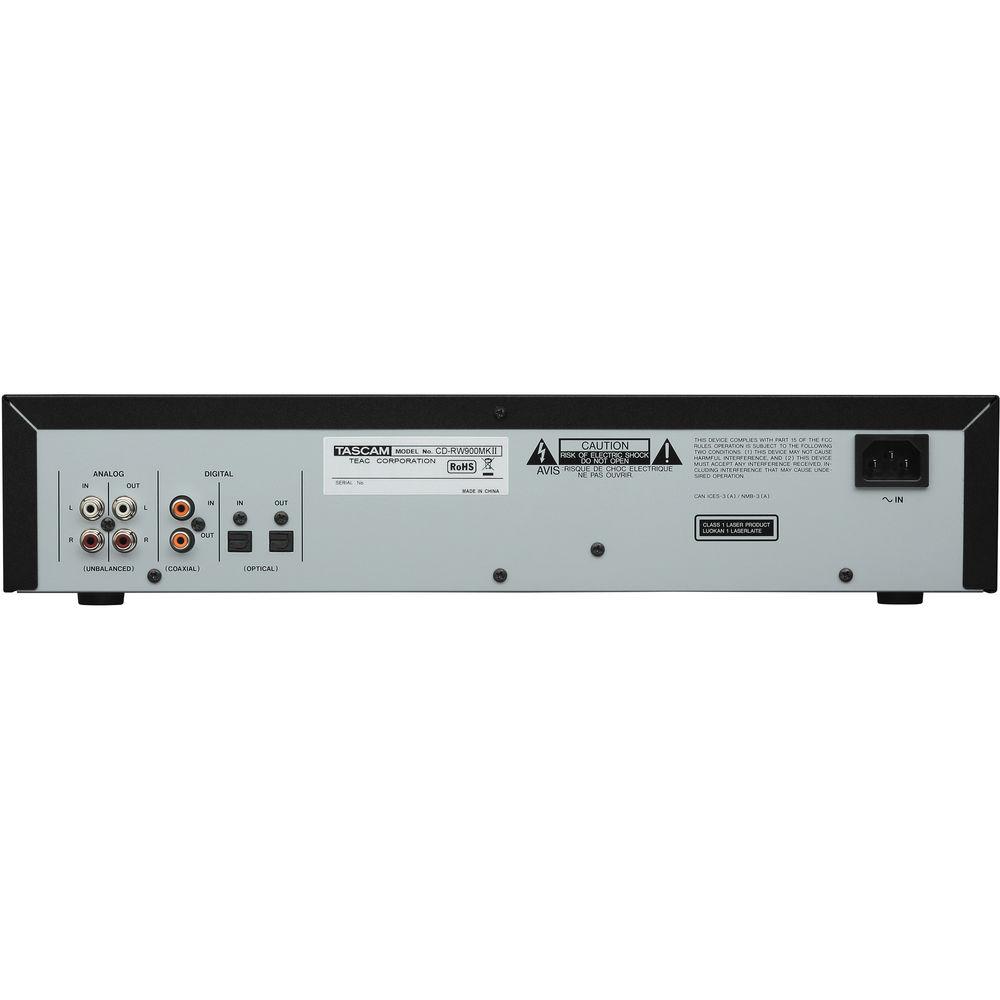

- RCA analog unbalanced inputs/outputs
- COAXIAL digital input/output (IEC60958-3: S/PDIF)
- OPTICAL digital input/output (IEC60958-3: S/PDIF)

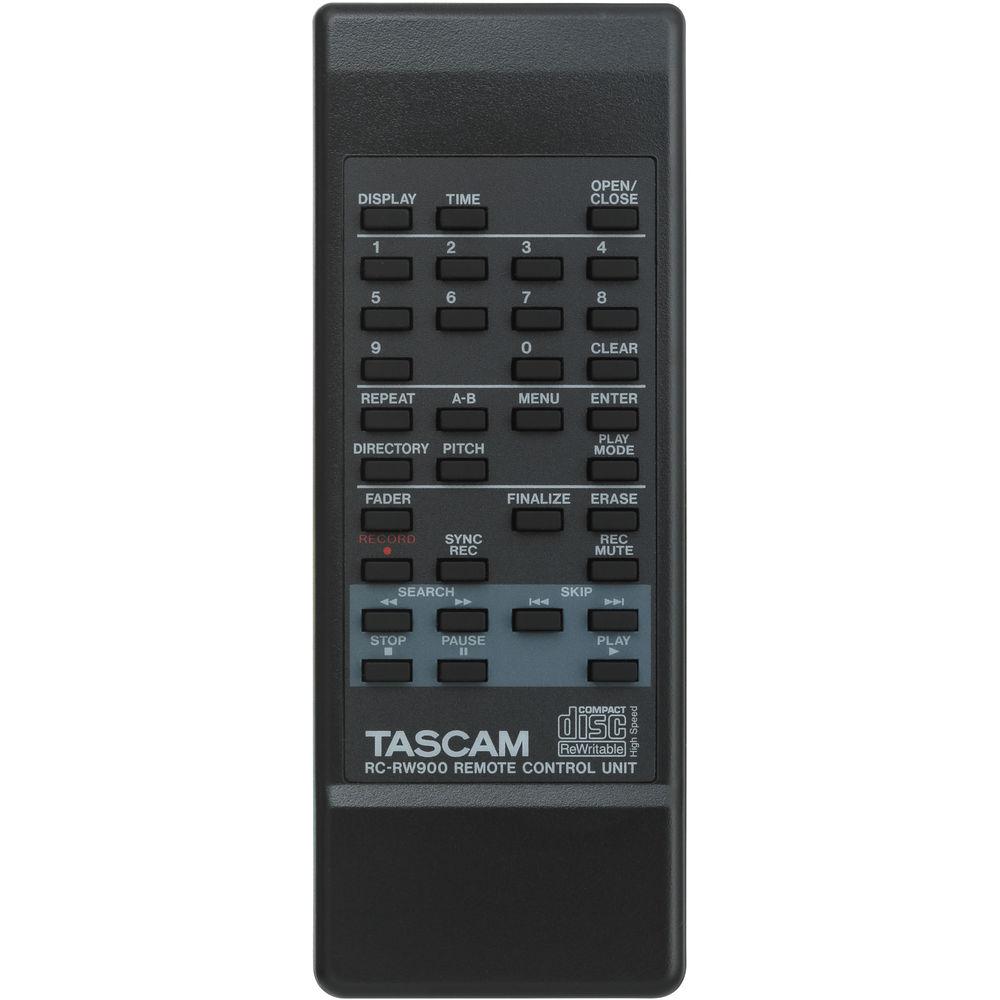

- Wireless remote controller with 10-key included (for CD-RW900MKII)
- Headphone output (20mW/ch)
- 3-polar AC sockets with the detachable AC cable
- 2U EIA rackmountable
- RoHS certified
UPC: 043774030620 In the Box Tascam CD-RW900MKII Professional CD Recorder RC-RW900 Remote Control AC Power Cable Rackmount Kit 2 x AAA Batteries Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tascam CD-RW900MKII Professional CD Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTascam CD-RW900MKII Specs | Supported Disc Types | CD-R, CD-R-DA, CD-RW, CD-RW-DA (High Speed CD-RW is supported) | | Playback Capability | CD-DA, CD-ROM ISO9660 LEVEL 1/2 Joilet format, multisession discs and CD-text | | Playback Formats | CD-DA: 44.1 kHz, 16-bit, stereo
MP3: 44.1 kHz, 64 to 320 kbps, VBR | | Recording Formats | CD-DA: 44.1 kHz, 16-bit, stereo | | Analog Inputs | RCA pin jack, unbalanced | | Analog Input Impedance | 22 kΩ +/-10%, unbalanced | | Reference Input Level | -10 dBV (Full scale -16 dB), unbalanced | | Minimum Input Level | -19 dBV (adjustable level at full scale -16 dB), unbalanced | | Input Impedance | 22 kΩ +/-10%, unbalanced | | Analog Outputs | RCA pin jack, unbalanced | | Output Impedance | 200 Ω, unbalanced | | Reference Output | -10 dBV +/-2 dB (full scale -16 dB), unbalanced | | Maximum Output Level | +6 dBV +/-2 dB, unbalanced | | Digital Input | RCA pin jack, coaxial, IEC60958-3 (S/PDIF) format
TOS LINK, optical, IEC60958-3 (S/PDIF) format | | Digital Output | RCA pin jack, coaxial, IEC60958-3 (S/PDIF) format
TOS LINK, optical, IEC60958-3 (S/PDIF) format | | Headphones | Connector: 1/4" (6.3 mm) stereo phone jackOutput Power: 20 mW + 20 mW or more (32 Ω loaded) | | Keyboard Connectors | Mini DIN 6-pin | | Frequency Response | Playback: 20 Hz to 20 kHz, +/-0.8 dB
Recording: 20 Hz to 20 kHz, +/-1.0dB | | S/N Ratio | Playback: 95 dB
Recording: 90 dB | | Dynamic Range | Playback: 95 dB
Recording: 90 dB | | Distortion | Playback: 0.006%
Recording: 0.008% | | Channel Separation | Playback: 90 dB (1 kHz)
Recording: 80 dB (1 kHz) | | Wow and Flutter | Unmeasurable (0.001% or less) | | Power | North America: 120 VAC, 60 Hz
Europe: 230 VAC, 50 Hz
Australia: 240 VAC, 50 Hz | | Power Consumption | North America: 16W
Europe, Australia: 18W | | Dimensions | 19.0 x 3.7 x 12.2" (482.6 x 94.0 x 309.0 mm) | | Weight | 9.5 lb (4.3 kg) | | | | Package Weight | 12.0 lb | | Box Dimensions (LxWxH) | 21.8 x 15.4 x 7.4" |
