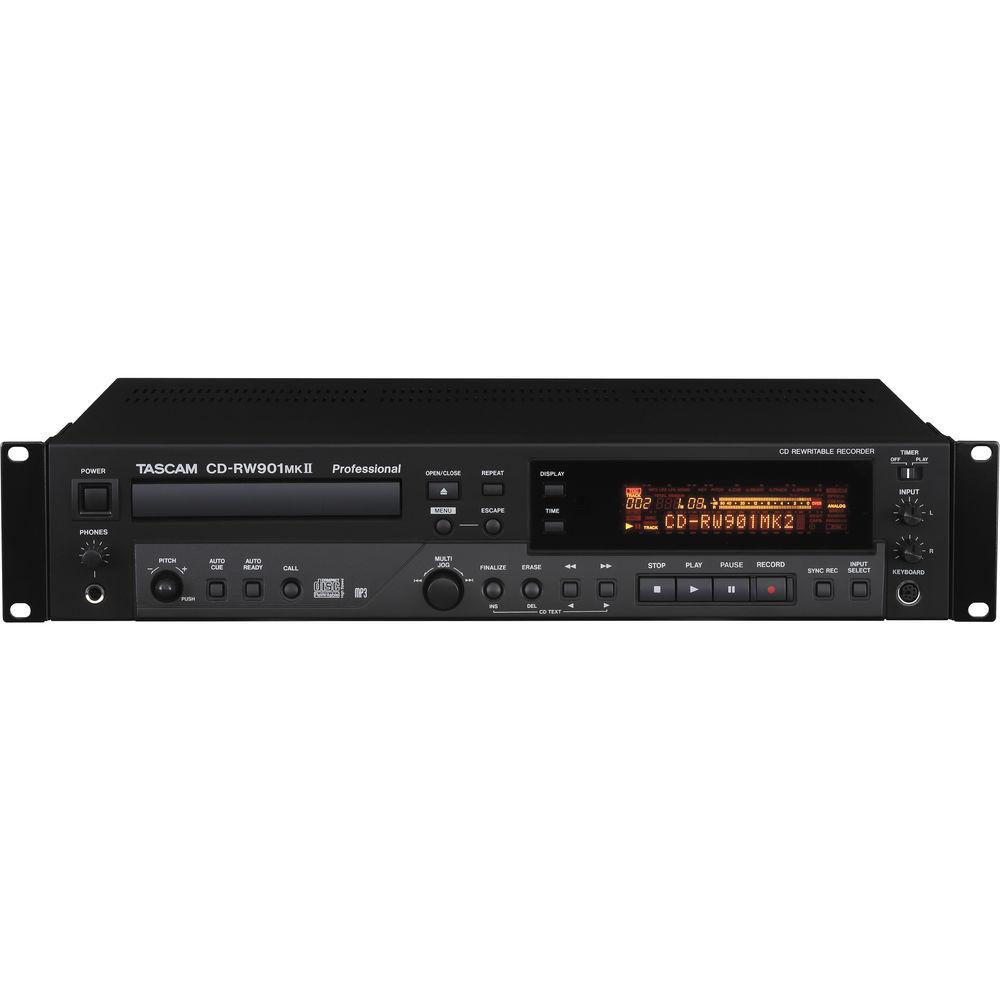

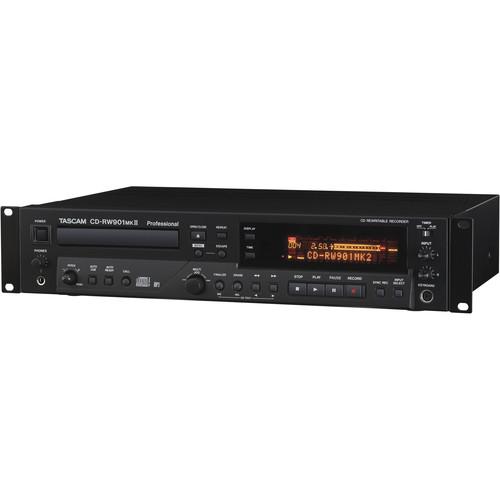

Product description The CD-RW901MKII from Tascam is a professional CD recorder that uses a high-performance AKM audio codec and features gapless recording, analog and digital inputs and more.
The recorder uses the AKM AK4528VM codec which features 24-bit AD/DA conversion for clean, clear sound quality with a frequency response of 20 Hz to 20 kHz +/-0.8dB. This high-performance codec captures audio with a wide dynamic range for optimal CD recording.
The CD-RW901MKII also features balanced analog XLR inputs and outputs for use with pro audio equipment such as analog consoles and summing mixers. AES/EBU connectivity is also included for use with digital mixers and processors.
The recorder is also capable of displaying the ISRC (International Standard Recording Code) during mastering and can check the data on a master disk after mastering. The ISRC is an international standard code used for identifying specific sound recordings. - Features:
-
- L/R analog and digital input leveling provides accurate level control
- Supported media: CD-R, CD-R-DA, CD-RW, CD-RW-DA
- High speed CD-RW Supports
- CD drive supports playback of CD-DA and Data-CD
- Proprietary TEAC tray drive
- OPC (optimum power control) function: Adjusting the laser power for each disc type
- Fade-in/Fade-out recording function (1 to 30 seconds, 1 seconds increments)
- Sync recording function: Automatically start/stop recording at a preset level (-24dB to -72dB, 6dB increments)
- Digital volume for adjusting recording level accurately (-∞, 54.0dB to 18.0dB)
- Automatic track division: Automatically insert a track division at a preset condition
- Manual track division: Insert a track division by manual operation
- Time track division: Automatically insert a track division per preset interval (1 to 10 minutes, 1 minutes increments)
- Rec-mute function: Recording four seconds of silence on the disc
- Selectable maximum recording track numbers (automatically stop at preset number)
- Erase function: Erase selected track or disc (for CD-RW)
- Four playback modes (continuous, single, program, random)
- Repeat playback function (continuous, single, program, random, A-B)
- Fade-in/Fade-out playback function (OFF, 1 to 30 seconds, 1 seconds increments)
- Auto-cue function: Automatically pause by detection of a sound of start point in a track
- Auto-ready function: Automatically pause at head of next track after playback previous track
- Pitch control playback function: Pitch and speed can be varied (+/-16%, 0.1 to 1.0% increments, for CD-DA)
- Key control playback function: (b1 to b6, #1 to #6, half-note increments, for CD-DA)
- When using key control function with pitch control function, these function provides speed changing without changing pitch
- Timer playback function (external timer sold separately): Automatically begin playback when turned on
- Unfinalize function (for CD-RW): Erase TOC information of finalized CD-RW
- Time display switching (elapsed track/disc time, remaining track/disc time)
- CD-text editing supports
- PS/2 keyboard (sold separately) connection for remote control or entering a title
- SRC (sampling rate converter): Automatically convert the incoming frequency to 44.1kHz (for 32 to 48kHz)
- RCA analog unbalanced inputs/outputs
- COAXIAL digital input/output (IEC60958-3:S/P DIF)
- OPTICAL digital input/output (IEC60958-3:S/P DIF)
- Wireless remote controller with 10-key included (for CD-RW900MKII)
- Headphone output (20mW/ch)
- 3-polar AC sockets with the detachable AC cable
- 2U EIA rackmountable
- RoHS certified
- Sync trim function (+/-125 frame, +/-1.67 seconds)
- Automatic track division with trim function (+/-125 frame, +/-1.67 seconds)
- Selectable COPY ID (free/1 generation/prohibit/SCMS)
- Call function: Return to a point at which playback last started from ready mode
- EOM (end of message) function: EOM indicator will light-up before the end of track or disc (1 to 99 seconds)
- ISRC/RID code display function
- Time skip function: While in playback or ready, moves the playback point to forwards or backwards (1 seconds increments)
- Index search function: Search indexes within a track that were assigned during recording
- Overlap recording function: Using two-units CD-RW901MKII to make continuous recording
- Fader start/stop control via parallel control connector
- D-sub 9-pin RS-232C serial control connector
- D-sub 15-pin parallel control connector
- XLR analog balanced inputs/outputs
- XLR digital input/output (IEC60958-4:AES/EBU)

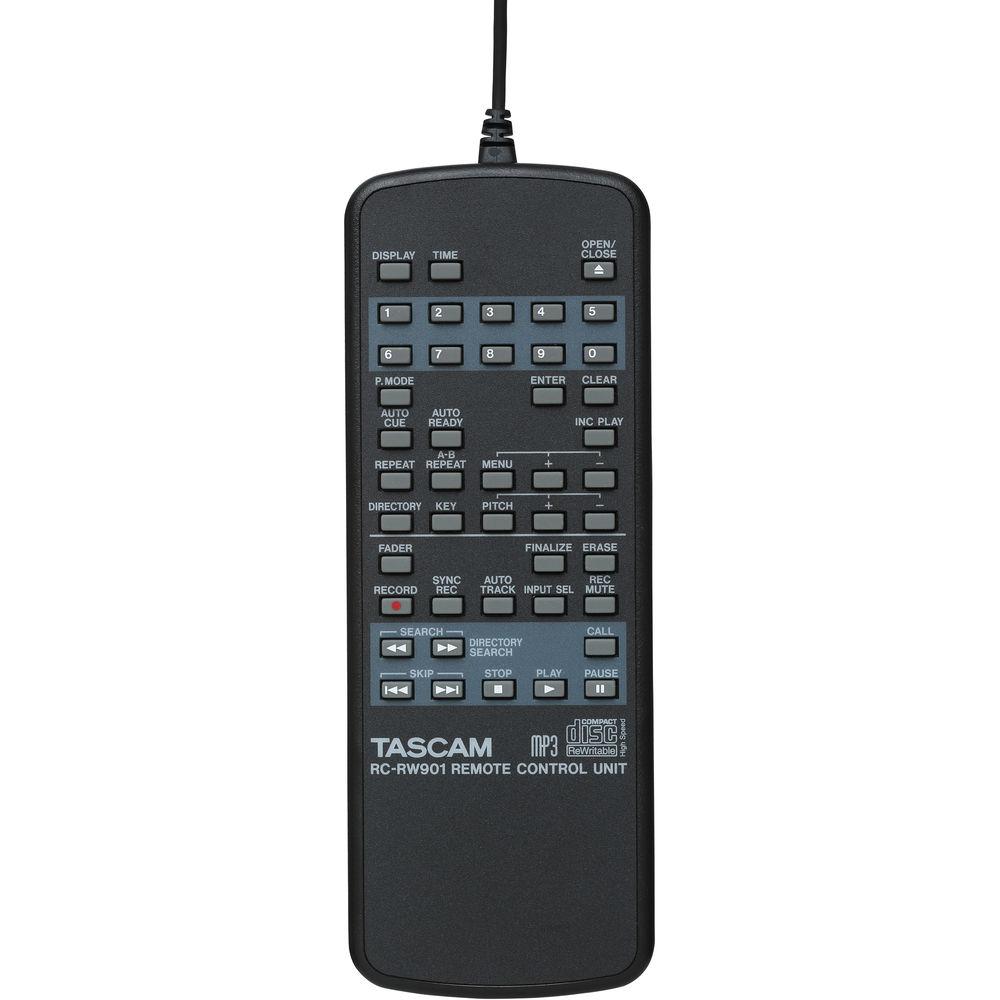

- Wired remote controller included
UPC: 043774030637 In the Box Tascam CD-RW901MKII Professional CD Recorder Remote Control Power Cable Rack-Mounting Screw Kit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tascam CD-RW901MKII Professional CD Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

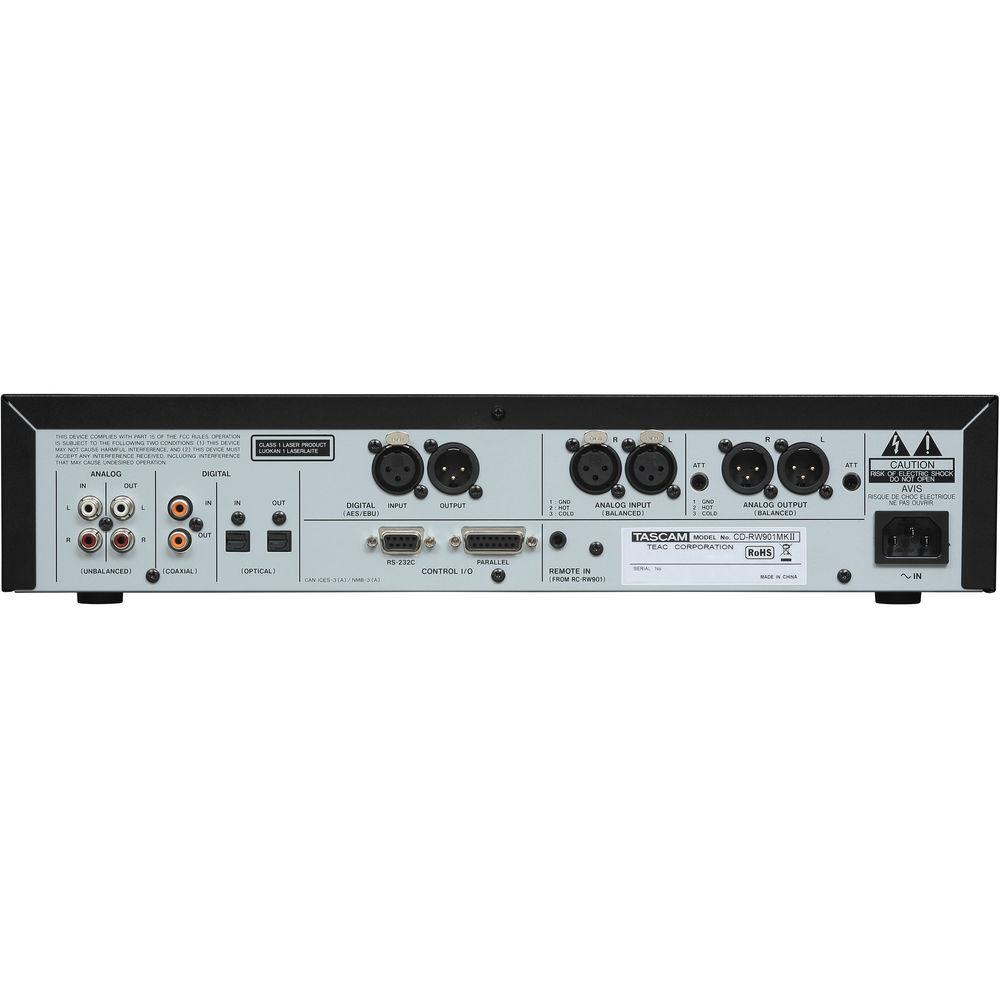

Technical parametersTascam CD-RW901MKII Specs | Supported Disc Types | CD-R, CD-R-DA, CD-RW, CD-RW-DA (High Speed CD-RW is supported) | | Playback Capability | CD-DA, CD-ROM ISO9660 LEVEL 1/2 Joilet format, multisession discs and CD-text | | Playback Formats | CD-DA: 44.1 kHz, 16-bit, stereo
MP3: 44.1 kHz, 64 to 320 kbps, VBR | | Recording Formats | CD-DA: 44.1 kHz, 16-bit, stereo | | Analog Inputs | RCA pin jack, unbalanced
XLR-3-31 (1: GND, 2: HOT, 3: COLD), balanced | | Analog Input Impedance | 22 kΩ +/-10%, unbalanced | | Reference Input Level | -10 dBV (Full scale -16 dB), unbalanced
-4dBu (Full scale -16dB), balanced | | Minimum Input Level | -19 dBV (adjustable level at full scale -16 dB), unbalanced
-5dBu (adjustable level at full scale -16dB), balanced | | Input Impedance | 14 kΩ +/-5%, balanced
22 kΩ +/-10%, unbalanced | | Analog Outputs | RCA pin jack, unbalanced
XLR-3-32 (1: GND, 2: HOT, 3: COLD), balanced | | Output Impedance | 200 Ω, unbalanced
75 Ω +/-5%, balanced) | | Reference Output | -10 dBV +/-2 dB (full scale -16 dB), unbalanced
+4 dBu (full scale -16 dB), balanced | | Maximum Output Level | +6 dBV +/-2 dB, unbalanced
+20 dBu, balanced | | Digital Input | RCA pin jack, coaxial, IEC60958-3 (S/PDIF) format
TOS LINK, optical, IEC60958-3 (S/PDIF) format
XLR-3-31, AES/EBU, IEC60958-4 (AES/EBU) format | | Digital Output | RCA pin jack, coaxial, IEC60958-3 (S/PDIF) format
TOS LINK, optical, IEC60958-3 (S/PDIF) format
XLR-3-32, AES/EBU, IEC60958-4 (AES/EBU) format | | Headphones | Connector: 1/4" (6.3 mm) stereo phone jackOutput Power: 20 mW + 20 mW or more (32 Ω loaded) | | Keyboard Connectors | Mini DIN 6-pin | | Control I/O | D-sub 9-pin, RS-232C
D-sub 15-pin, parallel | | Remote | RC-RW901 connector | | Frequency Response | Playback: 20 Hz to 20 kHz, +/-0.8 dB
Recording: 20 Hz to 20 kHz, +/-1.0dB | | S/N Ratio | Playback: 95 dB
Recording: 90 dB | | Dynamic Range | Playback: 95 dB
Recording: 90 dB | | Distortion | Playback: 0.006%
Recording: 0.008% | | Channel Separation | Playback: 90 dB (1 kHz)
Recording: 80 dB (1 kHz) | | Wow and Flutter | Unmeasurable (0.001% or less) | | Power | North America: 120 VAC, 60 Hz | | Power Consumption | North America: 17 W | | Dimensions | 19.0 x 3.7 x 12.2" (482.6 x 94.0 x 309.0 mm) | | Weight | 9.9 lb (4.5 kg) | | | | Package Weight | 13.35 lb | | Box Dimensions (LxWxH) | 21.5 x 15.0 x 7.2" |
