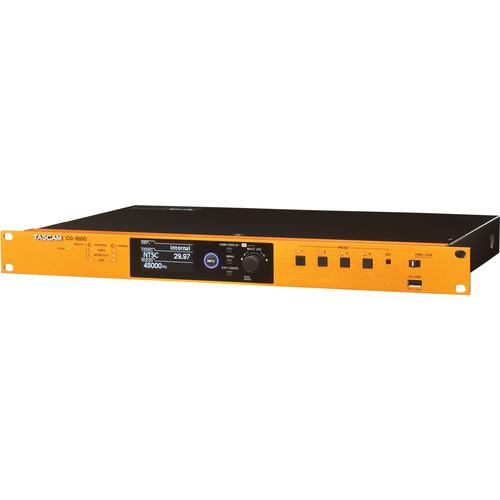

Product description The CG-1800 from Tascam is specifically designed for small to large-scale video/audio synchronization systems. An OCXO (oven-controlled crystal oscillator) is used for its high precision and because it's not affected by the temperature of the environment. With a clock frequency precision of 0.01 ppm the unit delivers high-precision synchronization with a frequency stability of +/-0.005 ppm or less per day.
External clock jitter is reduced using an original circuit design that incorporates a high-performance video clock generator engineered with a FPGA and a PLL (phase-locked loop) circuit with a discrete filter. This enables a stable clock signal to be provided to the video/word outputs, improving system stability.

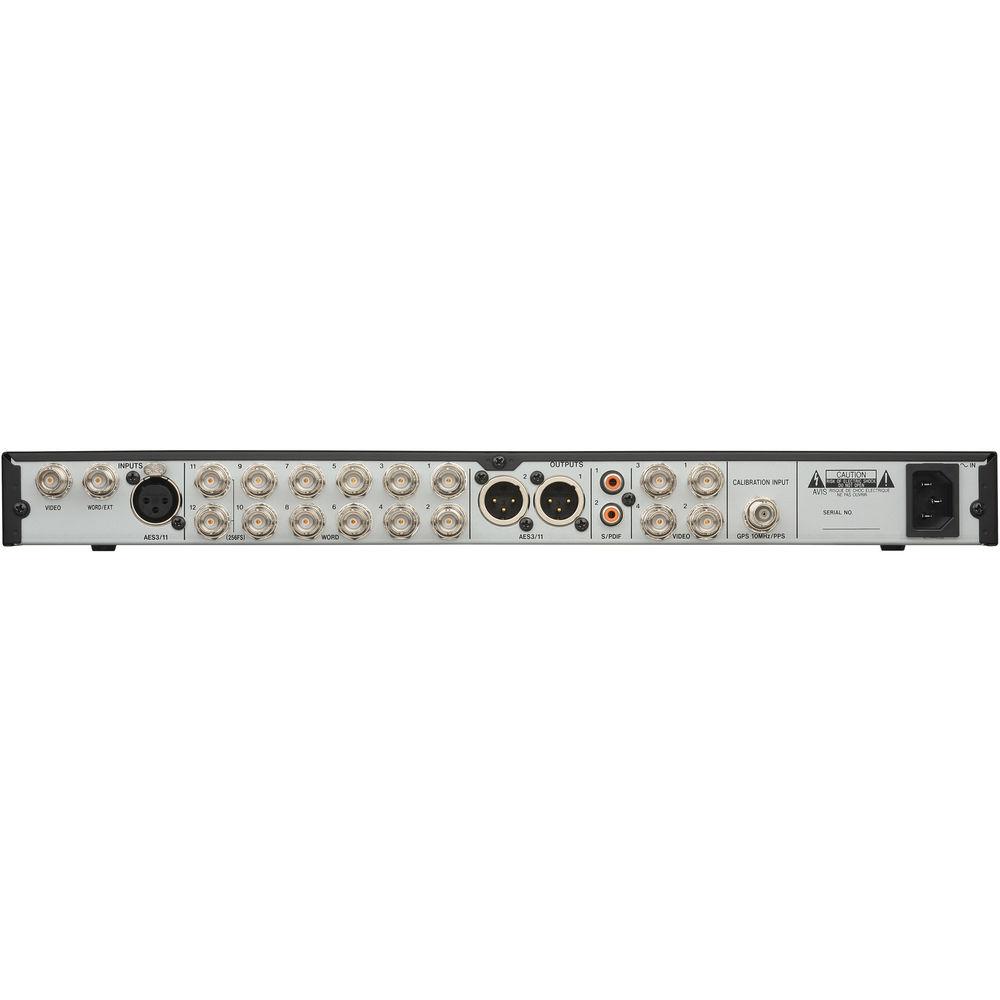

In addition to twelve Wordclock outputs and four video outputs, the digital outputs include two AES3/AES11 and two S/PDIF outputs, making this unit useful for large-scale audio/video synchronization systems and a wide variety of other applications. Of the twelve Wordclock outputs, two also support x2 Fs, x4 Fs and 256 Fs output, enabling them to be used in systems with Pro Tools and other DAW software.
The unit features multiple functions to support maintenance and the identification of issues if problems occur, allowing the device to provide troubleshooting support. Additionally, a logging function enables issues to be listed, and saved to a CSV file format on a USB flash drive. A self-correction function allows users to conduct maintenance using an external signal input and simple operations.
Amphenol BNC connectors on the chassis use nuts for coupling for extra durability, along with a single circuit board used for each connector. This provides good resistance to the twisting and pulling of cables, and the suppression of interference between connectors. -
- Internal clock uses a high-precision OCXO (oven-controlled crystal oscillator) that is not influenced by the temperature of the environment
- External input connector that supports 10 MHz, allowing creation of systems with even higher precision
- Glitch-free relocking circuit prevents noise and skipping during clock dropouts and recovery
- Numerous output connectors, including twelve Wordclock outputs, enabling the use in large-scale audio synchronization systems
- Supports input and output of a variety of video signal formats, including NTSC, PAL and HD Tri-level
- AES3 and AES11 signals can also be used for external master clock input sources
- Analyzer function that can measure output device termination
- Optimal levels can be provided to other devices by adjusting Wordclock output levels
- Self-calibration function using an external oscillator (Atomic/GPS 10MHz, GPS PPS) (requires a separate PPS-output 10 MHz oscillator with a built-in GPS antenna)
- Wordclock performance up to 192 kHz
- 0.1% pull-up/down for 24F (Film) and 29.97F (NTSC), and 4% pull-up/down for 24F (Film) and 25F (PAL)
- Up to four system settings can be saved to buttons for recall, and saved settings can be imported and exported via USB
- Durable Amphenol manufactured nut-coupling BNC connectors
- Independent circuit boards for each connector prevents contact failures due to twisting
- Panel-lock switch can be used to prevent inadvertent changes to unit operation

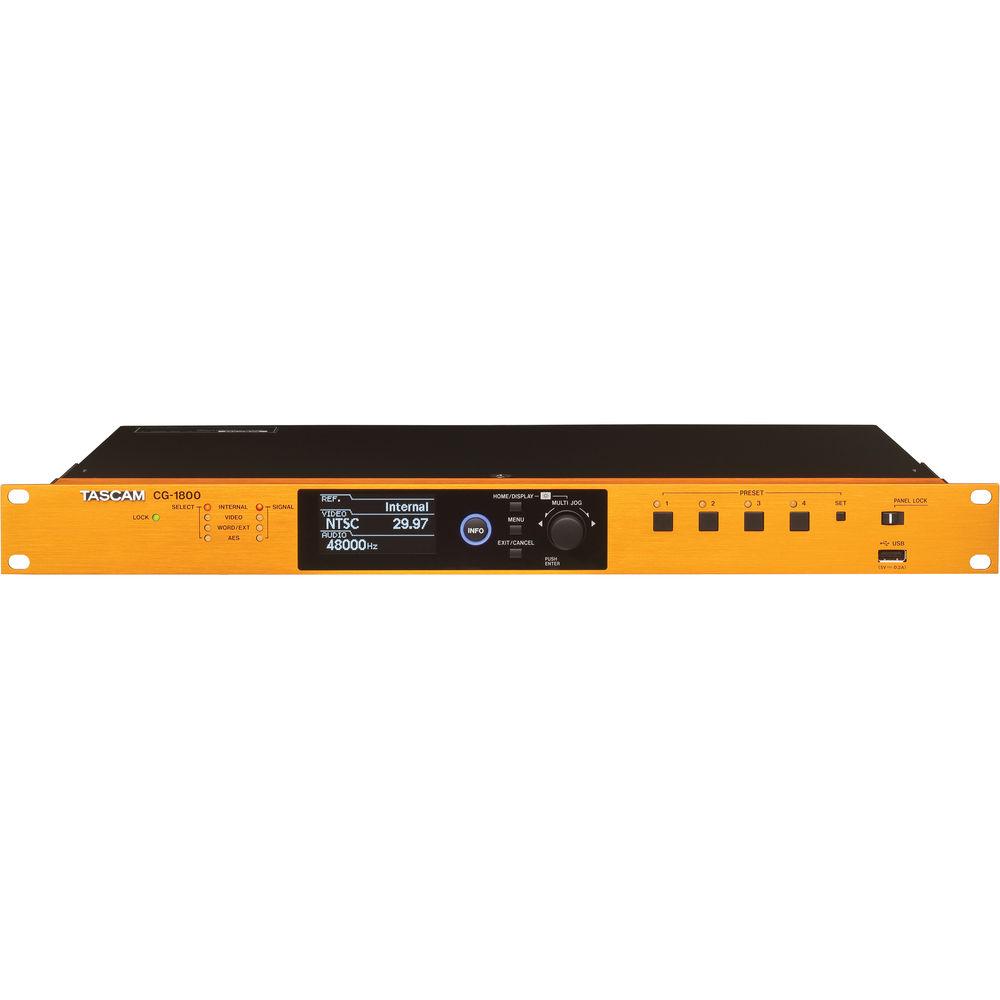

- 128 x 64-pixel organic EL display with a wide viewing angle
- Firmware updates possible using the USB port
- 1U rackmount
- RoHS-compliant
UPC: 043774030811 In the Box Tascam CG-1800 - Video Sync/Master Clock Generator AC Power Cable Rackmounting Screw Kit One (1) Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tascam CG-1800 - Video Sync Master Clock Generator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTascam CG-1800 Specs | Video Input | Connector
BNC
Input Level
0.5 Vp-p to 2.0 Vp-p
Input Impedance
75 ohm (ON/OFF selectable by menu)
Input Signal
SD video black burst: NTSC (29.97), NTSC B/W (30), PAL (25)
HD Video Tri-Level
720p: 50, 59.97, 60
1080p: 23.976, 24, 25, 29.97, 30, 59.94, 60
1080i/pfs: 23.976, 24, 25, 29.97, 30
Allowable Frequency Deviation: +/-10 ppm | | Wordclock Input | Connector
BNC
Input Level
0.5 Vp-p to 5.0 Vp-p
Input Impedance
75/50 ohm (75/50/OFF selectable by menu)
Supported Frequencies
Wordclock: 32, 44.1, 48, 88.2, 96, 176.4 and 192kHz
ATOM: 10.0 MHz
GPS: 10.0 MHz
Allowable Frequency Deviation: +/-50 ppm | | AES3/11 Input | Connector
XLR-3-31(1:GND, 2:HOT, 3:COLD)
Input Level
0.2Vp-p to 10Vp-p
Input Impedance
110 ohm
Format
AES11-2003, AES3-2003, IEC60958-4
Supported Frequencies
Wordclock: 32, 44.1, 48, 88.2, 96, 176.4 and 192kHz
Allowable Frequency Deviation: +/-50 ppm | | Calibration | Connector
BNC
Input Level
0.5 Vp-p to 5.0 Vp-p
Input Impedance
50 ohm (ON/OFF selectable by menu)
Supported Frequencies
ATOM: 10.0 MHz
GPS: 10.0 MHz | | Video Output | Connector
BNC x 4
Output Level
1.3 Vp-p
Output Impedance
75 ohm
Output Signal
SD video black burst: NTSC (29.97), NTSC B/W (30), PAL (25)
HD Video Tri-Level
720p: 50, 59.97, 60
1080p: 23.976, 24, 25, 29.97, 30, 59.94, 60
1080i/pfs: 23.976, 24, 25, 29.97, 30 | | Wordclock Output | Connector
BNC × 12
Output Level
1.0 Vp-p to 3.5 Vp-p (adjustable in 0.5 V steps by menu)
Output Impedance
75 ohm
Supported Frequencies
32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
1/4 x Fs, 1/2 x Fs, 1 x Fs, 2 x Fs, 4 x Fs, 256 x Fs (only outputs 11-12) | | AES3/11 Output | Connector
XLR-3-31 (1:GND, 2:HOT, 3:COLD) ×2
Output Level
2.5 Vp-p
Output Impedance
110 ohm
Format
AES11-2003, AES3-2003, IEC60958-4
Supported Frequencies
32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz | | S/PDIF Output | Connector
RCA coaxial x 2
Output Level
0.5 Vp-p
Output Impedance
75 ohm
Format
IEC60958-3 | | USB | Connector
4-pin type B
Protocol
USB2.0 High Speed (480 Mbps)
Power Supply Rating
DC 5.0 V, 0.2 A | | Internal Oscillator Performance | Type
OCXO
Frequency Accuracy
+/-0.01 ppm (factory default value)
Frequency Stability
+/-0.005 ppm / day | | Operating Temperature | 32 to 104˚F (0 to 40˚C) | | Power Requirements | 100~240 VAC, 50/60 Hz
Power Consumption: 10 W | | Dimensions (WxDxH) | 19.00 x 12.20 x 1.75" (483 × 310 × 45 mm) | | Weight | 7.1 lb (3.2 kg) | | | | Package Weight | 9.45 lb | | Box Dimensions (LxWxH) | 21.5 x 16.3 x 5.1" |
