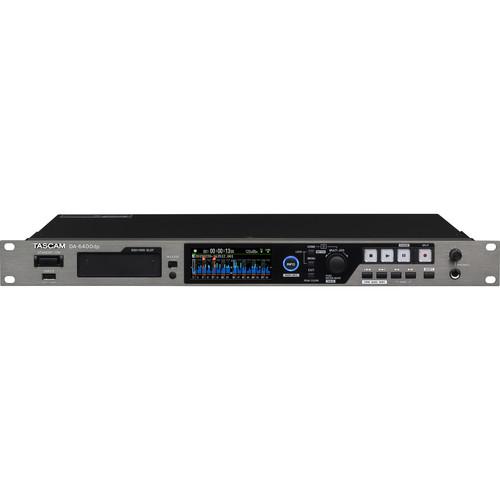

User Manual for Tascam DA-6400 DP Series 64-Channel Digital Multitrack Recorder Click to enlarge the picture
Contents of the user manual for the Tascam DA-6400 DP Series 64-Channel Digital
- Product category: Digital Recorders & Players Tascam
- Brand: Tascam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tascam Digital Recorders & Players
|
User manual for the Tascam DA-6400 DP Series 64-Channel Digital contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tascam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tascam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tascam product will considerably shorten its lifespan!
|
Product description The DA-6400 DP from Tascam is a 64-channel digital multitrack recorder/player that records to an internal SSD caddy for live and event recording. With I/O options like MADI and DANTE, it is ideal for live recordings, event capture, or to a backup for critical DAW sessions. In addition, the DA-6400 is a suitable option for professional remote recording. Furthermore, the recorder/player features an AK-CC25 hot-swappable caddy containing a 240GB Tascam solid-state drive, and the caddy includes a USB-3 jack for stand-alone use. This allows you to hand the drive to the client to offload the BWAV-files into their DAW session. The DA-6400 records 64 tracks at 48 kHz/24-bit or 32 tracks at 96 kHz/24-bit. Also, included on the rear panel are SMPTE timecode, word clock, RS-422, parallel, Ethernet connections and two power supply inlets. The I/O options for the DA-6400 include the IF-MA64/EX interface card (sold separately), with both coaxial and optical MADI connections. This card contains a redundant coaxial connection so that MADI is passed through even if power is lost, making it an ideal backup recorder for DAW sessions. Additional cards (sold separately) include the IF-MA64/BN coaxial MADI card, IF-DA64 Dante card, and IF-AE16 AES/EBU card, with more to come. In conclusion, the Tascam DA-6400 combines high performance, flexibility, and complete reliability in a solid-state 64-track recorder. UPC: 043774031610 In the Box Tascam DA-6400 DP Series 64-Channel Digital Multitrack Recorder Tascam SSD SSD Media Case Power Cable USB Cable Rackmount Screw Kit Security Screw Kit Limited 1-Year Warranty Limited 90-Day Warranty for Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Tascam DA-6400 DP Series 64-Channel Digital Multitrack Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTascam DA-6400DP Specs | Recording Media | SSD
Note: HDD support also planned in addition to the SSD. | | File System | FAT32 | | File Formats | BWF (.wav) | | Number of Channels | 64 (1xFs), 32 (2xFs) | | Sampling Frequencies | 44.1, 48, 88.2 & 96 kHz | | Bit Rate | 16-bit, 24-bit | | Clock Reference Input | Internal, Word In, Video In | | Timecode | Frame: 24/25/29.97DF/29.97NDF/30DF/30NDF | | | | Connector | BNC | | Signal Voltage | Amplitude: 0.5 V to 5 Vp-p | | Input Impedance | 10 KOhms | | Format | SMPTE 12M-1999 compliant | | | | Connector | BNC | | Signal Voltage | Amplitude: 2 Vp-p | | Output Impedance | 600 Ohms | | Format | SMPTE 12M-1999 compliant | | | | Connector | BNC | | Input Voltage | (WORD) 0.5 V to 5 Vp-p TTL equivalent | | Signal Voltage | Amplitude (Video): 1 Vp-p | | Input Impedance | 75 ohms +/-10% | | Input Frequency | Word: 48 kHz | | Input Signal | Word: 24/25/29.97/30 Frame (NTSC/PAL black burst, HDTV tri-level) | | | | Connector | BNC | | Output Voltage | Amplitude: 5 V TTL equivalent | | Output Frequency | Word: 48 kHz | | | | Connector | RJ-45 | | Protocol | 100Base-TX, 1000Base-T | | | | RS-422 | D-sub 9 pin (female, inch-standard) | | Parallel Port | D-sub 15 pin (female, inch-standard) | | USB | Connector: USB 2.0 A-type
Protocol: USB 2.0 high speed (480 Mbps) | | Phones | Connector: 1/4" (6.3 mm) standard stereo jack
Maximum Output Level: 45 mW+45 mW or higher | | | | Power | 2x AC 100 V-240 V, 50/60 Hz | | Power Consumption | 21 W (at the time of IF-MA64/EX use) | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Dimensions (W x H x D) | 18.2 x 1.7 x 12.0 (462.6 x 44.7 x 304.8 mm) | | Weight | 7.5 lb (3.4 kg) | | | | Package Weight | 14.05 lb | | Box Dimensions (LxWxH) | 21.3 x 16.3 x 5.4" |
