User Manual for Tascam DP-006 6-Track Digital Pocketstudio Click to enlarge the picture
Contents of the user manual for the Tascam DP-006 6-Track Digital Pocketstudio
- Product category: Digital Recorders & Players Tascam
- Brand: Tascam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tascam Digital Recorders & Players
 |
User manual for the Tascam DP-006 6-Track Digital Pocketstudio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tascam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tascam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tascam product will considerably shorten its lifespan!
|

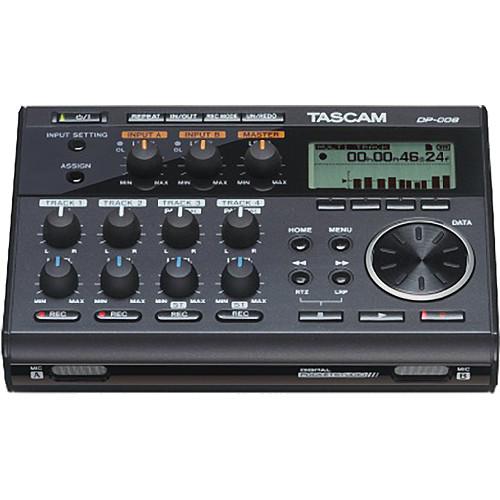

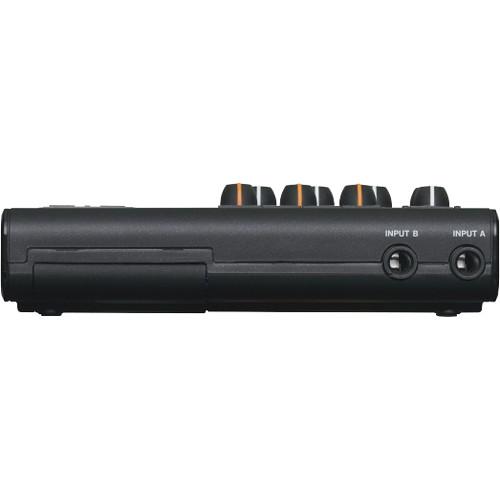

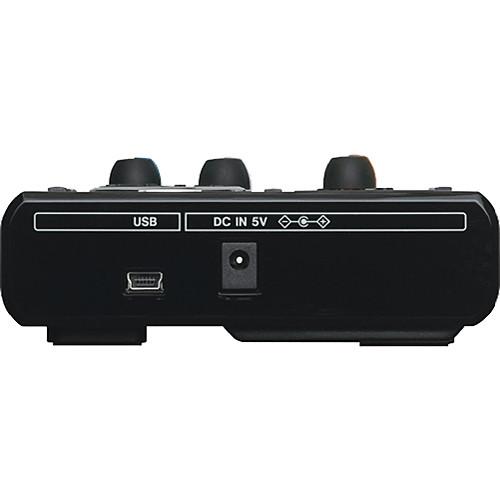

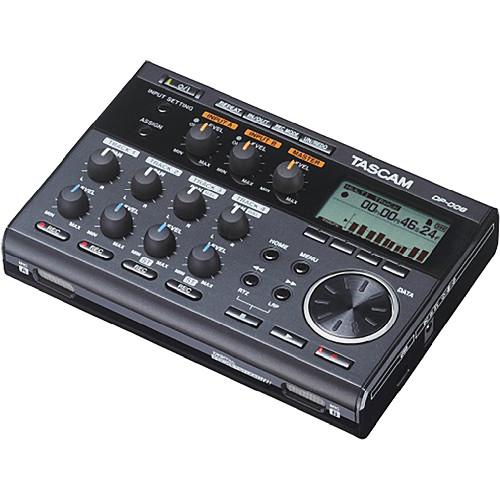

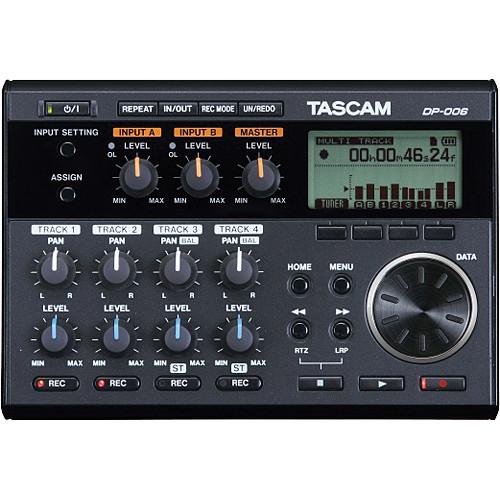

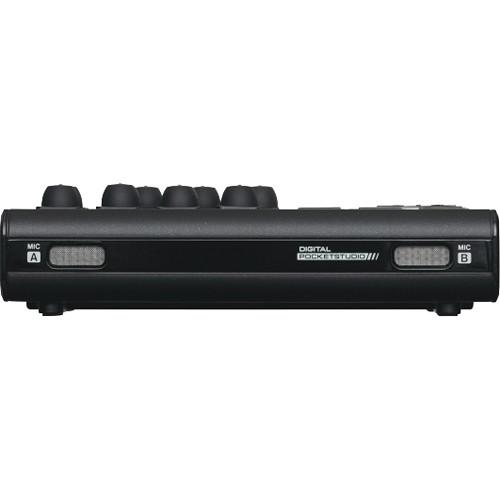

Product description The DP-006 6-Track Digital Pocketstudio from Tascam is a compact, battery-powered multitrack recorder, featuring two built-in omnidirectional condenser microphones and WAV file resolution up to 16-bit/44.1kHz. Additionally, two unbalanced 1/4" TS line inputs can be used to record mic, line or Hi-Z instrument signals. Designed with analog functionality and dedicated control knobs, the DP-006 is ideal for on-the-spot recording. A Mini USB 2.0 output facilitates high-speed file transfer to your Mac or PC.

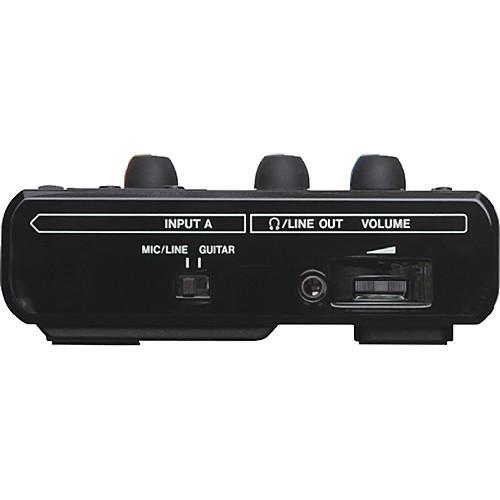

The DP-006 provides an 1/8" stereo line output as well as an 1/8" stereo headphone output. An integrated chromatic tuner and metronome help you perfect your performance. For elongated battery life, the DP-006 is compatible with Tascam's BP-6AA external battery pack. The DP-006 was designed with a tripod mount for versatile set-up and placement. The DP-006 features an ultra lightweight—less than 13 oz —design to ensure portability. - Versatile Recording and Data Transfer
- The DP-006 can record, import and export 16-bit/44.1kHz WAV files. It is compatible with both mono and stereo files.
- Recording Media Included
- The DP-006 records WAV files to SD/SDHC cards up to 32GB, a 2GB card is included. High-speed data transfer is available through the onboard USB 2.0 port. Your files can then be imported to your favorite DAW.
- Recording / Playback Engines
- The DP-006 can record 2 mono tracks or 1 stereo track simultaneously. It offers up to 6 tracks of simultaneous playback.
- Additional Features
-
- Dedicated stereo master track available
- Microphone sensitivity can be selected (Low/Mid/High)
- Independent level/pan (balance) knobs for each track
- 128 x 64 dot-matrix LCD display
- Tripod mounting thread
- Direct locate function by jog-wheel
- Repeat playback between in/out point
- Undo / Redo functions
- Track edit functions: clone track, clean out, silence, cut, open
- Bounce function allows recording of more six tracks
- Export mixdown as stereo WAV file
UPC: 043774028412 In the Box Tascam DP-006 6-Track Digital Pocketstudio 2GB SD Card 4 x AA Battery 31.5" (80cm) USB Cable Limited 1-Year Warranty User Manual PDF 4.9mbeuauuzubaryd Table of Contents
|
Upload User Manual
Have you got an user manual for the Tascam DP-006 6-Track Digital Pocketstudio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTascam DP-006 Specs | | | Recording Media | SD/SDHC card (up to 32GB) | | File System | TASCAM original (MTR partition)
FAT32 (FAT partition) | | | | Connector | 2 x 1/4" TS unbalanced | | Input Impedances | Switchable:
≥ 10kΩ mic/line
1MΩ guitar | | Nominal Input Level | -10 dBV | | Maximum Input Level | +6 dBV | | Headroom | 16 dB | | | | Type | 2 x omni-directional condenser microphone | | | | Connector | 1/8" (3.5 mm) stereo mini | | Nominal Output Level | -16 dBV | | Maximum Output Level | 0 dBV | | | | Connector | 1/8" (3.5 mm) stereo mini | | Maximum Output Level | 15 mW per side
(THD+N less than 0.1%, 32Ω loaded) | | | | Frequency Response | 20 Hz to 20 kHz +1/-3 dB | | Distortion | < 0.05% | | Signal-to-Noise Ratio | > 81 dB | | | | USB Connector | 1 x USB Mini-B 4-pin | | Format | USB 2.0 high speed mass storage class | | Operating System Requirements | Windows XP / Vista / 7
Mac OS X 10.2 or later | | | | Power Requirements | 4 x AA batteries (alkaline or NiMH)
TASCAM PS-P520 AC adapter (sold separately) | | Battery Life (approx.) | 8 hrs alkaline, 9 hrs NiMH (using line input/recording)
8.5 hrs alkaline, 9.5 NiMH (using headphone/playback) | | Power Consumption | 1W maximum | | Operating Temperature Range | 41 to 95°F (5 to 35°C) | | Dimensions (W x H x D) | 6.1 x 1.63 x 4.2" (155 x 41.5 x 107 mm) | | Weight | 12.7 oz (360 g) | | | | Package Weight | 1.59 lb | | Box Dimensions (LxWxH) | 9.05 x 5.9 x 2.95" |
Rating78% users recommend this product to others. And what about you?
This product has already been rated by 18 owners. Add your rating and experience with the product.
