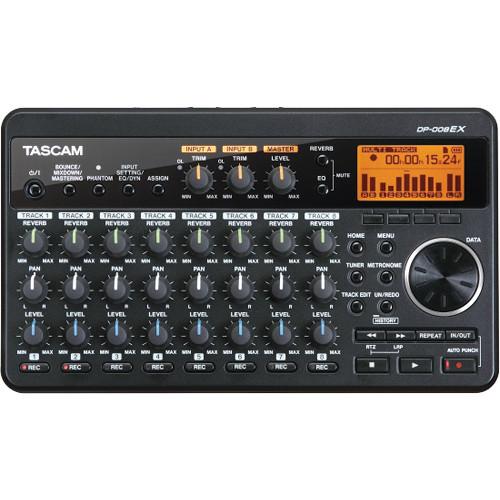

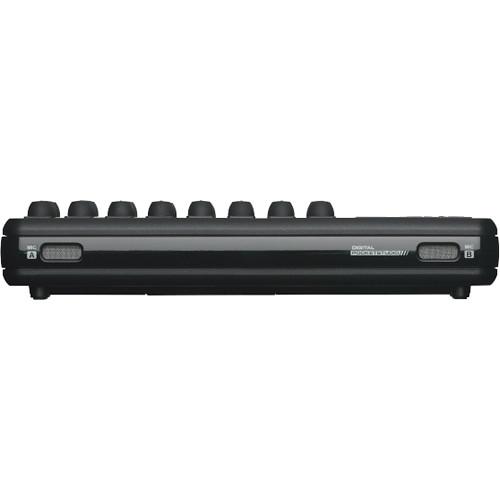

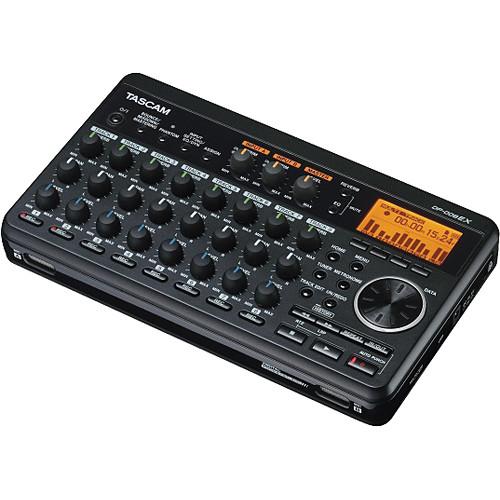

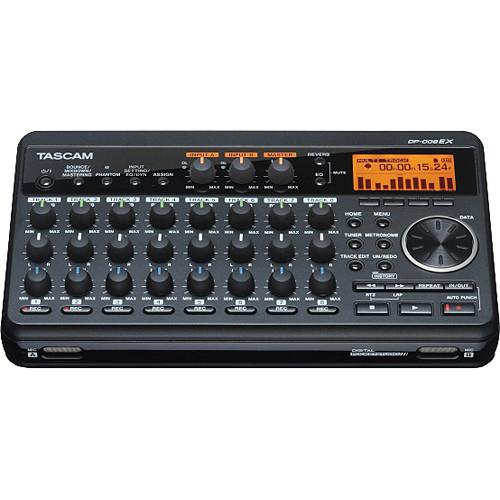

Product description The DP-008EX 8-Track Digital Pocketstudio from Tascam is a compact, battery-powered multitrack recorder, featuring two built-in omnidirectional condenser microphones and WAV file resolution up to 16-bit/44.1kHz. Additionally, two balanced XLR inputs and two unbalanced 1/4" TS inputs can be used to record mic, line or Hi-Z instrument signals. The XLR inputs have switchable +48V Phantom power. Designed with analog functionality and dedicated control knobs, the DP-008EX is ideal for on-the-spot recording. A Mini USB 2.0 output facilitates high-speed file transfer to your Mac or PC.
The DP-008EX features onboard effects on all its input channels. Compressor, 2-band shelving EQ, de-esser and exciter are available on each track. Additionally, the DP-008EX has six different types of reverb built-in. Mastering effects for the stereo mix are also included, offering 2-band EQ, multi-band compression and normalizing. An Auto Analysis Mastering tool is also included, making the process easy, just choose between Natural or Maximum.

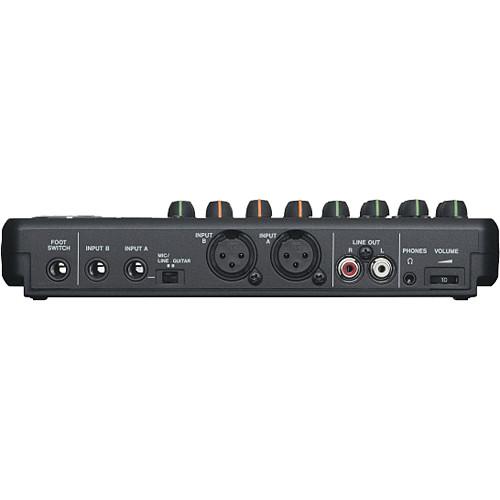

The DP-008EX provides a line output on a stereo pair of RCA jacks, as well as an 1/8" stereo headphone output. An integrated chromatic tuner and metronome help you perfect your performance. For elongated battery life, the DP-008EX is compatible with Tascam's BP-6AA external battery pack. It can also be powered by the PS-P520 AC adapter. Both alternative powering solutions are sold separately. - Versatile Recording and Data Transfer
- The DP-008EX can record, import and export 16-bit/44.1kHz WAV files. It is compatible with both mono and stereo files.
- Recording Media Included

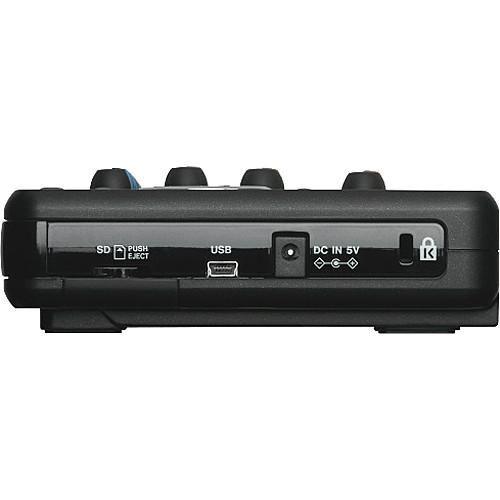

- The DP-008EX records WAV files to SD/SDHC cards up to 32GB, a 2GB card is included. High-speed data transfer is available through the onboard USB 2.0 port. Your files can then be imported to your favorite DAW.
- Recording / Playback Engines
- The DP-008EX can record 2 mono tracks or 1 stereo track simultaneously. It offers up to 8 tracks of simultaneous playback.
- Additional Features
-
- Dedicated stereo master track available
- Selectable low/high microphone sensitivity
- Independent level / pan / reverb send controls per track
- Backlit 128 x 64 dot-matrix LCD
- Direct locate function by jog-wheel
- Undo / Redo function
- Track editing functions
- Backup and restore songs
UPC: 043774028467 In the Box Tascam DP-008EX 8-Track Digital Pocketstudio 2GB SD Card 4 x AA Battery 31.5" (80cm) USB Cable Limited 1-Year Warranty User Manual PDF 7.4mbvedsvyqvuwecfecuarvbadatee Table of Contents
|
Upload User Manual
Have you got an user manual for the Tascam DP-008EX 8-Track Digital Pocketstudio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTascam DP-008EX Specs | | | Recording Media | SD/SDHC card (up to 32GB) | | File System | TASCAM original (MTR partition)
FAT32 (FAT partition) | | | | Connectors | 2 x XLR balanced | | Input Impedance | 2.4kΩ | | Nominal Input Level | -8 dBu | | Maximum Input Level | +8 dBu | | | | Connector | 2 x 1/4" TS unbalanced | | Input Impedances | Switchable:
≥ 10kΩ mic/line
1MΩ guitar | | Nominal Input Level | -10 dBV | | Maximum Input Level | +6 dBV | | Headroom | 16 dB | | | | Type | 2 x omni-directional condenser microphone | | | | Connector | 2 x RCA phono (1 x L/R) | | Nominal Output Level | -10 dBV | | Maximum Output Level | +6 dBV | | | | Connector | 1/8" (3.5 mm) stereo mini | | Maximum Output Level | ≥ 20 mW per side
(THD+N less than 0.1%, 32Ω loaded) | | | | Frequency Response | 20 Hz to 20 kHz +1/-3 dB | | Distortion | < 0.05% | | Signal-to-Noise Ratio | > 81 dB | | | | USB Connector | 1 x USB Mini-B 4-pin | | Format | USB 2.0 high speed mass storage class | | Operating System Requirements | Windows XP / Vista / 7
Mac OS X 10.2 or later | | | | Power Requirements | 4 x AA batteries (alkaline or NiMH)
TASCAM PS-P520 AC adapter (sold separately) | | Battery Life (approx.) | 5.5 hrs alkaline, 6.5 hrs NiMH (using line input/recording)
6 hrs alkaline, 7 NiMH (using headphone/playback) | | Power Consumption | 2.4W maximum | | Operating Temperature Range | 41 to 95°F (5 to 35°C) | | Dimensions (W x H x D) | 8.7 x 1.74 x 5" (221 x 44.3 x 126.5 mm) | | Weight | 1.34 lb (610 g) | | | | Package Weight | 2.385 lb | | Box Dimensions (LxWxH) | 11.9 x 6.9 x 3.8" |
