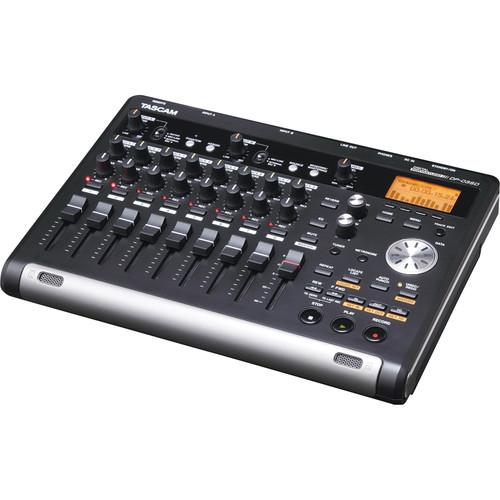

User Manual for Tascam DP-03SD Digital Portastudio 8-Track Recorder Click to enlarge the picture
Contents of the user manual for the Tascam DP-03SD Digital Portastudio 8-Track Recorder
- Product category: Digital Recorders & Players Tascam
- Brand: Tascam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tascam Digital Recorders & Players
 |
User manual for the Tascam DP-03SD Digital Portastudio 8-Track Recorder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tascam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tascam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tascam product will considerably shorten its lifespan!
|
Product description The DP-03SD Digital Portastudio 8-Track Recorder from Tascam is a multitrack digital recorder capable of recording 2 channels simultaneously for up to 8 channels total. The DP-03SD records 16-bit/44.1 kHz resolution audio to SD/SDHC cards and can export your mix to your computer via USB.

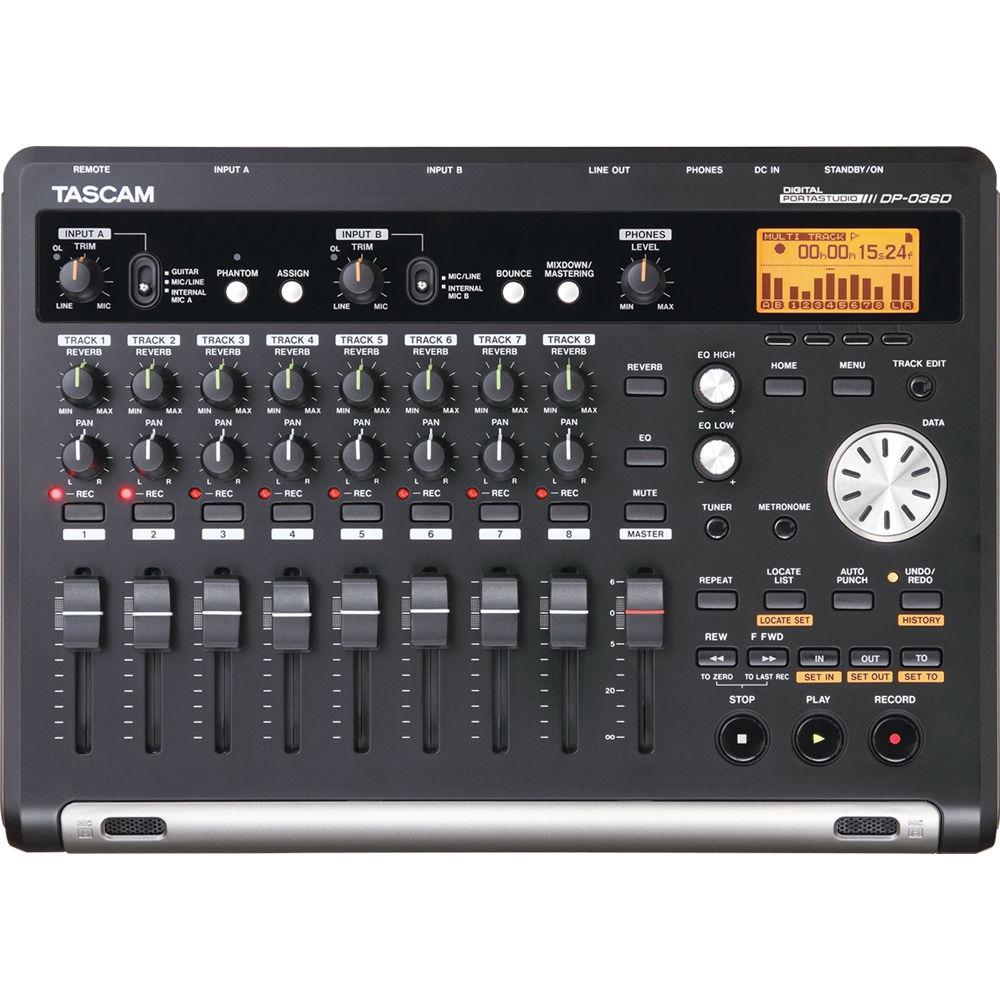

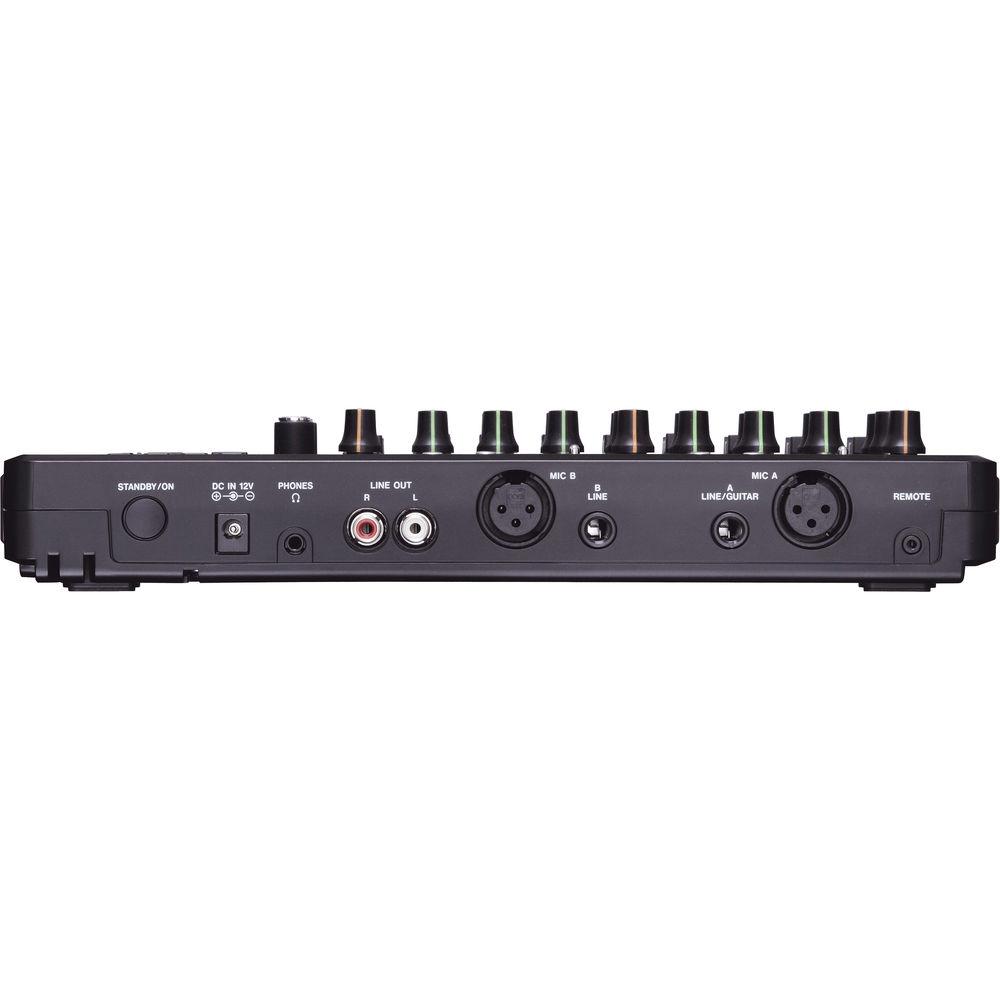

The unit has 2 mic/line selectable XLR inputs in addition to dual 1/4" line ins, one of which can function as an instrument input for direct recording of guitar or bass. 8 channel faders and 1 master fader provide hands-on mixing, while built-in EQ, compression, and reverb help you shape your tracks. Additionally, the DP-03SD has a built-in tuner and metronome. A 4GB SD card and power supply are included. UPC: 043774030507 In the Box Tascam DP-03SD Digital Portastudio 8-Track Recorder AC Adapter with Power Cord 4GB SD Card Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tascam DP-03SD Digital Portastudio 8-Track Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTascam DP-03SD Specs | | | File System | MTR Partition: Tascam original
FAT Partition: FAT32
Built-In Mics: Stereo omnidirectional
Sampling Frequency: 44.1 kHz
Quantization Bit-Rate: 16-bit | | | | Connectors | 2 x Balanced XLR-3-31 (1：GND, 2：HOT, 3：COLD)
2 x 1/4" / 6.3 mm balanced TRS jacks | | Input Impedance | XLR: 2.4 kOhms
TRS: 10 kOhms or more (Mic/Line), 10 MOhms (Guitar) | | Nominal Input Level | XLR: -16 dBu
TRS: +4 dBV | | Maximum Input Level | XLR: 0 dBu
TRS: +24 dBV | | | | Connectors | 2 x Unbalanced RCA pin jacks | | Nominal Output Level | -10 dBV | | Maximum Output Level | +6 dBV | | | | Connector | 1 x 1/8" / 3.5 mm stereo mini jack | | Maximum Output Level | 40 + 40 mW, 32 Ohms loaded | | | | Connector | 1 x 0.1" 2.5 mm TS jack | | | | Connector | Mini-B type | | Format | USB 2.0 High-Speed mass storage class | | | | Equalizer | Hi: ±12 dB, 1.7 kHz to 18 kHz
Lo: ±2 dB, 32 Hz to 1.6 kHz | | Reverb | Presets: Hall 1, Hall 2, Room, Studio, Plate 1, Plate 2 | | Compressor | Controls: Threshold, Ratio, Level
Multiband Presets: 9
Single-Band Presets: 4 | | Normalize | This function detects the highest volume level and raises the overall volume until the highest level reaches the maximum limit | | Metronome | Tempo: 20 to 250 BPM
Beat: 1 to 12 | | Tuner | Chromatic Mode: C3 to B5
Oscillator Mode: C3 to B5, 435 to 445 Hz | | | | Frequency Response | 20 Hz to 20 kHz +1/-3 dB (Input to Line Output) | | Signal to Noise Ratio | 90 dB or more (Input to Line Output) | | Distortion | 0.01% or less (Input to Line Output) | | | | Operating System Requirements | Windows: Windows XP, Windows Vista, Windows 7, Windows 8
Mac: OS X Jaguar (V10.2), Mac OS X Panther (V10.3), Mac OS X Tiger (V10.4), Mac OS X Leopard (V10.5), Mac OS X Snow Leopard (V10.6.8), OS X Lion (V10.7), OS X Mountain Lion (V10.8) | | | | Power | Dedicated AC adapter (TASCAM PS-P1225L, included) | | Power Consumption | 5 W | | Dimensions (W x H x D) | 11.4 x 2.1 x 8.2" / 290.0 x 54.1 x 207.2 mm | | Weight | 4 lb / 1.8 kg | | | | Package Weight | 5.4 lb | | Box Dimensions (LxWxH) | 16.693 x 10.709 x 4.961" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 78 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Tascam DP-03SD Digital Portastudio 8-Track Recorder
| Subject: assigning individual track (wav) to headphone output | | Date: 26.07.2022 00:50:37 | Name: bill t | Is it possible to route a single WAV track on playback to the headphones like you can with the metronome? (Separate from the main outs)
*****Apparently there is a way to do this with the Zoom R8 | | Post reply |
| Subject: Tascam dp03 problem | | Date: 31.12.2021 19:35:54 | Name: Tracy Houpe | | Machine won't power on. I was hooking and unhooking things to get the right sound. Monitors, laptop, and tascam device. | | Post reply |
| Subject: Tascam dp03 problem | | Date: 31.12.2021 19:06:52 | Name: Tracy Houpe | | Machine won't power on. I was hooking and unhooking things to get the right sound. Monitors, laptop, and tascam device. | | Post reply |
