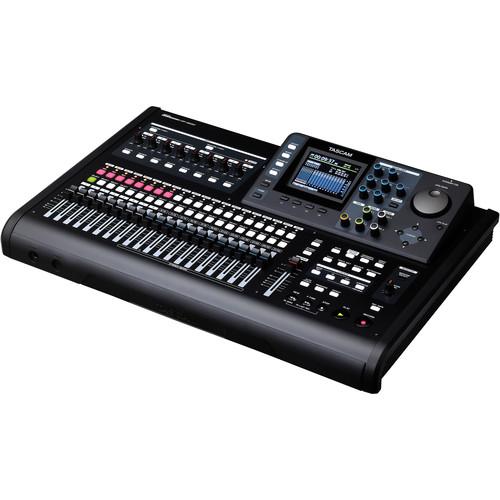

User Manual for Tascam DP-32SD 32-Track Digital Portastudio Click to enlarge the picture
Contents of the user manual for the Tascam DP-32SD 32-Track Digital Portastudio
- Product category: Digital Recorders & Players Tascam
- Brand: Tascam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tascam Digital Recorders & Players
 |
User manual for the Tascam DP-32SD 32-Track Digital Portastudio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tascam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tascam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tascam product will considerably shorten its lifespan!
|

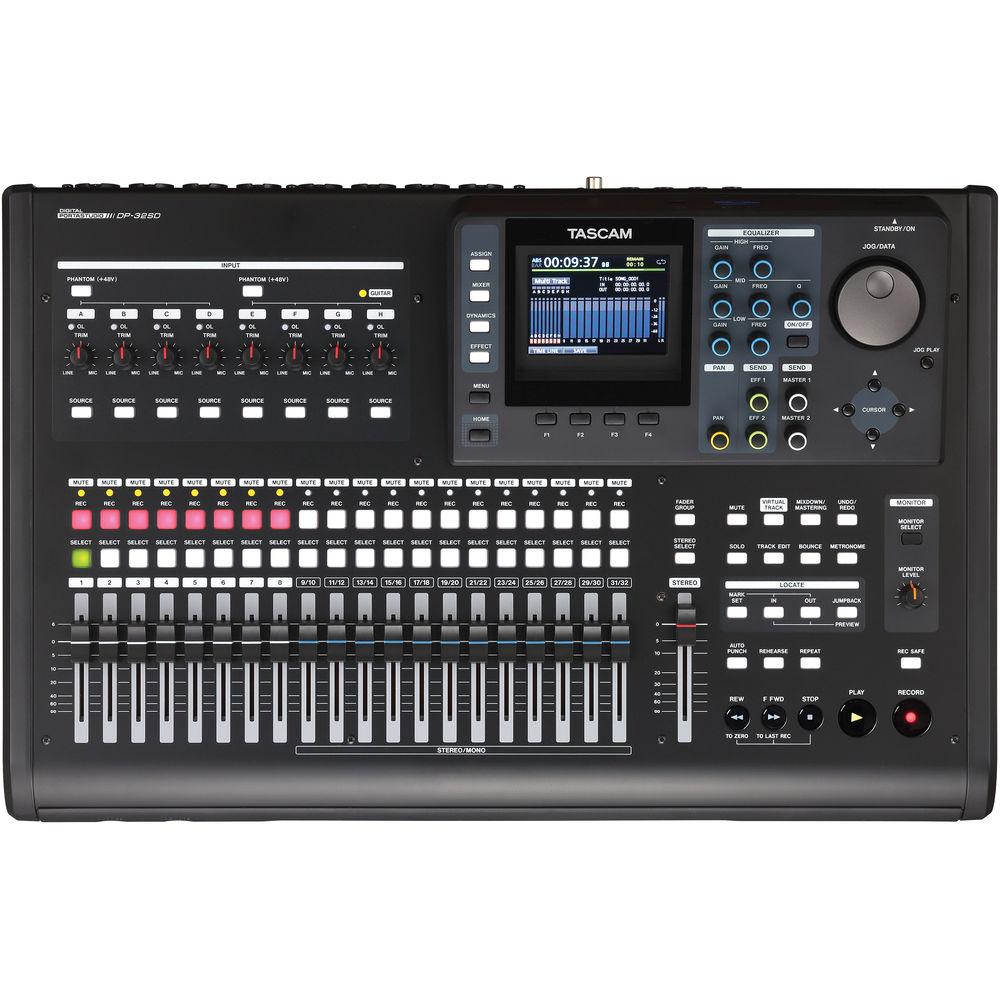

Product description Allowing you to record hands-on without the need for a computer, the DP-32SD 32-Track Digital Portastudio from Tascam can track up to 8 sources simultaneously with support for up to 32 tracks on playback. It features 8 combo XLR/TRS mic preamplifier inputs, with the eighth input also supporting Hi-Z sources such as guitar and bass. For hands-on control of your mix, the unit has 21 total faders (including the master), as well as a variety of EQ, compression, and guitar-based effects for tweaking your mix.
The unit records directly to SD and SDHC cards. Additionally, you can export your tracks to an external computer via the unit's USB port. A power supply, 2 GB SD card, and a USB cable are included. - 12 Mono/Stereo Selectable Faders
- The recorder has 12 selectable tracks between MONO or STEREO. Use a STEREO track for recording synthesizer, or set the track to MONO when recording guitar or vocal. Not only that, you can create independent settings for each track (set #9 to #12 STEREO, then set #13 to #22 MONO)
- 21 Faders Eliminates Layer Structuring
- The device features 21 total faders, one of which is assigned as the master fader
- 3.5" Color LCD and Self-Illuminated Buttons
- The DP-32SD has a 3.5" LCD screen and select self-illuminated buttons, to view your entire creative process. Some of the illuminated buttons include SOURCE, SELECT, REC, MUTE
- 12 Rotary Knobs
- The DP-32SD has employed rotary knobs to control qualities such as EQ, Effect Send and other related features
- Records to SD/SDHC Media
- The DP-32SD uses SD/SDHC media. These cards provide secure shock resistance due to the absence of any moving parts. The file format in the DP-32SD is FAT 16 or 32. You can transfer the recorded files to your computer via USB

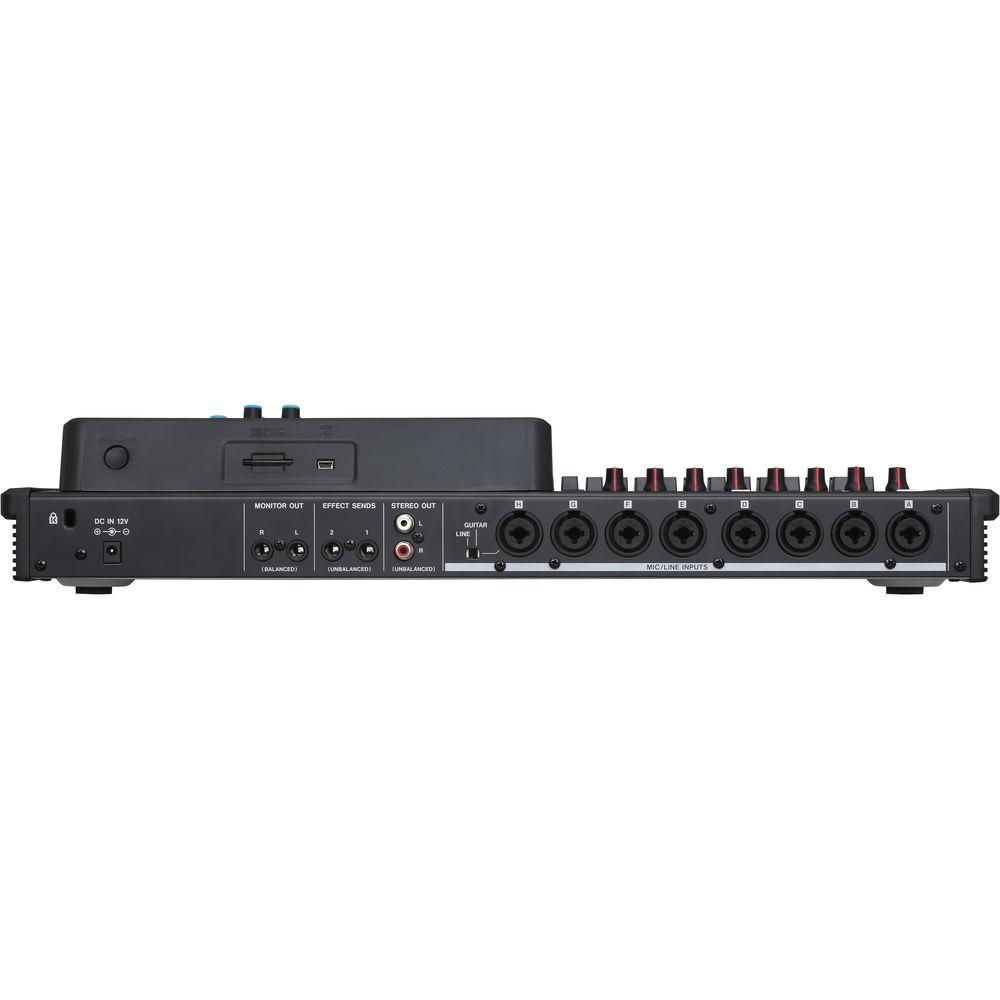

- 8 XLR/TRS Inputs, 8 Channel Recording,
- The DP-32SD has 8 XLR/TRS combo inputs. You can record up to eight sources at one time
- 3-Band EQ
- Input A-H and each track are equipped with 3-band EQ. The equalizer for each track and each input are independent from other effects. Record with EQ for each individual track
- 8 Dynamic Effects, Guitar Effects, and Mix-Down Effects
- Use up to 8 dynamics effects at once, one for each input source. For example, utilize the built-in compressor effect for your bass, guitar and drum tracks. In addition, the DP-32SD has multiple guitar and mixing effects
- Built-In Digital Mastering
- The unit is equipped with mastering effects for finished-sounding mixes. There is no need for computers when recording and mixing. The mastering effects section includes a Multi-Band Compressor, EQ, Noise-Shaping Dither, and a Normalize Effects. You can create a 2-track master file for transfer to your computer and delivering to CD mastering or sharing online
- Headphone Amplifier
- The headphone amplifier provides ample monitoring in loud environments such as a rehearsal studios or live performance
- Virtual tracks (8 virtual tracks per one track)
- Locate mark up to 99 at one song
UPC: 043774030675 In the Box Tascam DP-32SD 32-Track Digital Portastudio Power Adapter 2 GB SD Card USB Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tascam DP-32SD 32-Track Digital Portastudio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTascam DP-32SD Specs | Playback Channels | 32 | | Recording Media | SD Card (512 MB to 2 GB)
SDHC Card (4 to 32 GB) | | File System | SD Card: FAT16
SDHC Card: FAT32 | | Inputs | Inputs A to H:
Connectors: Combo XLR/TRS connectors, (1: GND, 2: Hot, 3: Cold), balanced
Input Impedance: XLR: 2.4 kΩ TRS: 22 kΩ or more; Input H Set to Guitar: 1 MΩ
Nominal Input Level: XLR: -14 dBu; TRS: +4 dBu
Maximum Input Level: XLR: +2 dBu, TRS: +20 dBu | | Stereo Output | Connector: RCA pin jack, unbalanced
Output Impedance: 200 Ω
Nominal Output Level: -10 dBV
Maximum Output Level: +6 dBV | | Effect Sends | Connector: 1/4" (6.3 mm) TS phone jack, unbalanced
Output Impedance: 200 Ω
Nominal Output Level: -10 dBV
Maximum Output Level: +6 dBV | | Monitor Output | Connector: 1/4" (6.3 mm) TRS phone jack, balanced
Output Impedance: 200 Ω
Nominal Output Level: -2 dBV
Maximum Output Level: +14 dBV | | Headphones | Connector: 1/4" (6.3 mm) TRS phone jack
Maximum Output Level: 70 mW + 70 mW (THD+N 0.1% or less, 32 Ω loaded) | | USB | Connector: USB Mini-B type 4-pin
Format: USB 2.0 High-Speed mass-storage class | | Remote | Connector: 2.5mm TRS jack | | Power | Dedicated AC Adapter | | Power Consumption | 12 W (when supplying phantom power) | | Operating Temperature | 41 to 95° F (5 to 35° C) | | System Requirements | Windows: XP, Vista, 7, 8
CPU: Pentium 300 MHz or more
Memory: 128 MB or more
USB: USB 2.0
Mac: OS X 10.6 to 10.10
CPU: Power PC, iMac, G3, G4 266MHz or more
Memory: 64 MB or more
USB: USB 2.0 | | Frequency Response | 20 Hz to 20 kHz (+/-1 dB, input to stereo out/effect sends/monitor out) | | Signal to Noise Ratio | 90 dB or greater (input to stereo out/effect sends/monitor out) | | THD | 0.01% or less (input to stereo out/effect sends/monitor out) | | Dimensions (W x H x D) | 20.2 x 4.1 x 13.4" (514 x 104 x 340 mm) | | Weight | 13.67 lb (6.20 kg) | | | | Package Weight | 16.2 lb | | Box Dimensions (LxWxH) | 24.0 x 17.0 x 7.0" |
