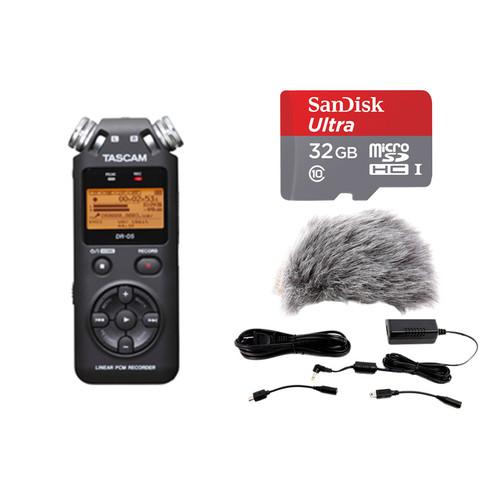

User Manual for Tascam DR-05 Portable Recorder Value Pack Click to enlarge the picture
Contents of the user manual for the Tascam DR-05 Portable Recorder Value Pack
- Product category: Portable Digital Recorders Tascam
- Brand: Tascam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tascam Portable Digital Recorders
|
User manual for the Tascam DR-05 Portable Recorder Value Pack contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tascam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tascam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tascam product will considerably shorten its lifespan!
|
Product description The DR-05 Portable Recorder Value Pack (Black) is a Kit that, aside from headphones, includes everything needed to go out and capture great sounding recordings.
The DR-05 from Tascam offers high-quality recording in a lightweight and compact design, perfect for HDSLR dual-system videographers, journalists, and more. An extra memory card, AC power adapter, and windscreen round out the package. - Tascam DR-05 Portable Handheld Digital Audio Recorder (Black) The black DR-05 Portable Handheld Digital Audio Recorder from Tascam offers high-quality recording in a lightweight and compact design that anyone can use, and is perfect for musicians, teachers, journalists, and more. The DR-05 records WAV or MP3 files at rates up to 24-bit/96 kHz to microSD or microSDHC cards for reliable, skip-free storage. A 2GB card is included so you can get started right away. Integrated microphones capture clear stereo audio, while a 3.5mm stereo mic/line input lets you connect external mics and sound sources. The jack even provides plug-in power for mics that require it.
An integrated speaker and a 3.5mm headphone jack make it easy to listen to your recordings to make sure everything was captured perfectly. The large display screen shows vital information during recording and playback, while the intuitive controls provide quick and easy single-handed operation. The Peak Reduction feature will automatically set your recording level by listening to the audio input and adjusting for the best level. When used alongside the built-in limiter, unwanted distortion becomes a thing of the past.
The DR-05 includes other classic Tascam features, such as Variable Speed Audition, a level-align function, loop and repeat playback, self-timer recording, integrated editing, a chromatic tuner, and more. A USB 2.0 port allows you to connect the recorder to a computer to quickly transfer files. The DR-05 operates on a pair of standard AA batteries or via the included USB cable. A threaded socket provides convenient tripod mounting. - Compact Design
- The lightweight and compact design allows you to bring the recorder anywhere, perfect for musicians, teachers, journalists, and more
- Versatile Recording
- The DR-05 records WAV files at rates up to 24-bit/96 kHz and MP3 files at rates up to 320 kbps to provide you with a wealth of high-quality options to meet your needs
- microSD
- The recorder writes to microSD or microSDHC cards for reliable, skip-free storage. A 2GB card is included so you can get started right away
- Integrated Microphones
- Integrated omnidirectional condenser microphones capture clear stereo audio with a sensitivity rating up to 125 dB to withstand loud sound sources, while also capturing the nuance and detail of a subtle performance
- Mic/Line Input
- The 3.5mm stereo mic/line input lets you connect external mics and sound sources. The jack even provides plug-in power for mics that require it
- Integrated Speaker and Headphone Jack
- An integrated speaker and a 3.5mm headphone jack make it easy to listen to your recordings to make sure everything was captured perfectly
- Large Display
- The large display screen shows vital information during recording and playback
- Intuitive Controls
- The intuitive controls provide quick and easy single-handed operation
- Level Control Options
- The DR-05 offers automatic and manual level setting, as well as a Peak Reduction feature that will automatically set your recording level by listening to the audio input and adjusting for the best level. Unlike auto-gain functions, Peak Reduction only goes down to prevent accidental distortion after a period of low level, like a break. Peak Recording works in rehearsal mode or while recording, so if the performance is louder than the soundcheck, you're still safe
- Limiter and Low-Cut Filter
- An integrated limiter and low-cut filter help to prevent distortion and low-frequency rumble and hum
- Self-Timer Recording
- This feature will start the recorder 5 or 10 seconds after you hit the record button, giving you time to get ready when recording yourself. Alternately, you can enable a 2-second pre-recording buffer, which will capture audio from 2 seconds before you hit the record button
- Playback Options
- The recorder has variable-speed playback, letting you adjust recordings from 50-150% without affecting the pitch. It also offers loop and repeat playback, auto and manual track increment, playback EQ settings, and a level-align feature that prevents uneven volume levels during playback
- Editing
- Onboard editing capabilities let you divide and delete tracks and sections of tracks, an assign up to 99 mark points on each file. A jump-back function will return to your previous point with one action
- Tuner
- A built-in chromatic tuner ensures that you're in-key and sounding your best
- USB Port
- The USB 2.0 port makes it easy to connect the recorder to a computer to transfer your files for editing and sharing. The port also provides power to the DR-05
- Power Options
- The recorder can operate on a pair of standard AA batteries or via USB bus power with the included cable
- Tripod Socket
- A threaded socket provides convenient tripod mounting
UPC: 043774026784 - SanDisk 32GB Ultra UHS-I microSDHC Memory Card (Class 10) Designed for use in Android smartphones and tablets, the class 10 32GB Ultra UHS-I microSDHC Memory Card is a micro-size Secure Digital High Capacity memory card. With 32GB of data storage capacity, the card provides ample space for photos and videos captured with your camera or smartphone. Download the Memory Zone app from the Google Play store and easily manage your media right from your phone.
This microSDHC memory offers an SD Class 10 rating along with an Ultra High Speed Class 1 rating, for read speeds up to 98 MB/s and lower write speeds that should at least be able to exceed the Class 10 minimum of 10 MB/s. These speeds make the card ideal for capture and transfer of full HD 1080p video. A built-in write-protect switch found on the SD adapter prevents accidental data loss.
You can insert the card into any microSDHC-compatible device, such as a mobile phone. Plus, the included microSD adapter enables you to insert the card into any full-sized SD slot, making it compatible with SDHC-compatible devices like digital cameras and card readers. As far as durability, this compact memory solution is waterproof, shockproof, and protected against X-rays. It's also backed by a ten-year limited warranty in the USA. - Micro-size Secure Digital High Capacity card
- With 32GB of data storage capacity, this card provides ample space for photos, videos, apps, and more
- With SD Class 10 and Ultra High Speed Class 1 ratings, you benefit from data transfer rates of up to 98 MB/s and lower write speeds.
- Built-in write-protect switch, found on the SD adapter, prevents accidental data loss
- You can insert the card into any microSDHC micro-compatible device. Plus, the included microSD adapter enables you to insert the card into any full-sized SD slot, making it compatible with SDHC-compatible devices like digital cameras and card readers
- As far as durability, this compact memory solution is waterproof, shockproof, and protected against X-rays
- Backed by a ten-year limited warranty in the USA
UPC: 619659134693 - Auray WRW-H4DR Custom Windbuster for Digital Recorders The Auray WRW Series Custom Windbusters provide dual layered wind protection and are designed to substantially reduce unwanted broadband wind noise and vocal pops with minimal high frequency loss.
This WRW-H4DR Custom Windbuster has been tailor-made to fit a selection of popular digital recorders and is designed to be used on its own without the need of a foam windscreen. The simulated fur outer layer works in tandem with the acoustic cloth inner lining to protect the microphone element from air bursts without muffling the sound.
When used on a digital recorder, this windbuster is effective in minimizing wind noise and plosive sounds. It is most effective in light breeze to moderate breeze conditions (4-17 mph) and users can generally expect a 20dB to 30dB reduction in wind noise with modest dampening of high frequencies. For most applications, the modest high frequency dampening is a worthwhile exchange for the substantial wind noise reduction.
In addition to dual layered wind protection, the WRW-H4DR helps prevent moisture and dirt from damaging your recorder's microphone. The windbuster is designed to fit recorders from Marantz, Nagra, Olympus, Roland, Yamaha and Zoom.
The WRW-H4DR Custom Windbuster for Digital Recorders offers an extremely effective dual layered solution for wind protection. - Olympus LS-12, DS-7000, DS-3500
UPC: 847628554955 - Tascam PS-P520E AC Power Adapter The PS-P520E from Tascam is an external power supply for the MP-GT1 Portable MP3 Guitar Trainer. The adapter is also compatible with the company's DR-1, GT-R1, DR-2d, DR-07, DR-V1HD, DR-100, DR-100MK2, DP-004, DP-006, DP-008, DP-008EX, CD-GT2, CD-BT2, CD-VT2, MP-GT1, MP-BT1, MP-VT1, GB-10, LR-10, PT-7, and US-2x2. When using a DC to mini-USB cable, the power supply supports the Tascam GB-10, LR-10, DR-03, DR-05, DR-07MK2, DR-40, DR-22WL, DR-44WL, DR-60D, DR-60DMK2, DR-70D, and DR-701D models. It replaces the discontinued PS-P520. UPC: 043774032242
In the Box - DR-05 Portable Handheld Digital Audio Recorder (Black) rqvexqeteztvczfzsc
- microSD Card
- 2 x AA Batteries
- USB Cable
- Limited 1-Year Warranty
- SanDisk - 32GB Ultra UHS-I microSDHC Memory Card (Class 10)
- Auray - WRW-H4DR Custom Windbuster for Digital Recorders rqvexqeteztvczfzsc
- PS-P520E AC Power Adapter
Table of Contents
|
Upload User Manual
Have you got an user manual for the Tascam DR-05 Portable Recorder Value Pack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Tascam DR-05 Portable Handheld Digital Audio Recorder (Black)
| | | Number of Tracks | 2 | | Max Sample Rate/Resolution | 96 kHz / 24-Bit | | Microphone | Built-In Omnidirectional Condenser Stereo Pair | | Built-In Speaker | Yes, 300 mW Mono | | Display | LCD | | Memory Card Support | microSD, microSDHC (64 MB to 32 GB) 2 GB Card Included | | | | Audio File Formats | BWF, MP3, WAV | | Sample Rates | WAV:
44.1 / 48 / 96 kHz
MP3:
44.1 / 48 kHz | | Bit Depth | 16/24-Bit | | Bit Rates | 32 to 320 kb/s | | Timecode | No | | Recording Time | MP3 128 kb/s:
17 Hrs 21 Mins per GB (Stereo)
MP3 320 kb/s:
6 Hrs 56 Mins per GB (Stereo)
WAV 44.1 kHz/16-Bit:
1 Hr 34 Mins per GB (Stereo)
WAV 48 kHz/16-Bit:
1 Hr 26 Mins per GB (Stereo)
WAV 96 kHz/24-Bit:
28 Mins per GB (Stereo) | | | | Analog I/O | 1 x 1/8" / 3.5 mm TRS Line/Mic Input
1 x 1/8" / 3.5 mm TRS Headphone/Line Output | | Host Connection | 1 x Mini-USB (USB 2.0) | | | | Frequency Response | Line Outputs:
20 Hz to 20 kHz +1/-3 dB (at 44.1 kHz, JEITA)
20 Hz to 22 kHz +1/-3 dB (at 48 kHz, JEITA)
20 Hz to 40 kHz +1/-3 dB (at 96 kHz, JEITA) | | SNR | ≥92 dB | | THD | ≤0.05% | | | | Power Options | Batteries, USB Bus Power | | Battery Type | 2 x AA | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Dimensions | 2.4 x 5.6 x 1.0" / 61.0 x 141.0 x 26.0 mm | | Weight | 4.1 oz / 116.0 g (without Batteries) | | | | Box Dimensions (LxWxH) | 7.35 x 4.8 x 2.6" | - SanDisk 32GB Ultra UHS-I microSDHC Memory Card (Class 10)
| Card Type | microSDHC | | Storage Capacity | 32 GB | | Speed Class | 10 | | Bus Interface Speed | UHS Class I | | Data Transfer | Read Speed: 98 MB/s Maximum (Burst) | | Durability | Shockproof, Waterproof, X-Ray Proof | | Operating Temperature | -13 to 185°F/ -25 to 85°C | | Storage Temperature | -40 to 185°F/ -40 to 85°C | | | | Box Dimensions (LxWxH) | 6.0 x 4.0 x 0.5" | - Auray WRW-H4DR Custom Windbuster for Digital Recorders
| | | Box Dimensions (LxWxH) | 4.3 x 2.9 x 1.3" | - Tascam PS-P520E AC Power Adapter
| Input Power | 100 - 200 VAC, 50/60 Hz | | Output Power | 5.0 V, 2 A | | | | Box Dimensions (LxWxH) | 6.2 x 4.1 x 3.4" |
