User Manual for Tascam DR-100mkIII Linear PCM Recorder Click to enlarge the picture
Contents of the user manual for the Tascam DR-100mkIII Linear PCM Recorder
- Product category: Portable Digital Recorders Tascam
- Brand: Tascam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tascam Portable Digital Recorders
 |
User manual for the Tascam DR-100mkIII Linear PCM Recorder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tascam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tascam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tascam product will considerably shorten its lifespan!
|

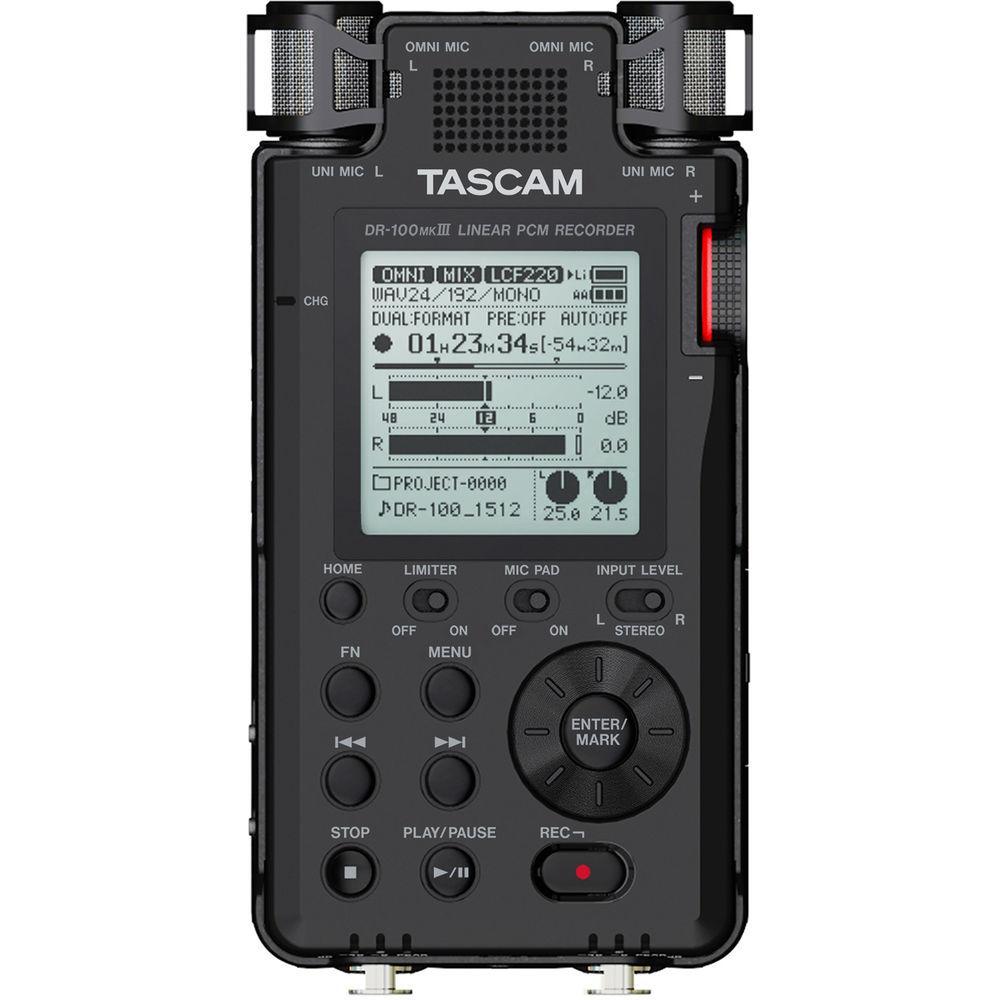

Product description The DR-100mkIII from Tascam is a linear PCM recorder which supports 24-bit/192 kHz recording resolution and is able to record MP3 and WAV files—even at the same time, in dual-recording mode. A different dual-recording mode allows you to record a lower-level safety track in case the initial recording clips, and XRI mode will write the settings used to record the track within the file itself; recorder, mics, level, low-cut filter implementation, limiter, and pad will be represented therein, making your editor's or post-production engineer's life a lot easier.

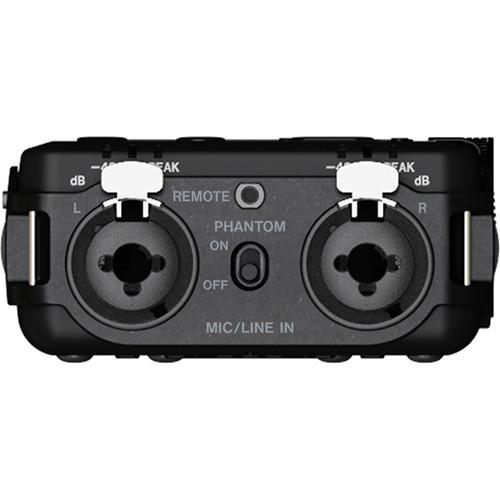

The recorder utilizes AKM AK4558 converters, offers a 109 dB signal-to-noise ratio, sports a temperature-compensated clock, and includes a built-in limiter, variable low-cut filter, and pad. The built-in mic operates in an A/B pattern, and two combination jacks with low-noise HDDA mic preamps can accept XLR and 1/4" terminations. This unit records to SDXC cards up to 128GB in size, and runs on a combination of a rechargeable lithium-ion battery and AA batteries, allowing you to swap the disposable power supply while recording without disrupting the process of capturing audio. - Notable Features
-
- Up to 24-bit/192 kHz recording resolution
- Dual-mono AKM AK4558 converters can be run in "Dual ADC mode" to secure a 109 dB signal-to-noise ratio
- Low-noise HDDA microphone preamps combine discrete performance with digital gain settings
- Dual-battery design uses a built-in lithium-ion rechargeable and AA batteries for extended recording times (you can also swap AAs during recording)
- Dual-recording mode captures a low-level safety track to prevent distorted takes
- Temperature-compensated sample clock (TCXO) with 1ppm accuracy

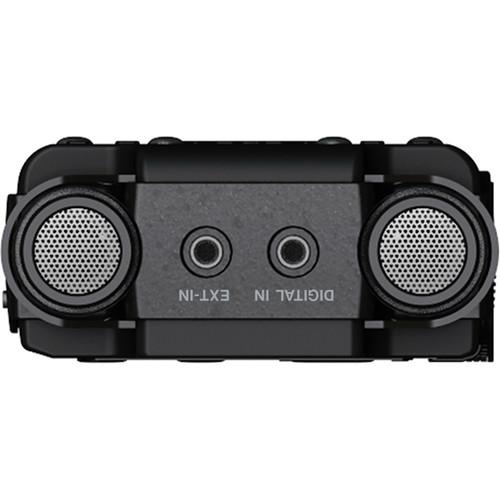

- 1/8" stereo input with plug-in power
- 1/8" S/PDIF digital input (with included phono adapter)
- Limiter and low-cut filter (40 / 80 / 120 / 220 Hz)
- A second dual-record mode captures WAV and MP3 files simultaneously
- XRI mode writes recording settings to the file, such as recorder, mics, level, low-cut filter, limiter, and pad
- Five dedicated switches and numerous buttons reduce menu-diving to confirm settings
- Remote input supports TASCAM RC-10 and RC-3F wired remote controls
UPC: 043774032259 In the Box Tascam DR-100mkIII Linear PCM Recorder Limited 1-Year Warranty User Manual PDF 5.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Tascam DR-100mkIII Linear PCM Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTascam DR-100MKIII Specs | | | Number of Tracks | 2 | | Max Sample Rate/Resolution | 96 kHz / 24-Bit | | Microphone | Built-In Omnidirectional Stereo Pair
Built-In Cardioid Stereo Pair, A/B Configuration | | Built-In Speaker | Yes | | Display | LCD (Backlit) | | Memory Card Support | SD, SDHC, SDXC (Up to 128 GB) | | | | Sample Rates | 192 kHz | | Bit Depth | 24-Bit | | Timecode | No | | Clock Accuracy | 1 ppm | | | | Analog I/O | 2 x Combo XLR / 1/4" TRS Input
1 x 1/8" / 3.5 mm TRS Input | | Digital I/O | 1 x 1/8" / 3.5 mm S/PDIF Input | | Phantom Power | +24 / 48 V | | | | Headphone Output Power | 40 mW per Channel | | SNR | 109 dB | | | | Power Options | Batteries | | Battery Type | 2 x AA or Internal Rechargeable | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 8.0 x 5.6 x 3.3" |
