Product description

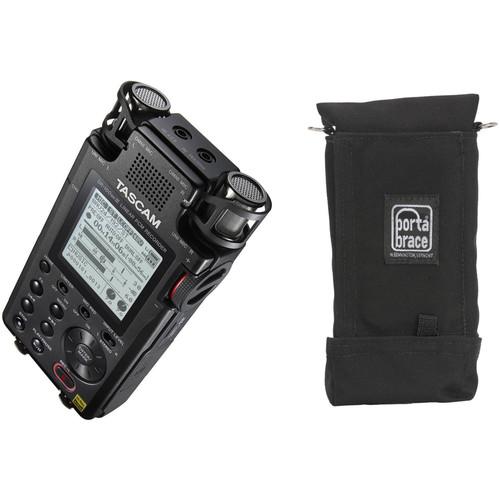

• Tascam DR-100mkIII Linear PCM Recorder The DR-100mkIII from Tascam is a linear PCM recorder which supports 24-bit/192 kHz recording resolution and is able to record MP3 and WAV files—even at the same time, in dual-recording mode. A different dual-recording mode allows you to record a lower-level safety track in case the initial recording clips, and XRI mode will write the settings used to record the track within the file itself; recorder, mics, level, low-cut filter implementation, limiter, and pad will be represented therein, making your editor's or post-production engineer's life a lot easier.

  The recorder utilizes AKM AK4558 converters, offers a 109 dB signal-to-noise ratio, sports a temperature-compensated clock, and includes a built-in limiter, variable low-cut filter, and pad. The built-in mic operates in an A/B pattern, and two combination jacks with low-noise HDDA mic preamps can accept XLR and 1/4" terminations. This unit records to SDXC cards up to 128GB in size, and runs on a combination of a rechargeable lithium-ion battery and AA batteries, allowing you to swap the disposable power supply while recording without disrupting the process of capturing audio.
  Notable Features
  • • Up to 24-bit/192 kHz recording resolution
    • Dual-mono AKM AK4558 converters can be run in "Dual ADC mode" to secure a 109 dB signal-to-noise ratio
    • Low-noise HDDA microphone preamps combine discrete performance with digital gain settings
    • Dual-battery design uses a built-in lithium-ion rechargeable and AA batteries for extended recording times (you can also swap AAs during recording)
    • Dual-recording mode captures a low-level safety track to prevent distorted takes
    • Temperature-compensated sample clock (TCXO) with 1ppm accuracy
    • 1/8" stereo input with plug-in power
    • 1/8" S/PDIF digital input (with included phono adapter)
    • Limiter and low-cut filter (40 / 80 / 120 / 220 Hz)
    • A second dual-record mode captures WAV and MP3 files simultaneously
    • XRI mode writes recording settings to the file, such as recorder, mics, level, low-cut filter, limiter, and pad
    • Five dedicated switches and numerous buttons reduce menu-diving to confirm settings
    • Remote input supports TASCAM RC-10 and RC-3F wired remote controls
  UPC: 043774032259

• DR-100mkIII Linear PCM Recorder uwcrcwcb
• Limited 1-Year Warranty

• Porta Brace - Custom Carry Case for Tascam DR-100mkIII Recorder

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Tascam DR-100mkIII Linear PCM Recorder

  Number of Tracks	2
  Max Sample Rate/Resolution	96 kHz / 24-Bit
  Microphone	Built-In Omnidirectional Stereo Pair Built-In Cardioid Stereo Pair, A/B Configuration
  Built-In Speaker	Yes
  Display	LCD (Backlit)
  Memory Card Support	SD, SDHC, SDXC (Up to 128 GB)

  Sample Rates	192 kHz
  Bit Depth	24-Bit
  Timecode	No
  Clock Accuracy	1 ppm

  Analog I/O	2 x Combo XLR / 1/4" TRS Input 1 x 1/8" / 3.5 mm TRS Input
  Digital I/O	1 x 1/8" / 3.5 mm S/PDIF Input
  Phantom Power	+24 / 48 V

  Headphone Output Power	40 mW per Channel
  SNR	109 dB

  Power Options	Batteries
  Battery Type	2 x AA or Internal Rechargeable

  Box Dimensions (LxWxH)	8.0 x 5.6 x 3.3"

• Porta Brace Custom Carry Case for Tascam DR-100mkIII Recorder

  Box Dimensions (LxWxH)	6.7 x 4.6 x 2.3"
