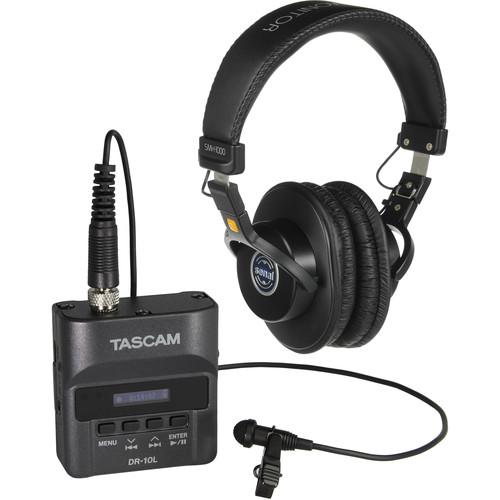

User Manual for Tascam DR-10L Digital Audio Recorder Kit with Monitor Headphones Click to enlarge the picture
Contents of the user manual for the Tascam DR-10L Digital Audio Recorder Kit
- Product category: Portable Digital Recorders Tascam
- Brand: Tascam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tascam Portable Digital Recorders
|
User manual for the Tascam DR-10L Digital Audio Recorder Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tascam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tascam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tascam product will considerably shorten its lifespan!
|
Product description Bundled by for your convenience, the Tascam DR-10L Digital Audio Recorder Kit provides you with everything you'd need to record a mono, single voice in the field, including a digital-audio recorder, a lavalier microphone for audio capture, and a set of over-ear, closed-back headphones for monitoring.
The device itself records in mono, doing so at resolutions and sample rates of 24-bit/48 kHz. It can capture up to 32GB of broadcast WAV files on a microSD or microSDHC card, and can run for up to 10 hours off a single AAA battery. A built-in limiter protects against distorted recordings, while a low-cut filter reduces wind and rumble noises. You can also use dual-recording mode to capture two files at different levels; this provides an added measure to make sure your audio is not distorted.
The recorder features a 3.5mm headphone jack, making it especially suitable for the included headphone monitors. These headphones feature a rugged design for both field and studio use, and can collapse for easy storage when you're not using them. With this eminently portable kit, any creative filmmaker, videographer, location recorder, or field-journalist should have everything they'd need to capture a mono, voice-level audio source. - Tascam DR-10L Digital Audio Recorder with Lavalier Mic (Black)
- First Look: Tascam DR-10L Digital Audio Recorder
Styled in black, the DR-10L Digital Audio Recorder with Lavalier Mic from Tascam is an ultra-compact, digital recorder and lavalier microphone combo with a screw-down locking connector compatible with most Sennheiser lavalier mics. It can be used for both the creative filmmaker and the busy videographer, and is also suitable for location recordings such as live events, and more.Featuring 24-bit mono and 48 kHz BWAV (Broadcast Wav) file format, it records up to 32GB on microSD or microSDHC media. There is a 1/8" headphone-output jack for easy monitoring of recordings and the recorder runs on a single AAA battery, which records up to 10 hours.Furthermore, the limiter function automatically reduces input level to prevent distortion and the dual recording mode records to two files simultaneously with different gain levels. The easy-to-read OLED display has a wide viewing angle, and the built-in micro-USB Type-B port provides for external power and easy file transfer to a computer.Finally, designed as part of a complete audio toolkit, the DR-10L delivers a flexible set of solutions for any audio production issue. - Stealth Fighter
- Building on the success of the DR-10X and the DR-10SG, the DR-10L marries the industry-standard TASCAM portable mini-recorder with a high-performance lavalier mic. Easy-to-use – and easy-to-wear – the DR-10L can become your secret weapon in the war against poor production audio.
- Dual Recording Records Two Files Simultaneously at Different Levels
- The DR-10L has several features to prevent distorted audio, but the most secure is dual recording. This feature captures a copy of your signal at a lower level, as a safety track in case of distortion.
- Automatic File Closing Saves File Data Before the Battery Runs Out
- You can always monitor the battery level on the easy-to-read OLED display. If the battery runs out in the middle of a recording, the unit will automatically save the file before turning off so your take isn't lost. The case is designed so that the batteries can be changed quickly, without removing the recorder from the camera shoe mount.
- Automatic Level, Limiter, and Other Functions
- If the input sound level is too low or too high, an automatic level function can increase or decrease the recording volume to an appropriate level. The limiter prevents distortion caused by sudden input overloads. These functions save you from worrying about recording-level settings in situations when there is no second chance.
- Compact and Lightweight Body
- The DR-10L has been designed to be small, light, and easy to conceal. Perfect for on-camera talent, documentary subjects, or entire wedding parties. The DR-10L can easily be hidden away so that nothing comes between you and the perfect shot.
- Operates up to 10 Hours Continuously
- One easily obtained alkaline AAA battery powers the DR-10L for up to 10 hours continuously. The DR-10L can also use disposable lithium or rechargeable NiMH batteries.
UPC: 043774032716 - Senal SMH-1000 Professional Field and Studio Monitor Headphones
- First Look: Tascam DR-10L Digital Audio Recorder
The SMH-1000 Professional Field and Studio Monitor Headphones from Senal feature a classic closed-back, over-the-ear, collapsible design. With features like interchangeable cables, a refined frequency response, wire guides, superior comfort, and durable materials, the SMH-1000 is ideal for studio and field applications.
Equipped with 40mm neodymium drivers at 58-Ohm impedance, the SMH-1000 headphones are designed to be loud enough when attached to low powered devices such as mobile phones and mp3 players, yet robust enough to handle studio headphone amps without distortion.The over-ear, closed-back design is intended to help block unwanted outside noise, which is useful in professional field recording and studio monitoring scenarios where isolation is critical.
The headphones are designed with an EQ curve that's been tailored for a slightly enhanced low end that allows field engineers to detect wind noise more effectively, and for studio engineers to monitor bass and sub bass frequencies. The high frequency response has been extended to accurately reproduce spatial detail. There is also a pronounced but smooth midrange that reduces ear fatigue over prolonged periods, while maintaining focus on vocal and dialogue intelligibility.
Designed for flexibility as well as great sound, the SMH-1000 makes use of twist-lock detachable cabling. There are two detachable cables included in each box that can be used interchangeably. There is a stretchable 4 to 10' coiled cable that provides better mobility and reach, that also helps prevent snags from pulling the headphones off of your head. This can be useful when navigating through gear-cluttered recording studio environments. There is also a 3' straight cable that is useful when less slack is ideal, such as when using a waist-mounted field recorder or mixer, or when using your mobile device.
The SMH-1000 has been built with convenience, practicality and comfort in mind as well. The headphones have a collapsible folding mechanism for compact storage and transport. They also have wire guides to keep the ear-cup wires from pinching. Furthermore, they are fitted with a padded headband and soft, replaceable ear cushions to maximize comfort during extended listening. - An excellent choice for commercial recording, broadcast, home studios, and live and location sound. Also great for home and portable entertainment.
- Over-ear, closed-back (circumaural) stereo headphone design to help block unwanted environmental noise. Ideal for use in professional applications such as studio or field recording.
- Detachable, twist-locking 10' coiled cable and 3' straight cable included. Replacement cables also available from Senal.
- Enhanced low end designed to allow field engineers to detect wind noise effectively, and for studio engineers to monitor bass and sub bass frequencies.
- Pronounced but smooth midrange tailored to reduce ear fatigue over prolonged periods while maintaining focus on vocal and dialog intelligibility.
- Extended high frequency response designed to reproduce spatial detail accurately. Gradual roll off at 14 kHz allows for accurate low level monitoring and hearing protection.
- Padded headband and soft, replaceable ear cushions. Replacement cushions are available for purchase.
- Easy storage via collapsible folding mechanism.
UPC: 847628015821 In the Box - DR-10L Digital Audio Recorder with Lavalier Mic (Black) eavywxwbezdfxubbxzzaweueetzywrrxsey
- Lavalier Microphone
- Microphone Clip
- Windscreen
- USB Cable
- Carrying Case
- Belt Clip
- Limited 1-Year Warranty for Parts
- Limited 90-Day Warranty for Labor
- Senal - SMH-1000 Professional Field and Studio Monitor Headphones eavywxwbezdfxubbxzzaweueetzywrrxsey
Table of Contents
|
Upload User Manual
Have you got an user manual for the Tascam DR-10L Digital Audio Recorder Kit with Monitor Headphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Tascam DR-10L Digital Audio Recorder with Lavalier Mic (Black)
| | | Number of Tracks | 2 | | Max Sample Rate/Resolution | 48 kHz / 24-Bit | | Built-In Speaker | No | | Memory Card Support | microSD (64 MB to 2 GB)
microSDHC (4 to 32 GB) | | | | Audio File Formats | BWF, WAV | | Sample Rates | 44.1 / 48 kHz | | Bit Depth | 24-Bit | | Timecode | No | | | | Analog I/O | 1 x 1/8" / 3.5 mm TRS Input (Lockable)
1 x 1/8" / 3.5 mm TRS Headphone Output | | Host Connection | 1 x Micro-USB (USB 2.0) | | | | Gain Range | Mic Inputs:
+14 to +38 dB | | Max Input Level | Inputs:
-15 dBu (Low Gain) | | Impedance | Inputs:
33 kOhms (Plug-In Power Off)
2 kOhms (Plug-In Power On) | | Microphone Max SPL | 115 dB SPL | | | | Power Options | Batteries, USB Bus Power | | Battery Type | 1 x AAA
1 x AAA | | Approximate Battery Life | WAV 48 kHz/24-Bit:
10 Hours (Alkaline, without Headphones)
8 Hours (NiMH, without Headphones)
15.5 Hours (Lithium, without Headphones) | | | | Dimensions | 2.0 x 2.2 x 1.0" / 52.0 x 55.6 x 24.4 mm | | Weight | 2.2 oz / 63.0 g (with Batteries)
1.8 oz / 51.0 g (without Batteries) | | | | Box Dimensions (LxWxH) | 5.8 x 4.6 x 2.2" | - Senal SMH-1000 Professional Field and Studio Monitor Headphones
| | | Driver Size | 1.6" / 40 mm | | Magnet Type | Neodymium | | Design | Over-Ear (Circumaural) | | Earcup Style | Closed-Back | | | | Frequency Response | 10 Hz to 20 kHz | | Sensitivity | 102 dB at 1 kHz / 1 mW | | Impedance | 58 Ohms | | Maximum Power Handling | 1000 mW | | Total Harmonic Distortion (THD) | 1% | | | | Audio Connector | 1/8" (3.5 mm) | | Adapter (Included) | 1/4" (6.3 mm) | | | | Box Dimensions (LxWxH) | 9.1 x 8.8 x 3.8" |
