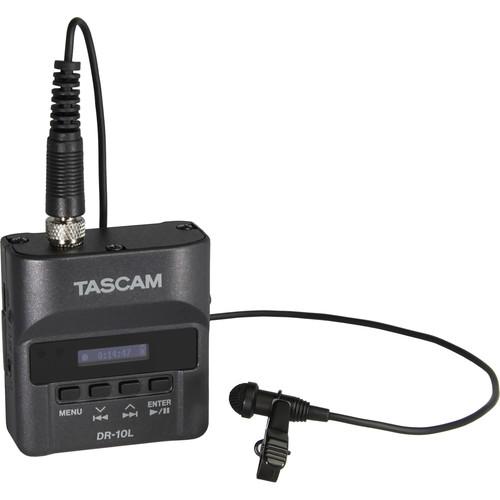

User Manual for Tascam DR-10L Digital Audio Recorder with Lavalier Mic Click to enlarge the picture
Contents of the user manual for the Tascam DR-10L Digital Audio Recorder with
- Product category: Portable Digital Recorders Tascam
- Brand: Tascam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tascam Portable Digital Recorders
 |
User manual for the Tascam DR-10L Digital Audio Recorder with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tascam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tascam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tascam product will considerably shorten its lifespan!
|
Product description Tascam DR-10L Pocket-Sized Digital Audio Recorder with Lavalier Mic Read More - First Look: Tascam DR-10L Digital Audio Recorder
Styled in black, the DR-10L Digital Audio Recorder with Lavalier Mic from Tascam is an ultra-compact, digital recorder and lavalier microphone combo with a screw-down locking connector compatible with most Sennheiser lavalier mics. It can be used for both the creative filmmaker and the busy videographer, and is also suitable for location recordings such as live events, and more.Featuring 24-bit mono and 48 kHz BWAV (Broadcast Wav) file format, it records up to 32GB on microSD or microSDHC media. There is a 1/8" headphone-output jack for easy monitoring of recordings and the recorder runs on a single AAA battery, which records up to 10 hours.Furthermore, the limiter function automatically reduces input level to prevent distortion and the dual recording mode records to two files simultaneously with different gain levels. The easy-to-read OLED display has a wide viewing angle, and the built-in micro-USB Type-B port provides for external power and easy file transfer to a computer.Finally, designed as part of a complete audio toolkit, the DR-10L delivers a flexible set of solutions for any audio production issue. - Stealth Fighter
- Building on the success of the DR-10X and the DR-10SG, the DR-10L marries the industry-standard TASCAM portable mini-recorder with a high-performance lavalier mic. Easy-to-use – and easy-to-wear – the DR-10L can become your secret weapon in the war against poor production audio.
- Dual Recording Records Two Files Simultaneously at Different Levels
- The DR-10L has several features to prevent distorted audio, but the most secure is dual recording. This feature captures a copy of your signal at a lower level, as a safety track in case of distortion.
- Automatic File Closing Saves File Data Before the Battery Runs Out

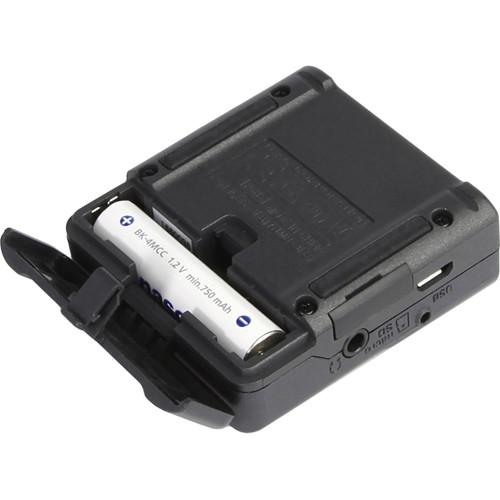

- You can always monitor the battery level on the easy-to-read OLED display. If the battery runs out in the middle of a recording, the unit will automatically save the file before turning off so your take isn't lost. The case is designed so that the batteries can be changed quickly, without removing the recorder from the camera shoe mount.
- Automatic Level, Limiter, and Other Functions
- If the input sound level is too low or too high, an automatic level function can increase or decrease the recording volume to an appropriate level. The limiter prevents distortion caused by sudden input overloads. These functions save you from worrying about recording-level settings in situations when there is no second chance.
- Compact and Lightweight Body
- The DR-10L has been designed to be small, light, and easy to conceal. Perfect for on-camera talent, documentary subjects, or entire wedding parties. The DR-10L can easily be hidden away so that nothing comes between you and the perfect shot.
- Operates up to 10 Hours Continuously
- One easily obtained alkaline AAA battery powers the DR-10L for up to 10 hours continuously. The DR-10L can also use disposable lithium or rechargeable NiMH batteries.
UPC: 043774032716 In the Box Tascam DR-10L Digital Audio Recorder with Lavalier Mic (Black) Lavalier Microphone Microphone Clip Windscreen USB Cable Carrying Case Belt Clip Limited 1-Year Warranty for Parts Limited 90-Day Warranty for Labor User Manual PDF 625.1kbywqdrtscetcyruuufsesurrvwc Table of Contents
|
Upload User Manual
Have you got an user manual for the Tascam DR-10L Digital Audio Recorder with Lavalier Mic in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTascam DR-10L Specs | | | Number of Tracks | 2 | | Max Sample Rate/Resolution | 48 kHz / 24-Bit | | Built-In Speaker | No | | Memory Card Support | microSD (64 MB to 2 GB)
microSDHC (4 to 32 GB) | | | | Audio File Formats | BWF, WAV | | Sample Rates | 44.1 / 48 kHz | | Bit Depth | 24-Bit | | Timecode | No | | | | Analog I/O | 1 x 1/8" / 3.5 mm TRS Input (Lockable)
1 x 1/8" / 3.5 mm TRS Headphone Output | | Host Connection | 1 x Micro-USB (USB 2.0) | | | | Gain Range | Mic Inputs:
+14 to +38 dB | | Max Input Level | Inputs:
-15 dBu (Low Gain) | | Impedance | Inputs:
33 kOhms (Plug-In Power Off)
2 kOhms (Plug-In Power On) | | Microphone Max SPL | 115 dB SPL | | | | Power Options | Batteries, USB Bus Power | | Battery Type | 1 x AAA
1 x AAA | | Approximate Battery Life | WAV 48 kHz/24-Bit:
10 Hours (Alkaline, without Headphones)
8 Hours (NiMH, without Headphones)
15.5 Hours (Lithium, without Headphones) | | | | Dimensions | 2.0 x 2.2 x 1.0" / 52.0 x 55.6 x 24.4 mm | | Weight | 2.2 oz / 63.0 g (With Batteries)
1.8 oz / 51.0 g (Without Batteries) | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 5.8 x 4.6 x 2.2" |
