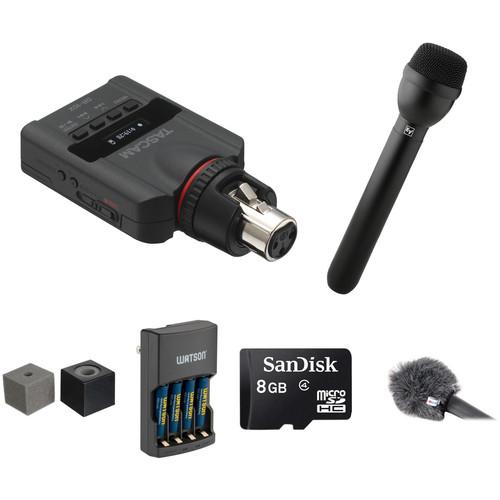

User Manual for Tascam DR-10X and RE-50 B Compact Interview Recording Kit Click to enlarge the picture
Contents of the user manual for the Tascam DR-10X and RE-50 B Compact
- Product category: Portable Digital Recorders Tascam
- Brand: Tascam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tascam Portable Digital Recorders
|
User manual for the Tascam DR-10X and RE-50 B Compact contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tascam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tascam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tascam product will considerably shorten its lifespan!
|
Product description Tascam DR-10L Pocket-Sized Digital Audio Recorder with Lavalier Mic Read More wvdtseftwffbxtqutcatyfvxy If you are interested in a compact, on-mic solution for recording interviews with a handheld mic, check out the Tascam DR-10X and RE-50/B Compact Interview Recording Kit from . Consisting of a Tascam DR-10X plug-on recorder, an Electro-Voice RE50/B omnidirectional microphone, a 4-pack of rechargeable AA batteries with charger, a fur windsock, a microSDHC card, and a microphone flag, the kit allows you to record your interviews in up to 48 kHz/24-bit without the need of any wires or additional equipment.
The DR-10X plugs directly onto the XLR output connector of the RE50/B, allowing you to record directly to the included microSDHC card. It is powered by a single AA battery, so the included 4-pack provides you with ample powering time. - Tascam DR-10X Plug-On Micro Linear PCM Recorder (XLR)
- Quick Look: Tascam DR-10X Plug-On Linear PCM Recorder
Providing a PCM recording solution that you can connect directly to your handheld dynamic microphone the DR-10X Plug-On Micro Linear PCM Recorder from Tascam is capable of tracking in up to 24-bit, 48 kHz resolution to SD or microSD cards up to 32 GB and can be used for ENG applications. The unit features automatic and manual gain settings as well as a selectable low-cut filter. It is capable of recording a safety track at a lower volume simultaneously to prevent against distortion. While designed for use with dynamic microphones, it can be used with condenser microphones that are connected to an optional power supply. The DR-10X can be powered by a single AAA battery (not included) for up to 10 hours and includes a USB cable. - XLR jack mounts directly to dynamic microphone (It also can use condenser microphone powered by battery)
- 48 kHz/24-bit mono digital recording
- Uses standard microSD/microSDHC card media (up to 32 GB)
- Mic pre gain Low/Mid/High control
- Instant record mode - power on while holding record button side switch
- Limited and low-cut filter
- Manual and automatic gain control
- Dual Recording feature captures a safety track in case of distortion
- Hold function prevents accidentally switching off the recorder (All keys cannot operate during recording)
- Records BWF file timestamped with time of day clock
- Time Track increment function writes new track after a preset amount of time.(There is on/off setting, but the time is 15 minutes fixed when turn it on)
- More than 8 hours recording on a single AAA battery
- Playback function with headphone out
- Settings can be created with text file on PC and transferred to DR-10X via the microUSB connection
- Infrared data communication for transferring setting information among multiple DR-10C
UPC: 043774031283 - Electro-Voice RE50B - Omnidirectional Dynamic Shockmounted ENG Microphone (Black)
- Quick Look: Tascam DR-10X Plug-On Linear PCM Recorder
Every day, for local, national and international news reports, the Electro-Voice RE50B gathers the audio for news interviews. Designed specifically as an ENG/EFP interview microphone, the RE50B's custom Dyna-Damp "mic-within-a-mic" shockmount provides extremely low handling noise for clear sound. A large, built-in Acoustifoam filter keeps wind and P-pop noise to an absolute minimum, indoors or out. Frequency response is 80 Hz to 13 kHz. - Industry standard news interview microphone
- Features EV Dyna-Damp shockmount
- Extremely low handling noise for clear sound
- "Mic-within-a-mic" concept reduces wind and vocal plosive sounds
UPC: 701001010905 - Auray Square Microphone Flag (Black)
- Quick Look: Tascam DR-10X Plug-On Linear PCM Recorder
This Auray 2.25" Square Microphone Flag fits any size handheld ENG microphone. The flag includes two foam inserts that accomodate various handle sizes. The square area is black and provides sufficient space for a station ID logo. UPC: 847628562875 - Watson Rapid Charger with 4 AAA NiMH Rechargeable Batteries (950mAh)
- Quick Look: Tascam DR-10X Plug-On Linear PCM Recorder
The Watson Rapid Charger with 4 AAA NiMH Rechargeable Batteries (950mAh) is a charger coupled with 4 AAA-sized nickel-metal hydride (NiMH) batteries. You can also use it to charge AAA NiCd batteries, or AA NiMH or NiCd's. The charger's integrated micro-controller ensures that each battery is charged to its full capacity, and automatic charge cut-off prevents overcharging. The charger also has circuit and polarity protection. Two LED indicators display charging status, and there are two individually-monitored charging channels. The charger has switching 100-240 VAC power, enabling use all over the world. Its compact outlet prongs can fold in, making the unit more compact for storage.
The AAA NiMH batteries are great for portable devices such as digital cameras, MP3 players, toys, games, flashlights and more. They have a capacity of 950mAh, significantly greater than that of standard nickel metal-cadmium (NiCd) batteries. They also have excellent high-drain performance and can be recharged up to 500 times. The batteries are mercury- and cadmium-free. Rapid Charger - Integrated micro-controller ensures that each battery is charged to its full capacity, and automatic charge cut-off prevents overcharging
- Circuit and polarity protection
- Two LED indicators display charging status
- Two individually-monitored charging channels
- Switching 100-240 VAC power, enabling use all over the world
- Compact outlet prongs can fold in, making the unit more compact for storage
4 AAA NiMH Rechargeable Batteries - AAA-sized nickel-metal hydride (NiMH) batteries are great for portable devices such as digital cameras, MP3 players, toys, games, flashlights and more
- Capacity of 950mAh, significantly greater than that of standard nickel metal-cadmium (NiCd) batteries
- Excellent high-drain performance
- Can be recharged up to 500x
- Mercury- and cadmium-free
UPC: 847628009165 - SanDisk 8GB microSDHC Memory Card Class 4 With SD Adapter
- Quick Look: Tascam DR-10X Plug-On Linear PCM Recorder
This 8GB microSDHC Memory Card Class 4 With SD Adapter from SanDisk is ideal for use with multimedia mobile phones or any other device that uses microSDHC cards. Expand your entertainment storage with up to 8GB of extra music, videos, photos, games, software, and more. For peace-of-mind the card comes with a 5-year limited warranty from SanDisk. - Great for use with multimedia phones - expands memory for music, video, games, photos, and mobile software applications
- Seamless speed and performance with microSDHC and SD compatible devices
- Tested under extreme conditions
UPC: 619659067021 - K-Tek KR-50-70 Fur Windsock for Ball-Type Handheld Microphones
- Quick Look: Tascam DR-10X Plug-On Linear PCM Recorder
The K-Tek KR-50-70 Fur Windsock is designed by Reinhardt and is intended to be used as an extra layer of wind protection; fitting over existing foam windscreens and plastic windshields. This Windsock is made of top-grade synthetic fur and measures 1.96 x 2.75" (50 x 70mm), which allows it to fit snugly over ball-type handheld microphones. UPC: 791090332712 In the Box - DR-10X Plug-On Micro Linear PCM Recorder (XLR) wvdtseftwffbxtqutcatyfvxy
- USB Cable
- Limited 1-Year Warranty
- Electro-Voice - RE50B - Omnidirectional Dynamic Shockmounted ENG Microphone (Black)
- Auray - Square Microphone Flag (Black)
- Watson - Rapid Charger with 4 AAA NiMH Rechargeable Batteries (950mAh)
- SanDisk - 8GB microSDHC Memory Card Class 4 With SD Adapter
- K-Tek - KR-50-70 Fur Windsock for Ball-Type Handheld Microphones
Table of Contents
|
Upload User Manual
Have you got an user manual for the Tascam DR-10X and RE-50 B Compact Interview Recording Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Tascam DR-10X Plug-On Micro Linear PCM Recorder (XLR)
| | | Number of Tracks | 2 | | Max Sample Rate/Resolution | 48 kHz / 24-Bit | | Built-In Speaker | No | | Memory Card Support | microSD (64 MB to 2 GB)
microSDHC (4 to 32 GB) | | | | Audio File Formats | BWF, WAV | | Sample Rates | 48 kHz | | Bit Depth | 24-Bit | | Timecode | No | | | | Analog I/O | 1 x XLR 3-Pin Mic Input
1 x 1/8" / 3.5 mm TRS Headphone Output | | Host Connection | 1 x Micro-USB (USB 2.0) | | | | Impedance | Inputs:
≥10 kOhms | | | | Power Options | Batteries, USB Bus Power | | Battery Type | 1 x AAA
1 x AAA | | Approximate Battery Life | 10 Hours (Alkaline) | | | | Dimensions | 2.0 x 3.7 x 1.1" / 52.0 x 94.4 x 28.0 mm | | Weight | 2.4 oz / 68.3 g (with Batteries)
2.0 oz / 56.3 g (without Batteries) | | | | Box Dimensions (LxWxH) | 5.8 x 4.6 x 2.2" | - Electro-Voice RE50B - Omnidirectional Dynamic Shockmounted ENG Microphone (Black)
| Polar Pattern | Omnidirectional | | Element Type | Dynamic | | Output Connector | 3-Pin XLR Male | | Frequency Response | 80 Hz - 13 kHz | | Output Impedance | 150 Ohms | | Sensitivity | 1.6 mV/Pa | | Power Requirements | None | | Case Material | Aluminum | | Dimensions (L x D) | 7.8 x 1.9" / 198.1 x 48.3 mm | | Weight | 9.5 oz / 269 g | | | | Box Dimensions (LxWxH) | 10.0 x 5.15 x 2.7" | - Auray Square Microphone Flag (Black)
| | | Box Dimensions (LxWxH) | 5.0 x 2.7 x 2.4" | - Watson Rapid Charger with 4 AAA NiMH Rechargeable Batteries (950mAh)
| | | Battery Type | 4 x AAA | | Battery Chemistry | NiMH | | Battery Voltage | 1.2 V | | Capacity (mAh) | 950 mAh | | Maximum Recharge Cycles | 500 | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Charging Bays | 4 x AA, AAA | | Charging Voltage | 2.8 VDC | | Charging Amperage | 500 mA | | Charger Dimensions | 4.25 x 2.75 x 1.25" / 108.00 x 70.00 x 32.00 mm | | Charger Weight | 4.2 oz / 120 g | | | | Box Dimensions (LxWxH) | 8.15 x 4.15 x 1.8" | - SanDisk 8GB microSDHC Memory Card Class 4 With SD Adapter
| Capacity | 8GB | | Compatibility | microSDHC devices and SD devices by using the included adapter | | | | Box Dimensions (LxWxH) | 5.0 x 3.0 x 0.01" | - K-Tek KR-50-70 Fur Windsock for Ball-Type Handheld Microphones
| | | Box Dimensions (LxWxH) | 8.0 x 6.0 x 1.0" |
