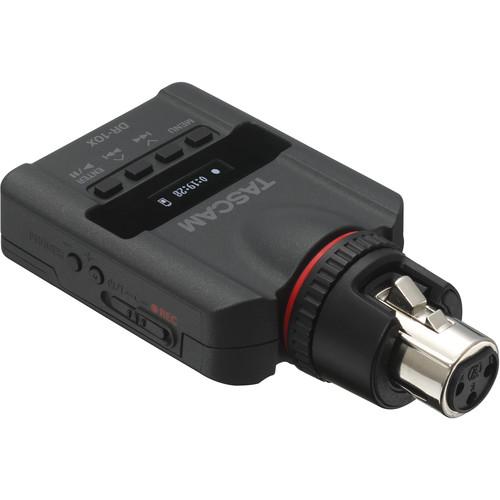

User Manual for Tascam DR-10X Plug-On Micro Linear PCM Recorder Click to enlarge the picture
Contents of the user manual for the Tascam DR-10X Plug-On Micro Linear PCM
- Product category: Portable Digital Recorders Tascam
- Brand: Tascam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tascam Portable Digital Recorders
|
User manual for the Tascam DR-10X Plug-On Micro Linear PCM contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tascam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tascam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tascam product will considerably shorten its lifespan!
|
Product description - Quick Look: Tascam DR-10X Plug-On Linear PCM Recorder
Providing a PCM recording solution that you can connect directly to your handheld dynamic microphone the DR-10X Plug-On Micro Linear PCM Recorder from Tascam is capable of tracking in up to 24-bit, 48 kHz resolution to SD or microSD cards up to 32 GB and can be used for ENG applications. The unit features automatic and manual gain settings as well as a selectable low-cut filter. It is capable of recording a safety track at a lower volume simultaneously to prevent against distortion. While designed for use with dynamic microphones, it can be used with condenser microphones that are connected to an optional power supply. The DR-10X can be powered by a single AAA battery (not included) for up to 10 hours and includes a USB cable. - XLR jack mounts directly to dynamic microphone (It also can use condenser microphone powered by battery)
- 48 kHz/24-bit mono digital recording
- Uses standard microSD/microSDHC card media (up to 32 GB)
- Mic pre gain Low/Mid/High control
- Instant record mode - power on while holding record button side switch
- Limited and low-cut filter
- Manual and automatic gain control
- Dual Recording feature captures a safety track in case of distortion
- Hold function prevents accidentally switching off the recorder (All keys cannot operate during recording)
- Records BWF file timestamped with time of day clock
- Time Track increment function writes new track after a preset amount of time.(There is on/off setting, but the time is 15 minutes fixed when turn it on)
- More than 8 hours recording on a single AAA battery
- Playback function with headphone out
- Settings can be created with text file on PC and transferred to DR-10X via the microUSB connection
- Infrared data communication for transferring setting information among multiple DR-10C
UPC: 043774031283 In the Box Tascam DR-10X Plug-On Micro Linear PCM Recorder (XLR) USB Cable Limited 1-Year Warranty User Manual PDF 7.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Tascam DR-10X Plug-On Micro Linear PCM Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTascam DR-10X Specs | | | Number of Tracks | 2 | | Max Sample Rate/Resolution | 48 kHz / 24-Bit | | Built-In Speaker | No | | Memory Card Support | microSD (64 MB to 2 GB)
microSDHC (4 to 32 GB) | | | | Audio File Formats | BWF, WAV | | Sample Rates | 48 kHz | | Bit Depth | 24-Bit | | Timecode | No | | | | Analog I/O | 1 x XLR 3-Pin Mic Input
1 x 1/8" / 3.5 mm TRS Headphone Output | | Host Connection | 1 x Micro-USB (USB 2.0) | | | | Impedance | Inputs:
≥10 kOhms | | | | Power Options | Batteries, USB Bus Power | | Battery Type | 1 x AAA
1 x AAA | | Approximate Battery Life | 10 Hours (Alkaline) | | | | Dimensions | 2.0 x 3.7 x 1.1" / 52.0 x 94.4 x 28.0 mm | | Weight | 2.4 oz / 68.3 g (with Batteries)
2.0 oz / 56.3 g (without Batteries) | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 5.8 x 4.6 x 2.2" |
