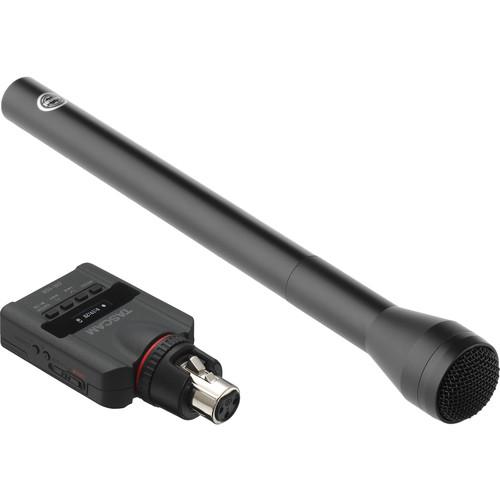

Tascam DR-10X Plug-On PCM Recorder and

User Manual for Tascam DR-10X Plug-On PCM Recorder and Senal SEENG18RL Microphone Kit

• Product category: Portable Digital Recorders Tascam
• Brand: Tascam
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Tascam Portable Digital Recorders

Product description

• Tascam DR-10X Plug-On Micro Linear PCM Recorder (XLR)
  • Quick Look: Tascam DR-10X Plug-On Linear PCM Recorder
  Providing a PCM recording solution that you can connect directly to your handheld dynamic microphone the DR-10X Plug-On Micro Linear PCM Recorder from Tascam is capable of tracking in up to 24-bit, 48 kHz resolution to SD or microSD cards up to 32 GB and can be used for ENG applications. The unit features automatic and manual gain settings as well as a selectable low-cut filter. It is capable of recording a safety track at a lower volume simultaneously to prevent against distortion. While designed for use with dynamic microphones, it can be used with condenser microphones that are connected to an optional power supply. The DR-10X can be powered by a single AAA battery (not included) for up to 10 hours and includes a USB cable.
  • XLR jack mounts directly to dynamic microphone (It also can use condenser microphone powered by battery)
  • 48 kHz/24-bit mono digital recording
  • Uses standard microSD/microSDHC card media (up to 32 GB)
  • Mic pre gain Low/Mid/High control
  • Instant record mode - power on while holding record button side switch
  • Limited and low-cut filter
  • Manual and automatic gain control
  • Dual Recording feature captures a safety track in case of distortion
  • Hold function prevents accidentally switching off the recorder (All keys cannot operate during recording)
  • Records BWF file timestamped with time of day clock
  • Time Track increment function writes new track after a preset amount of time.(There is on/off setting, but the time is 15 minutes fixed when turn it on)
  • OLED display
  • More than 8 hours recording on a single AAA battery
  • Playback function with headphone out
  • Settings can be created with text file on PC and transferred to DR-10X via the microUSB connection
  • Infrared data communication for transferring setting information among multiple DR-10C
  UPC: 043774031283
• Senal ENG-18RL Broadcast Omnidirectional Dynamic Microphone (Long)
  • Quick Look: Tascam DR-10X Plug-On Linear PCM Recorder
  The Senal ENG-18RL is a broadcast-quality omnidirectional dynamic microphone. The dynamic capsule picks up sound in a 360° pattern and does not require a battery or phantom power, making it a reliable choice for critical field applications. The microphone's exceptionally low handling noise and resistance to wind noise and vocal plosives make it perfect for professional ENG applications like live reporting, interviews, and press conferences.

  At multiple areas inside the microphone, natural rubber with special shock-absorbing properties is bonded to carbon steel rings to isolate the sealed inner shell from the outer shell. This system protects the microphone capsule from impacts and inclement weather, and dissipates kinetic energy, dramatically reducing handling noise and resonance due to rustling and knocking.

  The microphone also incorporates multistage wind protection to minimize wind noise and vocal plosives. A mesh grille, acoustic foam, acoustic fabric, and another layer of acoustic foam work to diffuse excess sound pressure from wind and breath. A fixed rigid carbon-steel ring with a unique bullet-shaped design disperses breath to minimize vocal plosives.

  The EQ curve is tailored for broadcast use, with a gradual low-frequency roll-off to keep out unwanted rumble, a pronounced midrange to ensure speech intelligibility, and a high-frequency roll-off to eliminate hiss and sibilance distortion. Whether broadcasting on television, AM/FM radio, or over the internet, the ENG-18RL is designed to ensure that dialogue cuts through the mix, and can be broadcast live without EQ adjustment.

  The ENG-18RL features a durable aluminum-alloy shaft designed for EMI rejection and reduced internal resonance, with a matte black finish for a professional appearance and minimum light reflection. The mic is also long enough to accommodate a mic flag.
  Ideal Choice for Critical Field Applications
  • The broadcast-quality omnidirectional dynamic capsule picks up sound in a 360° pattern and does not require a battery or phantom power, making it a reliable choice for critical field applications
  Isolated Inner Shell
  • The kinetic isolation system helps protect the microphone capsule and dissipate kinetic energy to dramatically reduce handling noise and resonance. Natural rubber shockmouts are bonded to carbon steel rings to isolate the sealed inner shell from the outer shell
  Diffuses Excess Sound Pressure From Wind and Vocal Plosives
  • Multistage wind protection comprises a mesh grille, acoustic foam, a bullet-shaped ring, acoustic fabric, and another layer of acoustic foam to diffuse excess sound pressure from wind and vocal plosives
  Broadcast Live Without EQ Adjustment
  • The EQ curve is tailored for broadcast use, with a gradual low-frequency roll-off to keep out unwanted rumble, a pronounced midrange to ensure speech intelligibility, and a high-frequency roll-off to eliminate hiss and sibilance distortion
  Can Accommodate Mic Flag
  • The ENG-18RL is long enough to fit a mic flag for show or station identification
  UPC: 847628572461

• DR-10X Plug-On Micro Linear PCM Recorder (XLR) fqyceyfsubydfsrfvyquferdbvrxwvt
• USB Cable
• Limited 1-Year Warranty

• Senal - ENG-18RL Broadcast Omnidirectional Dynamic Microphone (Long) fqyceyfsubydfsrfvyquferdbvrxwvt

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Tascam DR-10X Plug-On Micro Linear PCM Recorder (XLR)

  Number of Tracks	2
  Max Sample Rate/Resolution	48 kHz / 24-Bit
  Built-In Speaker	No
  Memory Card Support	microSD (64 MB to 2 GB) microSDHC (4 to 32 GB)

  Audio File Formats	BWF, WAV
  Sample Rates	48 kHz
  Bit Depth	24-Bit
  Timecode	No

  Analog I/O	1 x XLR 3-Pin Mic Input 1 x 1/8" / 3.5 mm TRS Headphone Output
  Host Connection	1 x Micro-USB (USB 2.0)

  Impedance	Inputs: ≥10 kOhms

  Power Options	Batteries, USB Bus Power
  Battery Type	1 x AAA 1 x AAA
  Approximate Battery Life	10 Hours (Alkaline)

  Dimensions	2.0 x 3.7 x 1.1" / 52.0 x 94.4 x 28.0 mm
  Weight	2.4 oz / 68.3 g (with Batteries) 2.0 oz / 56.3 g (without Batteries)

  Box Dimensions (LxWxH)	5.8 x 4.6 x 2.2"

• Senal ENG-18RL Broadcast Omnidirectional Dynamic Microphone (Long)

  Polar Pattern	Omnidirectional
  Element Type	Dynamic
  Output Connector	3-Pin XLR Male
  Frequency Response	50 Hz - 18 kHz
  Output Impedance	500 Ohms
  Sensitivity	2.2 mV/Pa
  Case Material	Aluminum
  Dimensions (L x D)	1.3 x 9.1" / 33.0 x 231.0 mm
  Weight	4.8 oz / 136 g

  Box Dimensions (LxWxH)	11.1 x 5.1 x 2.6"
