Product description

• Tascam DR-60DmkII 4-Channel Portable Recorder for DSLR Designed to cater to the needs of DSLR audio for video recording, the DR-60DmkII 4-Channel Portable Recorder for DSLR from Tascam is the latest generation of their popular audio recording device. Capable of recording 4 channels of audio simultaneously in up to 24-bit/96 kHz WAV/BWF files, the DR-60DmkII boasts Tascam's High Definition Discrete Architecture (HDDA) preamps and a Cirrus Logic analog-to-digital converter chip for accurate and pristine audio capture. It features 2 combination XLR/TRS microphone/line-level inputs with selectable phantom power, and a stereo 1/8" microphone input, capable of handling high-output microphones and supplying plug-in power.

  A built-in digital mixer gives you control over panning and level for each track, and allows you to insert a limiter or high-pass filter in addition to setting individual channel delay for distance adjustment. The DR-60DmkII gives you multiple output options as well. The dedicated camera out features adjustable level control to cater to DSLRs that lack input level control. The 1/8" line output can be used to feed a mixer or secondary recorder, while your monitoring is handled by a dedicated 1/8" headphone jack.

  The device records to SD and SDHC cards and is powered by 4 AA batteries, or an optional battery pack or AC adapter. A 2.5mm remote control input allows you to integrate an optional remote or footswitch control.
  HDDA Mic Preamps
  • Quality mic preamps are a necessity for quality sound. The DR-60DmkII's HDDA mic preamplifiers (High Definition Discrete Architecture) employ discrete circuitry and parts, approved after months of evaluation testing by Tascam. The HDDA's circuit achieves a high equivalent-input noise (EIN) of -120 dBu for low input noise. The DR-60DmkII mic preamps have been upgraded from their predecessor for up to 64 dB of gain with XLR input jacks for greater cable compatibility.
    A Cirrus Logic AD converter is used to ensure detailed recording from any input signal
  A Variety Inputs and Outputs with Internal Mixing
  • The DR-60DmkII can record up to 4-tracks simultaneously, allowing multiple microphones to be used while filming. Inputs 1/L and 2/R can be selected for mono or stereo link operation.

    3 sets of stereo outputs are provided. A Camera Out sends a reference track recording to the camera. The Line Out can feed a mixer or recorder. Finally, a Headphone Out is available for direct monitoring. Each of these outputs has its own level control, and the Camera Out can be attenuated to microphone level without the need for an attenuating cable

    The DR-60DmkII has an internal digital mixer for all 4 tracks. Adjust pan and level, add a limiter or hi-pass filter (40/80/120 Hz), and set individual channel delay from the user setup. The DR-60DmkII is ready to use right out of the box with its external, non-menu-intensive controls
  Multiple Record Modes for On-Set Challenges
  • Mono/Dual Mono Mode: For single source microphones, like using a shotgun together with a clip-on lavaliere mic
  • Stereo/Dual Stereo Mode: These modes are designed for shooting with a stereo or mid-side microphone. A Mid-Side Decoder is built in, and can be added either during monitoring or before recording
  • 4CH Mode: This mode records all four microphone inputs to their own tracks
  • Dual Mono And Dual Stereo Mode: Records a back-up safety track in case levels are set too high and clipping occurs. The safety track can be set to record from -6 to -12 dB below the initial take. If an actor suddenly screams a line, you have a backup recording that isn't distorted
  Custom Designed for DSLR Shooters
  • Every aspect of the DR-60DmkII is designed specifically for DSLR audio for video recording. The keys of the unit are designed specifically for quiet operation to eliminate handling noise. The Slate feature is designed to mark tracks easily while in production. The input and output layout is designed for versatile use. The device can be used under a camera, on a rig or strapped around a solitary sound engineer
  Dedicated Camera Output
  • The Camera Out connector sends the mix from the DR-60DmkII to your camera. An adjustable level control is provided, as many DSLR cameras lack an input control. The camera audio gets a clean mix from the DR-60DmkII to assist syncing tracks in post
  Slate-Tone Generator
  • The internal slate-tone generator produces various tones for easy track making and recognition. Slate tones can be generated two ways:
  • Automatic: Tones are added to the head or the head and tail of each clip (from 0.5 - 3 s)
  • Manual: Push the Slate button to record a tone
  Channels 3 & 4 Support High-Output Microphones
  • The channel 3/4 input connector supports a high-level maximum input, up to +10 dBV. Many microphones designed for use with video cameras have a high-level output and a 1/8" (3.5 mm) output connector. Plug-in power is also available for microphones that need it
  Tripod Mounting on Top and Bottom
  • The DR-60DmkII can be placed between a DSLR Camera and a tripod, or mounted to a cage or follow-focus rig. A tripod socket is on the bottom of the unit, and a (removable) tripod bracket is mounted on the top
  Lightweight Body Designed for Rugged Portability
  • The DR-60DmkII's body was manufactured with very rigid plastic for a durable but lightweight design. Tascam understands how important weight is to steady camera movement when filmmaking. In addition to its light weight, the DR-60DmkII is extremely compact. Only 5.25" wide, the DR-60DmkII won't interfere with camera operation. All batteries can be replaced without removing the device from the camera or tripod/rig
  • Record to SD/SDHC card (Up to 32GB)
  • Record Modes: Mono, Stereo, Dual Mono, Dual Stereo, 4-Channel
  • Recording format: 44.1/48/96 kHz, 16 or 24-bit, WAV/BWF
  • Recording levels can be adjusted independently for the 1/L, 2/R and 3-4 inputs
  • Two combo XLR/TRS inputs support +4 dBu mic/line level input
  • Phantom power to channels 1/2 (24 V or 48 VDC on XLRF)
  • Plug-in power and high-output mic input supported on inputs 3-4
  • Camera Out connector for output from the DR-60DmkII mixer (adjustable gain)
  • Camera In connector for sound monitoring from the camera
  • Independent adjustable line out and headphone jacks
  • 50mW/channel headphone amplifier
  • Tripod-mounting socket (bottom) and mounting-screw attachment (top)
  • Handles protect the screen and can be used to attach a shoulder strap
  • Soft-Touch Rubber Keys for silent operation
  • Hold switch to prevent accidental operation
  • QUICK button feature for easy access to various functions
  • 128x64 pixel LCD with backlight
  • USB 2.0 connection for high-speed transferring of files
  • Dedicated remote control jack for the wired RC-10 remote control or RC-3F footswitch (both sold separately)
  • Internal mixer: Pan and Level controls
  • Low-cut filter (40/80/120 Hz)
  • Limiter (1/L and 2/R can be selected for linked operation)
  • Delay function for microphone distance adjustment (up to 150 ms)
  • M-S decode function
  • Slate-tone generator (Auto/Manual)
  • Selectable duration of slate tone from four positions (0.5/1/2/3 s, when auto-generated)
  • Selectable slate-tone generation. (3 positions: Off/Head/Head+Tail, when auto-generated)
  • File naming format can be set to use a user-defined word or date
  • Dual-recording function allows two files to be recorded simultaneously at different levels
  • Auto-record function can automatically start and stop recording at set level
  • Pre-recording function allows the unit to record a 2 second sound buffer before recording is activated
  • Self-timer function for solo recording
  • New file starts recording automatically without interruption when maximum file size is reached
  • Track incrementing function allows a recording to be split by creating a new file when desired
  • Jump back and play function
  • Equalizer function for playback, and level-alignment function to enhance the perceived overall sound pressure
  • Resume function to memorize the playback position before the unit is turned off
  • Mark function up to 99 points per audio track
  • Divide function
  UPC: 043774031023
• Varta High-Energy 1.5V AA LR6 Alkaline Battery (4-Pack) Power any device that accepts AA cells with this 4-pack of standard, all-purpose High-Energy 1.5V AA LR6 Alkaline Batteries from Varta. These German-made cells are non-rechargeable and feature an output of 1.5V. Additionally, they offer up to 80% more power in digital cameras than Varta Simply Alkaline batteries. The "Single Press Out" type packaging enables easy opening, allowing you to extract one at a time and providing storage for unused cells.
• SanDisk 16GB Ultra UHS-I SDHC Memory Card (Class 10) Record Full HD 1080p video with this Class 10 compliant 16GB Ultra UHS-I SDHC Memory Card from SanDisk. With enhanced data read speeds of up to 80 MB/s this Ultra SDHC memory card is designed to suit the needs of compact and mid-range point and shoot cameras. You can also save and store a variety of files such as music, movies, documents and more. The writable label found on the card allows you to write down what is saved to the card while the built-in write protect switch helps to prevent accidental data loss. This card, as with most SanDisk cards, comes shock, temperature, x-ray, magnet, and waterproof to take your files with you nearly anywhere you go.
  • Class 10 performance for Full HD Video (1080p)
  • Read speeds up to 80 MB/s
  • Writable label for easy identification and organization
  • Engineered with UHS-I bus architecture
  • This SD memory card comes shock, temperature, x-ray, magnet, and waterproof proof
  UPC: 619659136451
• Beachtek SC35 Replacement Cable The Beachtek SC35 Replacement Cable is coiled, features 1/8" (3.5mm) stereo mini connectors, and replaces the cable included with the DXA-2T, DXA-5DA, DXA-SLR audio adapters.
• Senal SMH-1000 Professional Field and Studio Monitor Headphones The SMH-1000 Professional Field and Studio Monitor Headphones from Senal feature a classic closed-back, over-the-ear, collapsible design. With features like interchangeable cables, a refined frequency response, wire guides, superior comfort, and durable materials, the SMH-1000 is ideal for studio and field applications.

  Equipped with 40mm neodymium drivers at 58-Ohm impedance, the SMH-1000 headphones are designed to be loud enough when attached to low powered devices such as mobile phones and mp3 players, yet robust enough to handle studio headphone amps without distortion.The over-ear, closed-back design is intended to help block unwanted outside noise, which is useful in professional field recording and studio monitoring scenarios where isolation is critical.

  The headphones are designed with an EQ curve that's been tailored for a slightly enhanced low end that allows field engineers to detect wind noise more effectively, and for studio engineers to monitor bass and sub bass frequencies. The high frequency response has been extended to accurately reproduce spatial detail. There is also a pronounced but smooth midrange that reduces ear fatigue over prolonged periods, while maintaining focus on vocal and dialogue intelligibility.

  Designed for flexibility as well as great sound, the SMH-1000 makes use of twist-lock detachable cabling. There are two detachable cables included in each box that can be used interchangeably. There is a stretchable 4 to 10' coiled cable that provides better mobility and reach, that also helps prevent snags from pulling the headphones off of your head. This can be useful when navigating through gear-cluttered recording studio environments. There is also a 3' straight cable that is useful when less slack is ideal, such as when using a waist-mounted field recorder or mixer, or when using your mobile device.

  The SMH-1000 has been built with convenience, practicality and comfort in mind as well. The headphones have a collapsible folding mechanism for compact storage and transport. They also have wire guides to keep the ear-cup wires from pinching. Furthermore, they are fitted with a padded headband and soft, replaceable ear cushions to maximize comfort during extended listening.
  • An excellent choice for commercial recording, broadcast, home studios, and live and location sound. Also great for home and portable entertainment.
  • Over-ear, closed-back (circumaural) stereo headphone design to help block unwanted environmental noise. Ideal for use in professional applications such as studio or field recording.
  • Detachable, twist-locking 10' coiled cable and 3' straight cable included. Replacement cables also available from Senal.
  • Enhanced low end designed to allow field engineers to detect wind noise effectively, and for studio engineers to monitor bass and sub bass frequencies.
  • Pronounced but smooth midrange tailored to reduce ear fatigue over prolonged periods while maintaining focus on vocal and dialog intelligibility.
  • Extended high frequency response designed to reproduce spatial detail accurately. Gradual roll off at 14 kHz allows for accurate low level monitoring and hearing protection.
  • Padded headband and soft, replaceable ear cushions. Replacement cushions are available for purchase.
  • Easy storage via collapsible folding mechanism.
  UPC: 847628015821

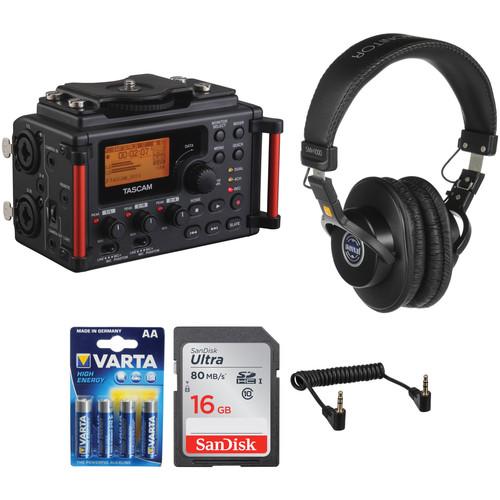

• DR-60DmkII 4-Channel Portable Recorder for DSLR ayctdbcerzawqer
• Mini USB Cable
• Limited 1-Year Warranty
• Limited 90-Day Warranty for Labor

• Varta - High-Energy 1.5V AA LR6 Alkaline Battery (4-Pack)

• SanDisk - 16GB Ultra UHS-I SDHC Memory Card (Class 10)

• Beachtek - SC35 Replacement Cable

• Senal - SMH-1000 Professional Field and Studio Monitor Headphones

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Tascam DR-60DmkII 4-Channel Portable Recorder for DSLR

  Number of Tracks	4
  Max Sample Rate/Resolution	96 kHz / 24-Bit
  Built-In Speaker	No
  Memory Card Support	SD (64 MB to 2 GB) SDHC (4 to 32 GB)

  Sample Rates	WAV: 44.1 / 48 / 96 kHz
  Bit Depth	16/24-Bit
  Timecode	No

  Analog I/O	1 x 2.5 mm TRS Remote Input 1 x 1/8" / 3.5 mm TRS Camera Output 1 x 1/8" / 3.5 mm TRS Line Output 2 x Combo XLR / 1/4" TRS Input 1 x 1/8" / 3.5 mm TRS Mic Input 1 x 1/8" / 3.5 mm TRS Camera Input 1 x 1/8" / 3.5 mm TRS Headphone Output
  Phantom Power	+24 / 48 V ± 4 V
  Phantom Power Current	10 mA per Channel
  Plug-In Power	Yes
  Host Connection	1 x Mini-USB (USB 2.0)

  Frequency Response	Line Outputs, Mic/Line Inputs: 20 Hz to 20 kHz +0.5/-2 dB (at 48 kHz, JEITA) 20 Hz to 40 kHz +0.5/-3 dB (at 96 kHz, JEITA)
  Gain Range	Mic/Line Inputs: +11 dB to +64 dB Mic Inputs: +3 dB to +26 dB
  Max Input Level	Mic Inputs: 0 dBu Line Inputs: +24 dBu 1/8" Inputs: +10 dBV Camera Inputs: +6 dBV
  Max Output Level	Camera Outputs: -30 dBV Line Outputs: +10 dBV
  Headphone Output Power	50 mW per Channel
  Impedance	Mic Inputs: 2 kOhms Line Inputs: 10 kOhms Inputs: 10 kOhms Camera Outputs: 200 Ohms Line Outputs: 200 Ohms
  SNR	≥92 dB
  THD	<0.02%
  EIN	-120 dBu

  Power Options	Batteries, USB Bus Power, AC/DC Power Adapter
  Battery Type	4 x AA 4 x AA
  Approximate Battery Life	WAV 44.1 kHz/16-Bit: 2.5 Hours (Alkaline, 2 Channels, Phantom On) 4.5 Hours (Alkaline, 2 Channels, Phantom Off) 3.25 Hours (NiMH, 2 Channels, Phantom On) 5 Hours (NiMH, 2 Channels, Phantom Off)

  Operating Temperature	32 to 140°F / 0 to 40°C
  Dimensions	5.2 x 3.7 x 3.1" / 133.0 x 93.2 x 78.0 mm
  Weight	1.1 lb / 510.0 g (without Batteries)

  Box Dimensions (LxWxH)	7.874 x 6.929 x 5.748"

• Varta High-Energy 1.5V AA LR6 Alkaline Battery (4-Pack)

  Battery Type	4 x AA
  Battery Chemistry	Alkaline
  Battery Voltage	1.5 V

  Box Dimensions (LxWxH)	4.75 x 3.1 x 0.65"

• SanDisk 16GB Ultra UHS-I SDHC Memory Card (Class 10)

  Card Type	SDHC
  Storage Capacity	16 GB
  Bus Type	UHS-I
  Speed Class	10
  Bus Interface Speed	UHS Class I
  Data Transfer	Read Speed: 80 MB/s Maximum (Burst) Write Speed: 10 MB/s Minimum
  Durability	Magnet-Proof, Shockproof, Temperature Extremes, Waterproof, X-Ray Proof
  Operating Temperature	-13 to 185°F/ -25 to 85°C
  Storage Temperature	-40 to 185°F/ -40 to 85°C
  Built-in Write-Protect Switch	Yes

  Box Dimensions (LxWxH)	4.3 x 4.0 x 0.1"

• Beachtek SC35 Replacement Cable

  Box Dimensions (LxWxH)	2.9 x 2.5 x 0.8"

• Senal SMH-1000 Professional Field and Studio Monitor Headphones

  Driver Size	1.6" / 40 mm
  Magnet Type	Neodymium
  Design	Over-Ear (Circumaural)
  Earcup Style	Closed-Back

  Frequency Response	10 Hz to 20 kHz
  Sensitivity	102 dB at 1 kHz / 1 mW
  Impedance	58 Ohms
  Maximum Power Handling	1000 mW
  Total Harmonic Distortion (THD)	1%

  Audio Connector	1/8" (3.5 mm)
  Adapter (Included)	1/4" (6.3 mm)

  Detachable	Yes

  Weight	8 oz / 226.8 g

  Box Dimensions (LxWxH)	9.1 x 8.8 x 3.8"
