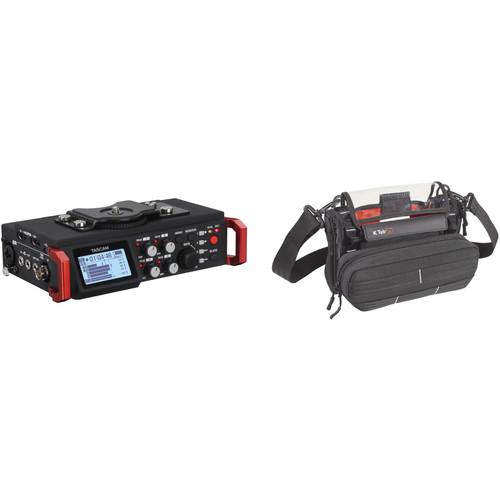

User Manual for Tascam DR-701D 6-Track Recorder and Stingray MixPro Audio Bag Kit

• Product category: Portable Digital Recorders Tascam
• Brand: Tascam
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Tascam Portable Digital Recorders

Product description

• Tascam DR-701D 6-Track Field Recorder for DSLR with SMPTE Timecode
  • Tascam DR-701D: First Look
  Designed specifically as an audio recording solution for DSLR video applications, the DR-701D 6-Track Field Recorder from Tascam features dual built-in omnidirectional microphones and four XLR/TRS inputs with phantom power and is capable of recording up to 6 tracks simultaneously. It supports a variety of mounting configurations, featuring a 1/4"-20 thread on the bottom for tripod mounting, as well as a removable camera or cage system attachment bracket with a 1/4"-20 screw.The DR-701D features an HDMI input that can be connected to your camera's HDMI output, allowing you to start and stop recording remotely via the camera's record button if your camera sends HDMI signal triggering. If your camera sends timecode via HDMI, the DR-701D will follow it and write it to the recorded file. Your NLE software will then read that embedded timecode to lock sound and picture together in post. Additionally, audio being recorded on the DR-701D can be added to the incoming video and timecode from the HDMI In port and sent from the DR-701D's HDMI Out to an HDMI monitor recorder. The recorder can also lock to SMPTE timecode coming into its BNC connector. The DR-701D features a rugged build quality yet weighs less than a pound and a half including the 4 AA batteries that power it. Battery life depends on usage, but with 4 lithium batteries, internal clock, and phantom power on two inputs, the unit is designed to record for over 5 hours at 16-bit/48kHz. The unit can also be powered using the optional PS-P515U AC adapter. Audio is recorded to SD, SDHC, or SDXC cards up to 128 GB and can be recorded at resolutions of up to 24-bit, 192kHz. In addition to the four XLR/TRS inputs, a 3.5mm stereo mini-jack input with optional plug-in power is provided for connecting an external stereo mic.The recorder also features a camera out mini-jack that allows you to record the output of the DR-701D to your camera to use as a sync reference, and a camera-in mini-jack allows you to playback the camera's audio and monitor from the 3.5mm line out or 3.5mm headphone out jacks. Note: For a full list of tested cameras and the most current firmware, please visit manufacturer's website.
  • 6 maximum simultaneous recording tracks
  • SD/SDHC/SDXC cards used for recording media
  • MONO, STEREO, 2MIX, DUAL MONO, DUAL ST and DUAL2MIX recording modes
  • Recording formats: 16/24-bit, 44.1/48/96/192kHz (WAV/BWF) (192kHz only for two-track recording)
  • Built-in original TASCAM HDDA mic preamps provide high audio quality
  • Input levels can be adjusted separately for each track
  • XLR/TRS inputs support +4dBu line level and 24/48V phantom power
  • Clock and record start/stop can be synchronized with a camera using the HDMI port
  • DR-701D audio signal can be output to an external camera or recorder from the HDMI OUT or line output
  • Cascade function using HDMI connections allows multiple DR-701D transport and monitoring operations
  • SMPTE Timecode can be input through the TC IN connector to add recording start times to files
  • Timecode generator (RTC) allows recording start times to be added to files even when there is no timecode input
  • Plug-in power mics and high output mics (EXT IN 1/2) supported
  • CAMERA OUT connector can output audio mixed by the DR-701D to a DSLR camera
  • CAMERA IN connector enables monitoring the sound from a DSLR camera through the DR-701D
  • High quality audio output through a line output jack separate from the headphones jack
  • Headphones jack with 50mW+50mW maximum output
  • Tripod attachment threads (bottom), camera screw attachment that can be installed or removed with a coin (top) and shoe mount (top) included
  • Handles on the left and right sides of the front protect the control surface and also enable attachment of a shoulder strap
  • Transport and SLATE buttons made of rubber suppress noise during operation
  • HOLD switch prevents inadvertent control adjustments
  • 128×64-dot graphic LCD with backlight
  • LED lights have high visibility even in direct sunlight
  • High-speed transfer of files to computers possible using USB 2.0
  • Micro-B type USB cable included
  • Powered by 4 AA batteries, USB bus power or a PS-P515U AC adapter (sold separately)
  • BP-6AA external battery pack (sold separately) enables operation for even longer times
  • Optional RC-3F foot switch and RC-10 wireless remote control can be connected (both sold separately)
  • Built-in mixer enables pan and level adjustments as well as solo monitoring and can output a mix of 4 channels
  • GANG function allows the levels of multiple channels to be controlled simultaneously
  • Individual channel trim settings shown
  • 5-position low-cut filter (50/80/120/180/220 Hz) cuts unwanted low frequencies
  • Multi-band limiter automatically adjusts input overloads (stereo-linking possible with 1/L and 2/R)
  • Delay function can compensate for distances between mics (+/-150 ms)
  • Mid-side decoder function enables use with mid-side stereo mics
  • Slate tone insertion functions (AUTO/MANUAL)
  • Slate tone insertion points can be selected (recording start or recording start and stop when slate AUTO function used)
  DR-701D Tested Camera List
  • HDMI Clock Sync, Start/Stop Trigger & HDMI Timecode Supported Cameras:
    • CANON EOS 5D Mark III
    • Panasonic DMC-GH4
    • SONY α7S
    • SONY α7 II
    HDMI Clock Sync & Start/Stop Trigger Supported Cameras (HDMI Timecode Not Supported):
    • Nikon D810
  UPC: 043774031986
• K-Tek Stingray MixPro Audio Bag for MixPre-3, MixPre-6, DR-70D & DR-701D Recorders
  • Tascam DR-701D: First Look
  The K-Tek Stingray MixPro Audio Bag is designed for Sound Devices MixPre-3 and MixPre-6 recorders with a couple of wireless systems, NP-1 batteries, and various accessories. Also compatible with the Tascam DR-70D and DR-701D, as well as the Zoom F4 and F8, it can help turn your small recorder into a portable workstation with a multitude of options for accessing connectors, controls, and SD card, in various recording environments when working in the field.The Stingray MixPro features multilayer exterior walls and a rigid vertical frame that allows the bag to better stand on its own, while protecting equipment and providing full access to the sides and bottom of the recorder. The combined front and bottom flap opens wide to access the internal battery packs and media compartments on the bottom of the MixPre units, and can even reattach to the back of the MixPro. It also allows for front-mounting of the recorder to the bottom of a camera.The removable front pouch storage compartment is large enough to hold NP-1 batteries with cup adapters, while curved zippers encircle each side panel for full access to cabling into the main compartment. MOLLE straps and D-rings offer plenty of rigging points for additional accessories and allow the Stingray MixPro to be connected by harnesses and waist belts (available separately). A built-in kickstand enables the bag to sit at an angle when placed on a tabletop or when resting on the ground.The Stingray MixPro ships with a shoulder strap and a removable, clear vinyl cover that provides an unobstructed view of the recorder's screen, while shielding it from rain or splashing.
  Key Features
  • • Designed for Sound Devices MixPre-3 and MixPre-6 recorders
    • Fits Zoom F4 and F8, as well as Tascam DR-70D and DR-701D recorders
    • Rigid, internal vertical frame for strength and stability
    • Strong protective exterior with multilayer walls
    • Soft, orange, high-contrast interior
    • Removable front pouch storage compartment large enough to hold NP-1 batteries with cup adapters
    • Dual, curved zippers encircle each side panel for full access to inputs, outputs, and controls
    • Oversized MOLLE-style straps on the front of the bag accommodate additional accessories
    • Built-in kickstand enables convenient access to controls and comfortable viewing whether the user is sitting or standing
    • Four D-rings for use with included shoulder strap or Stingray waist belt (available separately)
    • Includes clear vinyl shield to cover the exposed top opening—can be folded back or easily removed
  Front and Bottom Flaps
  • • Front flap gives access to battery / media compartment
    • Bottom flap gives access to MixPre-3 and MixPre-6 top-mounting points
    • Front flap folds down and reattaches to bag's bottom front
    • Bottom flap folds completely back and up, to reattach to bag's back top
  Compatibility
  • • Up to four wireless devices
    • Up to two NP-1 batteries
    • One BDS
    • IFB TX
    • Camera hop TX
    • Small accessories (pens, screwdrivers, and more)
  UPC: 649906207658

• DR-701D 6-Track Field Recorder for DSLR with SMPTE Timecode stycuzxyzqazdcxs
• USB Cable
• 6 x Camera Attachment Bracket Screw Hole Covers
• Limited 1-Year Warranty

• K-Tek - Stingray MixPro Audio Bag for MixPre-3, MixPre-6, DR-70D & DR-701D Recorders

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Tascam DR-701D 6-Track Field Recorder for DSLR with SMPTE Timecode

  Number of Tracks	6
  Max Sample Rate/Resolution	192 kHz / 24-Bit
  Built-In Speaker	No
  Memory Card Support	SD (64 MB to 2 GB) SDHC (4 to 32 GB) SDXC (48 to 128 GB)

  Audio File Formats	BWF, WAV
  Sample Rates	44.1 / 48 / 96 / 192 kHz
  Bit Depth	16/24-Bit
  Timecode	Yes
  Recording Time	WAV 44.1 kHz/16-Bit: 1 Hr 32.4 Mins per GB (Stereo) WAV 96 kHz/24-Bit: 28.75 Mins per GB (Stereo) WAV 192 kHz/24-Bit: 14.25 Mins per GB (Stereo)

  Analog I/O	1 x 2.5 mm TRS Remote Input 4 x Combo XLR / 1/4" TRS Input 1 x 1/8" / 3.5 mm TRS Input 1 x 1/8" / 3.5 mm TRS Camera Input 1 x 1/8" / 3.5 mm TRS Headphone Output 1 x 1/8" / 3.5 mm TRS Camera Output 1 x 1/8" / 3.5 mm TRS Line Output
  Digital I/O	1 x HDMI Type-A Input 1 x HDMI Type-A Output 1 x BNC Timecode Input
  Phantom Power	+48 V
  Plug-In Power	Yes
  Host Connection	1 x Micro-USB (USB 2.0)

  Frequency Response	Line Outputs, Mic/Line Inputs: 20 Hz to 20 kHz +0.5/-1 dB (at 48 kHz, JEITA) 20 Hz to 40 kHz +0.5/-1 dB (at 96 kHz, JEITA) 20 Hz to 80 kHz +0.5/-5 dB (at 192 kHz, JEITA)
  SNR	≥100 dB
  THD	<0.007%
  EIN	≤-124 dBu

  Power Options	Batteries, AC/DC Power Adapter
  Battery Type	4 x AA
  Approximate Battery Life	WAV 48 kHz/16-Bit: 3.75 Hours (Alkaline, 2 Channels, Phantom Off) 2 Hours (Alkaline, 2 Channels, Phantom On) 4 Hours (NiMH, 2 Channels, Phantom Off) 2.5 Hours (NiMH, 2 Channels, Phantom On) 7.5 Hours (Lithium, 2 Channels, Phantom Off) 6.5 Hours (Lithium, 2 Channels, Phantom On)

  Operating Temperature	32 to 104°F / 0 to 40°C
  Dimensions	6.7 x 2.3 x 4.5" / 169.0 x 57.3 x 113.5 mm (with Adapter Attached)
  Weight	23.1 oz / 654.0 g (with Batteries) 19.8 oz / 561.0 g (without Batteries)

  Box Dimensions (LxWxH)	9.9 x 7.2 x 4.2"

• K-Tek Stingray MixPro Audio Bag for MixPre-3, MixPre-6, DR-70D & DR-701D Recorders

  Dimensions (W x D x H)	Interior Bag: 7.5 x 2.0 x 5.0" / 19.1 x 5.1 x 12.7 cm Pouch: 10.5 x 2.0 x 4.25" / 26.7 x 5.1 x 10.8 cm Exterior Bag: 10.5 x 3.5 x 6.75" / 26.7 x 8.9 x 17.1 cm Pouch: 10.5 x 2.5 x 4.5" / 26.7 x 6.4 x 11.4 cm
  Weight	1.3 lb / 605 g

  Box Dimensions (LxWxH)	14.4 x 8.8 x 7.8"
