Product description

• Tascam DR-70D 4-Channel Audio Recording Device for DSLR and Video Cameras
  • Tascam DR-70D Demo

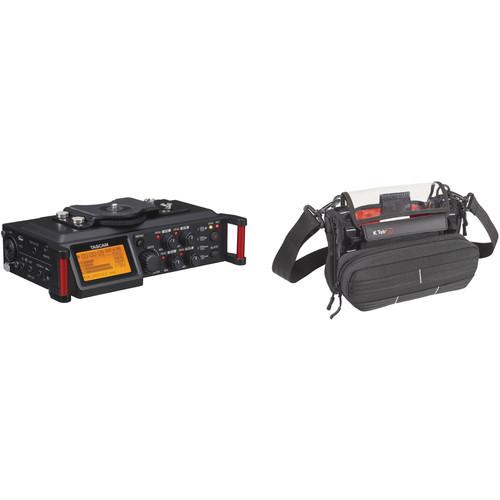

  Designed as an audio recording solution for filmmakers, the DR-70D 4-Channel Audio Recording Device for DSLR and Video Cameras from Tascam features dual built-in omnidirectional microphones and is capable of recording up to 4 tracks simultaneously. It has tripod mounts on both the top and bottom of the unit and can be mounted above or below your DSLR or video camera as well as on a follow-focus cage.

  Recording to SD, SDHC, or SDXC cards up to 128GB, the DR-70D tracks in BWAV format for NLE compatibility. All integral parameters feature dedicated hardware controls, so you never have to go searching through menus to quickly change a setting. A dedicated camera output lets you send a mic-level signal to your camera's audio input to create a reference track for easier synching in post, while the dedicated headphone output allows you to monitor your audio.
  • Designed for use with video and DSLR cameras and can be screwed to the bottom of a DSLR camera with jacks and controls that stay out of the way
  • Simplified interface with controls on hardware switches and knobs instead of menus, for quick adjustment during a take
  • Dual record function captures a safety track to have a backup in case of distortion
  • Tascam's HDDA microphone preamps which are designed for low noise, low distortion, and full-bandwidth
  • BWAV format capture for NLE compatibility
  • Limiter and high-pass filter prevent wind or mic bumps from overdriving the recording
  • Microphone level camera output allows you to record the same audio to the camera for easy synchronization in your editor
  • Records to SD/SDHC/SDXC media
  • Individual headphone and camera outputs allows you to monitor recording with headphones while sending another output to the camera
  • Slate function records a tone for precise synchronization between DR-70D and camera audio in post
  • 4-track recording records from four XLR microphone inputs
  • Built-in omnidirectional microphones allow you to record without packing mics
  • Runs on 4 AA batteries
  UPC: 043774031139
• K-Tek Stingray MixPro Audio Bag for MixPre-3, MixPre-6, DR-70D & DR-701D Recorders
  • Tascam DR-70D Demo
  The K-Tek Stingray MixPro Audio Bag is designed for Sound Devices MixPre-3 and MixPre-6 recorders with a couple of wireless systems, NP-1 batteries, and various accessories. Also compatible with the Tascam DR-70D and DR-701D, as well as the Zoom F4 and F8, it can help turn your small recorder into a portable workstation with a multitude of options for accessing connectors, controls, and SD card, in various recording environments when working in the field.The Stingray MixPro features multilayer exterior walls and a rigid vertical frame that allows the bag to better stand on its own, while protecting equipment and providing full access to the sides and bottom of the recorder. The combined front and bottom flap opens wide to access the internal battery packs and media compartments on the bottom of the MixPre units, and can even reattach to the back of the MixPro. It also allows for front-mounting of the recorder to the bottom of a camera.The removable front pouch storage compartment is large enough to hold NP-1 batteries with cup adapters, while curved zippers encircle each side panel for full access to cabling into the main compartment. MOLLE straps and D-rings offer plenty of rigging points for additional accessories and allow the Stingray MixPro to be connected by harnesses and waist belts (available separately). A built-in kickstand enables the bag to sit at an angle when placed on a tabletop or when resting on the ground.The Stingray MixPro ships with a shoulder strap and a removable, clear vinyl cover that provides an unobstructed view of the recorder's screen, while shielding it from rain or splashing.
  Key Features
  • • Designed for Sound Devices MixPre-3 and MixPre-6 recorders
    • Fits Zoom F4 and F8, as well as Tascam DR-70D and DR-701D recorders
    • Rigid, internal vertical frame for strength and stability
    • Strong protective exterior with multilayer walls
    • Soft, orange, high-contrast interior
    • Removable front pouch storage compartment large enough to hold NP-1 batteries with cup adapters
    • Dual, curved zippers encircle each side panel for full access to inputs, outputs, and controls
    • Oversized MOLLE-style straps on the front of the bag accommodate additional accessories
    • Built-in kickstand enables convenient access to controls and comfortable viewing whether the user is sitting or standing
    • Four D-rings for use with included shoulder strap or Stingray waist belt (available separately)
    • Includes clear vinyl shield to cover the exposed top opening—can be folded back or easily removed
  Front and Bottom Flaps
  • • Front flap gives access to battery / media compartment
    • Bottom flap gives access to MixPre-3 and MixPre-6 top-mounting points
    • Front flap folds down and reattaches to bag's bottom front
    • Bottom flap folds completely back and up, to reattach to bag's back top
  Compatibility
  • • Up to four wireless devices
    • Up to two NP-1 batteries
    • One BDS
    • IFB TX
    • Camera hop TX
    • Small accessories (pens, screwdrivers, and more)
  UPC: 649906207658

• DR-70D 4-Channel Audio Recording Device for DSLR and Video Cameras rsvcztefaecvtxfczazstszxcu
• USB Cable
• 6 x Camera Attachment Bracket Screw Hole Covers
• Limited 1-Year Warranty

• K-Tek - Stingray MixPro Audio Bag for MixPre-3, MixPre-6, DR-70D & DR-701D Recorders

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Tascam DR-70D 4-Channel Audio Recording Device for DSLR and Video Cameras

  Number of Tracks	4
  Max Sample Rate/Resolution	96 kHz / 24-Bit
  Microphone	Built-In Omnidirectional Stereo Pair
  Built-In Speaker	No
  Memory Card Support	SD (64 MB to 2 GB) SDHC (4 to 32 GB) SDXC (48 to 128 GB)

  Audio File Formats	BWF, WAV
  Sample Rates	44.1 kHz
  Bit Depth	16/24-Bit
  Timecode	No

  Analog I/O	1 x 1/8" / 3.5 mm TRS Camera Input 1 x 1/8" / 3.5 mm TRS Headphone Output 1 x 1/8" / 3.5 mm TRS Input 1 x 1/8" / 3.5 mm TRS Line Output 4 x Combo XLR / 1/4" TRS Input 1 x 2.5 mm TRS Remote Input 1 x 1/8" / 3.5 mm TRS Camera Output
  Phantom Power	+24 / 48 V ± 4 V
  Phantom Power Current	10 mA per Channel
  Plug-In Power	Yes
  Host Connection	1 x Micro-USB (USB 2.0)

  Frequency Response	Line Outputs, Mic/Line Inputs: 20 Hz to 20 kHz +0.5/-2 dB (At 48 kHz, JEITA) 20 Hz to 40 kHz +0.5/-3 dB (At 96 kHz, JEITA)
  Gain Range	Mic Inputs: +11 to +64 dB 1/8" Inputs: +3 dB to +38 dB
  Max Input Level	Mic Inputs: -72 dBu Line Inputs: +20 dBu 1/8" Inputs: +10 dBV Camera Inputs: +6 dBV
  Max Output Level	-24 dBV
  Headphone Output Power	20 mW per Channel
  Impedance	Camera Inputs: 10 kOhms Mic Inputs: 2 kOhms Line Inputs: ≥10 kOhms Camera Outputs: 200 Ohms Line Outputs: 200 Ohms
  SNR	≥92 dB
  THD	<0.02%
  EIN	≤-120 dBu

  Power Options	Batteries, USB Bus Power, AC/DC Power Adapter
  Battery Type	4 x AA 4 x AA

  Operating Temperature	32 to 104°F / 0 to 40°C
  Dimensions	6.7 x 2.2 x 4.2" / 169.0 x 55.2 x 106.5 mm (With Adapter Attached)
  Weight	1.4 lb / 625.0 g (With Batteries) 1.2 lb / 530.0 g (Without Batteries)

  Box Dimensions (LxWxH)	10.6 x 8.1 x 4.3"

• K-Tek Stingray MixPro Audio Bag for MixPre-3, MixPre-6, DR-70D & DR-701D Recorders

  Dimensions (W x D x H)	Interior Bag: 7.5 x 2.0 x 5.0" / 19.1 x 5.1 x 12.7 cm Pouch: 10.5 x 2.0 x 4.25" / 26.7 x 5.1 x 10.8 cm Exterior Bag: 10.5 x 3.5 x 6.75" / 26.7 x 8.9 x 17.1 cm Pouch: 10.5 x 2.5 x 4.5" / 26.7 x 6.4 x 11.4 cm
  Weight	1.3 lb / 605 g
