User Manual for Tascam DR-70D 4-Channel Audio Recording Device for DSLR and Video Cameras Click to enlarge the picture
Contents of the user manual for the Tascam DR-70D 4-Channel Audio Recording Device
- Product category: Portable Digital Recorders Tascam
- Brand: Tascam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tascam Portable Digital Recorders
 |
User manual for the Tascam DR-70D 4-Channel Audio Recording Device contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tascam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tascam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tascam product will considerably shorten its lifespan!
|

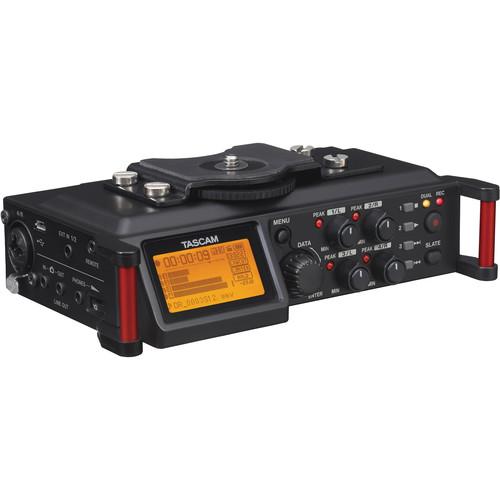

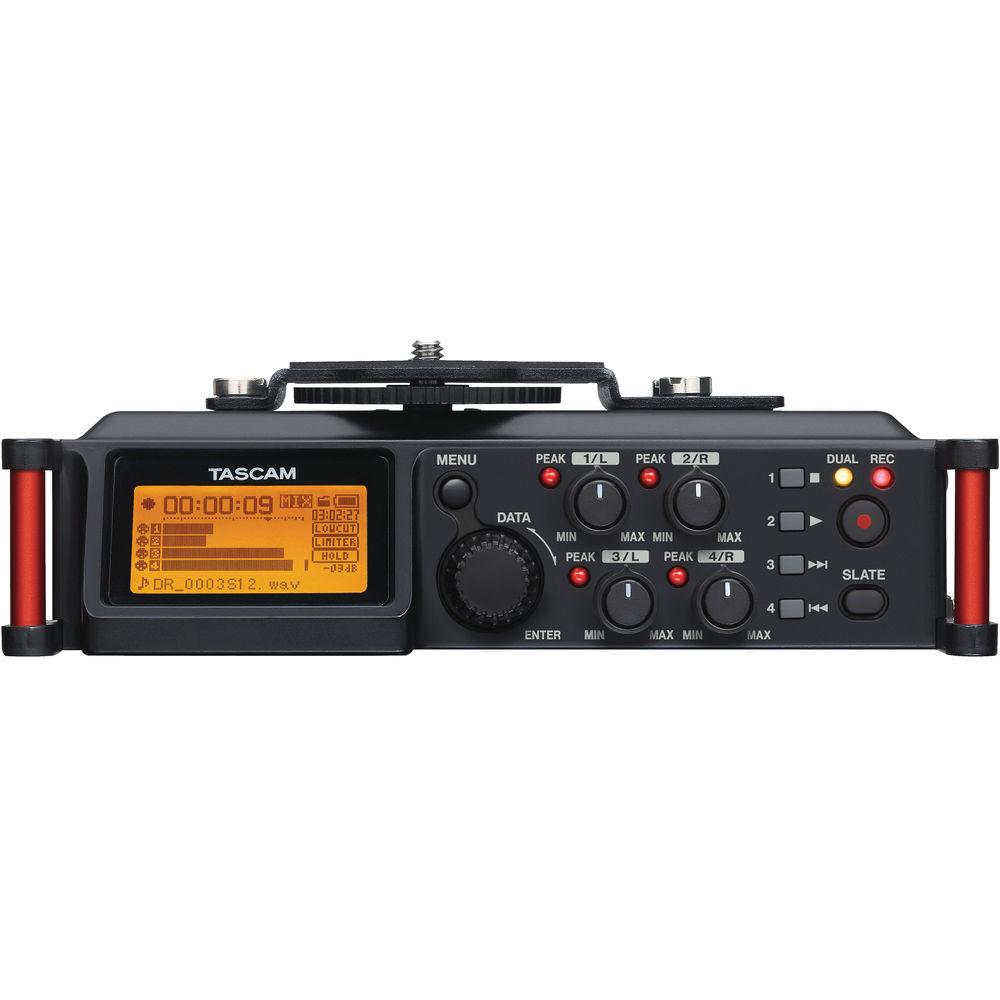

Product description Designed as an audio recording solution for filmmakers, the DR-70D 4-Channel Audio Recording Device for DSLR and Video Cameras from Tascam features dual built-in omnidirectional microphones and is capable of recording up to 4 tracks simultaneously. It has tripod mounts on both the top and bottom of the unit and can be mounted above or below your DSLR or video camera as well as on a follow-focus cage.
Recording to SD, SDHC, or SDXC cards up to 128GB, the DR-70D tracks in BWAV format for NLE compatibility. All integral parameters feature dedicated hardware controls, so you never have to go searching through menus to quickly change a setting. A dedicated camera output lets you send a mic-level signal to your camera's audio input to create a reference track for easier synching in post, while the dedicated headphone output allows you to monitor your audio. - Designed for use with video and DSLR cameras and can be screwed to the bottom of a DSLR camera with jacks and controls that stay out of the way
- Simplified interface with controls on hardware switches and knobs instead of menus, for quick adjustment during a take
- Dual record function captures a safety track to have a backup in case of distortion
- Tascam's HDDA microphone preamps which are designed for low noise, low distortion, and full-bandwidth
- BWAV format capture for NLE compatibility
- Limiter and high-pass filter prevent wind or mic bumps from overdriving the recording
- Microphone level camera output allows you to record the same audio to the camera for easy synchronization in your editor
- Records to SD/SDHC/SDXC media
- Individual headphone and camera outputs allows you to monitor recording with headphones while sending another output to the camera
- Slate function records a tone for precise synchronization between DR-70D and camera audio in post
- 4-track recording records from four XLR microphone inputs
- Built-in omnidirectional microphones allow you to record without packing mics
UPC: 043774031139 In the Box Tascam DR-70D 4-Channel Audio Recording Device for DSLR and Video Cameras USB Cable 6 x Camera Attachment Bracket Screw Hole Covers Limited 1-Year Warranty User Manual PDF 10.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Tascam DR-70D 4-Channel Audio Recording Device for DSLR and Video Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTascam DR-70D Specs | | | Number of Tracks | 4 | | Max Sample Rate/Resolution | 96 kHz / 24-Bit | | Microphone | Built-In Omnidirectional Stereo Pair | | Built-In Speaker | No | | Memory Card Support | SD (64 MB to 2 GB)
SDHC (4 to 32 GB)
SDXC (48 to 128 GB) | | | | Audio File Formats | BWF, WAV | | Sample Rates | 44.1 kHz | | Bit Depth | 16/24-Bit | | Timecode | No | | | | Analog I/O | 1 x 1/8" / 3.5 mm TRS Camera Input
1 x 1/8" / 3.5 mm TRS Headphone Output
1 x 1/8" / 3.5 mm TRS Input
1 x 1/8" / 3.5 mm TRS Line Output
4 x Combo XLR / 1/4" TRS Input
1 x 2.5 mm TRS Remote Input
1 x 1/8" / 3.5 mm TRS Camera Output | | Phantom Power | +24 / 48 V ± 4 V | | Phantom Power Current | 10 mA per Channel | | Plug-In Power | Yes | | Host Connection | 1 x Micro-USB (USB 2.0) | | | | Frequency Response | Line Outputs, Mic/Line Inputs:
20 Hz to 20 kHz +0.5/-2 dB (at 48 kHz, JEITA)
20 Hz to 40 kHz +0.5/-3 dB (at 96 kHz, JEITA) | | Gain Range | Mic Inputs:
+11 to +64 dB
1/8" Inputs:
+3 dB to +38 dB | | Max Input Level | Mic Inputs:
-72 dBu
Line Inputs:
+20 dBu
1/8" Inputs:
+10 dBV
Camera Inputs:
+6 dBV | | Max Output Level | -24 dBV | | Headphone Output Power | 20 mW per Channel | | Impedance | Camera Inputs:
10 kOhms
Mic Inputs:
2 kOhms
Line Inputs:
≥10 kOhms
Camera Outputs:
200 Ohms
Line Outputs:
200 Ohms | | SNR | ≥92 dB | | THD | <0.02% | | EIN | ≤-120 dBu | | | | Power Options | Batteries, USB Bus Power, AC/DC Power Adapter | | Battery Type | 4 x AA
4 x AA | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Dimensions | 6.7 x 2.2 x 4.2" / 169.0 x 55.2 x 106.5 mm (with Adapter Attached) | | Weight | 1.4 lb / 625.0 g (with Batteries)
1.2 lb / 530.0 g (without Batteries) | | | | Package Weight | 1.95 lb | | Box Dimensions (LxWxH) | 10.6 x 8.1 x 4.3" |
Rating84% users recommend this product to others. And what about you?
This product has already been rated by 06 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
The discussion is empty - enter the first post
Post a new topic / query / comment:
|
|
|
| Request for user manual |
You can’t find the operation manual you are looking for? Let us know and we will try to add the missing manual:
I’m looking for a manual / Request for manual
Current requests for instruction manuals:
