User Manual for Tascam GB-10 - USB Guitar Bass Trainer Recorder Click to enlarge the picture
Contents of the user manual for the Tascam GB-10 - USB Guitar Bass
- Product category: Processors, Trainers & Synths Tascam
- Brand: Tascam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tascam Processors, Trainers & Synths
 |
User manual for the Tascam GB-10 - USB Guitar Bass contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tascam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tascam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tascam product will considerably shorten its lifespan!
|

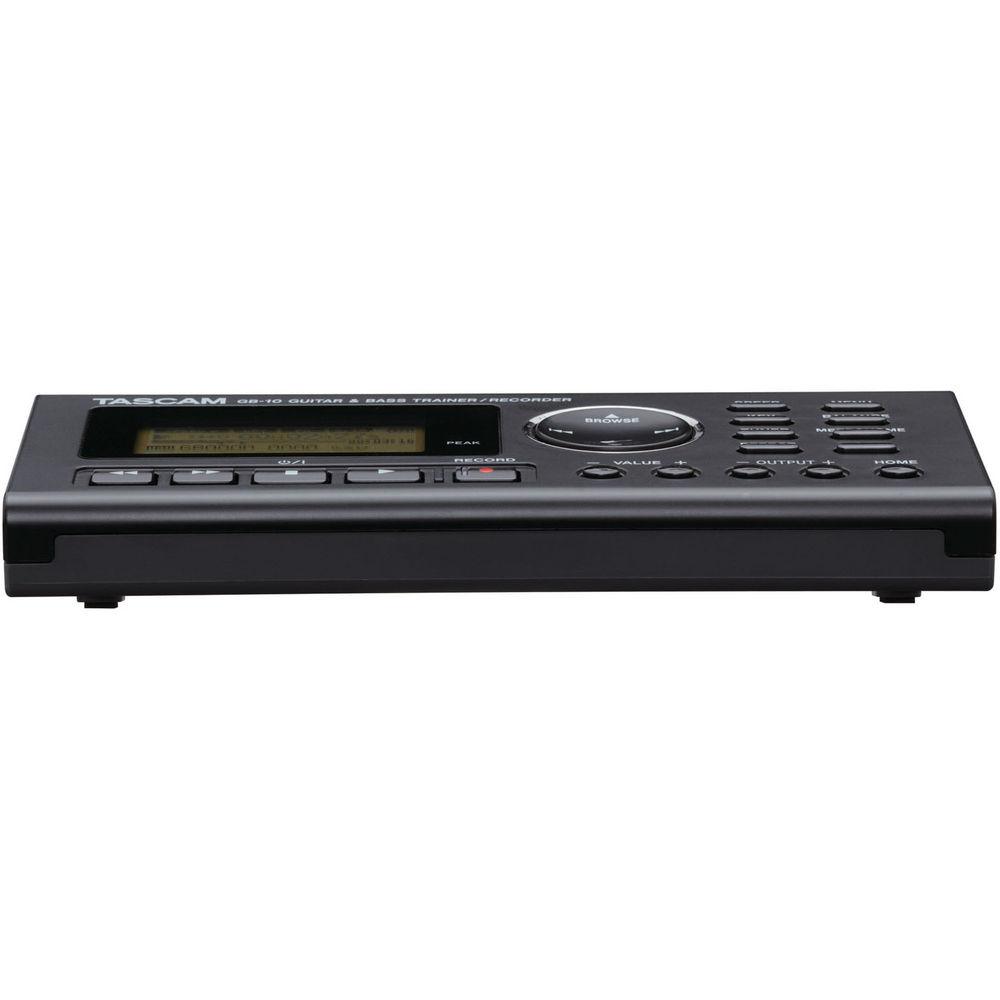

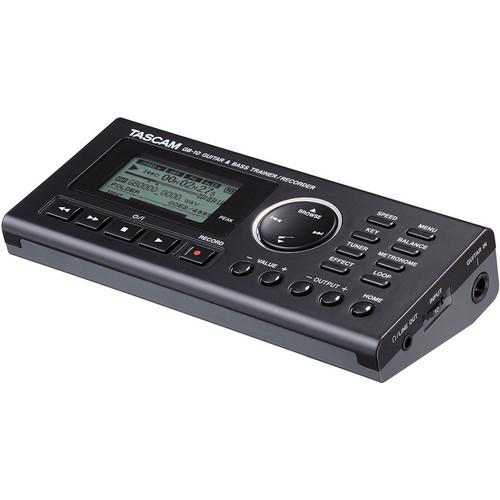

Product description The GB-10 from Tascam is a trainer/recorder that allows guitar and bass players to learn and record new music. It is the ideal practice tool for musicians of any skill level to build their technique. A tuner and metronome are also built-in for precision playback. The unit can be used in many ways. One way is to simply plug an instrument into 1/4" input and play through the included amplifier modeling, reverb and other effects. The music can be recorded to the included 2GB SD card with an overdub mode to build up arrangements. The 2GB SD card can also be used for loading in a custom music collection. Variable Speed Audition allows musicians to independently change the speed and pitch of MP3 or WAV playback. The tabletop design is perfect for practicing almost anywhere, and a footswitch input allows hands-free control. - Instrument trainer / recorder
- Guitar/bass effects including amplifier modeling, delay, reverb, chorus and more
- Records 16-bit/44.1kHz WAV files
- Playback 16- or 24-bit WAV files or MP3 files
- SD/SDHC card media slot with included 2GB card
- Overdub recording allows sound-on-sound build up of an arrangement
- Loop playback using dedicated buttons
- Variable Speed Audition speeds up or slows down playback without changing the pitch
- Chromatic tuner and metronome

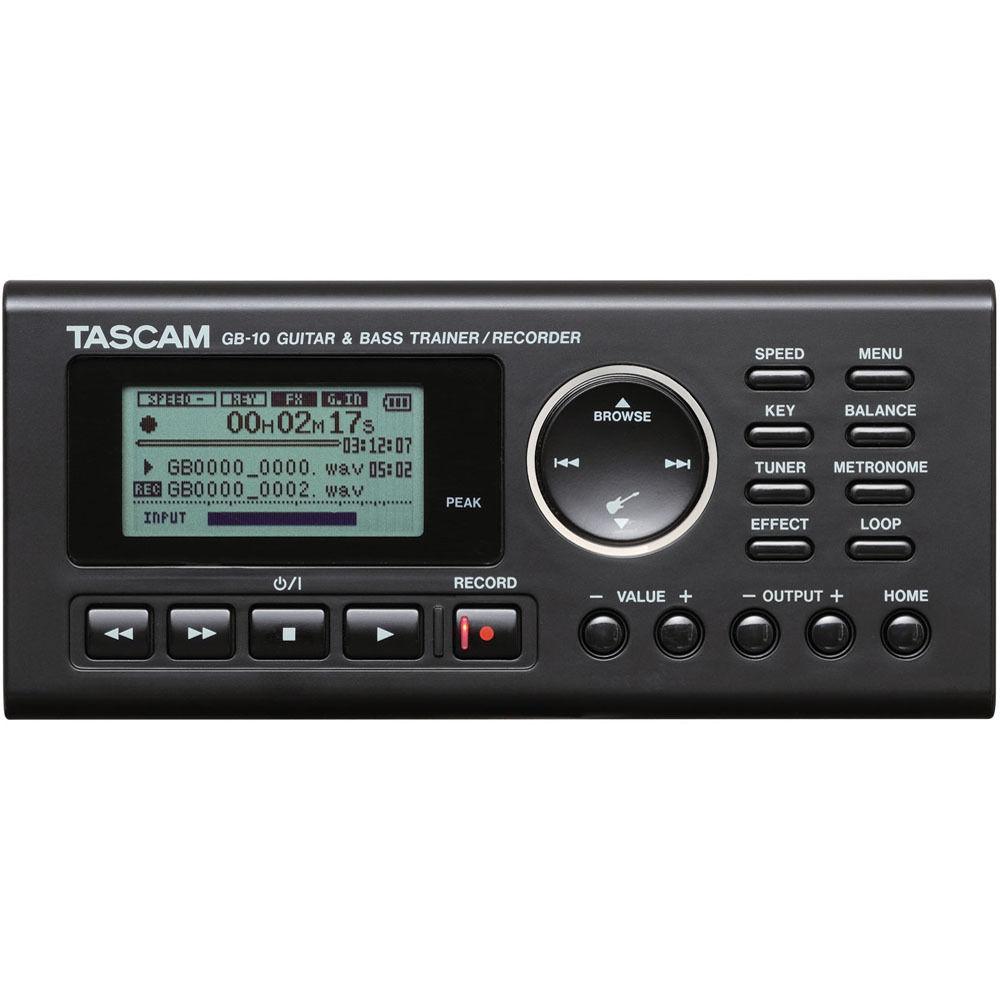

- Dedicated keys and large LCD display for easy operation
- USB 2.0 jack for high-speed music transfer
UPC: 043774026166 In the Box Tascam GB-10 - USB Guitar/Bass Trainer/Recorder USB Cable 2 x AA Batteries 2GB SD Card One (1) Year Warranty User Manual PDF 5.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Tascam GB-10 - USB Guitar Bass Trainer Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

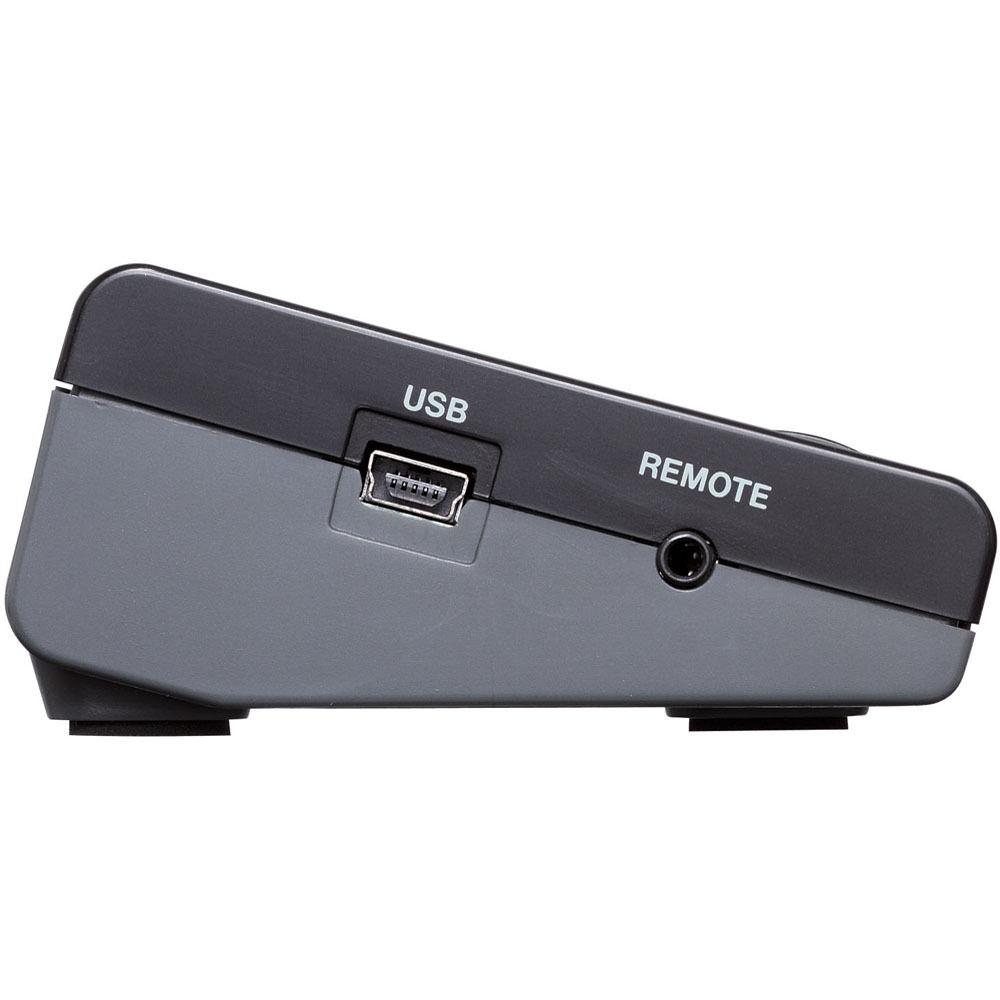

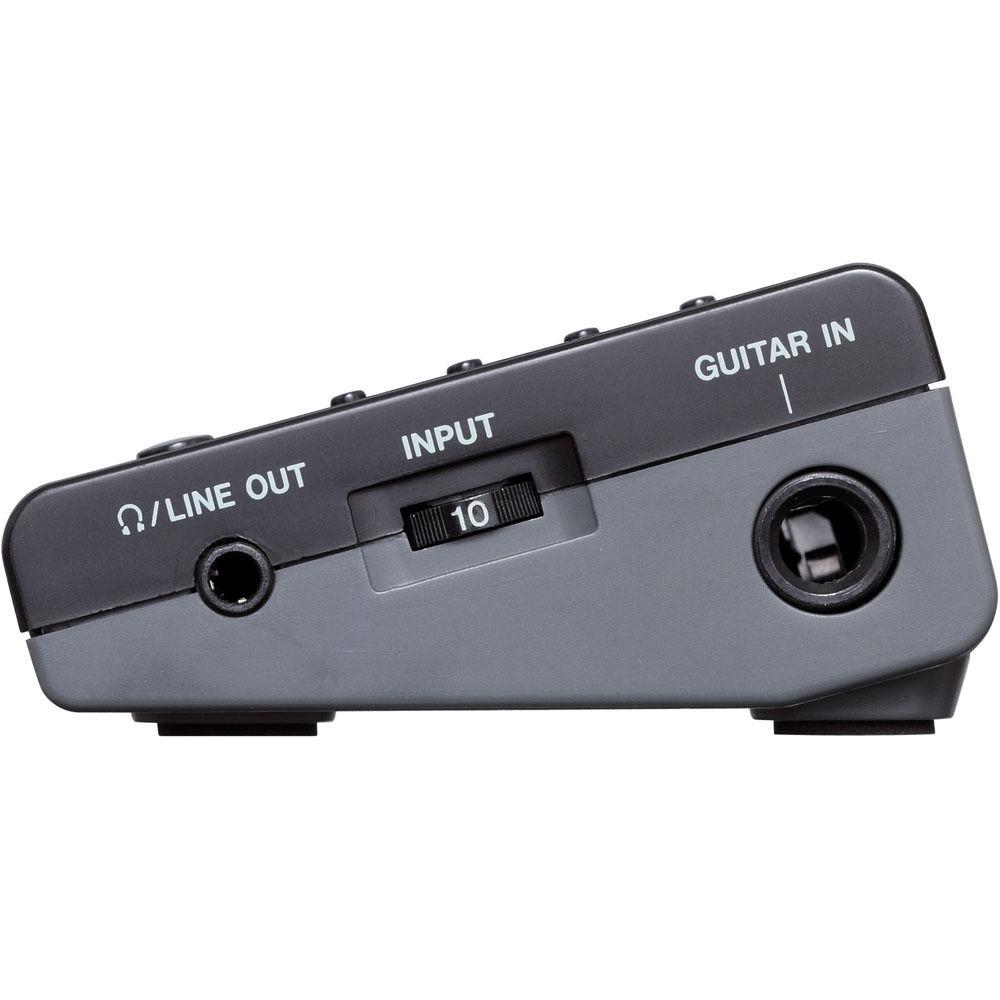

Technical parametersTascam GB-10 Specs | Number of Channels | Single | | Inputs | 1 x 1/4" TS phone
1 x 25mm TRS phone (Remote Jack) | | Output | 1 x 1/8" TRS stereo mini | | Other Connectors | 1 x USB Mini-B (USB 2.0) | | Input Impedance | 800kΩ | | Nominal Input Level | -13dBV (0.2V) input volume @ 7 | | Maximum Input Level | +3dBV (1.4V) input volume @ 7 | | Minimum Input Level | -25dBV (0.05V) input volume @ 10 | | Output Impedance | 23Ω | | Nominal Output Level | -14dBV (10kΩ load) | | Maximum Output Level | +2dBV (10kΩ load)
15mW + 15mW (32Ω load) | | Frequency Response | 20Hz to 20kHz, +1.0/-5.0dB (guitar IN to line OUT, Fs = 44.1kHz) | | Noise | SNR: 70dB guitar IN | | THD | 0.07% (guitar IN to line OUT, Fs = 44.1kHz) | | Power Requirements | 2 x AA batteries
USB power
Optional PS-P520 power adapter | | Battery Operation Times | Continuous Operation:
Alkaline Battery
About 13 hours WAV recording
About 13.5 hours WAV playback
About 13.5 hours MP3 playback
NiMH battery
About 11 hours WAV recording
About 11.5 hours WAV playback
About 11.5 hours MP3 playback | | System Requirements | Mac:
PowerPC, iMac, G3, G4, 266MHz or faster
OS X 10.2 or later
USB port (USB 2.0 recommended)
PC:
Pentium 300MHz or faster
Windows XP, Vista, Windows 7
USB port (USB 2.0 recommended) Intel chipset USB host controller recommended | | Operating Temperature | 32° to 104°F (0° to 40°C) | | Dimensions (WxDxH) | 6.2 x 2.8 x 1.2" (158 x 70 x 30mm) | | Weight | 5.6 oz (169g) | | Clip Splitting | Recording Media:
SD Card - 64MB to 2GB
SDHC Card - 4GB to 32GB
Recording Format
16-bit/44.1kHz WAV
Playback Format
16- or 24-bit/44.1kHz WAV
32, 64, 96, 128, 192, 256, 320kbps, 44.1, 48kHz MP3 | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 9.0 x 6.3 x 2.9" |
