User Manual for Tascam HS-P82 8-Channel Field Audio Recorder Click to enlarge the picture
Contents of the user manual for the Tascam HS-P82 8-Channel Field Audio Recorder
- Product category: Portable Digital Recorders Tascam
- Brand: Tascam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tascam Portable Digital Recorders
 |
User manual for the Tascam HS-P82 8-Channel Field Audio Recorder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tascam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tascam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tascam product will considerably shorten its lifespan!
|

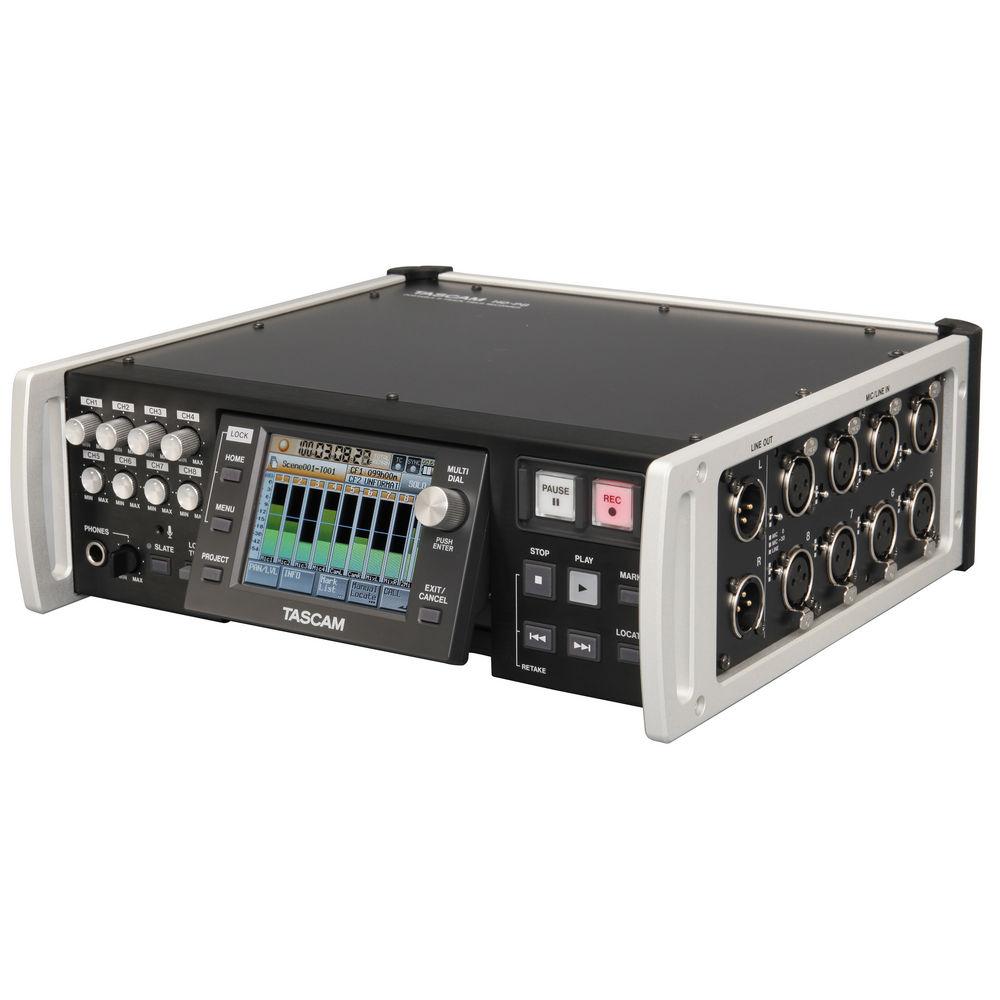

Product description The HS-P82 from Tascam is a professional-quality field audio recorder that offers 8 tracks of high-definition audio recording in a rugged and reliable body. The unit has 8 XLR mic inputs, each with phantom power and analog limiting. Recessed front-panel trim controls for each channel prevent accidental changes. In addition to the 8 individual tracks, a stereo mixdown can also be recorded for instant use during editing.
The unit captures audio at rates up to 24-bit/192kHz onto industry-standard CompactFlash cards. Because CF cards have no moving parts, they are incredibly reliable and durable. The Broadcast WAV audio files also include iXML metadata for use with a variety of audio and video editing systems. The unit has a USB port for convenient file transfer to any computer.
In the field power is key, so the HS-P82 provides a variety of options. It can operate on AA or NP batteries, the included AC adapter, an external DC input, or a V-mount adapter for Endura batteries. Other features include a built-in slate mic, a 5-second prerecord buffer, and headphone output alert signal.
For high-resolution applications, the unit has a set of AES/EBU connectors, which allow you to connect high-end A/D converters and preamplifiers. SMPTE timecode I/Os, video, and word sync connectors are provided for keeping perfect sync with other A/V devices. The unit is controlled via a color touchscreen for fast, simple operation. - Rugged and reliable aluminum construction

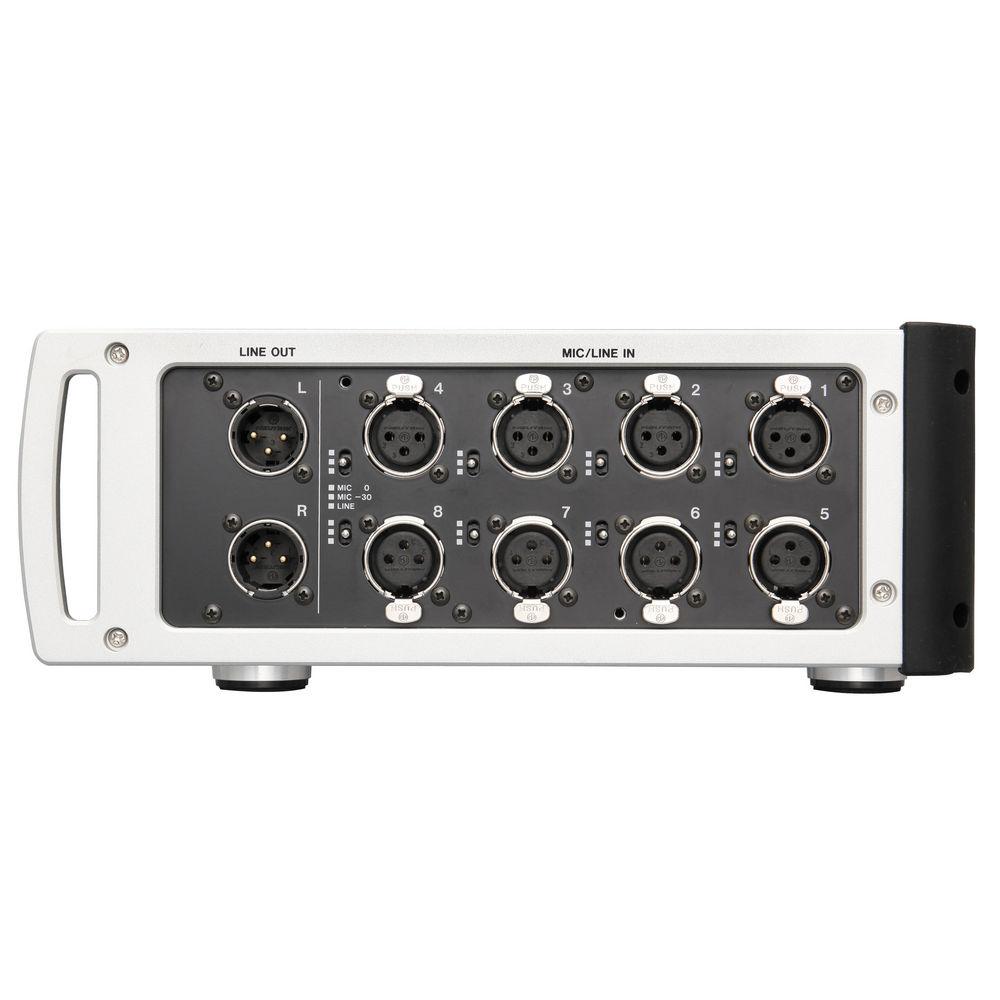

- 8 XLR mic inputs, each with phantom power, analog limiting, and a low cut filter
- Recessed front-panel trim controls for each channel prevent accidental changes
- A stereo mixdown track can also be recorded for instant use during editing
- Captures high-definition audio at rates up to 24-bit/192kHz
- Records onto industry-standard CompactFlash cards, which are durable and reliable. A pair of CF slots allows backup, mirror recording, and A/B recording
- Broadcast WAV audio files include iXML metadata for use with a variety of audio and video editing systems
- USB port for convenient file transfer to any computer
- Powering options include AA or NP batteries, the included AC adapter, an external DC input, or a V-mount adapter for Endura batteries
- 1/4" headphone jack with independent level control and headphone output alert signal
- Built-in slate mic lets you audibly label each file
- 5-second prerecord buffer can help save missed audio moments
- A set of AES/EBU connectors allow you to connect high-end A/D converters and preamplifiers
- Timecode I/Os, video, and word sync connectors are provided for keeping perfect sync with other A/V devices

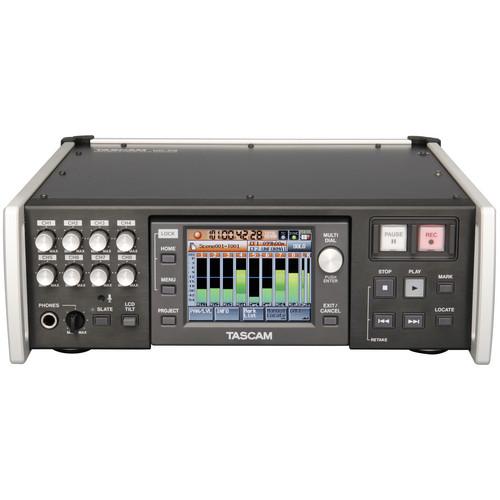

- Controlled via a color touchscreen for fast, simple operation
- Takes Compact Flash (CF) cards up to 128GB
UPC: 043774024018 In the Box Tascam HS-P82 8-Channel Field Audio Recorder AC Adapter 1-Year Limited Warranty User Manual PDF 7.9mbvwxrwvbwzbtftvezrytz Table of Contents
|
Upload User Manual
Have you got an user manual for the Tascam HS-P82 8-Channel Field Audio Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

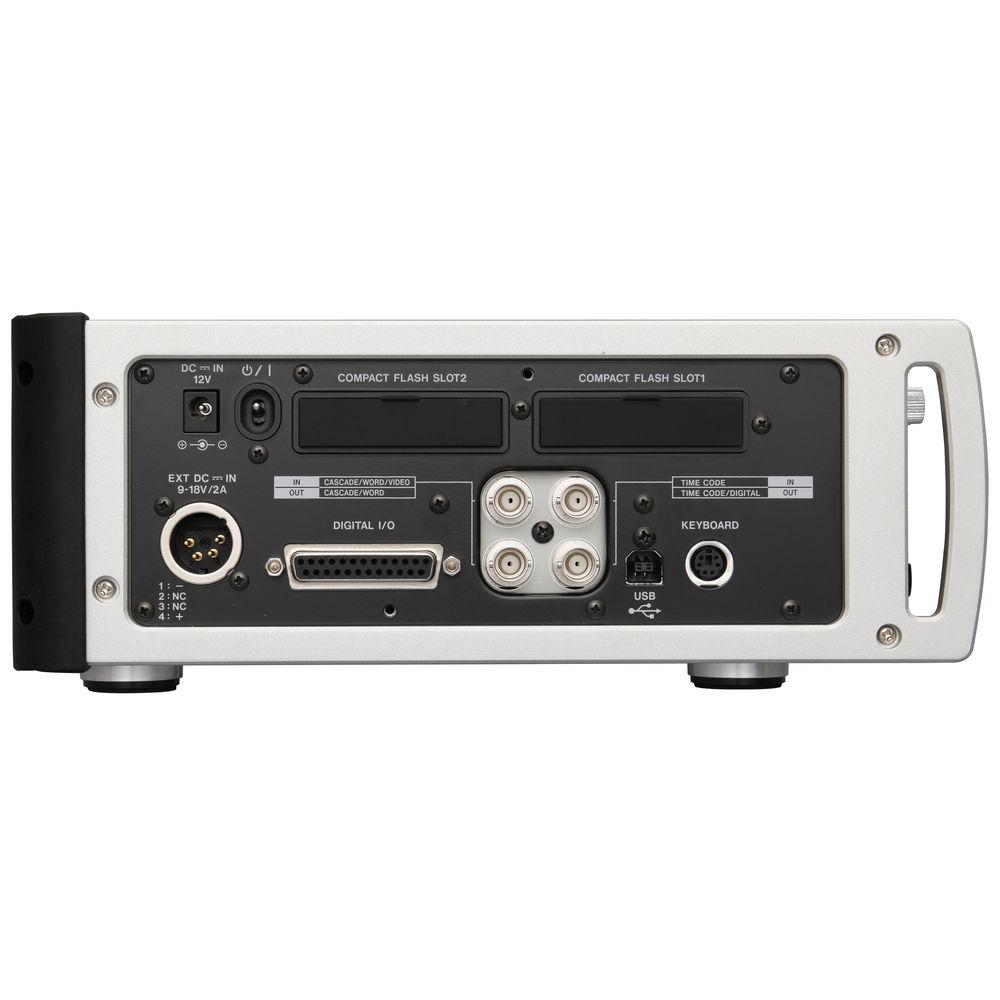

Technical parametersTascam HS-P82 Specs | | | Number of Tracks | 8 | | Max Sample Rate/Resolution | 192 kHz / 24-Bit | | Microphone | Built-In Slate Mic | | Built-In Speaker | No | | Memory Card Support | CompactFlash (Up to 128 GB) | | | | Analog I/O | 8 x XLR 3-Pin Mic Input
2 x XLR 3-Pin Output
1 x 1/4" TRS Headphone Output | | Digital I/O | 1 x DB25 AES3 In/Out
1 x BNC AES3 / SMPTE Output
1 x BNC Cascade/Video/Word Clock Input
1 x BNC SMPTE Input
1 x BNC Cascade/Video/Word Clock Output
1 x PS/2 Keyboard Input | | Host Connection | 1 x USB Type-B (USB 2.0) | | | | Battery Type | 10 x AA or V-Mount | | | | Package Weight | 12.2 lb | | Box Dimensions (LxWxH) | 15.1 x 13.9 x 9.3" |
