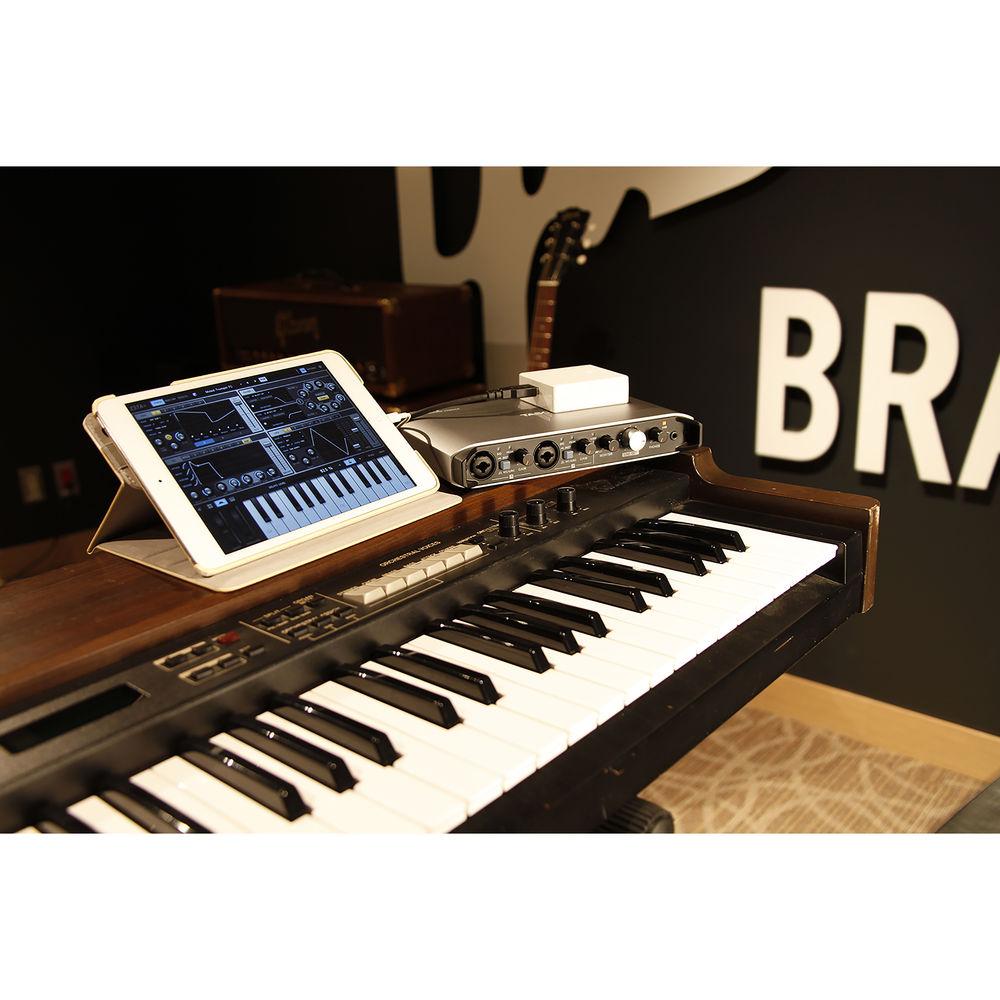

User Manual for Tascam iXR USB Audio MIDI Interface With iOS Connectivity Click to enlarge the picture
Contents of the user manual for the Tascam iXR USB Audio MIDI Interface
- Product category: Audio Interfaces & Systems Tascam
- Brand: Tascam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tascam Audio Interfaces & Systems
 |
User manual for the Tascam iXR USB Audio MIDI Interface contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tascam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tascam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tascam product will considerably shorten its lifespan!
|

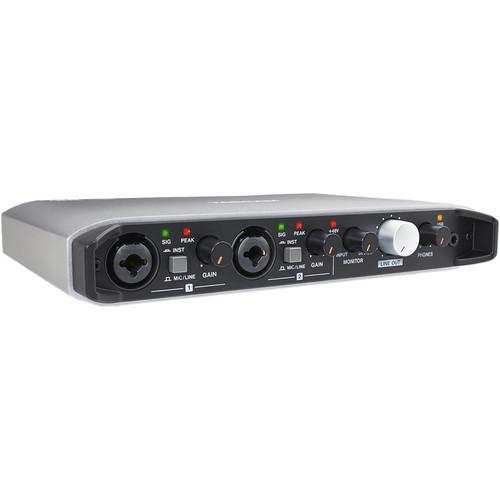

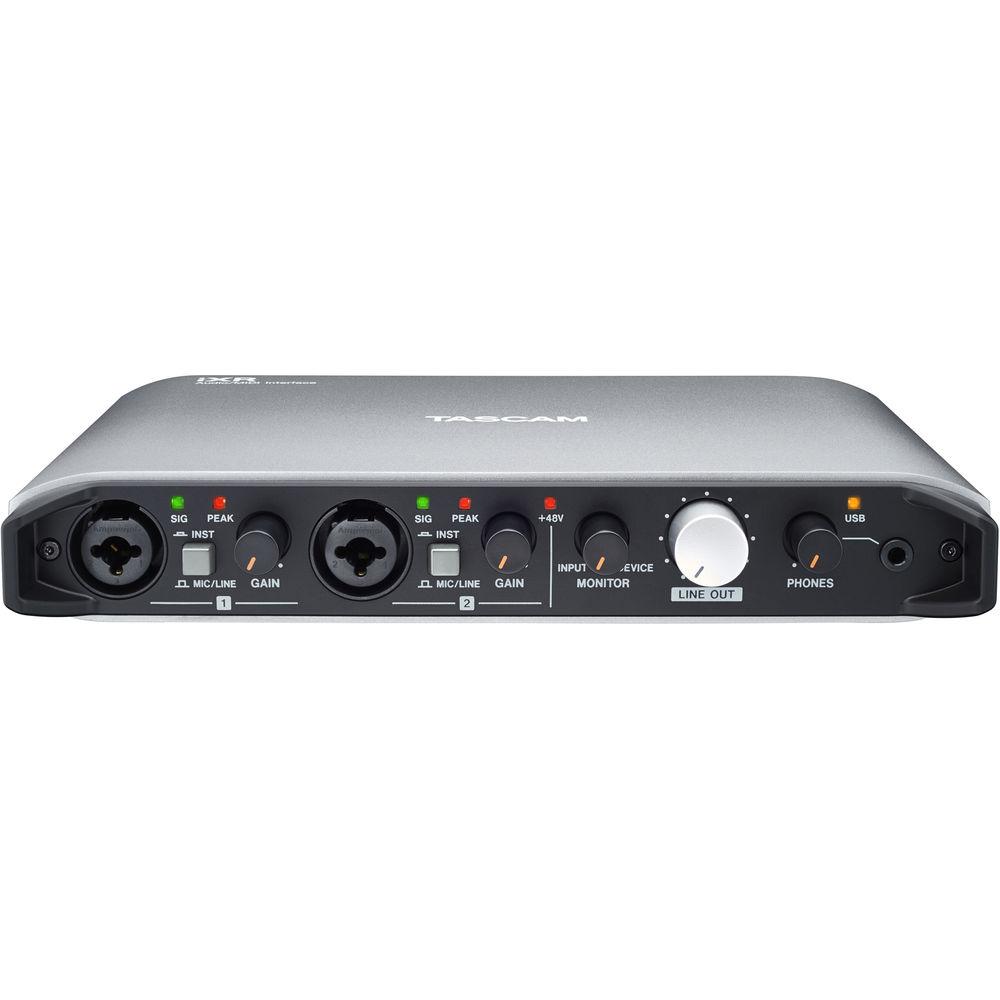

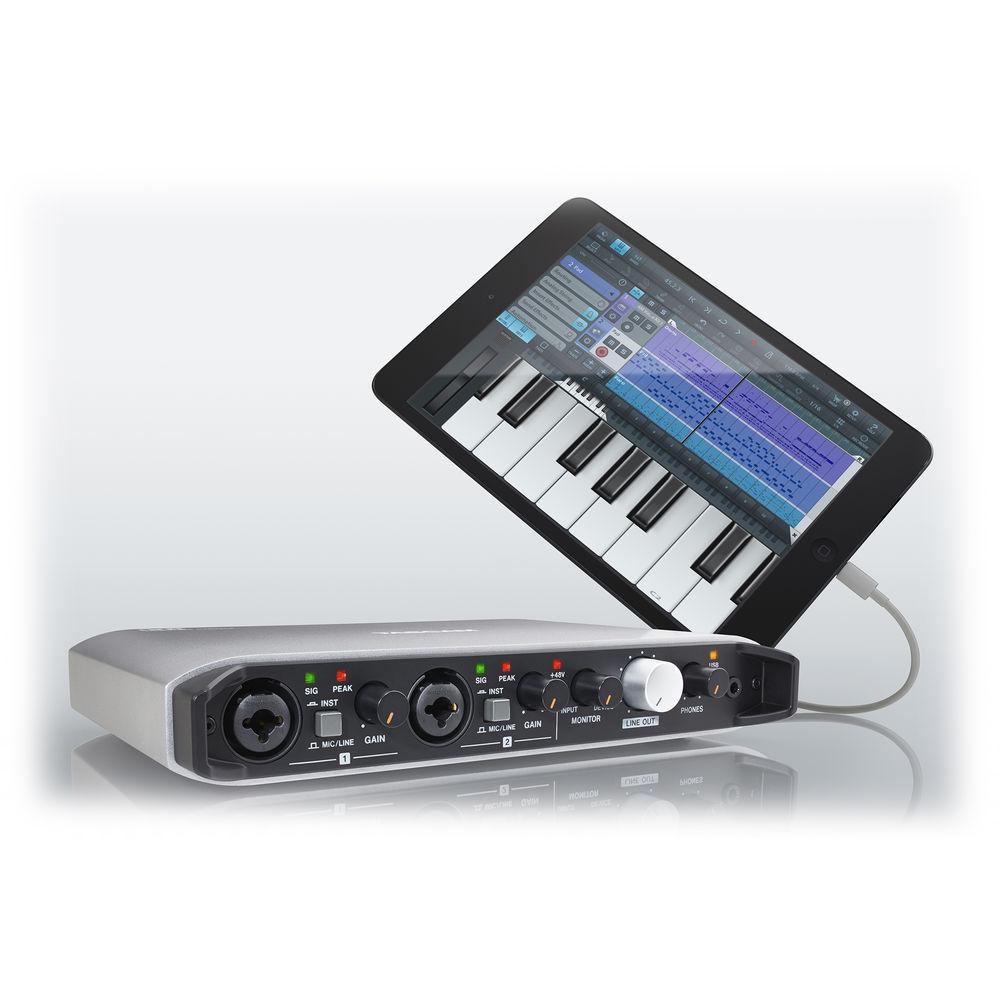

Product description While also compatible with Mac and Windows systems, the iXR from Tascam is a portable audio/MIDI USB interface primarily designed for recording to your iPhone and iPad at resolutions up to 24-bit/96 kHz. It is MFi-certified and connects to your iOS devices via standard USB to Lightning or 30-pin cables without the need for an adapter. There are few controls, and use is simple. The unit features two Ultra-HDDA mic preamps with phantom power, two direct inputs for your guitar or bass, two line inputs for your keyboards, and MIDI in/out connectors. To avoid latency, the monitor knob on the front panel allows for monitoring what is being recorded without the signal going through the computer or iOS device. The two balanced stereo outputs let you connect your iOS device to a concert sound system, or to powered speakers. Furthermore, the unit can operate in stand-alone mode when you want to practice an instrument without recording it. Built from rolled aluminum, the rugged body features a slim design with guards to protect the front jacks, allowing you to safely carry this unit wherever you want to record. The iXR comes bundled with Cubasis LE multitrack recording app for iOS, and Cubase LE for Mac and Windows. - High-resolution recording formats up to 24-bit/96 kHz
- MFi-certified for direct connection with iOS devices using Lightning to USB cable (available separately)
- Slim, rolled-aluminum body with Kensington lock port and protective guards
- Two Ultra-HDDA (High Definition Discrete Architecture) mic preamps
- Balanced XLR/TRS input jacks with +48V phantom power
- Input-gain range of 57 dB for dynamic and condenser microphones

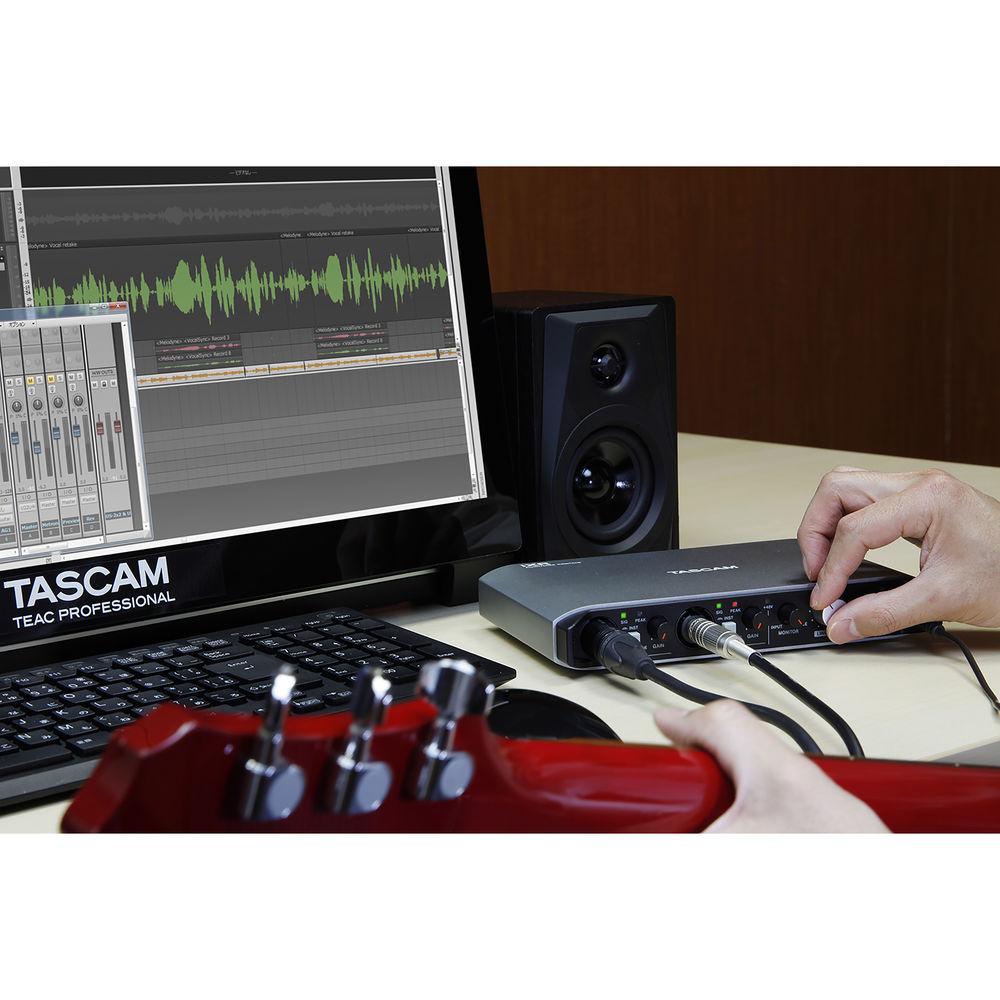

- Supports direct guitar input
- Offers multiple power options: USB charger, mobile battery with micro-USB output, or USB bus power from computer
- Will operate in stand-alone mode when you want to hear a mic or instrument without recording it
- Monitor knob on the front panel for zero-latency monitoring
- Headphone-output mini jack with dedicated volume knob

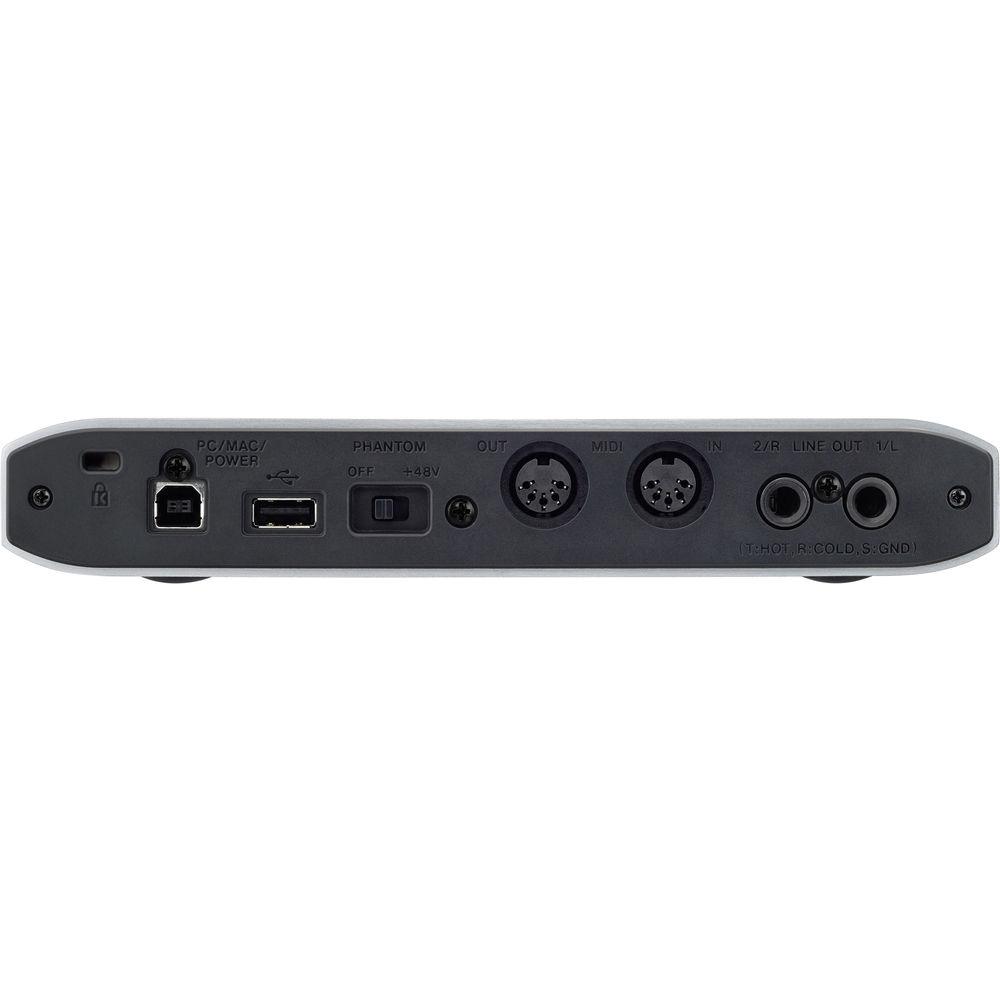

- Two balanced TRS output jacks for connection to powered monitors
- MIDI input & output enable connection to keyboards and other MIDI devices
- Supports Windows (ASIO/WDM) and Mac (Core Audio)
- Compliant with USB Audio 2.0
- Compatible with most major DAW software
- Firmware can be updated from iOS device

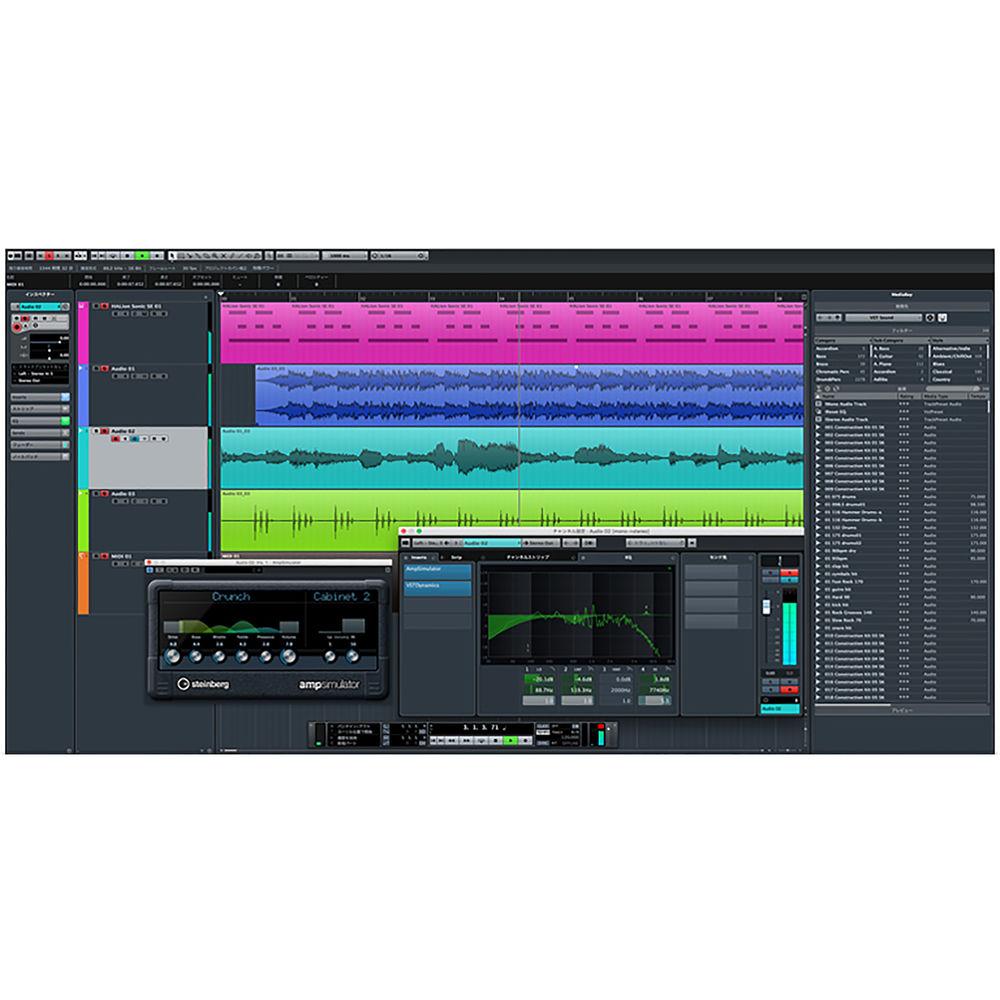

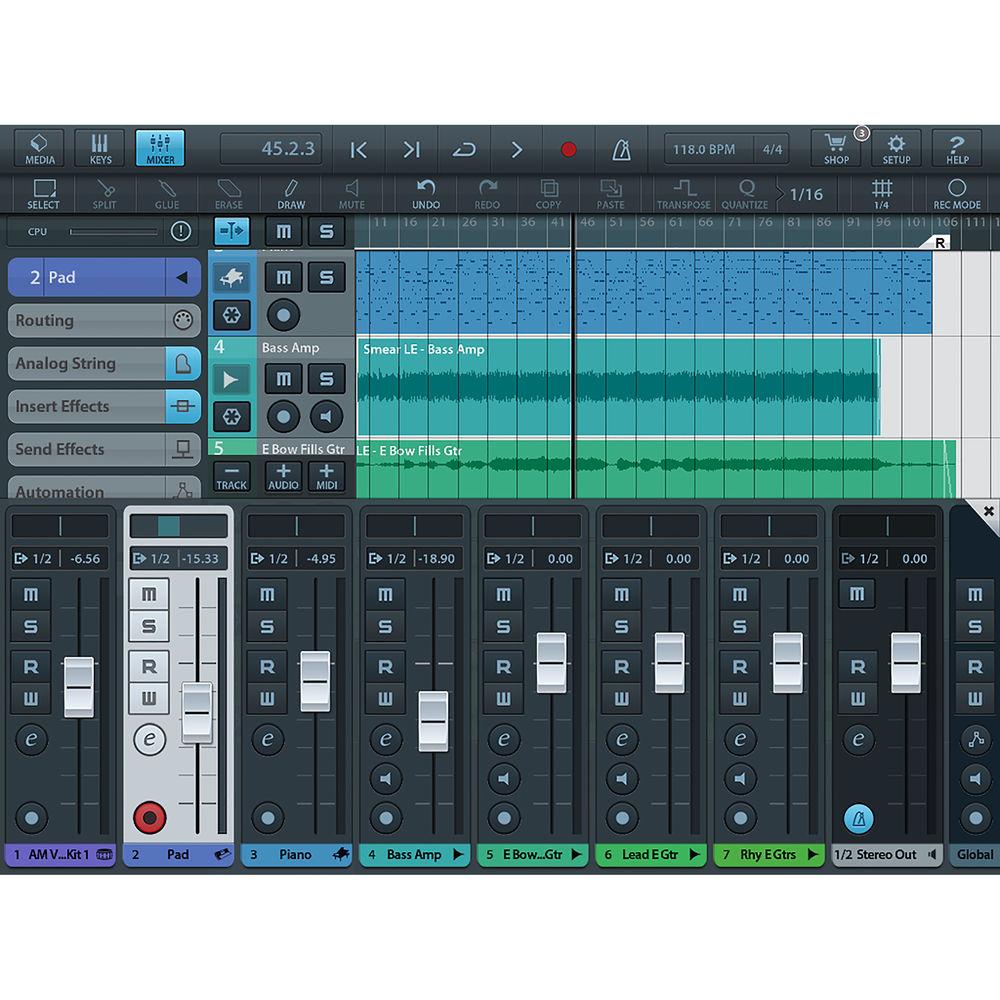

- Bundled with Cubase LE for Mac & Windows, and Cubasis LE for iOS
UPC: 043774032235 In the Box Tascam iXR USB Audio/MIDI Interface With iOS Connectivity Steinberg Cubase LE Steinberg Cubasis LE Limited 1-Year Warranty User Manual PDF 1.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Tascam iXR USB Audio MIDI Interface With iOS Connectivity in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTascam iXR Specs | | | Max Sample Rate/Resolution | 96 kHz / 24-Bit | | | | Host Connection | 1 x USB Type-A (USB 2.0)
1 x USB Type-B (USB 2.0) | | Analog I/O | 2 x Combo XLR / 1/4" Mic/Line/Hi-Z Input
1 x 1/8" (3.5 mm) TRS Headphone Output
2 x 1/4" (6.3 mm) TRS Output | | Digital I/O | None | | MIDI I/O | 1 x 5-Pin MIDI In
1 x 5-Pin MIDI Out | | | | Frequency Response | Interface:
20 Hz to 20 kHz +0/-0.4 dB (at 48 kHz, JEITA)
20 Hz to 40 kHz +0/-0.4 dB (at 96 kHz, JEITA)
Headphone Outputs:
20 Hz to 20 kHz +0/-0.5 dB (at 48 kHz, JEITA)
20 Hz to 40 kHz +0/-2 dB (at 96 kHz, JEITA) | | Gain Range | Hi-Z Inputs:
57 dB
Line Inputs:
57 dB
Mic Inputs:
57 dB | | Max Input Level | Hi-Z Inputs:
+10 dBV
Line Inputs:
+20 dBu
Mic Inputs:
+8 dBu | | Max Output Level | Outputs:
+20 dBu | | Headphone Output Power | 18 mW per Channel | | Impedance | Hi-Z Inputs:
≥1 MOhm
Line Inputs:
110 Ohms
Mic Inputs:
2.2 kOhms
Outputs:
110 Ohms | | THD+N | Headphone Outputs:
< 0.1% | | THD | 0.0025% | | SNR | 101 dB | | EIN | Mic Inputs:
-125 dBu | | Crosstalk | >95 dB | | | | Sample Rates | 44.1, 48, 88.2, and 96 kHz | | Bit Depth | 16 and 24-Bit | | | | OS Compatibility | iOS 8 or Later
macOS 10.11 or Later
macOS 10.10 or Later
macOS 10.9.1 or Later
macOS 10.8.4 or Later
Windows 10
Windows 8.1
Windows 7 or Later | | Processor Requirement | 2 GHz | | RAM Requirements | 2 GB | | Mobile Device Compatibility | iPhone 5 or Later
iPod Touch 5th Gen. or Later
iPad 4th Gen. or Later
iPad Mini or Later
iPad Pro | | Required Hardware | Available USB 2.0 Port | | | | Power Requirements | AC/DC Power Adapter (Not Included), USB Bus-Power | | Power Consumption | 2.5 W | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | | | Dimensions | 8.26 x 1.38 x 5.53" / 210 x 35.3 x 140.7 mm Excluding protrusions. | | Weight | 1.4 lb / 660.0 g | | | | Package Weight | 2.25 lb | | Box Dimensions (LxWxH) | 11.0 x 7.1 x 2.5" |
