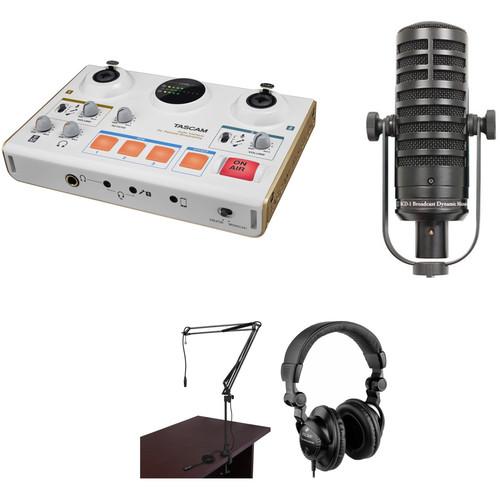

User Manual for Tascam MiNiSTUDIO Creator US-42 Podcast Studio with One MXL Broadcast Dynamic Mic, Headphones, and Broadcast Arm Kit Click to enlarge the picture
Contents of the user manual for the Tascam MiNiSTUDIO Creator US-42 Podcast Studio
- Product category: Audio Interfaces & Systems Tascam
- Brand: Tascam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tascam Audio Interfaces & Systems
|
User manual for the Tascam MiNiSTUDIO Creator US-42 Podcast Studio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tascam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tascam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tascam product will considerably shorten its lifespan!
|
Product description The Tascam MiNiSTUDIO Creator US-42 Podcast Studio with One MXL BCD-1 Broadcast Mic, Polsen Headphones, and Broadcast Arm Kit from B&H provides podcasters with the elements necessary to set up an easy-to-use, single-person podcast studio using a traditional-style dynamic broadcast microphone.
The MiNiSTUDIO Creator US-42 is designed to have first-time users creating a fully produced, professional-sounding podcast in minutes. It places easy-to-use controls at your fingertips with FX pads, reverb, and special voice FX. The kit includes a MiNiSTUDIO Creator US-42 tabletop podcast studio, an MXL BCD-1 live broadcast microphone with internal shockmount and windscreen, a set of Polsen HPC-A30 headphones, and an Auray BAE-2X two-section broadcast arm with external springs & integrated XLR cable. Great for working in noisy environments, the BCD-1 dynamic mic delivers a warm and clear vocal tone while minimizing unwanted ambient room sounds. The broadcast arm allows you to precisely position the mic for optimal comfort and sound capture. The accurate Polson headphones included feature a snug, around-the-ear, closed-back design that prevents the headphones' sound from being picked up by the microphone. All you need to add is a computer for a great sounding solo podcast on the air in minutes. - MXL BCD-1 Live Broadcast Dynamic Microphone (Black)
- Review - Tascam MiNiStudio Creator Personal Broadcast Interface
The black BCBD-1 Live Broadcast Dynamic Microphone from MXL is an end address, professional microphone with a cardioid polar pattern that is designed for radio broadcasts, voice overs, podcasts, announcers, and more. It delivers a warm, rich tone making vocals stand out in any performance or recording. The BCD-1 features a built-in shockmount that prevents unwanted noise and vibration. The flexible BCD-1 includes a windscreen and a swivel mount that allows for perfect positioning on any mic stand. - High-quality dynamic mic built for broadcast and voice-over productions
- 3 selectable roll-off switches to help pinpoint precision sound
- Built-in isolation shockmount
UPC: 801813150322 - Auray BAE-2X Two-Section Broadcast Arm with External Springs & Integrated XLR Cable
- Review - Tascam MiNiStudio Creator Personal Broadcast Interface
The Auray BAE-2X is a sturdy two-section broadcast arm with external springs. It's a versatile and practical accessory for professional and home studios, and is ideal for broadcasts, voiceovers or podcasts. The arm features an integrated 15' XLR cable.
The BAE-2X is designed with a wide range of motion for precise microphone placement and minimal noise when repositioning the microphone. The external balance-spring design is precision-engineered to support microphones of up to 3.6 lb (1.6kg), and hold them in place. This broadcast arm features a standard 5/8"-27 microphone stud mount that's compatible with most shockmounts and microphone clips. The angle of the stud mount can be adjusted and secured with the locking knob, and the angle is maintained when repositioning the arm - eliminating the need to readjust it every time the arm is moved.
The heavy-duty combo mount, consisting of a sturdy C-clamp and a heavy metal desktop mount, offers options for fastening the broadcast arm onto a desktop or permanent installation with the included mounting screws. The 14-inch riser is included to add height to the arm so that it extends over computer or studio monitors.
The BAE-2X is a durable and reliable accessory for any studio or recording setup that provides secure support for your microphone along with excellent signal transfer, and won't disrupt your audio when being repositioned. - Supports Microphones Up to 3.6 lb
- The BAE-2X is designed with external balance springs that are precision-engineered to support microphones of up to 3.6 lb. (1.6kg), and hold them in place
- Integrated XLR Cable
- The integrated 15' XLR cable to connect your mic to your mixer or interface
- Minimal Handling Noise
- The external balance-spring design minimizes handling noise when moving the arm
- 5/8"-27 Standard Microphone Thread
- The 5/8"-27 thread of the microphone stud mount is compatible with most shockmounts and microphone clips
- Wide Range of Motion
- An extension of up to 39 inches, back-to-front movement with a range of 100º, and the ability to rotate the arm 360º allow for precise microphone placement
- 14-Inch Riser for Extra Height
- The included 14-inch riser provides the broadcast arm with extra height and is especially useful when extending the broadcast arm over studio monitors
- Heavy-Duty Combo Mount
- The combo mount consists of a sturdy C-clamp and a heavy metal desktop mount. The C-clamp is capable of fastening onto desktops up to 2-inches thick. The desktop mount detaches from the C-clamp and provides the option of permanent installation to a desktop with the mounting screws (included)
- Slim Design
- The C-clamp's slim design minimizes the clearance needed to mount it between the desk and a wall
UPC: 847628582507 - Polsen HPC-A30 Closed-Back Studio Monitor Headphones
- Review - Tascam MiNiStudio Creator Personal Broadcast Interface
The HPC-A30 Closed-Back Studio Monitor Headphones from Polsen are designed for monitoring audio in studio, field, mobile, and DJ applications. They feature 50mm drivers that provide a frequency response of 18Hz to 22kHz for accurate reproduction of your audio.
The ear cups on the HPC-A30 have an around-ear (circumaural), closed-back design, allowing for the increased isolation often desired while tracking or monitoring playback. Additionally, the ear cups can be pivoted for single-ear monitoring. The headphones have a collapsible folding mechanism for compact storage and transport. A padded and adjustable headband provides comfort during extended use. The 32 ohm impedance allows for ample volume when used with mobile devices. The headphones have a single-sided, 9.8-foot cable that terminates in a 3.5mm stereo connector. A 1/4" adapter is included for additional compatibility. UPC: 847628568488 In the Box - MXL - BCD-1 Live Broadcast Dynamic Microphone (Black) uatyxuzusqtasuvfcevvvaurwsbrcz
- WS002 Windscreen
- Limited 1-Year Warranty
- Auray - BAE-2X Two-Section Broadcast Arm with External Springs & Integrated XLR Cable
- Polsen - HPC-A30 Closed-Back Studio Monitor Headphones
Table of Contents
|
Upload User Manual
Have you got an user manual for the Tascam MiNiSTUDIO Creator US-42 Podcast Studio with One MXL Broadcast Dynamic Mic, Headphones, and Broadcast Arm Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - MXL BCD-1 Live Broadcast Dynamic Microphone (Black)
| | | Sound Field | Mono | | Transducer | Dynamic | | Polar Pattern | Cardioid | | Frequency Range | 40 Hz to 15 kHz | | Impedance | 600 Ohms | | Sensitivity | 54 dBV/Pa | | | | Output Connectors | 1 x 3-Pin XLR | | Length | 6.20" / 157.5 mm | | Diameter | 2.00" / 50.8 mm | | Weight | 1.25 lb / 567 g | | | | Box Dimensions (LxWxH) | 11.8 x 7.5 x 3.8" | - Auray BAE-2X Two-Section Broadcast Arm with External Springs & Integrated XLR Cable
| Thread Size | 5/8"-27 standard microphone thread | | Clamping Range | 2.5" (6.35 cm) | | Length | 39" (99.06 cm) | | Riser | Riser Height: 14" (35.56 cm) | | Cable Type | XLR | | Cable Length | 15' (457 cm) | | Weight Capacity | 3.6 lb (1.6 kg) | | Weight | 3.95 lb (1.79 kg) | | | | Box Dimensions (LxWxH) | 23.5 x 7.5 x 3.2" | - Polsen HPC-A30 Closed-Back Studio Monitor Headphones
| | | Driver Size | 2" / 50 mm | | Design | Over-Ear (Circumaural) | | Earcup Style | Closed-Back | | | | Frequency Response | 18 Hz to 22 kHz | | Sensitivity | 93 dB at 1 kHz / 1 mW | | Impedance | 32 Ohms | | Maximum Power Handling | 600 mW | | Total Harmonic Distortion (THD) | 5% | | | | Audio Connector | 1/8" (3.5 mm) TRS | | Adapter (Included) | 1/4" (6.3 mm) | | | | Design | Single-Sided | | Color | Black | | Detachable | No | | In-Line Remote/Microphone | No | | Cable Length | 9.84' / 3 m | | | | Certifications | CE, RoHS, as per Manufacturer | | Weight | 6.5 oz / 184 g | | | | Box Dimensions (LxWxH) | 8.7 x 7.4 x 3.8" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 56 owners. Add your rating and experience with the product.
