User manual

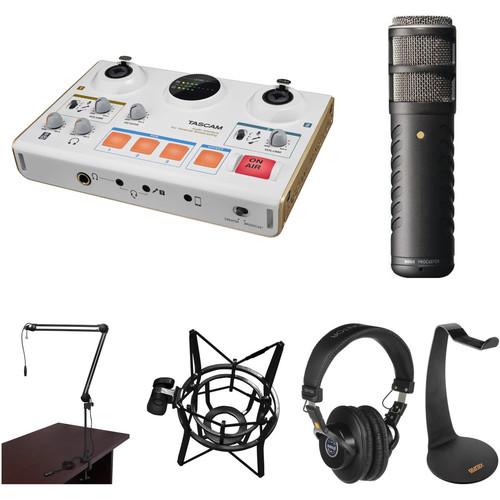

Tascam MiNiSTUDIO Creator US-42 Podcast Studio

User Manual for Tascam MiNiSTUDIO Creator US-42 Podcast Studio with One Rode Procaster Dynamic Mic, Senal Headphones, and Broadcast Arm Kit

• Product category: Audio Interfaces & Systems Tascam
• Brand: Tascam
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Tascam Audio Interfaces & Systems

Product description

• Rode Procaster Broadcast Quality Dynamic Microphone
  • Review - Tascam MiNiStudio Creator Personal Broadcast Interface
  The Procaster Broadcast Quality Dynamic Microphone from Rode is designed for capturing speech in broadcast radio, voice-over recording, podcasts, and similar applications. It features a tight cardioid polar pattern and tailored frequency response that result in optimum speech reproduction without off-axis noise. The all metal contruction, internal pop-filter, and internal shockmount further minimize handling noise and contribute to the microphone's durability. The package includes a microphone stand mount and a zip pouch.
  • Tailored frequency response for maximum speech reproduction
  • Tight cardioid polar pattern minimizes off-axis noise
  • Internal shockmount and pop filter minimize handling noise and plosives
  • Durable all metal contruction
  UPC: 698813001118
• Auray BAI-2X Two-Section Broadcast Arm with Internal Springs and Integrated XLR Cable
  • Review - Tascam MiNiStudio Creator Personal Broadcast Interface
  The Auray BAI-2X is a two-section broadcast arm with internal springs and an integrated XLR cable. This versatile and sturdy broadcast arm is great for studio as well as home use. It's ideal for broadcast, voiceover, and podcasts.

  The BAI-2X broadcast arm is designed with internal springs that provide a clean and sleek look. The internal balance springs are precision engineered to support and hold in place microphones of up to 5 lb. (2.27 kg). The design also minimizes handling noise when re-positioning the arm. The broadcast arm features a standard 5/8"-27 microphone stud mount that is compatible with most shockmounts and microphone clips. The angle of the microphone stud mount can be adjusted and secured with the locking knob, and the angle is maintained when re-positioning the arm. This eliminates the need to readjust it every time the arm is moved. With an extension of up to 40 inches, and the ability to rotate the arm 360°, the BAI-2X allows for precise microphone placement.

  The BAI-2X also features a heavy-duty combo mount that consists of a sturdy C-clamp and a heavy-metal desktop mount. The C-clamp is capable of fastening onto desktops up to 2.3" thick. The C-clamp's slim design minimizes the clearance needed to mount it between a desk and wall. The desktop mount detaches from the C-clamp and provides the option of permanent installation to a desktop with the mounting screws (included). A 14" riser is included for adding height to the broadcast arm in order to extend over computer or studio monitors.
  Versatile
  • Ideal for studios as well as home use
  Internal Springs
  • Internal springs provide smooth, noise-free positioning and clean and sleek profile
  Sturdy
  • Supports microphones up to 5 lb. (2.27 kg)
  Compatibility
  • The 5/8"-27 standard microphone thread is compatible with most shockmounts and microphone clips
  Precision
  • Extends up to 40" (101.6 cm) and rotates 360° allowing for precise microphone placement
  XLR Cable
  • The integrated 15-foot (457.2 cm) XLR cable provides a secure, locking connection and excellent signal transfer
  Extra Height
  • A 14" (13.6 cm) riser is included. It provides extra height to the broadcast arm for extending over computer or studio monitors
  Combo Mount
  • The heavy-duty combo mount is comprised of a C-clamp for clamping to a desktop up to 2.3-inch (5.8 cm) thick, and a detachable desktop mount for permanent attachment to a desktop with the included screws
  14" Riser
  • The included riser adds 14" of height to the broadcast arm so that it can easily extend over computer or studio monitors
  UPC: 847628578272
• Rode PSM1 Shockmount for Rode Podcaster or Procaster Microphone
  • Review - Tascam MiNiStudio Creator Personal Broadcast Interface
  The Rode PSM1 Shockmount is designed to hold a Rode Podcaster or Procaster microphone. Attach it to a studio boom arm such as the Rode PSA1, or to a mic stand like the Rode DS1 (microphones, boom arms, and mic stands available separately). The shockmount provides adequate protection against noise caused by movement, vibration, noise, etc. UPC: 698813000975
• Senal SMH-1000 Professional Field and Studio Monitor Headphones
  • Review - Tascam MiNiStudio Creator Personal Broadcast Interface
  The SMH-1000 Professional Field and Studio Monitor Headphones from Senal feature a classic closed-back, over-the-ear, collapsible design. With features like interchangeable cables, a refined frequency response, wire guides, superior comfort, and durable materials, the SMH-1000 is ideal for studio and field applications.

  Equipped with 40mm neodymium drivers at 58-Ohm impedance, the SMH-1000 headphones are designed to be loud enough when attached to low powered devices such as mobile phones and mp3 players, yet robust enough to handle studio headphone amps without distortion.The over-ear, closed-back design is intended to help block unwanted outside noise, which is useful in professional field recording and studio monitoring scenarios where isolation is critical.

  The headphones are designed with an EQ curve that's been tailored for a slightly enhanced low end that allows field engineers to detect wind noise more effectively, and for studio engineers to monitor bass and sub bass frequencies. The high frequency response has been extended to accurately reproduce spatial detail. There is also a pronounced but smooth midrange that reduces ear fatigue over prolonged periods, while maintaining focus on vocal and dialogue intelligibility.

  Designed for flexibility as well as great sound, the SMH-1000 makes use of twist-lock detachable cabling. There are two detachable cables included in each box that can be used interchangeably. There is a stretchable 4 to 10' coiled cable that provides better mobility and reach, that also helps prevent snags from pulling the headphones off of your head. This can be useful when navigating through gear-cluttered recording studio environments. There is also a 3' straight cable that is useful when less slack is ideal, such as when using a waist-mounted field recorder or mixer, or when using your mobile device.

  The SMH-1000 has been built with convenience, practicality and comfort in mind as well. The headphones have a collapsible folding mechanism for compact storage and transport. They also have wire guides to keep the ear-cup wires from pinching. Furthermore, they are fitted with a padded headband and soft, replaceable ear cushions to maximize comfort during extended listening.
  • An excellent choice for commercial recording, broadcast, home studios, and live and location sound. Also great for home and portable entertainment.
  • Over-ear, closed-back (circumaural) stereo headphone design to help block unwanted environmental noise. Ideal for use in professional applications such as studio or field recording.
  • Detachable, twist-locking 10' coiled cable and 3' straight cable included. Replacement cables also available from Senal.
  • Enhanced low end designed to allow field engineers to detect wind noise effectively, and for studio engineers to monitor bass and sub bass frequencies.
  • Pronounced but smooth midrange tailored to reduce ear fatigue over prolonged periods while maintaining focus on vocal and dialog intelligibility.
  • Extended high frequency response designed to reproduce spatial detail accurately. Gradual roll off at 14 kHz allows for accurate low level monitoring and hearing protection.
  • Padded headband and soft, replaceable ear cushions. Replacement cushions are available for purchase.
  • Easy storage via collapsible folding mechanism.
  UPC: 847628015821
• Auray HPDS-B Desktop Headphone Stand (Black)
  • Review - Tascam MiNiStudio Creator Personal Broadcast Interface
  The black Auray HPDS-B is a desktop headphone stand designed to provide convenient headphone storage and access for musicians, DJs, podcasters, audio engineers, and vocalists in home, project, and commercial recording studios and live stage applications. It features a slim and unobtrusive design, with a matte black finish to complement your workspace and decrease clutter and cord tangles.Sturdy one-piece steel construction accommodates lightweight, standard, and large headphones without bending or warping. The base is weighted to increase stability and prevent tipping. An upturned lip and neoprene padding on the arm and base eliminate headphone slippage, keeping your headphones securely hung on the stand.The HPDS-B requires no assembly or modification—simply set it on a desk, table, stand, or other flat surface.
  • Slim, unobtrusive design and matte black finish contribute style without distracting the eye
  • Keeps headphones accessible without cluttering your workspace
  • Sturdy one-piece steel stand easily holds standard and large, oversized headphones, and won't bend or break under the weight of heavy headphones
  • Weighted base keeps the stand planted and prevents tipping
  • Upturned lip and neoprene padding on arm and base eliminate headphone slippage
  • No assembly or desk modification required
  UPC: 847628002906

• Rode - Procaster Broadcast Quality Dynamic Microphone uatyxuzusqtasuvfcevvvaurwsbrcz
• RM2 Stand Mount
• ZP1 Zip Pouch
• Limited 10-Year Warranty

• Auray - BAI-2X Two-Section Broadcast Arm with Internal Springs and Integrated XLR Cable

• Rode - PSM1 Shockmount for Rode Podcaster or Procaster Microphone

• Senal - SMH-1000 Professional Field and Studio Monitor Headphones

• Auray - HPDS-B Desktop Headphone Stand (Black)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Rode Procaster Broadcast Quality Dynamic Microphone

  Transducer	Dynamic
  Polar Pattern	Cardioid
  Frequency Range	75 Hz to 18 kHz
  Impedance	320 Ohms
  Sensitivity	-56 dB at 1 kHz

  Output Connectors	1 x 3-Pin XLR
  Length	8.43" / 214 mm
  Diameter	2.09" / 53 mm
  Weight	1.64 lb / 745 g

  Box Dimensions (LxWxH)	11.2 x 5.3 x 2.6"

• Auray BAI-2X Two-Section Broadcast Arm with Internal Springs and Integrated XLR Cable

  Length	40" (101.6 cm)
  Weight Capacity	5 lb (2.27 kg)
  Microphone Mount	5/8"-27 standard microphone thread
  Clamping Range	2.3" (5.8 cm)
  Riser	14" (35.56 cm)
  Cable	XLR M to XLR F: 15' (457.2 cm)
  Weight	4.47 lb. (2.02 kg)

  Box Dimensions (LxWxH)	23.5 x 7.4 x 3.5"

• Rode PSM1 Shockmount for Rode Podcaster or Procaster Microphone

  Dimensions (H x W x D)	4.8 x 4.3 x 6.1" / 12.2 x 11.0 x 15.5 cm
  Weight	13.8 oz / 390 g

  Box Dimensions (LxWxH)	5.7 x 5.05 x 4.55"

• Senal SMH-1000 Professional Field and Studio Monitor Headphones

  Driver Size	1.6" / 40 mm
  Magnet Type	Neodymium
  Design	Over-Ear (Circumaural)
  Earcup Style	Closed-Back

  Frequency Response	10 Hz to 20 kHz
  Sensitivity	102 dB at 1 kHz / 1 mW
  Impedance	58 Ohms
  Maximum Power Handling	1000 mW
  Total Harmonic Distortion (THD)	1%

  Audio Connector	1/8" (3.5 mm)
  Adapter (Included)	1/4" (6.3 mm)

  Detachable	Yes

  Weight	8 oz / 226.8 g

  Box Dimensions (LxWxH)	9.1 x 8.8 x 3.8"

• Auray HPDS-B Desktop Headphone Stand (Black)

  Construction Material	Steel
  Finish	Matte black
  Dimensions (H x W x D)	10.0 x 5.5 x 6.5" / 25.4 x 14.0 x 16.5 cm
  Weight	1.7 lb / 700 g

  Box Dimensions (LxWxH)	12.2 x 6.2 x 5.6"
