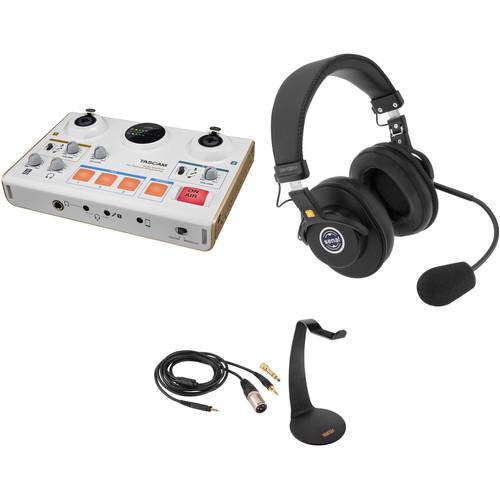

User Manual for Tascam MiNiSTUDIO Creator US-42 Podcast Studio with One Senal SMH-1020CH Headset Kit Click to enlarge the picture
Contents of the user manual for the Tascam MiNiSTUDIO Creator US-42 Podcast Studio
- Product category: Audio Interfaces & Systems Tascam
- Brand: Tascam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tascam Audio Interfaces & Systems
|
User manual for the Tascam MiNiSTUDIO Creator US-42 Podcast Studio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tascam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tascam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tascam product will considerably shorten its lifespan!
|
Product description The Tascam MiNiSTUDIO Creator US-42 Podcast Studio with One Senal SMH-1020CH Headset Kit from B&H provides you with the elements necessary to set up an easy-to use, one-person audio station for gaming or podcasting using a comfortable headset equipped with a gooseneck microphone.
The kit includes a MiNiSTUDIO Creator US-42 tabletop podcast studio, one Senal SMH-1020CH dual-sided headset, and one 3.5mm TRRS to XLR 3-pin splitter cable.The MiNiSTUDIO Creator US-42 is designed to have first-time users creating a fully produced, professional-sounding podcast in minutes. It places easy-to-use controls at your fingertips with FX pads, reverb, and special voice FX.The headset's flexible gooseneck mic stays in place in front of your mouth, so that your voice remains loud and clear even when you move your head—great for gaming or for podcasting at live events, in sports arenas, or other noisy environments.The headphones feature a snug, around-the-ear, closed-back design that insulates them from distracting ambient noises. The padded ear cushions reduce fatigue during extended use or on long missions. With a computer, you're ready to start your single-person broadcast. - Senal SMH-1020CH Communication Headset (Dual-Sided)
- Review - Tascam MiNiStudio Creator Personal Broadcast Interface
Designed for wired and wireless communications alike, the Senal SMH-1020CH is a dual-sided communications headset for use in TV or radio broadcast settings, as well as sports applications and behind-the-scenes theater environments. First, you'll notice its deep, padded ear cushions, which offer not only comfort, but isolation and noise-reduction in noisy scenarios. Behind the ear cushions, 40mm neodymium drivers give you a wide frequency response of 20 Hz to 20 kHz, as well as an expansive dynamic range.
The microphone supplied with the SMH-1020CH is a cardioid dynamic capsule, designed to minimize pickup of off-axis sound while capturing your voice clearly and intelligibly. It sits upon a durable gooseneck that can be rotated 180°. This configuration can be used on the left or right side of the SMH-1020CH. Additionally, a switch is built into the gooseneck that automatically mutes the signal when it's swiveled into the vertical position; thus, to mute your microphone, all you have to do is flip the gooseneck into the upright position.
The SMH-1020CH interfaces with a variety of cables that offer compatibility with many major wired and wireless systems, such as Telex and PortaCom. You can also use this communication headset with broadcast consoles, mixers, and computers. Simply plug your separately-available, corresponding cable into the SMH-1020CH's twist-locking jack, and you're good to go. The headphones are also collapsible, making storage and transportation a cinch. Note: Please note, the SMH-1020CH does not ship with an output cable; for a list of compatible cables, please see our various kit configurations, or contact one of our specialists online, over the phone, or at our illustrious SuperStore. - Intelligible Speech Reproduction
- A cardioid dynamic microphone has been deployed for clear and intelligible voice reproduction
- 40mm Neodymium Drivers
- The dual-sided headphone utilizes a 40mm neodymium driver, which offers a wide frequency response and expansive dynamic range for accurate monitoring
- Passive Noise Reduction
- The SMH-1020CH offers a closed-back, over-the-ear design, which provides isolation in noisy environments; this allows you to hear what's coming over the headphones, such as cues from the director, instructions from the team leader, or coaching from the sidelines
- Precise Microphone Positioning
- The microphone is mounted on a durable gooseneck that swivels 180°; it can be used on the left or right side
- Detachable Twist-Locking Cable Design
- The twist-locking jack allows for easy attachment of cables and accessories
- Compatibility with Multiple Terminations
- The SMH-1020CH can be used with various cables, allowing you to work with multiple wired and wireless communications systems
- Comfortable Fit
- Soft, deep, and replaceable ear cushions—as well as a padded headband—provide comfort throughout long listening sessions
- Durable Design
- This headset is designed to stand up to studio and field use, offering a reliable performance even in the most demanding environments
- Folding Design
- The SMH-1020CH's folding design allows you to store and transport your headphones as needed
UPC: 847628586765 - Senal SMH-HM3X Cable for Senal SMH-Series Communication Headsets
- Review - Tascam MiNiStudio Creator Personal Broadcast Interface
The Senal SMH-HM3X is a replacement cable intended for use with SMH-series communication headsets. It can also be used to augment your headset's versatility, giving you the ability to plug into a broadcast console or mixing board.
At one end, you'll find the 3.5mm TRRS connector and corresponding locking jack. This twists into your SMH-1010CH or SMH-1020CH communication headset, establishing a secure and reliable connection all the while.At the other end, you'll note two different connectors. One is a 3.5mm phone-type plug, while the other is a male 3-pin XLR connector. These two connections allow you to monitor incoming signal while simultaneously using the microphone to communicate with your cast or crew. The SMH-HM3X is part of a whole ecosystem of SMH-series cables, all of which let you swap between the pin-outs of different communication and broadcast systems with ease. - Compatible with Senal SMH-Series Headsets
- The SMH-HM3X fits perfectly into the twist-lock of your SMH-1010CH or SMH-1020CH, ensuring a secure connection to your headset.
- Compatible with Broadcast Consoles & Mixing Boards
- This cable terminates in two connection points—a 3.5mm male plug and a 3-pin male XLR connector. As such, this cable allows you to connect your SMH-series headset to a mixing board or broadcast console, giving you the ability to monitor incoming signals while communicating with a cast/crew.
UPC: 847628582552 - Auray HPDS-B Desktop Headphone Stand (Black)
- Review - Tascam MiNiStudio Creator Personal Broadcast Interface
The black Auray HPDS-B is a desktop headphone stand designed to provide convenient headphone storage and access for musicians, DJs, podcasters, audio engineers, and vocalists in home, project, and commercial recording studios and live stage applications. It features a slim and unobtrusive design, with a matte black finish to complement your workspace and decrease clutter and cord tangles.Sturdy one-piece steel construction accommodates lightweight, standard, and large headphones without bending or warping. The base is weighted to increase stability and prevent tipping. An upturned lip and neoprene padding on the arm and base eliminate headphone slippage, keeping your headphones securely hung on the stand.The HPDS-B requires no assembly or modification—simply set it on a desk, table, stand, or other flat surface. - Slim, unobtrusive design and matte black finish contribute style without distracting the eye
- Keeps headphones accessible without cluttering your workspace
- Sturdy one-piece steel stand easily holds standard and large, oversized headphones, and won't bend or break under the weight of heavy headphones
- Weighted base keeps the stand planted and prevents tipping
- Upturned lip and neoprene padding on arm and base eliminate headphone slippage
- No assembly or desk modification required
UPC: 847628002906 In the Box - Senal - SMH-1020CH Communication Headset (Dual-Sided) ytsvydtxacwqzffdzrwrszrwrwequyctrxfcb
- Limited 3-Year Warranty
- Senal - SMH-HM3X Cable for Senal SMH-Series Communication Headsets
- Auray - HPDS-B Desktop Headphone Stand (Black)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Tascam MiNiSTUDIO Creator US-42 Podcast Studio with One Senal SMH-1020CH Headset Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Senal SMH-1020CH Communication Headset (Dual-Sided)
| | | Element | Moving coil, dynamic | | Polar Pattern (Microphone) | Cardioid | | Frequency Range | 50 Hz to 18 kHz | | Sensitivity | -79 dB ±3 dB (0 dB = 1 V/microbar, 1 kHz indicated by open circuit) | | Impedance | 200 Ohms ±30% at 1 kHz | | | | Ear Cup | Dual-Sided | | Speaker Dimensions | 1.6" / 40.0 mm | | Magnet Type | 20 Hz to 20 kHz | | Sensitivity | 84 dB | | Impedance | 200 Ohms, parallel | | Distortion | <5% | | Weight | 9.4 oz / 266.5 g | | | | Box Dimensions (LxWxH) | 10.0 x 6.4 x 4.4" | - Senal SMH-HM3X Cable for Senal SMH-Series Communication Headsets
| Connectors | 1 x 3.5 mm plug, TRRS, phone type
1 x 3.5 mm plug, phone type
1 x XLR male, 3-pin | | Compatible with | Mixing boards and broadcast consoles | | Length | 48.3" / 122.6 cm | | Weight | 3.9 oz / 110.6 g | | | | Box Dimensions (LxWxH) | 7.0 x 5.0 x 1.0" | - Auray HPDS-B Desktop Headphone Stand (Black)
| Construction Material | Steel | | Finish | Matte black | | Dimensions (H x W x D) | 10.0 x 5.5 x 6.5" / 25.4 x 14.0 x 16.5 cm | | Weight | 1.7 lb / 700 g | | | | Box Dimensions (LxWxH) | 12.2 x 6.2 x 5.6" |
