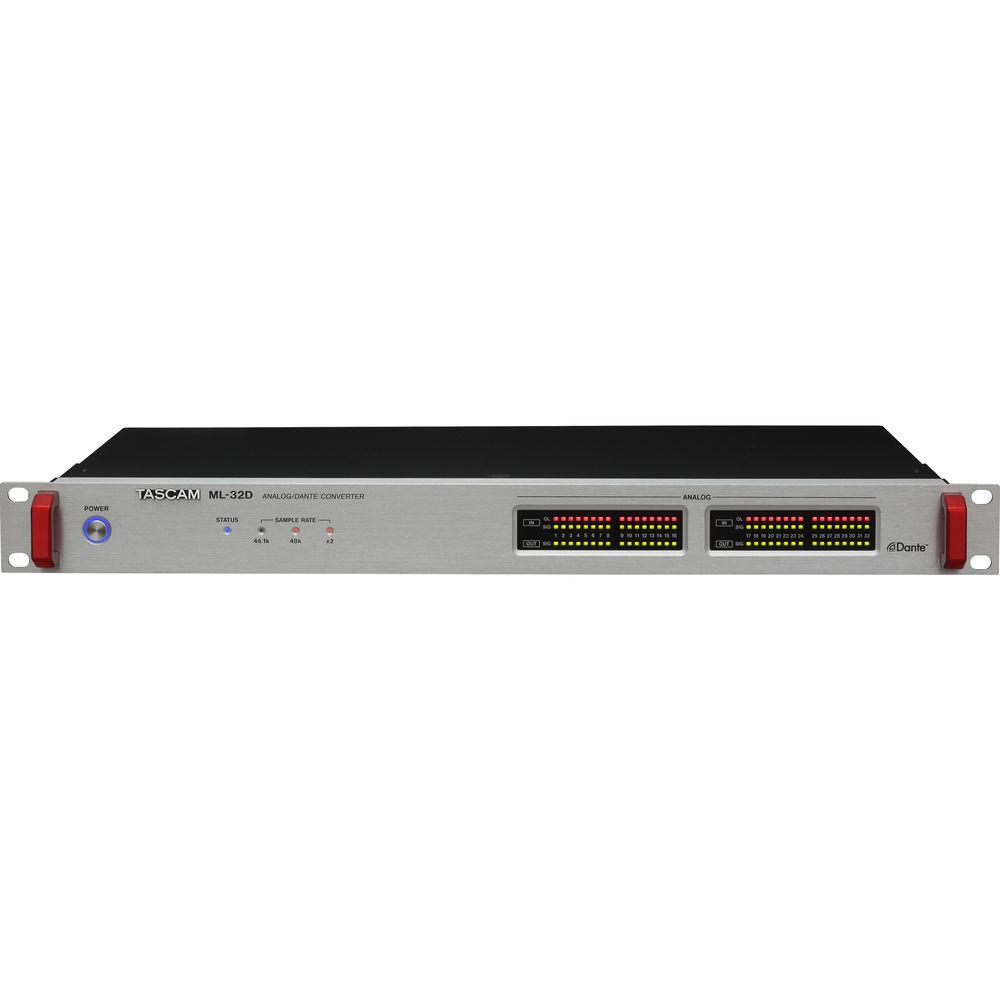

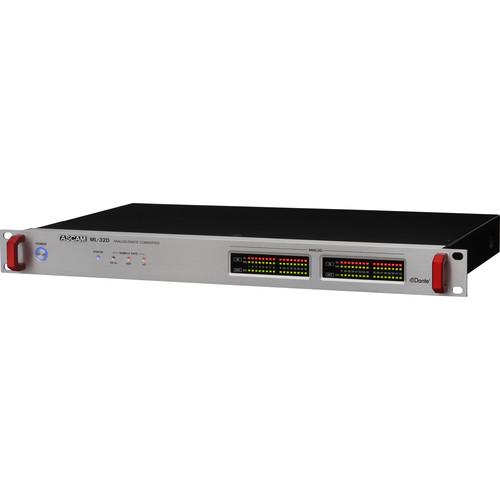

User Manual for Tascam ML-32D Dante Analog Converter Click to enlarge the picture
Contents of the user manual for the Tascam ML-32D Dante Analog Converter
- Product category: Audio Interfaces & Systems Tascam
- Brand: Tascam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tascam Audio Interfaces & Systems
 |
User manual for the Tascam ML-32D Dante Analog Converter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tascam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tascam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tascam product will considerably shorten its lifespan!
|

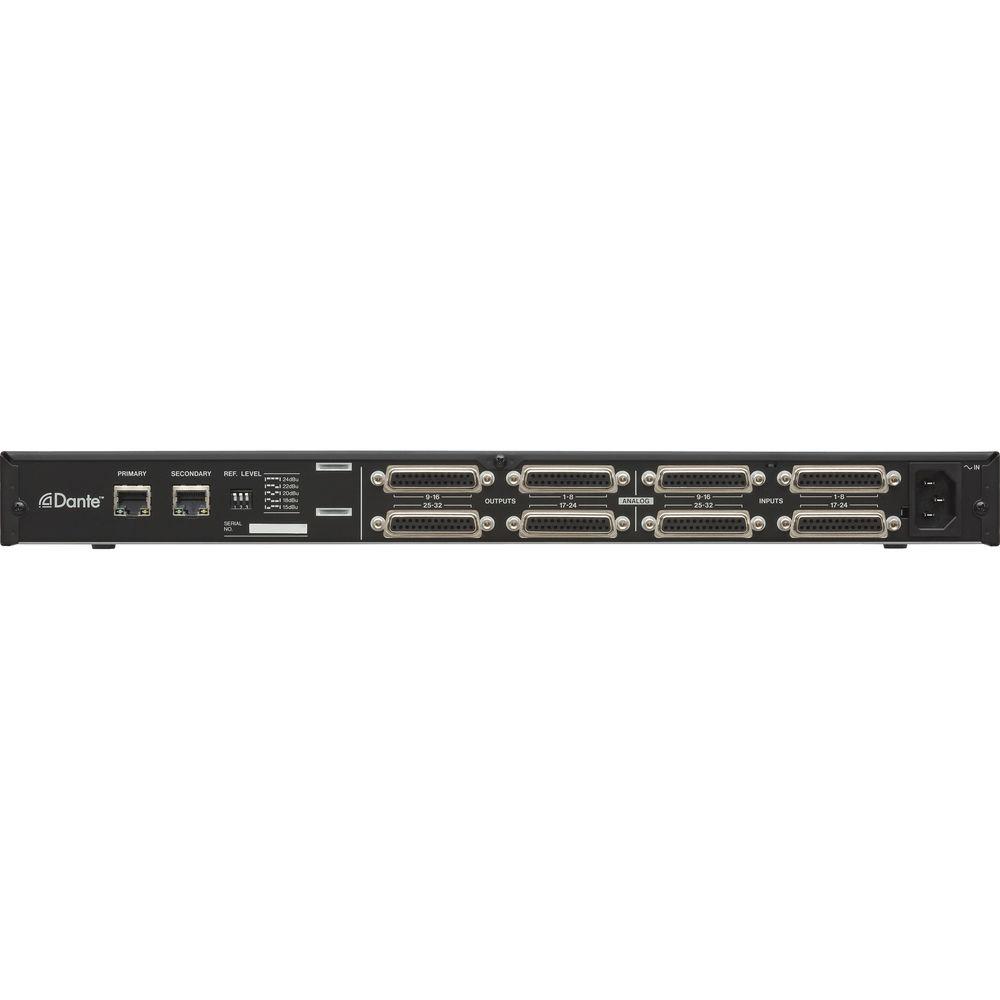

Product description The ML-32D Dante / Analog Converter from Tascam is a Dante-focused converter designed to insert or extract analog audio into or out of a Dante (Digital Audio Network Through Ethernet) network using external breakout devices that utilize D-Sub format connectors.The Tascam ML-32D has four D-Sub inputs and four D-Sub outputs, that can be used to connect several devices that utilize D-Sub connectors such as microphone preamplifiers, console mixers, audio interfaces, amplifiers, and other audio devices.Furthermore, the Dante protocol provides uncompressed, multi-channel, low-latency digital audio over a standard Ethernet network and supports up to 1024 channels of 32-bit / 192 kHz audio over a Cat 5/6 Ethernet system. - Dante-focused interface for connection of external audio in or out of a Dante audio network.
- 32-channel analog line input and 32 analog line outputs (48 kHz / 96 kHz) using 8 D-Sub connectors.
- Dual redundant Ethernet jacks which support both primary and secondary connections.
- Up to 24-bit / 96 kHz quality.
- LED display for signal level and overload per input/output channel.
- Reference level dip switches for selectable dBu level metering.
- Firmware updatable via Dante port.
- AES67 and Revenna compatible.
UPC: 043774033393 In the Box Tascam ML-32D Dante / Analog Converter Power Cord Rackmount Screw Kit Limited 1-Year Warranty for Parts Limited 90-Day Warranty for Labor User Manual PDF 2.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Tascam ML-32D Dante Analog Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTascam ML-32D Specs | | | Max Sample Rate/Resolution | 96 kHz / 24-Bit | | | | Host Connection | RJ45 (Ethernet) | | Analog I/O | 4 x DB25 8-Channel Input
4 x DB25 8-Channel Output | | Digital I/O | 1 x RJ45 / Dante In/Out | | MIDI I/O | None | | | | Frequency Response | 20 Hz to 20 kHz +0.1/-0.5 dB (at 48 kHz, JEITA)
20 Hz to 40 kHz +0.1/-0.5 dB (at 96 kHz, JEITA) | | Impedance | DB25 Inputs:
≥10 kOhms | | THD+N | < 0.001% | | SNR | 113 dB | | Crosstalk | >115 dB | | | | Sample Rates | 44.1, 48, 88.2, and 96 kHz | | Bit Depth | 16 and 24-Bit | | | | AC Input Power | 100 to 240 VAC at 50/60 Hz | | Power Consumption | 22 W | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | | | Dimensions | 19 x 1.8 x 12" / 483 x 45 x 303.8 mm | | Weight | 7.7 lb / 3.5 kg | | | | Package Weight | 11.55 lb | | Box Dimensions (LxWxH) | 21.6 x 16.9 x 5.9" |
