User Manual for Tascam ML-4D OUT-E Line Output Dante Converter with Built-In DSP Mixer Click to enlarge the picture
Contents of the user manual for the Tascam ML-4D OUT-E Line Output Dante
- Product category: System Processors Tascam
- Brand: Tascam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tascam System Processors
 |
User manual for the Tascam ML-4D OUT-E Line Output Dante contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tascam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tascam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tascam product will considerably shorten its lifespan!
|

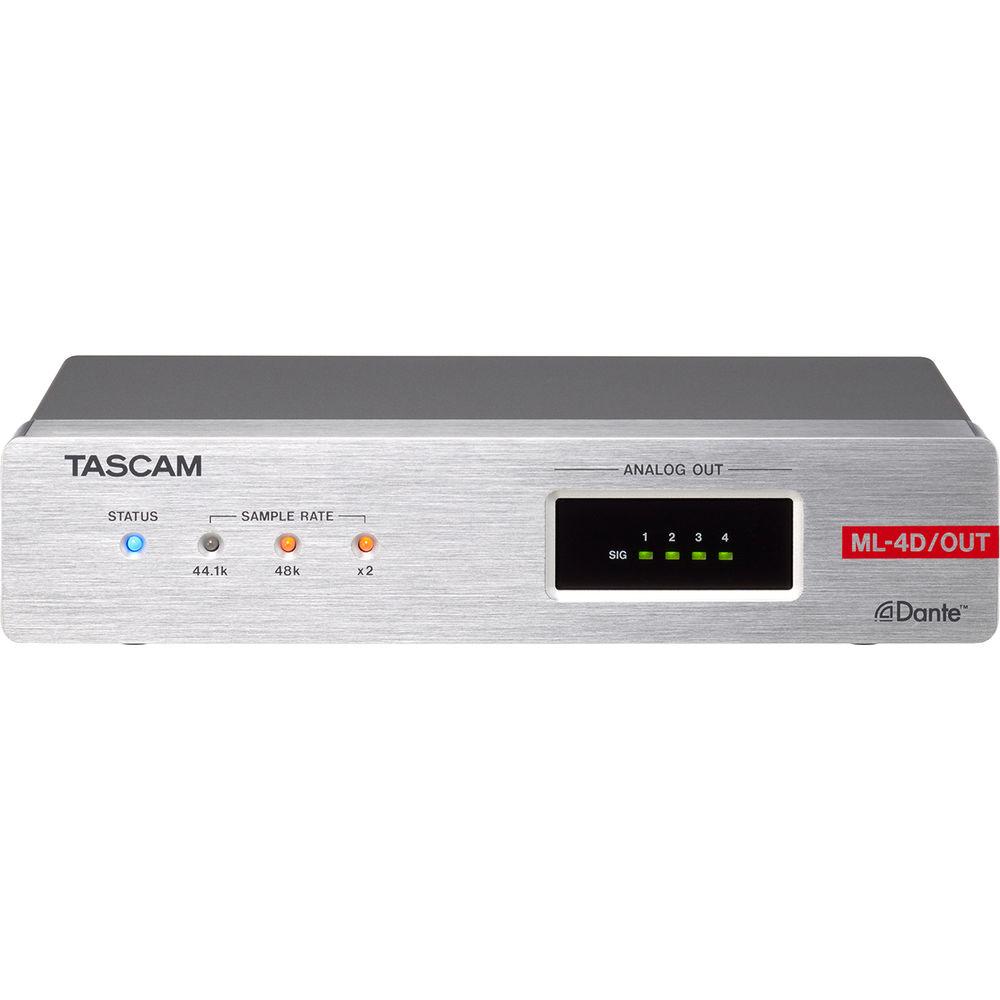

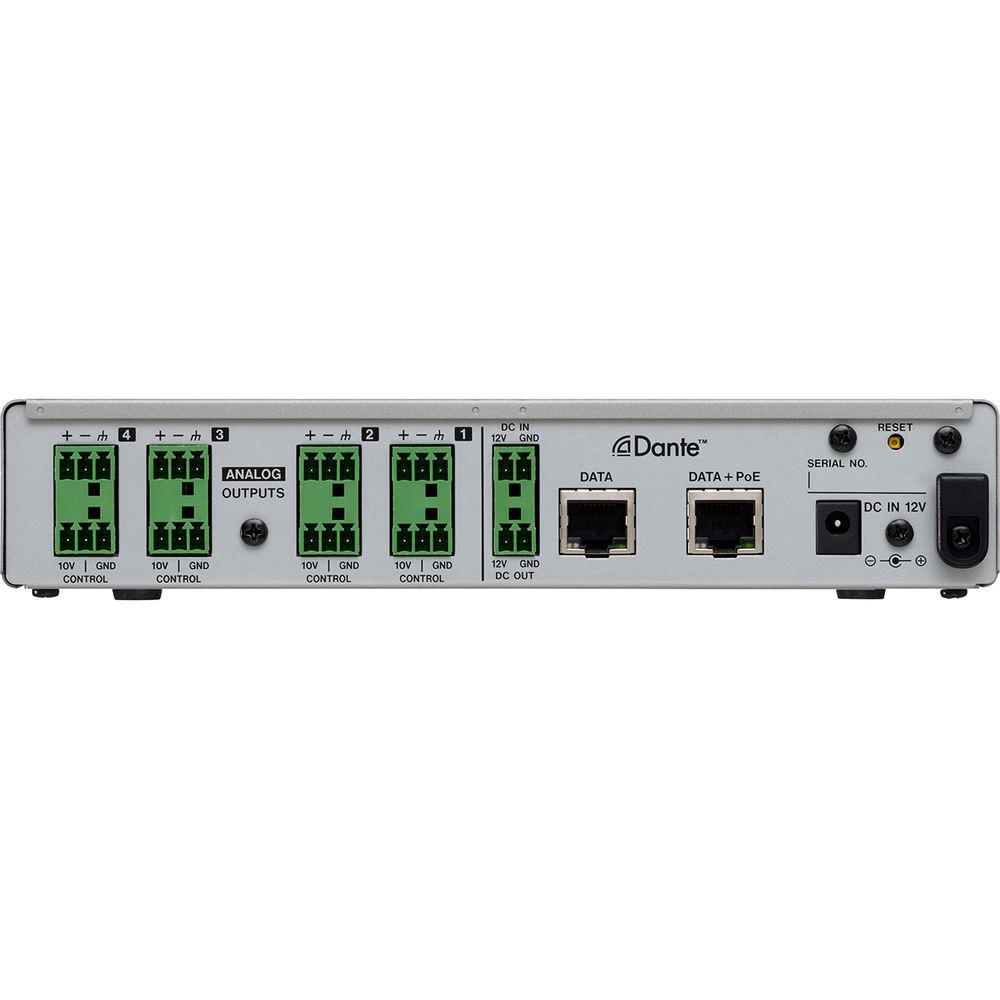

Product description The ML-4D/OUT-E Line Output Dante Converter with Built-In DSP Mixer from Tascam can be used to convert 4-channel Dante input/output signals into 4-channel analog output signals on Euroblock connectors for pro-audio applications.
The ML-4D/OUT-E Input/Output Dante Converter features level control and is compatible with Dante Domain Manager software, which offers security functions, enables the use of wide-area networks, and provides easy access to Dante systems using already established network infrastructures. With AES67 mode, connection to AES67 network systems is also possible. Two installation brackets are included. - 4 analog outputs on Euroblock connectors
- Supports PoE (Power over Ethernet)
- Sample rate up to 24-bit / 96 kHz
- Supports Dante daisy-chain, which allows two Dante Compact Processor models to be connected without a network switch
- Compatible with Dante Domain Manager and Dante AES67 mode
- Flexible scene preset function allows you to work in different area situations (up to 50 presets)
- Two types of user-control software available for Windows/Mac/iOS/Android devices:TASCAM DCP CONNECT, for integrators: input/output routing selection, DSP/design/scene settings of the complete system, etc.TASCAM EZ CONNECT, for end-users: simple app design for only the necessary functions such as area-volume settings, etc.
- Equipped with indicators that show LAN/Dante connection status and sample rate
- Equipped with signal indicators that monitor digital input/output signals
- Configurable reference level (via remote control only)
- Surface-mount adapters for installation under desks included
UPC: 043774033843 In the Box Tascam ML-4D/OUT-E Line Output Dante Converter with Built-In DSP Mixer 2 x Installation Brackets 4 x Euroblock Plugs Limited 1-Year Warranty for Parts, 90-Day Warranty for Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Tascam ML-4D OUT-E Line Output Dante Converter with Built-In DSP Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTascam ML-4D/OUT-E Specs | | | Formats Supported | 44.1/48/88.2/96 kHz, 16/24-Bit, 4 Channels | | | | Connector | RJ-45 | | Transmission Protocol | Dante | | Gigabit Ethernet | 1000 BASE-T (IEEE 802.3ab) | | Cable | Category 5e or Faster STP Cables | | | | Connector | Euroblock (Balanced) 3.81 mm Pitch | | Nominal Output Levels | +4 dBu (when Ref. Level not −9 dBFS)
+6 dBu (when Ref. Level set to −9 dBFS) | | Maximum Output Level | Switchable:
+15 dBu (Ref. Level: −9 dBFS)
+18 dBu (Ref. Level: −14 dBFS)
+20 dBu (Ref. Level: −16 dBFS)
+22 dBu (Ref. Level: −18 dBFS)
+24 dBu (Ref. Level: −20 dBFS) | | Output Impedance | 200 Ohms or Lower | | | | Frequency Response | Dante In / Line Out:
±0.5 dB: 20 Hz - 20 kHz (44.1/48 kHz Sampling Frequency, JEITA)
±0.5 dB: 20 Hz - 40 kHz (88.2/96 kHz Sampling Frequency, JEITA) | | Distortion | 0.002 % (when −1 dBFS Input, 44.1/48/88.2/96 kHz Sampling Frequency, JEITA) | | Signal to Noise Ratio | 105 dB (44.1/48/88.2/96 kHz Sampling Frequency, JEITA) | | Crosstalk | 100 dB (44.1/48/88.2/96 kHz Sampling Frequency, JEITA) | | Dynamic Range | 108 dB (44.1/48/88.2/96 kHz Sampling Frequency, JEITA) | | | | Power | PoE Class 0
Tascam PS-P1220E AC Adapter (Sold Separately) | | Power Consumption | 4 W | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Dimensions (W x H x D) | 8.4 x 1.7 x 5.4" / 21.4 x 4.4 x 13.6 cm | | Weight | 30.4 oz / 863 g | | | | Package Weight | 2.9 lb | | Box Dimensions (LxWxH) | 13.0 x 9.1 x 7.1" |
