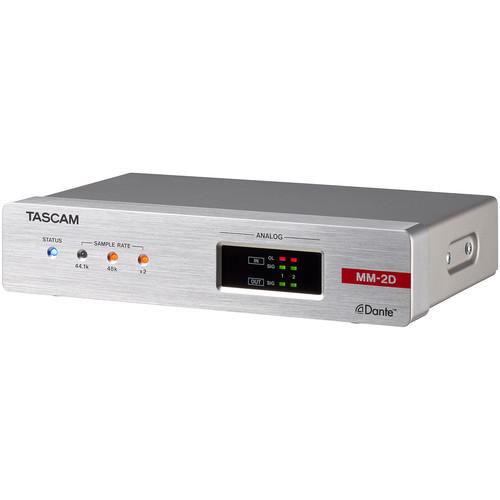

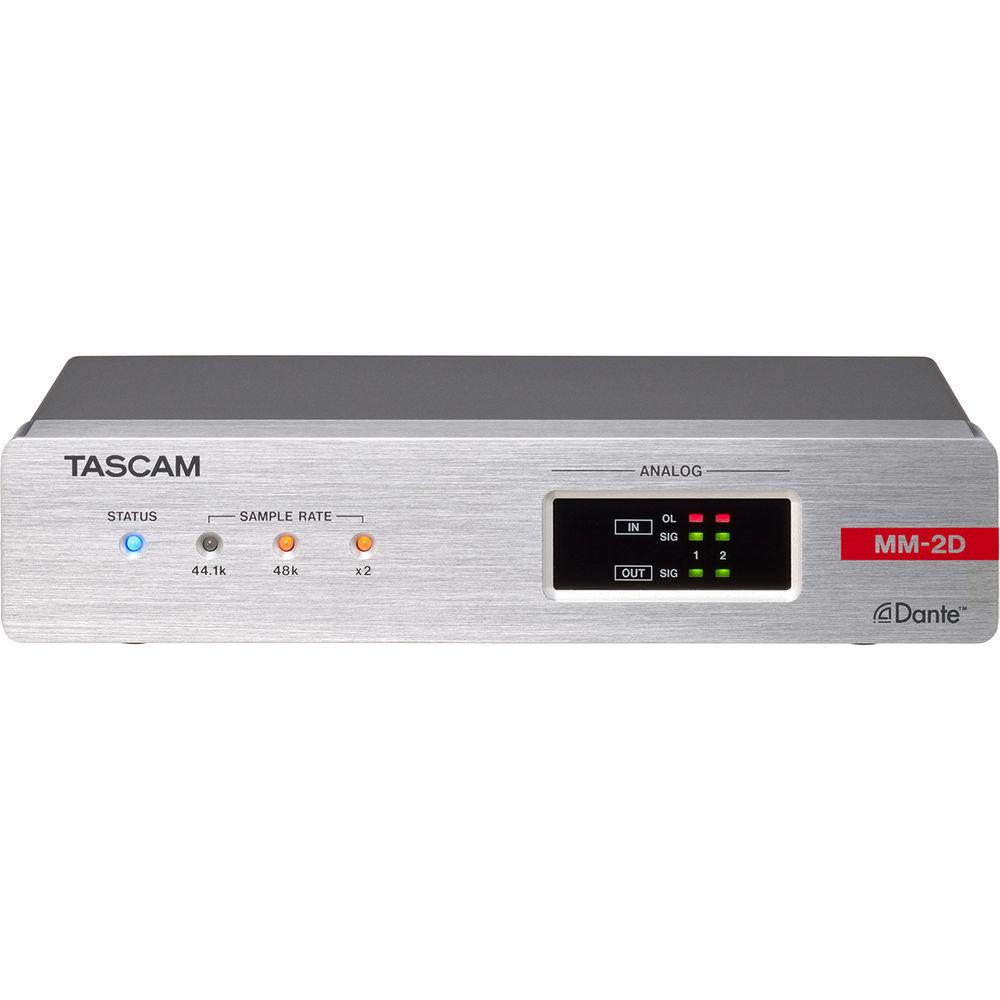

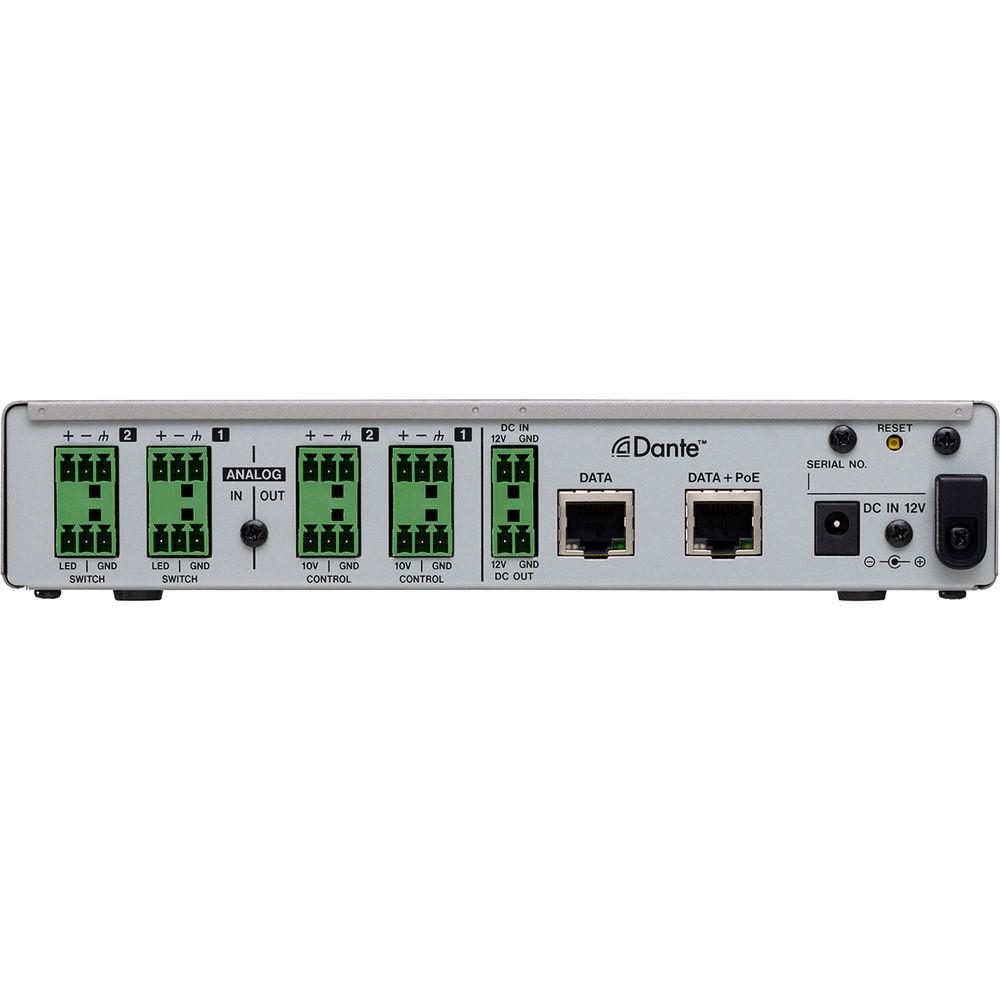

Product description The MM-2D-E Channel Mic/Line Input/Output Dante Converter with Built-In DSP Mixer from Tascam is a compact half-rack converter that can be used to convert 2-channel mic/line input/output signals on Euroblock connectors into 4 Dante channels or the other way around for pro-audio applications.The MM-2D-E Input/Output Dante Converter features level control and is compatible with Dante Domain Manager software, which offers security functions, enables the use of wide-area networks, and provides easy access to Dante systems using already established network infrastructures. With AES67 mode, connection to AES67 network systems is also possible. Two installation brackets and four Euroblock plugs are included. - 2 analog input/outputs on Euroblock connectors
- Supports PoE (Power over Ethernet)
- Sample rate up to 24-bit / 96 kHz
- Supports Dante daisy-chain, which allows two Dante Compact Processor models to be connected without a network switch
- Compatible with Dante Domain Manager and Dante AES67 mode
- Flexible scene preset function allows you to work in different area situations (up to 50 presets)
- Two types of user-control software available for Windows/Mac/iOS/Android devices:TASCAM DCP CONNECT, for integrators: input/output routing selection, DSP/design/scene settings of the complete system, etc.TASCAM EZ CONNECT, for end-users: simple app design for only the necessary functions such as area-volume settings, etc.
- Equipped with indicators that show LAN/Dante connection status and sample rate
- Equipped with signal indicators that monitor digital input/output signals
- Configurable reference level (via remote control only)
- Surface-mount adapters for installation under desks included
UPC: 043774033867 In the Box Tascam MM-2D-E 2-Channel Mic/Line Input/Output Dante Converter with Built-In DSP Mixer 2 x Installation Brackets 4 x Balanced Euroblock Plugs Limited 1-Year Warranty for Parts, 90-Day Warranty for Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Tascam MM-2D-E 2-Channel Mic Line Input Output Dante Converter with Built-In DSP Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTascam MM-2D-E Specs | | | Formats Supported | 44.1/48/88.2/96 kHz, 16/24-Bit, 2 Channels | | | | Connector | RJ-45 | | Transmission Protocol | Dante | | Gigabit Ethernet | 1000 BASE-T (IEEE 802.3ab) | | Cable | Category 5e or Faster STP Cables | | | | Connector | Euroblock (Balanced) 3.81 mm Pitch | | Minimum Input Level | -74 dBu | | Maximum Input Level | +26 dBu | | Input Impedance | 2.0 kOhms or Higher | | | | Connector | Euroblock (Balanced) 3.81 mm Pitch | | Nominal Output Levels | +4 dBu (when Ref. Level not −9 dBFS)
+6 dBu (when Ref. Level set to −9 dBFS) | | Maximum Output Level | Switchable:
+15 dBu (Ref. Level: −9 dBFS)
+18 dBu (Ref. Level: −14 dBFS)
+20 dBu (Ref. Level: −16 dBFS)
+22 dBu (Ref. Level: −18 dBFS)
+24 dBu (Ref. Level: −20 dBFS) | | Output Impedance | 200 Ohms or Lower | | | | External Control Interface | LED/Switch: Euroblock (Balanced) 3.81 mm Pitch | | LED | Connectors: Open Collector (10 Ohms Output Impedance, 48V withstand Voltage, 35 mA Maximum Current)
Low level Maximum Output Voltage: 0.5 V | | Switch Connectors | Maximum Input Voltage: 5.5 V
High-Level Minimum Input Voltage: 2.31 V
Low-Level Maximum Input Voltage: 0.99 V | | | | Mic In to Dante Out | Mic Amp EIN (Equivalent Input Noise): -125 dBu (150 Ohms, 22 kHz LPF+A, JEITA) | | Frequency Response | ±0.5 dB: 20 Hz to 20 kHz (44.1/48 kHz Sampling Frequency, JEITA)
±0.5 dB: 20 Hz to 40 kHz (88.2/96 kHz Sampling Frequency, JEITA) | | Distortion | 0.005 % (when −1 dBFS Input, 44.1/48/88.2/96 kHz Sampling Frequency, JEITA) | | Signal to Noise Ratio | 105 dB (44.1/48/88.2/96 kHz Sampling Frequency, JEITA) | | Crosstalk | 100 dB (44.1/48/88.2/96 kHz Sampling Frequency, JEITA) | | Dynamic Range | 105 dB (44.1/48/88.2/96 kHz Sampling Frequency, JEITA) | | Frequency Response | Dante In / Line Out:
±0.5 dB: 20 Hz to 20 kHz (44.1/48 kHz Sampling Frequency, JEITA)
±0.5 dB: 20 Hz to 40 kHz (88.2/96 kHz Sampling Frequency, JEITA) | | Distortion (THD) | 0.005 % (when −1 dBFS Input, 44.1/48/88.2/96 kHz Sampling Frequency, JEITA) | | Signal to Noise Ratio | 105 dB (44.1/48/88.2/96 kHz Sampling Frequency, JEITA) | | Crosstalk | 100 dB (44.1/48/88.2/96 kHz Sampling Frequency, JEITA) | | Dynamic Range | 105 dB (44.1/48/88.2/96 kHz Sampling Frequency, JEITA) | | | | Power | PoE Class 0
Tascam PS-P1220E AC Adapter (Sold Separately) | | Power Consumption | 6 W | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Dimensions (W x H x D) | 8.4 x 1.8 x 5.4" / 21.4 x 4.4 x 13.6 cm | | Weight | 31.0 oz / 878.0 g | | | | Package Weight | 2.955 lb | | Box Dimensions (LxWxH) | 13.5 x 13.1 x 9.3" |
