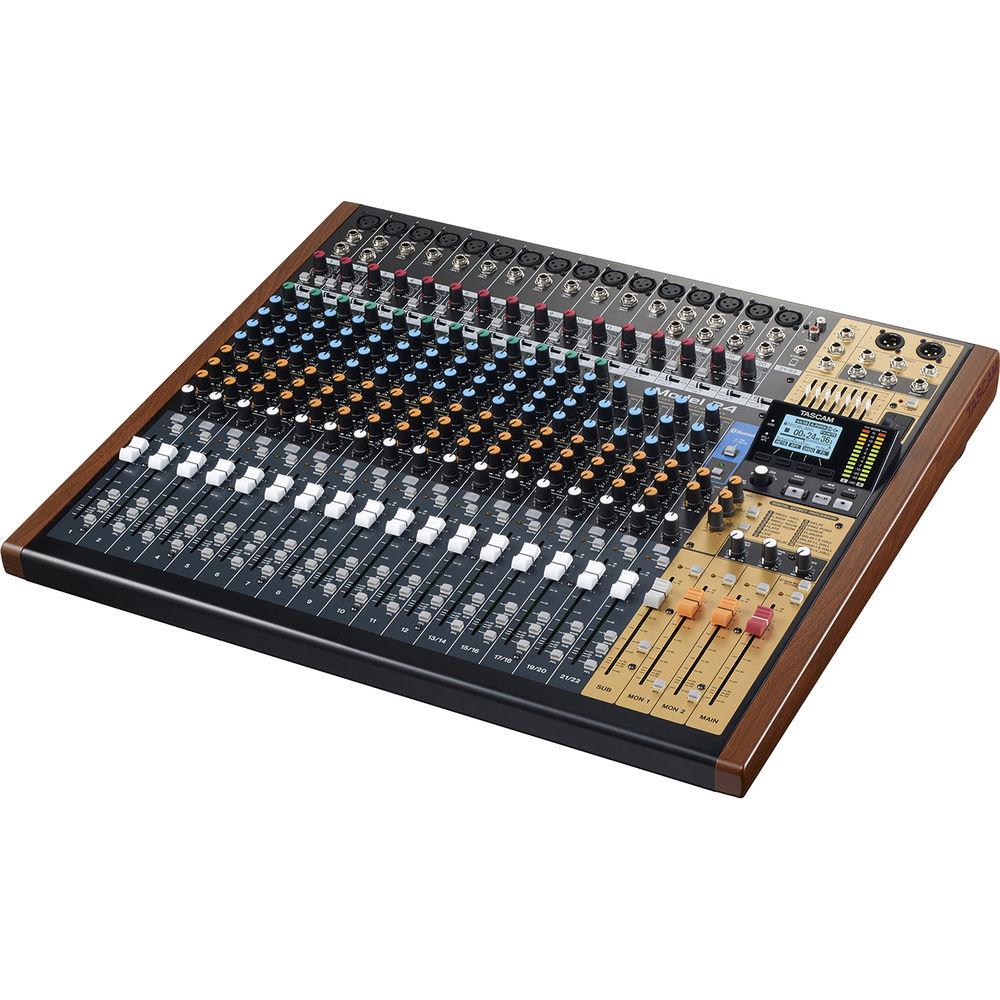

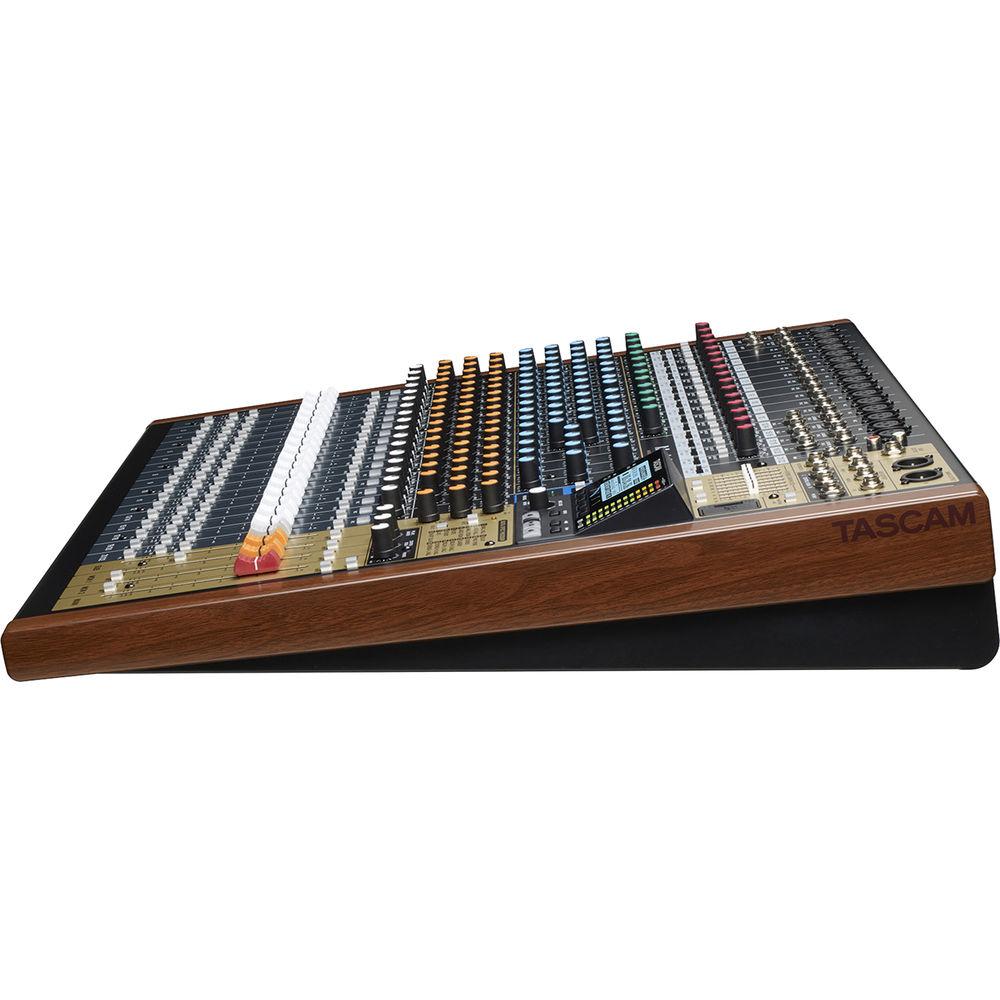

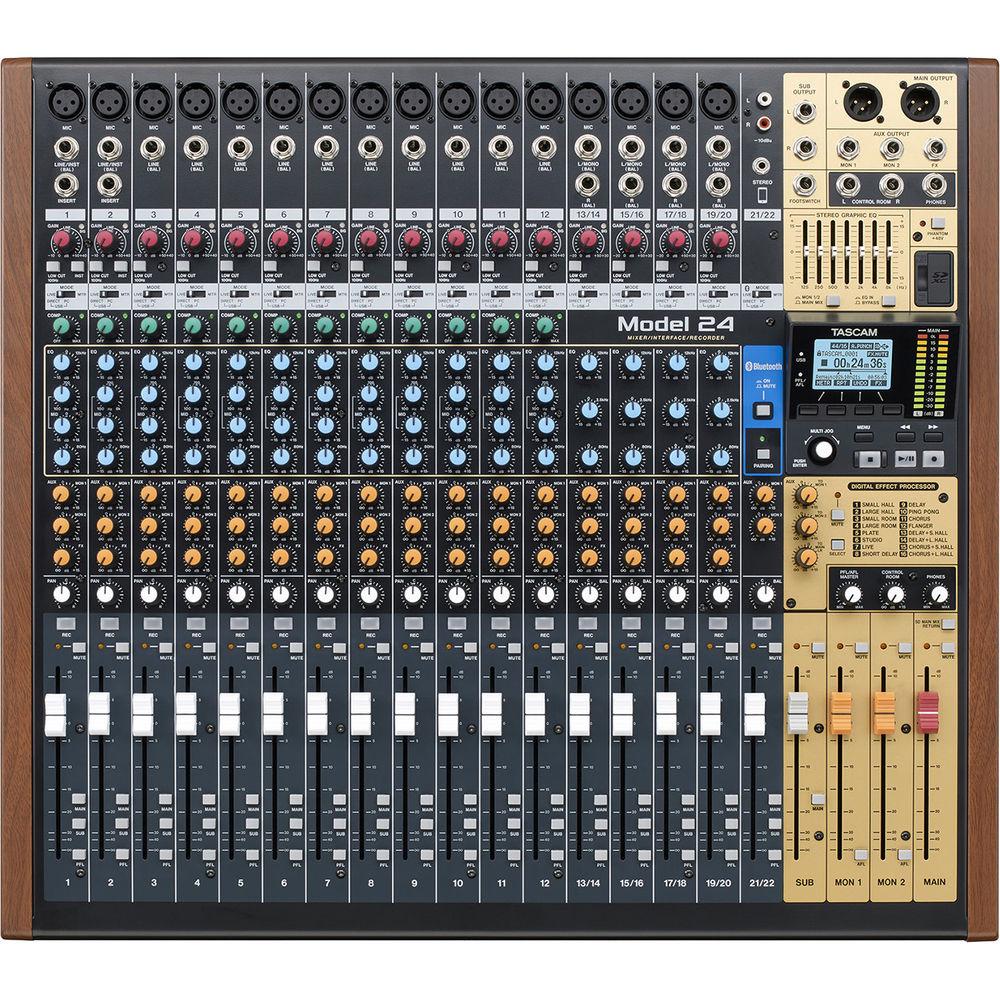

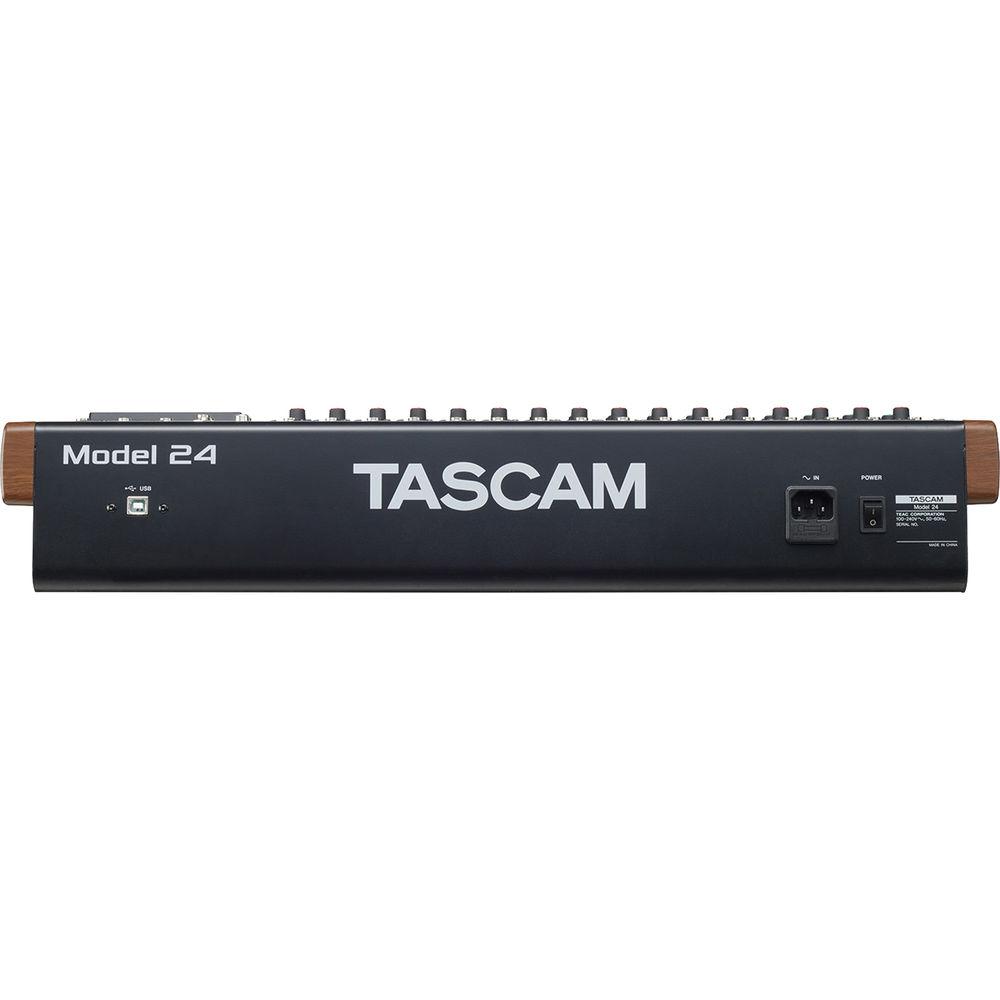

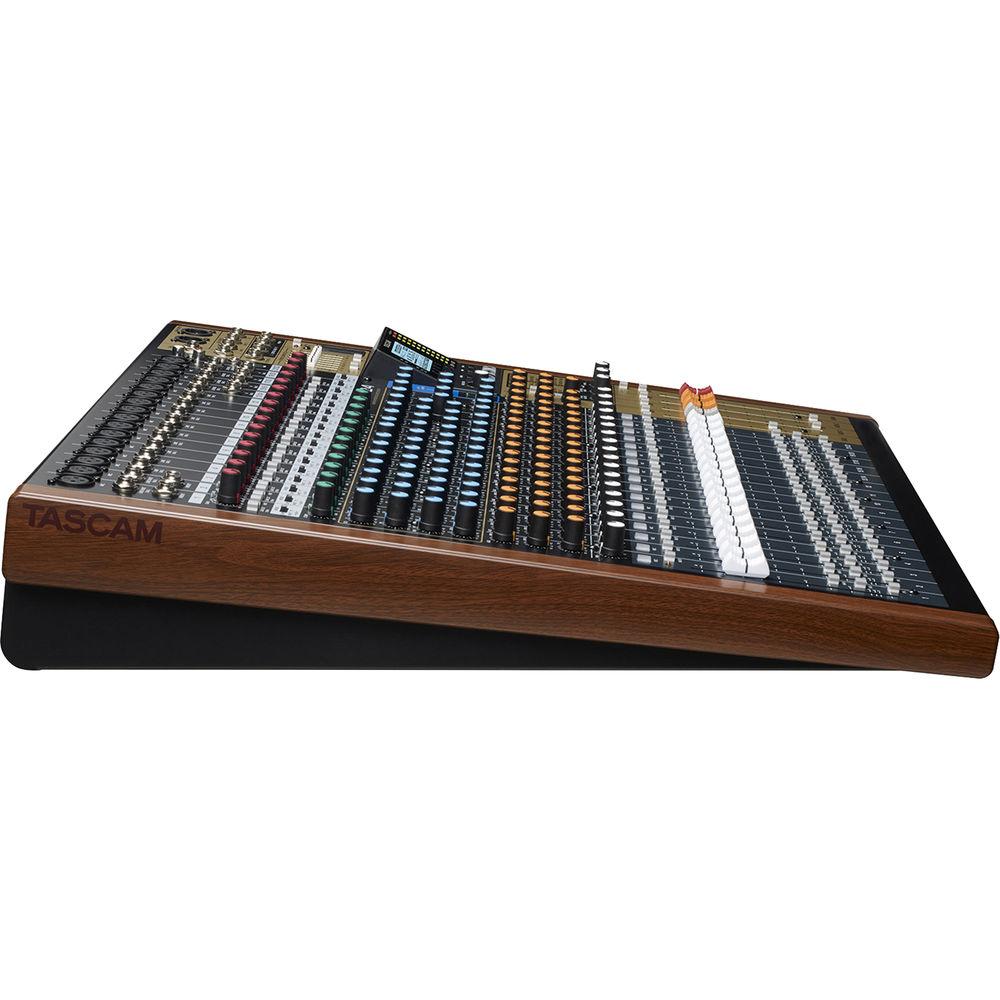

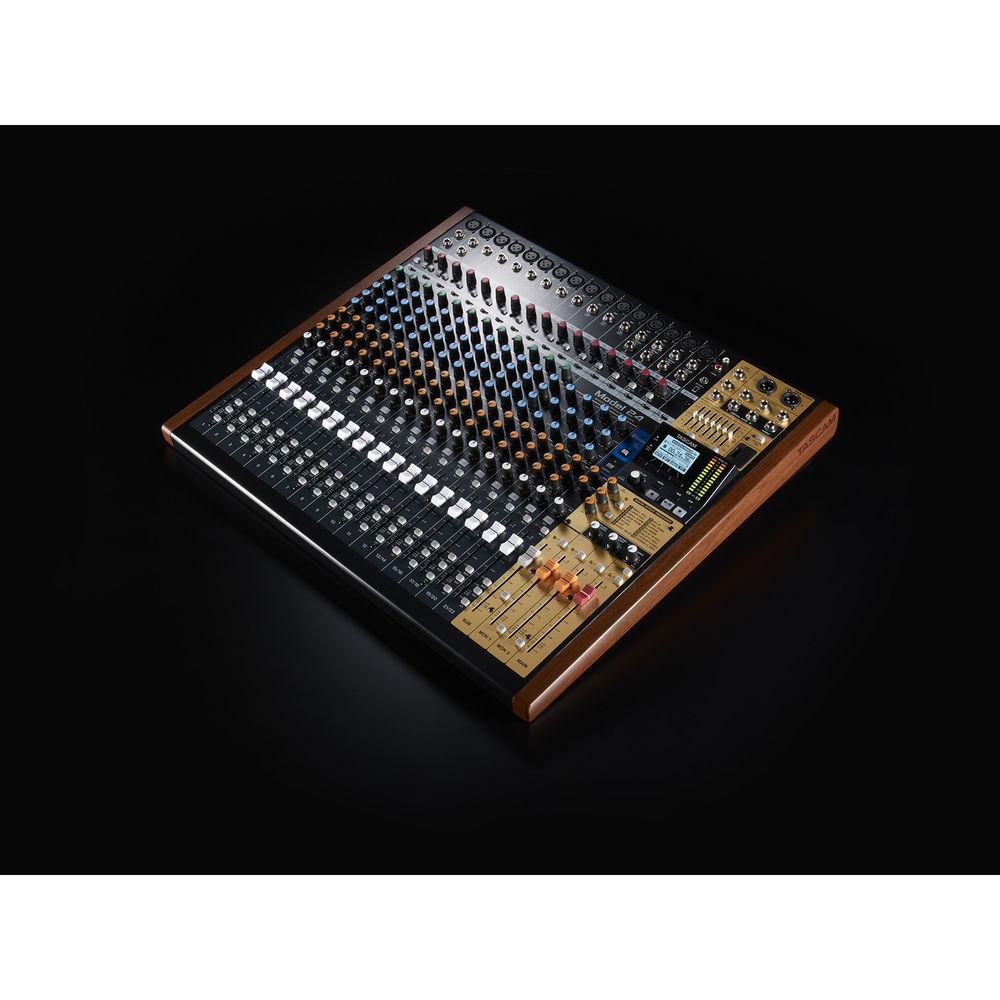

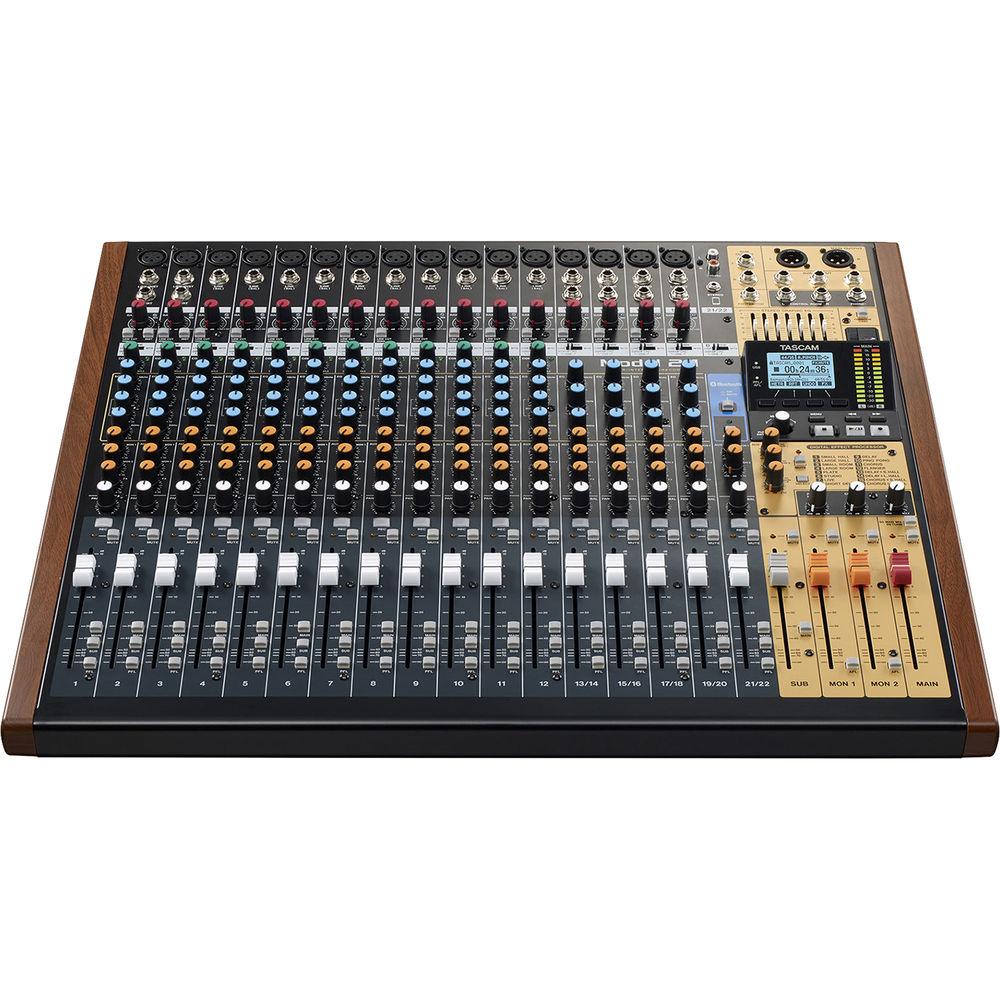

Product description - The Multi-Track Live Recording Console
The highly flexible Tascam Model 24 is a powerful, versatile, hybrid mixer/recorder/audio interface for both live and recording applications, well suited for bands, studios, conferences, podcasts, houses of worship, and more. The full-featured professional mixer offers 22 input channels including 16 microphone preamps with phantom power, two 1/4" Hi-Z jacks, 12 balanced 1/4" mono line inputs, and four balanced 1/4" stereo line inputs. Additionally, the last stereo input also accepts signals from a variety of sources including Bluetooth, USB, RCA, or a 3.5mm stereo mini jack.
There is single-knob compression available on the first 12 channels, while three auxiliary sends provide signal routing to a dedicated monitor and to one of 16 onboard multi-FX effects. The main and sub stereo buses offer simple grouping, as well as a selectable 7-band graphic EQ for fine tuning your mix. The Model 24 offers 21 faders, with 100mm of throw for quick and immediate mixing moves. Each channel may be assigned to receive audio from the live inputs, the internal multitrack recorder, or the USB 2.0 audio interface, allowing for versatility in any environment.
The onboard 24-track recorder takes its cue from Tascam's Portastudio line, offering multitrack recording with the ability to record 22 tracks plus the stereo master internally. Multichannel playback for advanced live performance backing or mixing. What's more, the simple interface allows you to punch in/out of recording and playback without extensive menu diving. Additionally, the Model 24 features a 22 x 24 USB audio interfaced allowing for the transmission of 22 input channels plus the stereo master at up to 24-bit/48 kHz resolution. -
- Mixer
- 22 total input channels
- 16 microphone preamps with 48V Phantom power
- Two Hi-Z instrument inputs
- 20 balanced line inputs (12 mono, 4 stereo)
- Single stereo multi-input channel for Bluetooth, USB, RCA or 3.5mm stereo input
- Main and sub stereo buses
- 3 x aux sends (monitor 1, monitor 2, and effects)
- Single-knob compressor for channels 1-12
- 7-band graphic stereo EQ selectable for main and monitor outputs
- Wireless Bluetooth connectivity and playback
- Onboard multieffects processor with 16 effects selections
- 100mm faders capable of fine adjustment
- Independent input channel assign for live, internal MTR, or USB playback
- Recorder
- Multitrack recording function similar to the TASCAM Portastudio
- 24 tracks (22 tracks + stereo master) can be recorded internally
- Multichannel playback for advanced live performance backing or mixing
- Punch in/out recording capability
- Audio Interface
- USB 2.0 audio interface
- 24 in (22 input channels + stereo master)
- 22 out
- Up to 24-bit/48 kHz recording quality
UPC: 043774033911 In the Box Tascam Model 24 - Digital Mixer, Recorder, and USB Audio Interface Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tascam Model 24 - Digital Mixer, Recorder, and USB Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTascam MODEL 24 Specs | | | Windows OS | Windows 10 (October 2018 Update), Windows 10 (April 2018 Update), Windows 8.1, Windows 7 | | Mac OS | macOS Mojave, macOS High Sierra (10.13), macOS Sierra (10.12), OS X El Capitan (10.11) | | | | Recording | Supported Media:
SD: 512 MB to 2 GB
SDHC: 4 GB to 32 GB
SDXC: 64 GB to 512 GB
Class 10 or Higher Required
File System:
SD Card: FAT16
SDHC Card: FAT32
SDXC Card: exFAT
Recording File Format: WAV (BWF)
Playback Format: WAV (BWF)
Sampling Frequency: 44.1/48 kHz
Bit Depth: 16-/24-Bit
Recordable Channels: Maximum 24 Channels (22 Channel + 2 Stereo Mix) | | | | Mic Input | Mic In: Channel 1 to 12, 13/14 to 19/20
Connector: XLR 3-31 (1: GND, 2: HOT, 3: COLD)
Maximum Input Level: +10 dBu
Nominal Input Level: -8 dBu
Minimum Input Level: -58 dBu
Gain Adjustable Range: 0 to 50 dB
Input Impedance: 1.8 kOhms
Phantom Power Supply: +48V | | Line Input | Line In: Channels 1 to 20
Connector: 1/4" / 6.35 mm TRS Phone Jack (Balanced)
Maximum Input Level: +22 dBu
Nominal Input Level: +4 dBu
Input Impedance22 kOhms
Gain Adjustable Range:
Channels 1 to 12: -10 to +40 dB
Channels 13/14 to 19/20: +20 to +30 dB | | Insert | Insert: Channels 1 & 2
Connector: 1/4" / 6.35 mm TRS Phone Jack (T: Send, R: Return, S: GND)
Return (Ring)
Maximum Input Level: +18 dBu
Nominal Input Level: 0 dBu
Input Impedance: 10 kOhms
Send (Tip)
Maximum Output Level: +18 dBu
Nominal Output Level: 0 dBu
Output Impedance: 100 Ohms | | Unbalanced RCA Inputs | Connector: RCA Pin Jack (Unbalanced)
Maximum Input Level: +8 dBV
Nominal Input Level: -10 dBV
Input Impedance: 10 kOhms | | Stereo Input | Connector: 1/8" / 3.5 mm Stereo Mini Jack (Unbalanced)
Maximum Input Level: +8 dBV
Nominal Input Level: -10 dBV
Input Impedance: 10 kOhms | | | | Main Output | Connector: XLR 3-32 (1: GND, 2: HOT, 3: COLD)
Maximum Output Level: +22 dBu
Nominal Output Level: +4 dBu
Output Impedance: 100 Ohms | | Other Outputs | Sub Out, Monitor Out, FX Out, Control Room Out
Connector: 1/4" / 6.35 mm TRS Phone Jack (T: HOT, R: COLD, S: GND)
Maximum Output Level: +16 dBu
Nominal Output Level: -2 dBu
Output Impedance: 100 Ohms | | Phones | Connector: 1/4" / 6.35 mm Stereo Phone Jack
Output Level: 80 mW + 80 mW (32 Ohms Loaded) | | | | Connector | 1/4" / 6.35 mm TS Phone Jack | | | | USB Audio | USB Audio: For Connection with PC
Sampling Rate: 44.1/ 48 kHz
Bit Depth: 16-/24-Bit
Maximum Input and Output: 24 Inputs / 22 Outputs | | | | USB | Connector: USB B-Type 4-Pin
Format: USB 2.0 High-Speed, Mass-Storage Class / USB Audio Class | | | | Bluetooth | Output Class: Class 2
Transmission Range: Approximately 33' / 10 m (Transmission Range May Vary, Depending on Surroundings)
Bluetooth Version: 4.0
Supported Profile: A2DP, AVRCP 1.0
Supported A2DP Codecs: SBC, AAC
A2DP Content Protection: SCMS-T | | | | Channel EQ | Low-Cut: 100 Hz, -18 dB/Octave
Hi-Shelving: +15 dB/-15 dB, Cut Off Frequency: 12 kHz
Mid: Peaking
(Mono): +15 dB/-15 dB, 100 Hz to 8 kHz Variable
(Stereo): +15 dB/-15 dB, Center Frequency = 600 Hz
MID-Band Q Fix: 0.55
Low-Shelving: +15 dB/-15 dB, Cut Off Frequency = 80 Hz | | Graphic EQ | Band: 7-Band
Frequency: 125, 250, 500 Hz, 1, 2, 4, 8 kHz
Gain: +15/-15 dB | | | | Effect Types | Small Hall
Large Hall
Small Room
Large Room
Plate
Studio
Live
Short Delay
Delay
Ping Pong
Chorus
Flanger
Delay + Small Hall
Delay + Large Hall
Chorus + Small Hall
Chorus + Large Hall | | | | Power | Power Supply: 100 to 240 VAC, 50/60 Hz
Power Consumption: 52 W | | | | Operating Temperature | 41 to 95
