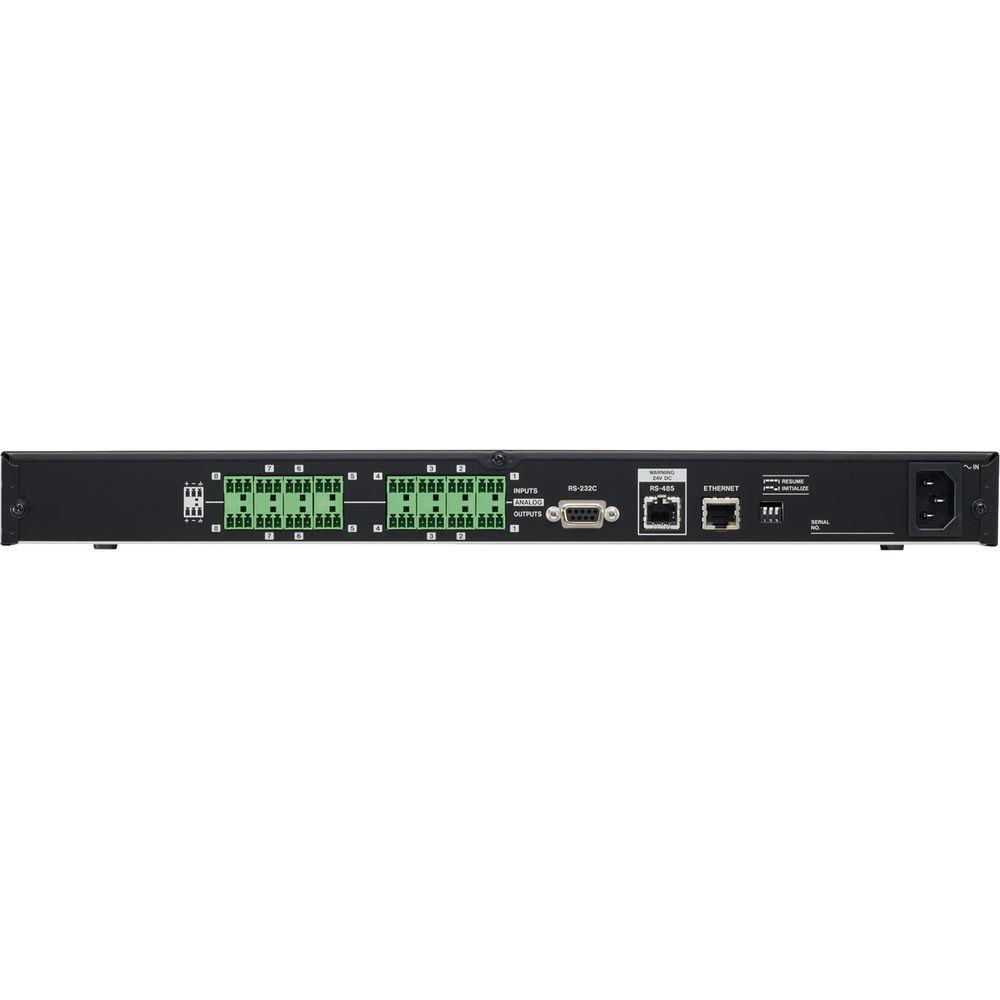

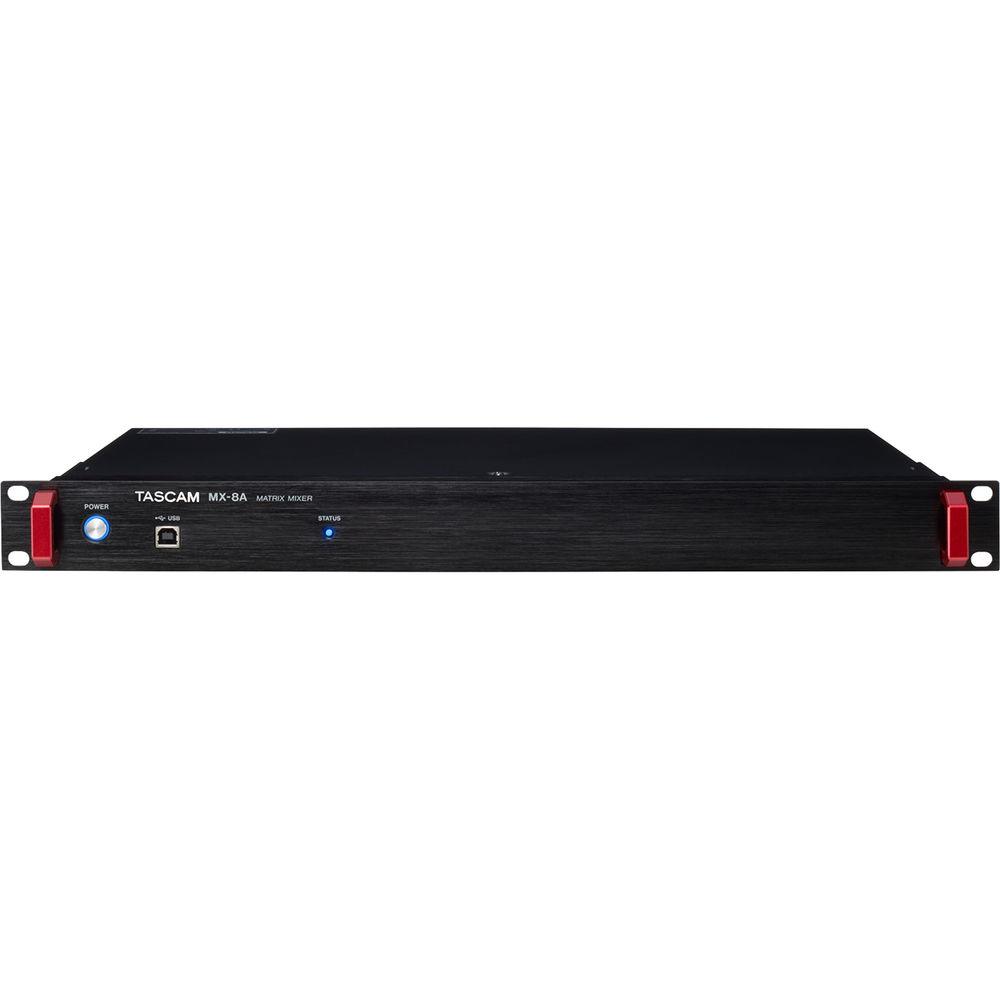

User Manual for Tascam MX-8A 8-Input 8-Output Matrix Mixer with DSP Click to enlarge the picture
Contents of the user manual for the Tascam MX-8A 8-Input 8-Output Matrix Mixer
- Product category: System Processors Tascam
- Brand: Tascam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tascam System Processors
 |
User manual for the Tascam MX-8A 8-Input 8-Output Matrix Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tascam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tascam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tascam product will considerably shorten its lifespan!
|
Product description The MX-8A 8-Input / 8-Output Matrix Mixer with DSP from Tascam features eight mic/line inputs and eight-line outputs on Euroblock connectors as well as integrated DSP for audio optimization in various environments and configurations. It can be used to mix mic and playback-equipment audio signals into eight different zones for easy setup and adjustment by both system integrators and end users, making it suitable for stores, restaurants, or banquet rooms.The MX-8A's onboard DSP provides a full set of audio processing for mic and line inputs including compression, four-parametric EQ, auto level, ducking, and more. In addition, the output DSP offers 10-band EQ, high-pass filters, low-pass filters, delay, and limiter effects.Additionally, Tascam's MX Connect remote control software is designed for integrators and provides control over the configuration and settings of the entire system. Tascam's EZ Connect software is designed for end-users and provides control over a variety of settings. The MX-8A 8-Input / 8-Output Matrix Mixer with DSP includes a power cord, sixteen Euroblock plugs, a cable band kit, and a rackmount screw kit. - Matrix mixer with eight mic/line input channels and eight line output channels
- Euroblock terminals, which are optimal for permanent installations, used for input/output connectors
- Extensive onboard DSP for audio processing according to application and conditions
- Remote control via Ethernet possible
- USB audio interface supports easy recording and background music playback with a computer
- Support for serial control systems possible with built-in RS-232C connector
- RS-485 connector enables connection of a dedicated external controller
- Compact 1U rackmount size
UPC: 043774033645 In the Box Tascam MX-8A 8-Input / 8-Output Matrix Mixer with DSP Power Cord 16 x Euroblock Plugs Cable Band Kit Rackmount Screw Kit Limited 1-Year Warranty for Parts, 90-Day Warranty for Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Tascam MX-8A 8-Input 8-Output Matrix Mixer with DSP in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTascam MX-8A Specs | Format | 44.1 kHz / 48 kHz, 16-Bit / 24-Bit | | Connector | 4-Pin USB b-Type | | Transfer Rate | USB 2.0 High-Speed (480 Mbps) | | Analog In | Connector: Euroblock (Balanced) 3.81 mm Pitch | | Minimum Input Level | -70 dBu | | Maximum Input Levels | Microphone: +26 dBu
Line: +24 dBu
Input Impedance: 2.2 kOhms or Higher | | Analog Output | Connector: Euroblock (Balanced) 3.81 mm Pitch | | Nominal Output Level | +4dBu (When Ref.Level Set to Other Than -9 dBFS)
+6dBu (When Ref.Level Set to -9 dBFS) | | Maximum Output Level | Switchable:
+15 dBu (Ref.Level: -9 dBFS)
+18 dBu (Ref.Level: -14 dBFS)
+20 dBu (Ref.Level: -16 dBFS)
+22 dBu (Ref.Level: -18 dBFS)
+24 dBu (Ref.Level: -20 dBFS) | | Output Impedance | 200 Ohms or Lower | | RS-485 | Connector: RJ-45
Cables: Category 5e or Faster STP Cables | | Ethernet | Connector: RJ-45
Transmission Protocol: TCP/IP
Ethernet Standard: 100BASE-TX
Cables: Category 5e or Faster STP Cables | | Power | AC 100 to 240 V, 50/60 Hz | | Power Consumption | 21 W | | Operating Temperature Range | 32 to 104°F / 0 to 40°C | | Dimensions (W x H x D) | 19.0 x 1.8 x 12.0" / 48.3 x 4.5 x 30.4 cm | | Weight | 6.6 lb / 3.0 kg |
