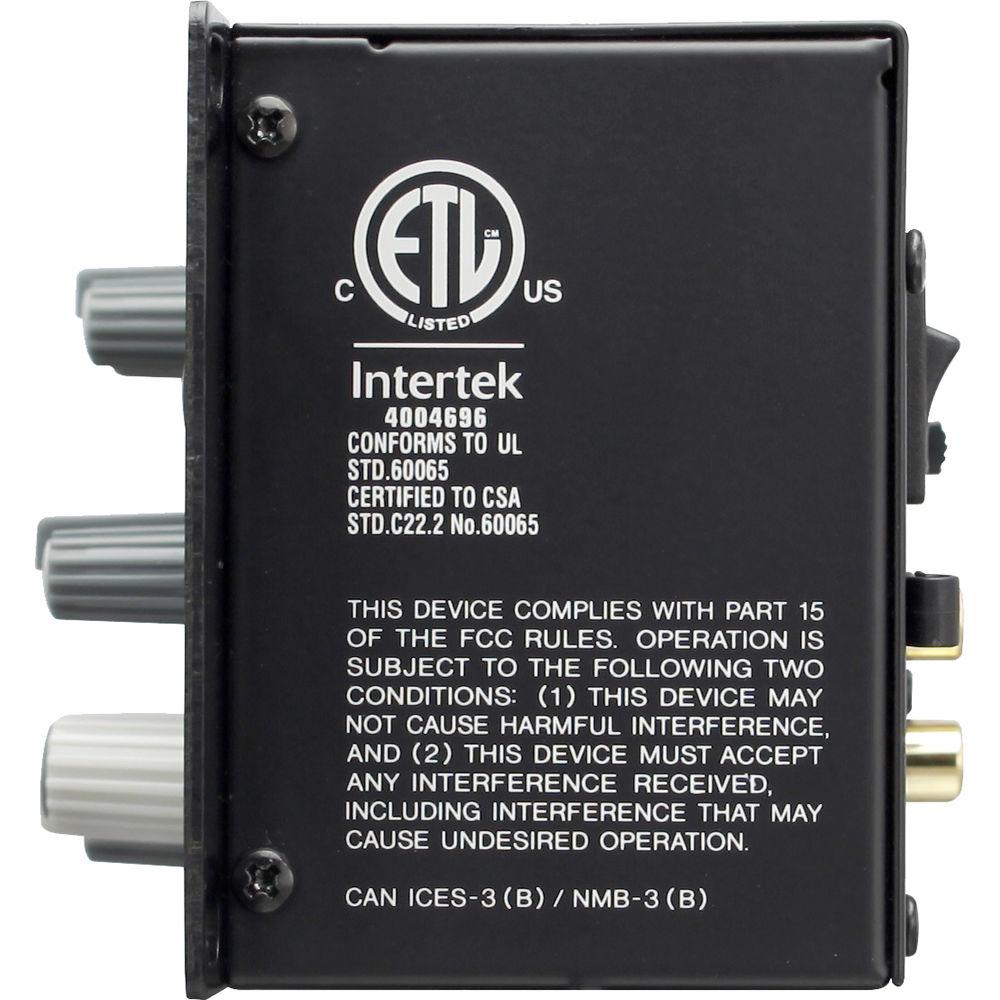

Product description The Tascam MZ-223 is an industrial-grade multi-channel, multi-zone mixer well suited for small format install applications such as moderate-sized hotels, restaurants, meeting rooms, schools, houses of worship, or any situation that demands independently routed audio. Source content can include music, spoken word (microphone), phonograph, and more and are easily controlled via familiar sliders and assignment controls on the front panel.
The MZ-223 allows multiple audio sources to be mixed, segregated, and routed to three independent main outputs. The rear panel offers five input channels with 10 sets of RCA stereo pairs for connecting a variety of equipment. Channels 1 and 2 also offer a switchable phono preamp for connecting turntables. Each of the three outputs offers a pair of balanced XLR and a pair of unbalanced RCA connectors. Additionally, the monitor output is offered on a pair unbalanced RCA connectors.

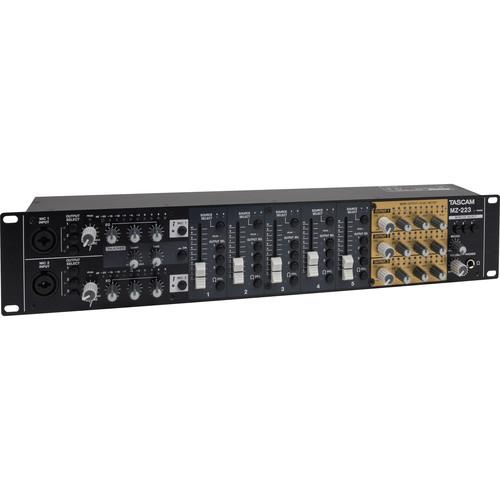

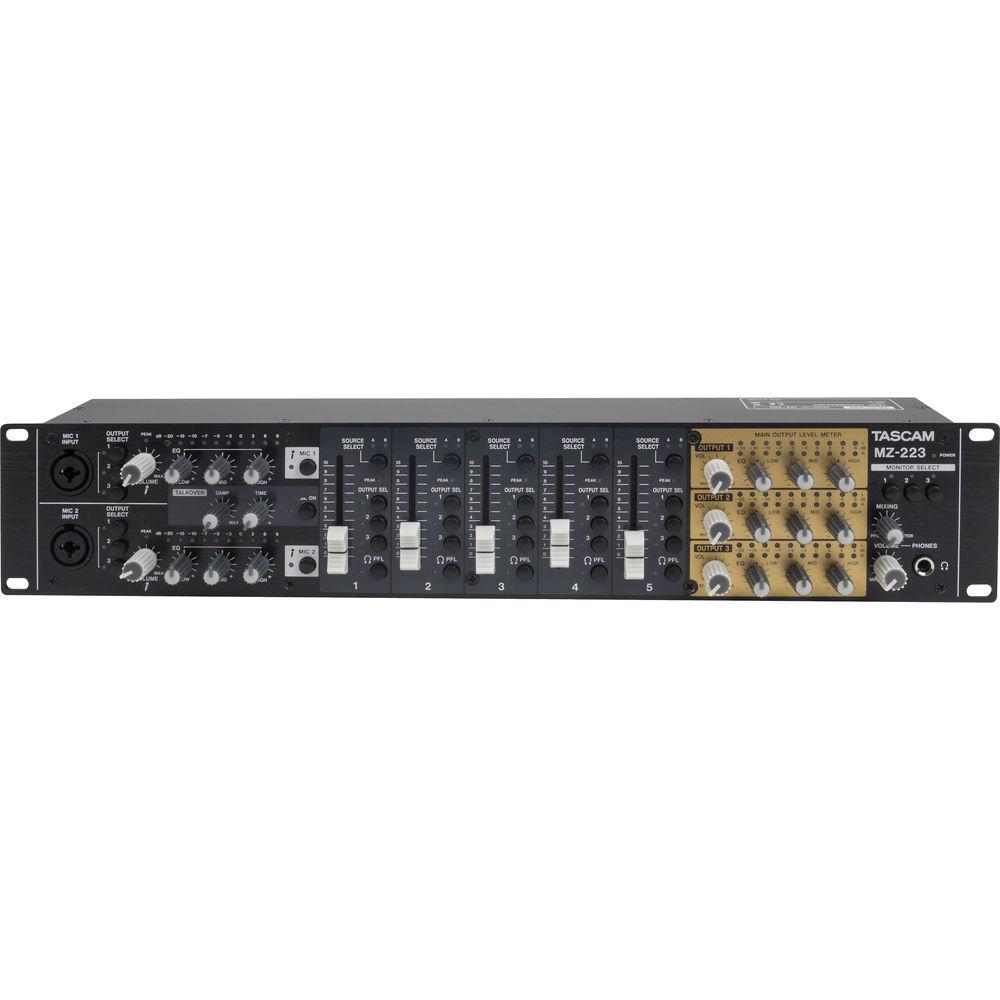

The front panel features five volume sliders for each of the line input channels. Each channel also offers A/B source select and output select buttons. There are three dedicated main outputs with dedicated volume control and 3-band EQ. The two microphone inputs offer combo XLR-1/4" inputs with dedicated output selectors, volume controls, and a 3-band EQ for each channel. Additionally, there is a "talkover" function, which ducks the music when the microphone is being used. The Tascam MZ-232 ships with a power supply. -
- Easy operation and routing via familiar volume sliders, toggle switches/buttons, and knobs
- Three independent Zone outputs with stereo XLR balanced and unbalanced RCA-type connectors per channel
- Five separate input channels, each with two sets of stereo RCA-type inputs
- Two additional mic-compatible XLR inputs on the front panel
- All audio can be mixed or segregated per channel, and routed to the three separate Zones/outputs
- “Talkover” function automatically lowers other source content while microphones are in use
- Independent three-band EQ per output channel and per microphone input
- Compact 2 RU rackmount design
UPC: 043774033492 In the Box Tascam MZ-223 - Industrial-Grade Zone Mixer Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tascam MZ-223 - Industrial-Grade Zone Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTascam MZ-223 Specs | Mic Input | Connectors: 2 x XLR-1/4" / 6.35 mm combo
Input Impedance: 33 kOhms
Nominal Input Level: -65 dBu (volume knob at maximum)
Nominal Input Level: -10 dBu (volume knob at minimum)
Gain Range: 55 dB | | Line Inputs | Connectors: 10 x RCA pairs (2 x RCA pairs per channel)
Nominal Input Level: -10 dBV
Maximum Input Level: 10 dBV
Input Impedance: 22 kOhms | | Main Outputs | Unbalanced
3 x RCA pairs
Rated Output Level: -10 dBV
Maximum Output Level: 6 dBV
Output Impedance: 200 Ohms
Balanced
3 x XLR pairs
Rated Output Level: 4 dBV
Maximum Output Level: 24 dBV
Output Impedance: 200 Ohms | | Monitor Outputs | 1 x RCA pair
Rated Output Level: -16 dBV
Maximum Output Level: 0 dBV
Output Impedance: 200 Ohms | | Headphone Output | 1 x 1/4" / 6.35 mm TRS
Maximum Output: 50 mW + 50 mW (into 32 Ohms load) | | Frequency Response | 20 Hz to 20 kHz | | Distortion | 0.03% | | Crosstalk | 65 dB | | Power | Dedicated AC Adapter: PS-M1524
Input Voltage: 100 to 240 VAC, 50/60 Hz
Output Voltage: 15 VDC
Output Current: 2.4 A | | Power Consumption | 35 W | | Dimensions (W × H × D) | 19.0 x 3.5 x 3.7" / 48.2 x 8.8 x 9.3 cm (including protrusions) | | Weight | 5.5 lb / 2.5 kg | | | | Package Weight | 6.8 lb | | Box Dimensions (LxWxH) | 20.3 x 6.5 x 5.9" |
