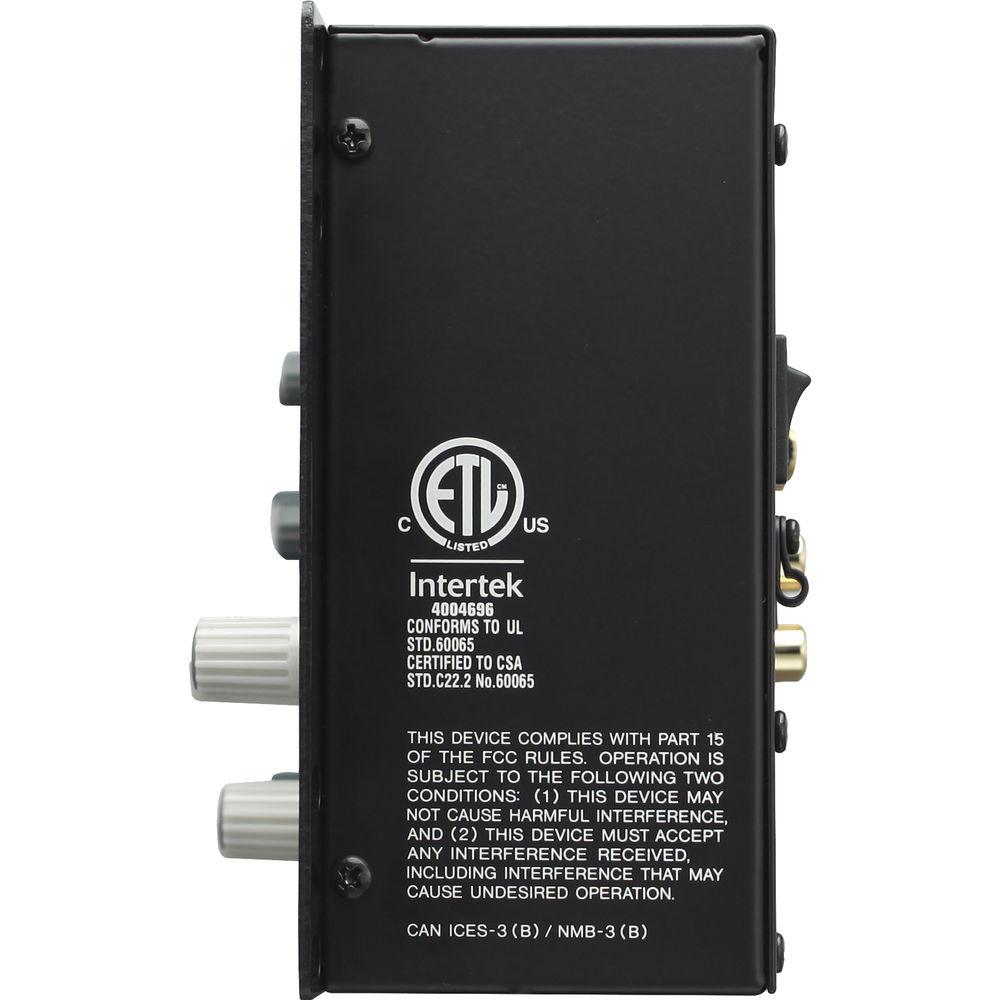

Product description The Tascam MZ-372 is an industrial-grade multi-channel, multi-zone mixer well suited for small format install applications such as hotels, restaurants, meeting rooms, schools, houses of worship, and more. Source content can include music, spoken word (microphone), turntables, and more and are easily controlled via familiar sliders and assignment controls on the front panel.

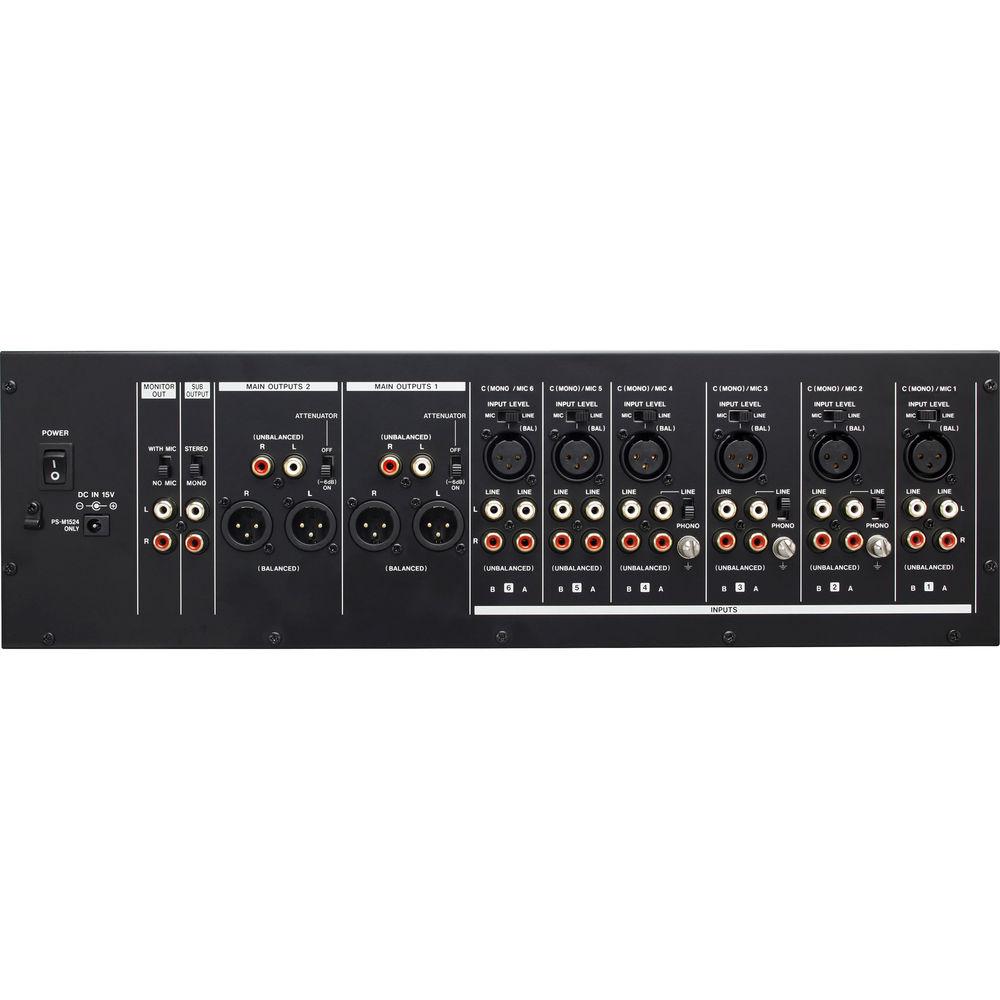

The MZ-372 allows up to 19 audio sources to be mixed, muted, and routed to two redundant outputs. The rear panel offers six input channels, each with two sets of RCAs for a total of 12 RCA stereo pairs for connecting a variety of equipment. Channels 2 and 3 also offer a switchable phono preamp for connecting turntables. Additionally, each of the six channel inputs offers a dedicated XLR input that is switchable between mic and line. The two outputs offer a pair of balanced XLR and a pair of unbalanced RCA connectors, while the monitor output and sub output each offer a stereo pair of RCAs.
The front panel features six volume sliders for each input channel. Each channel also offers A/B/C source select and is equipped with a dedicated gain trim and a 3-band EQ. The two main outputs feature independent volume knobs. A single combo XLR-1/4" microphone input features a volume control, two band EQ, and a "Talkover" function for music ducking when using a microphone. The Tascam MZ-372 ships with a power supply. -
- Maximum flexibility for audio routing, input selection, and multiple redundant output flow
- Well suited for integrator, musical instrument, and residential applications
- Multiple inputs include 12 sets of stereo RCA-type, 6 selectable mic/line XLR, and a dedicated front-panel XLR mic input; 19 total input “sets”
- Channel audio sources can easily be selected, muted, and contoured via simple volume sliders, toggle switches/buttons, and knobs
- Two redundant output channels, each with stereo XLR balanced and unbalanced RCA-type connectors and separate volume controls
- Separate stereo booth, recording, and headphone outputs, each with independent control
- One additional mic-compatible XLR input on the front panel with “Talkover” function automatically lowering source audio
- Independent three-band EQ per each of the 5 channels and a two-band EQ on the additional front panel microphone input
- Compact 3 RU rackmount design
UPC: 043774033508 In the Box Tascam MZ-372 - Industrial-Grade Zone Mixer Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tascam MZ-372 - Industrial-Grade Zone Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTascam MZ-372 Specs | Mic Input | Font Panel Connectors: 1 x XLR-1/4" / 6.35 mm combo
Input Impedance: 33 kOhms
Nominal Input Level: -65 dBu (volume knob at maximum)
Nominal Input Level: -10 dBu (volume knob at minimum)
Gain Range: 55 dB | | Mic/Line Inputs | Switchable Mic/Line Inputs
Connectors: 6 x XLR
Set to Mic
Maximum Input Level: -10 dBu
Minimum Input Level: -65 dBu
Input Impedance: 33 kOhms
Set to Line
Nominal Input Level: -1 dBV
Maximum Input Level: 20 dBV
Input Impedance: 22 kOhms
Dedicated Line Inputs
Connectors: 12 x RCA pairs (2 x RCA pairs per channel)
Nominal Input Level: -10 dBV
Maximum Input Level: 10 dBV
Input Impedance: 22 kOhms | | Main Outputs | Unbalanced
2 x RCA pairs
Rated Output Level: -10 dBV
Maximum Output Level: 6 dBV
Output Impedance: 200 Ohms
Balanced
2 x XLR pairs
Rated Output Level: 4 dBV
Maximum Output Level: 24 dBV
Output Impedance: 200 Ohms | | Sub Monitor Output | Sub Output: 1 x RCA pair
Rated Output Level: -16 dBV
Maximum Output Level: 0 dBV
Output Impedance: 200 Ohms
Monitor Outputs: 1 x RCA pair
Rated Output Level: -16 dBV
Maximum Output Level: 0 dBV
Output Impedance: 200 Ohms | | Headphone Output | 1 x 1/4" / 6.35 mm TRS
Maximum Output: 50 mW + 50 mW (into 32 Ohms load) | | Frequency Response | 20 Hz to 20 kHz | | Distortion | 0.03% | | Crosstalk | 65 dB | | Power | Dedicated AC Adapter: PS-M1524
Input Voltage: 100 to 240 VAC, 50/60 Hz
Output Voltage: 15 VDC
Output Current: 2.4 A | | Power Consumption | 35 W | | Dimensions (W × H × D) | 19.0 x 5.2 x 3.7" / 48.2 x 13.2 x 9.3 cm (including protrusions) | | Weight | 7.1 lb / 3.2 kg | | | | Package Weight | 8.25 lb | | Box Dimensions (LxWxH) | 20.4 x 8.5 x 5.7" |
