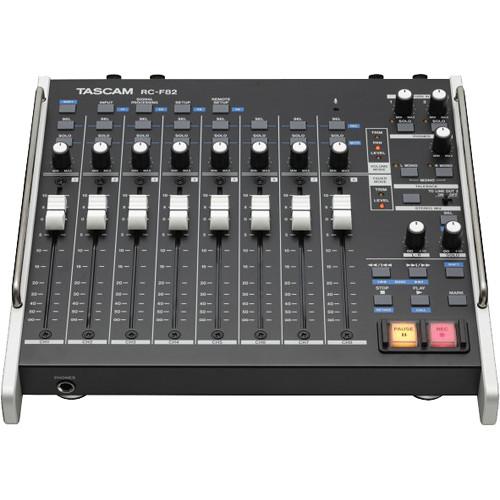

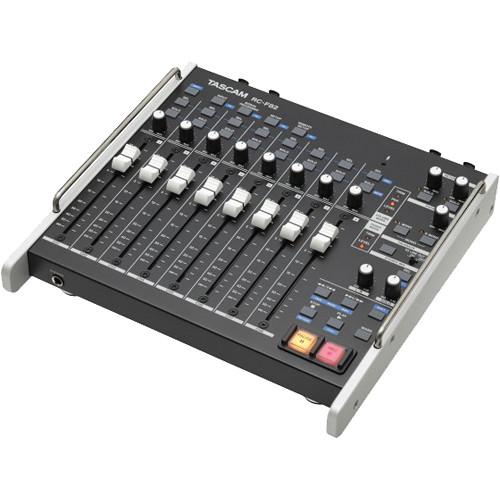

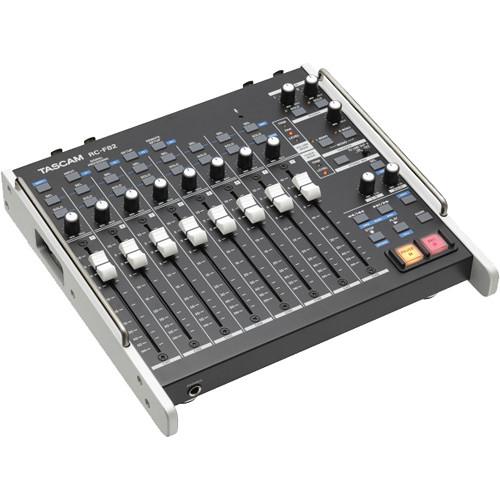

Product description Adding to the mixing facilities of the HS-P82 8-Channel Field Audio Recorder, the Tascam RC-F82 Communication/Control Surface is a mix controller, fader controller, and talkback system for location recording applications. Eight 100mm faders control the 8x2 mixer or preamp trim on the HS-P82, allowing a stereo mix to be recorded in addition to the eight discrete tracks. Eight encoders can control trim, level, or stereo pan. In addition to control, the RC-F82 Communication/Control Surface has audio input and output routing with talkback for on-set communication.
The combination of the HS-P82 and RC-F82 is a reliable solution for on-set recording with mixing and communication. - Eight 100 mm faders with dust protection for controlling the mix or input trim level for each channel on the HS-P82 unit
- Eight rotary knobs for controlling the input trim level, mixer pan, or mixer level for each channel on the HS-P82 unit
- Two rotary controls for the stereo mix (for master and solo levels)
- Eight dedicated keys for enabling/disabling Solo and recording Mute functions
- Eight dedicated keys for calling up channel setup screens and enabling/disabling recording
- A dedicated key for the stereo mix for calling up the L/R Setup screen and for enabling/disabling recording
- Four direct access (shortcut) buttons to open Mixer Setup and Remote Setup screens
- Transport control functions

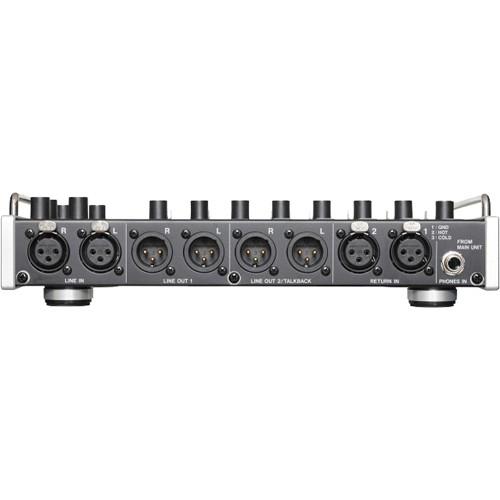

- Balanced XLR Line In connectors (stereo)
- Balanced XLR Line Out 1 & 2 connectors (2 stereo pairs)
- Convenient talkback functions for use in field recording environments
- Balanced XLR Return In connectors for talkback functions (includes level adjustment and solo control)
- Return signal can be monitored using headphones
- Built-in talkback microphone; this microphone's signal can be output from the Line Out 2 connectors
- Headphones connector with level knob for monitoring
- Headphones monitoring can be set to Stereo, Mono, L Mono, or R Mono
- Designed to be placed on top of an HS-P82 unit; the RC-F82 has the same footprint

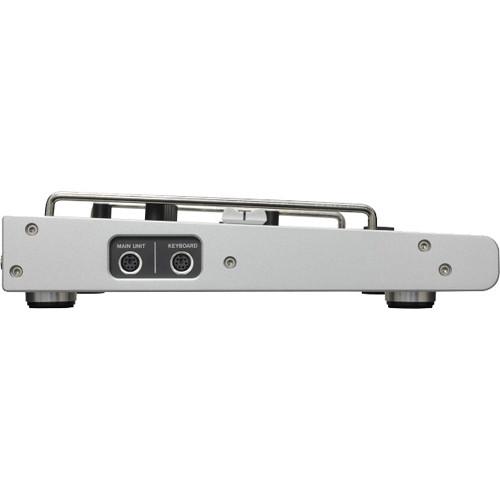

- Connects with an HS-P82 unit by PS/2 (and is also powered by this connection)
- PS/2 external keyboard can be connected
- Built-in omnidirectional, monaural microphone
UPC: 043774026340 In the Box Tascam RC-F82 Communication/Control Surface for HS-P82 3.9' (1.2 m) PS/2 Connection Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tascam RC-F82 Communication Control Surface for HS-P82 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTascam RC-F82 Specs | | | Line In | Balanced connectors: XLR-3-31 (1: GND, 2: HOT, 3: COLD)
Nominal input level: Dependent on HS-P82 settings
Maximum input level: Dependent on HS-P82 settings
Pass-through to Line Out 1
Pass-through to Line Out 2 (when Talkback to Line Out 2 switch is Off) | | Connectors | Return In
Return In connectors
Balanced connectors: XLR-3-31 (1: GND, 2: HOT, 3: COLD)
Input impedance: 10 kΩ
Nominal input level: +4 dBu (1.23 Vrms)
Maximum input level: +24 dBu (12.28 Vrms) | | Phono Input | Connector: 1/4" (6.30 mm) stereo socket | | | | Line Output (Line 1, Line 2) | Line Out 1 Connectors
Balanced connectors: XLR-3-32 (1: GND, 2: HOT, 3: COLD)
Nominal output level: Dependent on HS-P82 settings
Maximum output level: Dependent on HS-P82 settings
Line In pass-through output
Line Out 2 Connectors
(When Talkback to Line Out 2 switch is Off)
Balanced connectors: XLR-3-32 (1: GND, 2: HOT, 3:COLD)
Output impedance: Dependent on HS-P82 settings
Nominal output level: Dependent on HS-P82 settings
Maximum output level: Dependent on HS-P82 settings
Line In pass-through output
(when TALKBACK TO LINE OUT 2 switch ON)
Pseudo-balanced
Output impedance: 150 Ω
Nominal output level: –8 dBu (0.3 Vrms)
Maximum output level: +8 dBu (2.0 Vrms)
Internal Microphone signal is routed to this output | | Connectors | Phono Connector
Connector: 1/4" (6.30 mm) stereo socket
Maximum output level: 90 mW + 90 mW
(1 kHz, THD+N 0.1%, into 32 Ω) | | | | Main unit | Connector: 6-pin mini-DIN socket | | Keyboard Connectors | 6-pin mini-DIN (PS/2) socket | | | | Voltage | 5 VDC (supplied by the HS-P82 unit) | | Power Consumption | 1 W or less | | Operating Temperature Range | 32 to 104°F (0 to 40°C) | | Dimensions (W x H x D) | 10.63 x 2.48 x 10.24" (270.00 x 63.00 x 260.00 mm) | | Weight | 5.5 lb (2.5 kg) | | | | Package Weight | 7.75 lb | | Box Dimensions (LxWxH) | 15.1 x 14.0 x 6.2" |
