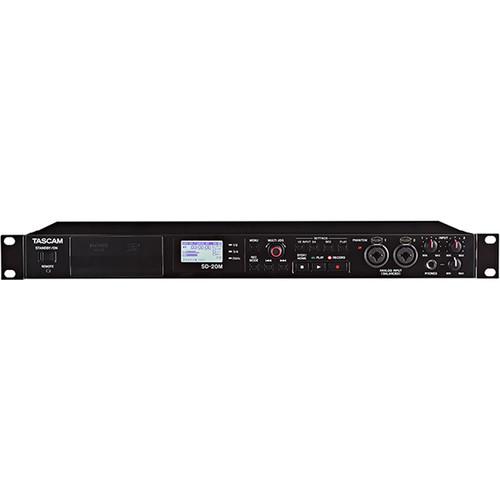

Product description The SD-20M 4-Track Solid-State Recorder from Tascam is a simple-to-use 1U rackmount recorder that includes a pair of microphone preamps with phantom power for direct microphone recording. It can be used to capture audio with SD cards up to 128GB in various environments and is designed for permanent installation in schools, houses of worship, conferences, and more. Both the mic inputs and line inputs can be recorded simultaneously in four-track mode. The dual recording mode also captures a copy of your audio at a lower level as an insurance against distorted takes. The SD-20M includes a battery backup system: AA batteries can keep recording for hours in case of power loss. A wired remote or footswitch can be attached to control recording and playback. In addition, variable speed playback allows the playback to be changed without affecting the pitch. - Four-track solid-state recorder
- Stereo or four-track recording (two mic/line inputs + two line inputs)
- Two microphone inputs on XLR-1/4" combo jacks, compatible with +4 dBu line level and switchable phantom power (+48V)
- Two RCA line inputs on rear side for tracks 3-4 (compatible with -10 dBV line level)
- Two recording formats supported:
WAV/BWF: 44.1-96 kHz, 16/24-bit
MP3: 32-320 kBps - Low-cut filter with three levels (40/80/120 Hz)
- Dual recording function records a copy of your audio at a lower level for a distortion-proof safety track
- Variable speed playback changes speed without changing the pitch (0.5 times to 1.5 times in 0.1 increments)
- Auto-recording function to automatically start recording based on input level
- Standard stereo headphones output
- AA battery backup - keeps recording even after power loss
- SDXC media slot supports cards up to 128GB
UPC: 043774032211 In the Box Tascam SD-20M 4-Track Solid-State Recorder AC Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tascam SD-20M 4-Track Solid-State Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTascam SD-20M Specs | Recording Media | SD card (64 MB to 2 GB)
SDHC card (4 GB to 32 GB)
SDXC card (48 GB to 128 GB) | | Audio Recording/Playback Format | BWF: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 16/24-bit
WAV: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 16/24-bit
MP3: 44.1/48 kHz, 32/64/96/128/192/256/320 kBps | | Number of Channels | 4 channels (stereo x 2) | | Mic/Line Inputs | 2 x Combo Jacks: XLR-3-31 (1: ground, 2: hot, 3: cold)
1/4" (6.3 mm) TRS jack (Tip: hot, ring: cold, sleeve: ground) | | Mic Input Impedance | Front jacks set to Mic
2.7 kOhms (phantom power supported)
Maximum Input Level: 0 dBu (gain: low)
Minimum Input Level: −67 dBu (gain: high) | | Line Input Impedance | Front jacks set to Line
10 kOhms or higher
Nominal Input Level +4 dBu
Maximum Input Level: +20 dBu
Minimum Input Level: -12 dBu | | Line Input Impedance | Line inputs 3/L and 4/R (unbalanced, RCA jacks)
10 kOhms or higher
Nominal Input Level -10 dBV
Maximum Input Level: +6 dBV
Minimum Input Level: -26 dBV | | Audio Output Jacks | Nominal Output Level -10 dBV
Maximum Output Level: +6 dBV
Output Impedance: 200 ohms | | Headphone Output | 1/4" (6.3 mm) standard stereo jack
Maximum Output Power: 20 mW + 20 mW (32 ohms load, 0.1 % distortion) | | Remote Control Connector | 1/16" (2.5 mm) TRS micro jack | | Frequency Response | 20 Hz to 20 kHz +1/-3 dB (input 1-2 to output, Fs 44.1/48 kHz)
20 Hz to 40 kHz +1/−3 dB (input 1-2 to output, Fs 96 kHz) | | Distortion | 0.01 % or less (Input 1-2 to output, Fs 44.1/48/96 kHz) | | Signal to Noise Ratio | 100 dB or more (input 1-2 to output, Fs 44.1/48/96 kHz) | | Power Supply | Dedicated AC adapter (TASCAM PS-P1220E), 4 AA batteries (alkaline, NiMH, or lithium) | | Power Consumption | 5 W (maximum) | | Input Current | 1 A (maximum) | | Operating Temperature Range | 41 to 95°F (5 to 35°C) | | Dimensions (W x H x D) | 19 x 1.8 x 12" (483 x 45 x 300 mm) | | Weight | 6.2 lb (2.8 kg) (including batteries)
6.2 lb (2.7 kg) (excluding batteries) | | | | Package Weight | 9.2 lb | | Box Dimensions (LxWxH) | 21.4 x 15.6 x 5.3" |
