User Manual for Tascam SERIES 102i USB Audio MIDI Interface Click to enlarge the picture
Contents of the user manual for the Tascam SERIES 102i USB Audio MIDI
- Product category: Audio Interfaces & Systems Tascam
- Brand: Tascam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tascam Audio Interfaces & Systems
 |
User manual for the Tascam SERIES 102i USB Audio MIDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tascam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tascam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tascam product will considerably shorten its lifespan!
|

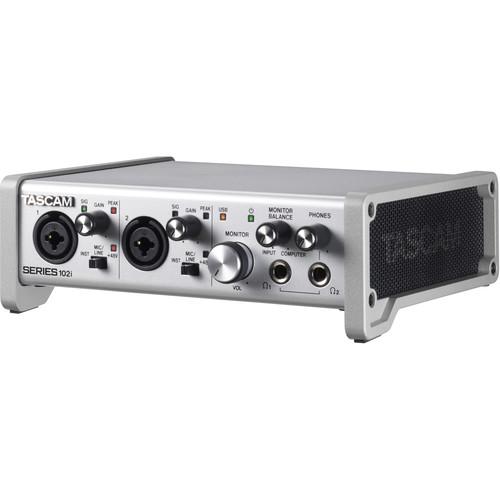

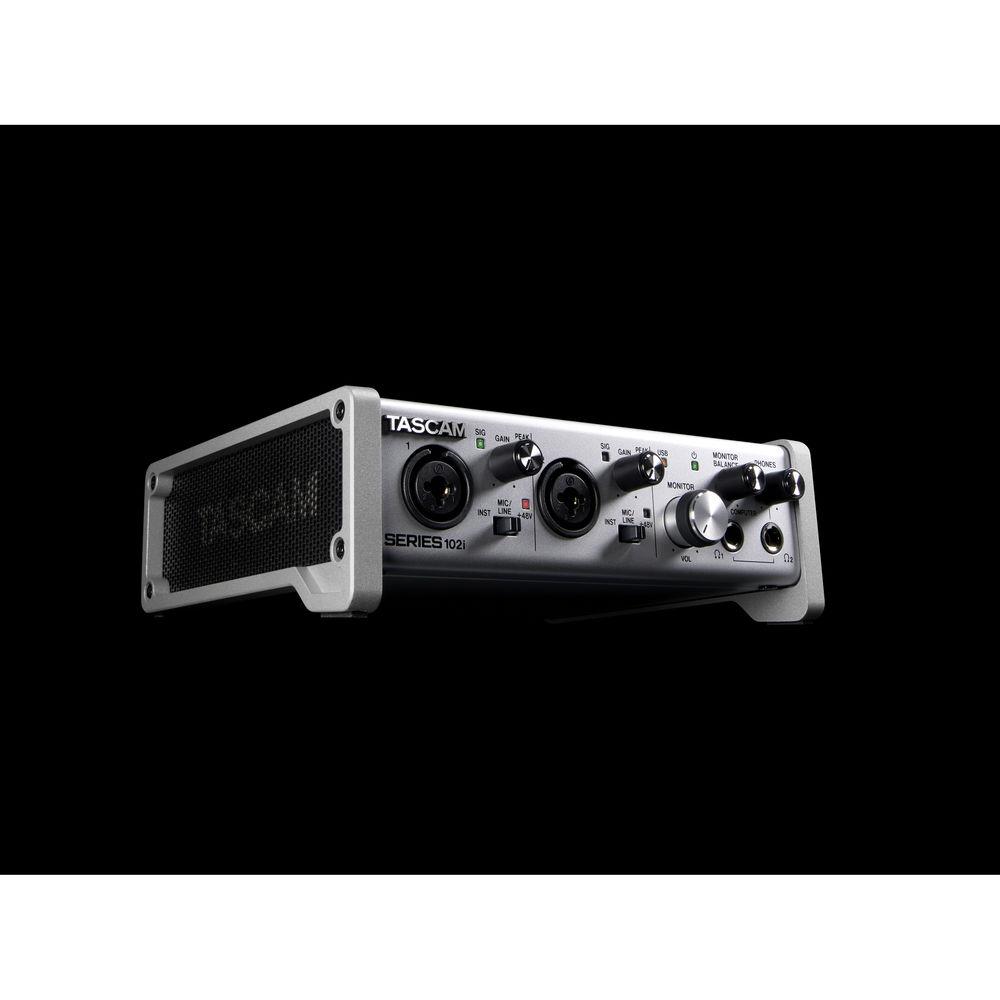

Product description The TASCAM SERIES 102i is a professional-quality mid-grade audio/MIDI interface featuring internal and bundled effects processing, internal mixing, external software control, and more, for studio, home, and live recording. The 102i sports a pair of classic TASCAM Ultra-HDDA (High Definition Discrete Amplifier) microphone preamps, which ensure a natural, transparent tone, with low noise. The recording and playback engine deliver high-definition 24-bit / 192 kHz resolution and solid stability.

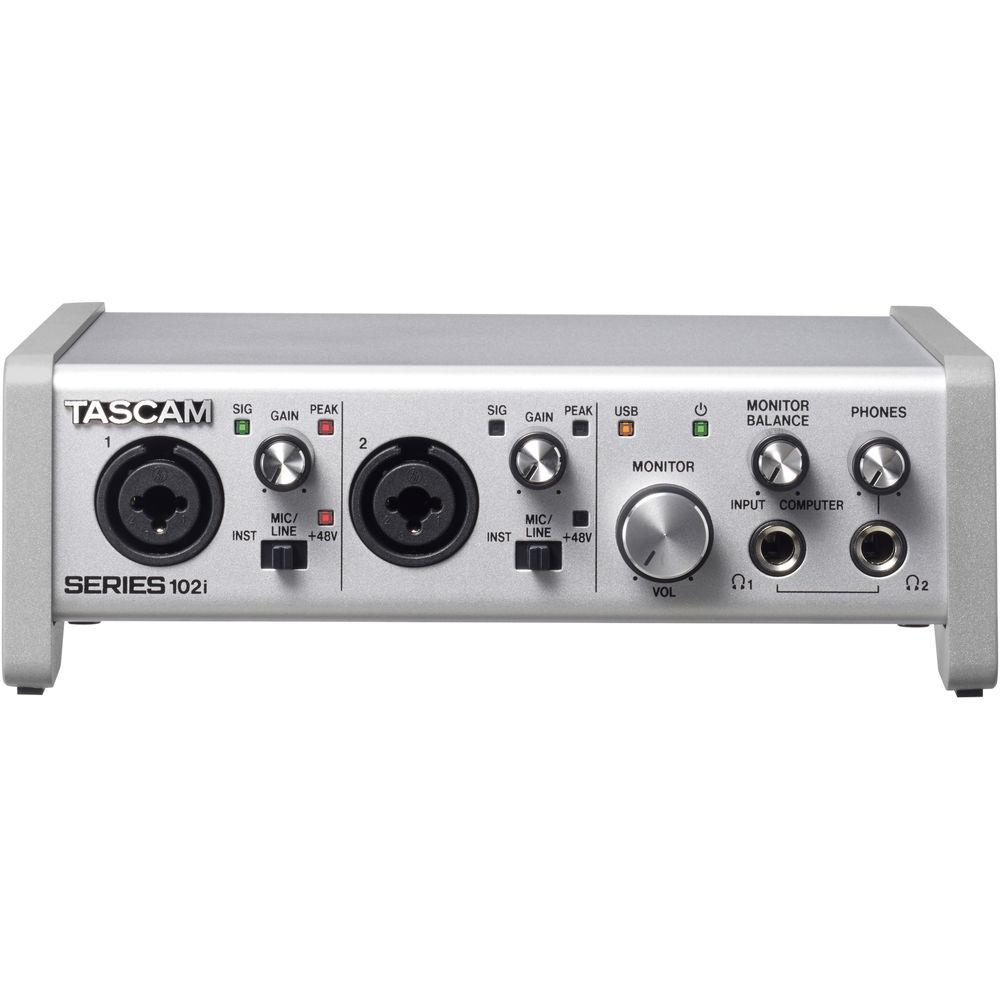

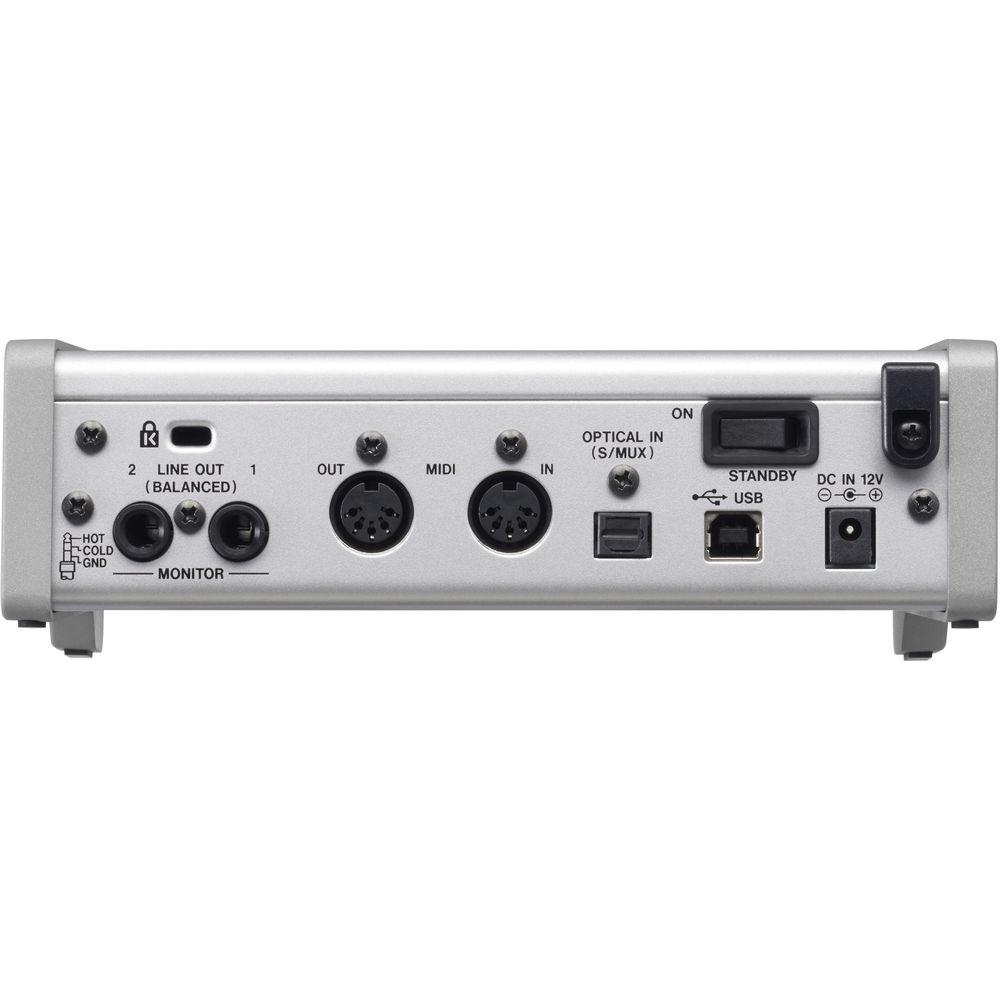

The front panel offers two combo XLR-1/4" inputs (switchable between instrument/Hi-Z and mic/line selections), independent +48V phantom power, as well as dual headphone outputs. The rear panel offers a pair of 1/4" TRS outputs for monitoring, a set of 5-pin DIN MIDI inputs and outputs, and a USB 2.0 Type-B computer connector. If two inputs aren't enough, the SERIES 102i offers an S/MUX optical (ADAT) input, which provides an additional eight channels of expansion.The angled tabletop design features large, easy-to-grab knobs including input gain, monitor volume, headphones level, and a handy monitor balance control that allows you to blend the live inputs with computer playback for zero-latency monitoring. The 102i includes a built-in DSP input and output mixer with integrated digital reverb, compression, phase invert, and a 4-band EQ on each channel. Control software is available for matrix mixing and effects processing, which offers the ability to route any audio input (analog, optical, USB) to any audio output.
The 102i supports tablets and other devices and comes bundled with Steinberg Cubase LE for Windows and Mac, and Steinberg Cubasis LE for iPad. Additionally, the TASCAM SERIES 102i includes software from IK Multimedia including AmpliTube guitar and bass modeling and effects, as well as T-RackS mastering software. Both AmpliTube and T-RackS are offered in standalone and plug-in versions. - SERIES 102i
-
- 10-In/2-Out USB Audio/MIDI Interface
- Two XLR/TRS combo mic/line/instrument inputs
- Two transparent, natural-sounding, ultra-low noise TASCAM Ultra-HDDA mic preampliers
- One optical S/MUX expansion port that accepts up to 8 channels of audio input (10 total inputs)
- Two 1/4" analog outputs
- Dual headphone outputs
- Built-In Effects: reverb, compressor, 4-band EQ, phase invert
- Flexible DSP input/output mixer controlled via free TASCAM Control software
- Software control of faders, routing, effects, and phase invert
- Up to 24-bit / 192 kHz sample resolution
- MIDI interface with standard 5-pin DIN I/O connectors
- USB 2.0 connection and custom USB driver with high stability
- Easy-to-understand operation
- Includes
- Steinberg DAW software
- IK Multimedia AmpliTube guitar effects/modeling software (standalone and plug-in versions)
- IK Multimedia T-RackS Mastering software (standalone and plug-in versions)
UPC: 043774034000 Table of Contents
|
Upload User Manual
Have you got an user manual for the Tascam SERIES 102i USB Audio MIDI Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTascam SERIES 102i Specs | | | Channels of I/O | Analog / Digital:
10 Inputs / 2 Outputs at 192 kHz | | Max Sample Rate/Resolution | 192 kHz / 24-Bit | | Display and Indicators | (+48V, Host Connection, Input Selection, Peak, Power) | | | | Host Connection | 1 x USB Type-B (USB 2.0) | | Analog I/O | 2 x Combo XLR / 1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input
2 x 1/4" (6.3 mm) TRS Balanced Line Output
2 x 1/4" (6.3 mm) TRS Unbalanced Headphone Output | | Phantom Power | +48 V (Selectable on Individual Inputs) | | Digital I/O | 1 x TOSLINK / ADAT, S/MUX Input | | MIDI I/O | 1 x 5-Pin MIDI In
1 x 5-Pin MIDI Out |
