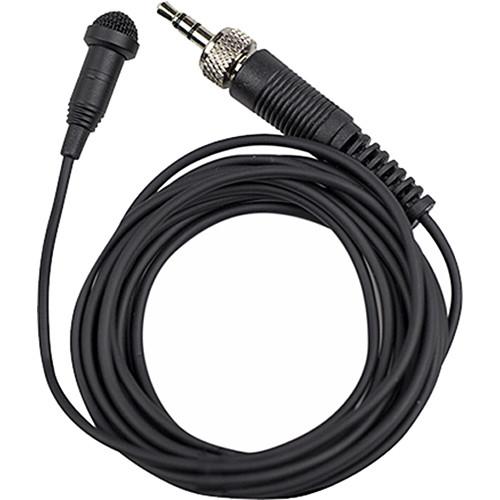

User Manual for Tascam TM-10LB - Lavalier Microphone for DR-10L Digital Recorder Click to enlarge the picture
Contents of the user manual for the Tascam TM-10LB - Lavalier Microphone for
- Product category: Microphones for Wireless Tascam
- Brand: Tascam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tascam Microphones for Wireless
|
User manual for the Tascam TM-10LB - Lavalier Microphone for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tascam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tascam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tascam product will considerably shorten its lifespan!
|
Product description The black Tascam TM-10LB is a lavalier microphone designed for the DR-10L bodypack digital recorder. The microphone features a Sennheiser-style locking 1/8" connector, making it an ideal choice for Sennheiser-based audio rigs. Additionally, the lavalier will work with any recorder with an 1/8" connector. The omnidirectional back-electret condenser element offers a frequency response of 50 Hz to 18 kHz with a maximum SPL of 115 dB. The Tascam TM-10LB includes a 63" cable and ships with a windscreen and a clip. -
- Omnidirectional lavalier microphone
- Secure connection with screw-down connector
- Sennheiser-style connector features 1/8” male jack with screw-down plug for firm connection with wireless transmitters or TASCAM DR-10 series (connection with normal 1/8" jack is also available)
- Microphone sensitivity: -42 dBV/PA
- Maximum SPL: 115 dB SPL
- Cable length: 63.0"
- Windscreen and clip included
UPC: 043774033447 In the Box Tascam TM-10LB - Lavalier Microphone for DR-10L Digital Recorder (Black) Windscreen Clip Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tascam TM-10LB - Lavalier Microphone for DR-10L Digital Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTascam TM-10LB Specs | | | Sound Field | Mono | | Operating Principle | Pressure Operated | | Transducer | Electret Condenser | | Polar Pattern | Omnidirectional | | Frequency Range | 50 Hz to 18 kHz | | Maximum SPL | Omnidirectional: 115 dB SPL RMS | | Impedance | Omnidirectional: 1.8 kOhms @ 1 kHz | | Load Impedance | 100 Ohms | | Sensitivity | Omnidirectional: -42 dB at 1 kHz | | Dynamic Range | None | | | | Output Connector | 1/8" (3.5 mm) Locking | | Cable Length | 62.99" / 160 cm | | Operating Voltage | 1.5 to 10 V | | Weight | 0.85 oz / 24 g | | | | Package Weight | 0.23 lb | | Box Dimensions (LxWxH) | 5.45 x 4.5 x 2.15" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 62 owners. Add your rating and experience with the product.
