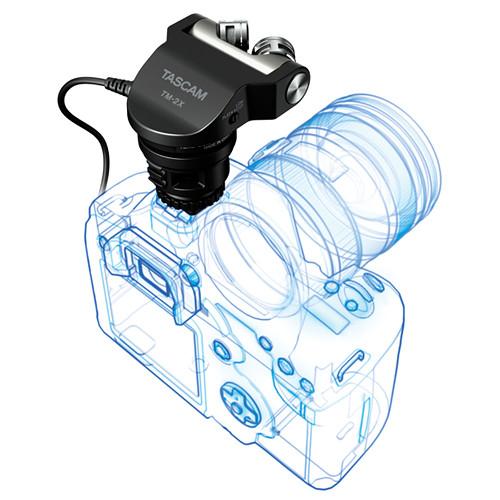

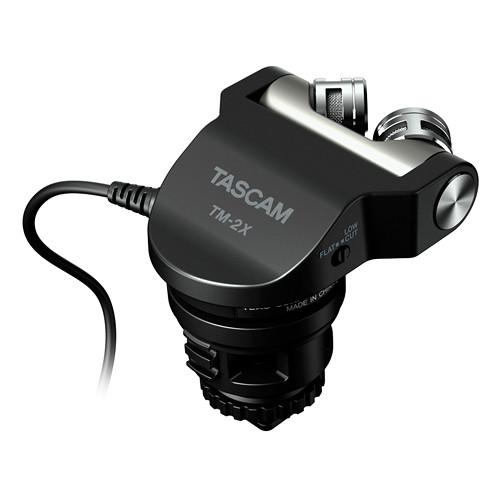

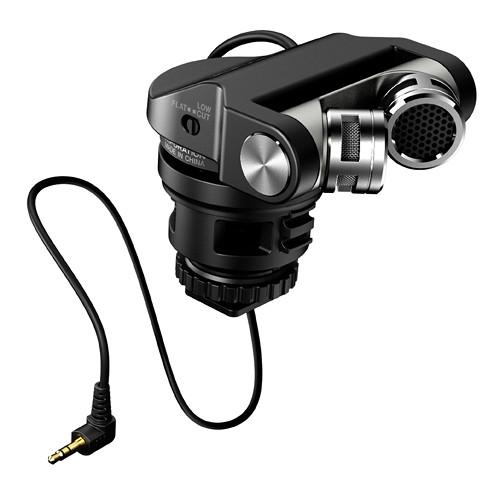

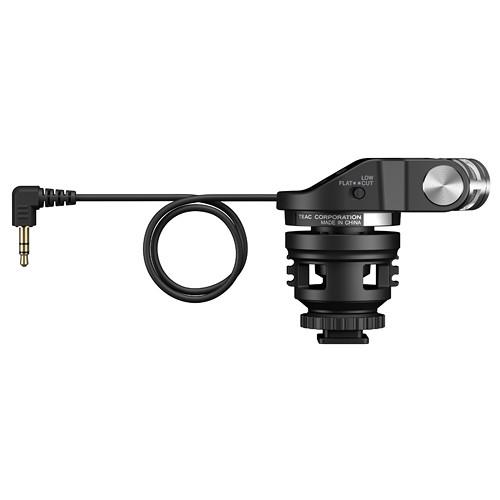

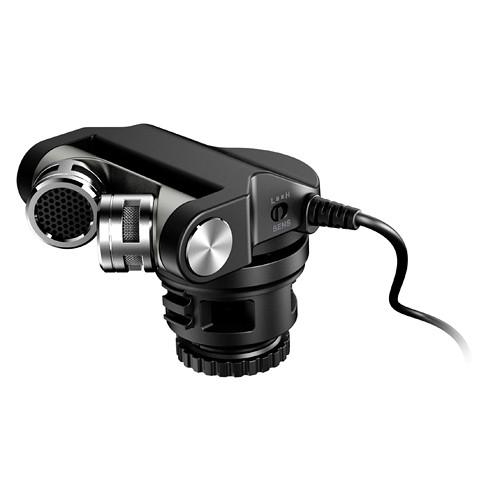

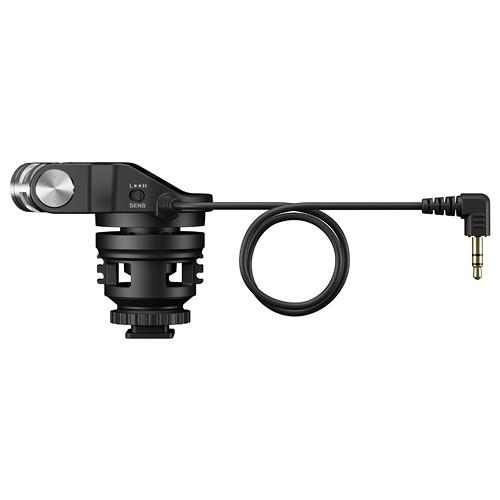

Product description The TM-2X Stereo XY Condenser DSLR Microphone from Tascam is designed to record stereo audio directly to your DSLR camera's microphone input. It can be mounted directly on your camera's hot shoe mount and is capable of being swiveled 180-degrees. The TM-2X has two switchable sensitivities, allowing it to work with a range of cameras. As it is powered by plug-in power from your camera, it requires no external batteries for operation.
A low-cut filter at 130Hz allows you to eliminate low-frequency rumble while the included noise isolation arm helps prevent the mic from picking up mechanical noise from your DSLR. For outdoor filming, a fur windscreen is included to help reduce wind noise. The TM-2X can handle SPL up to 120dB, allowing it to be used on a variety of sources. -
- Can be mounted directly to the camera accessory shoe and swiveled by 180 degrees to capture sound sources in front or behind the user
- Tripod attachment screw-hole (1/4-inch) allows for optional tripod to place the microphone apart from the camera
- XY orientation for stereo definition and minimal phase differences
- Accepts sound pressure levels up to 125 dB SPL
- Switchable input sensitivity for functionality with most camera models
- Switchable low-cut filter to minimize unwanted low-frequency noise
- Operates with plug-in power from your camera - no battery required

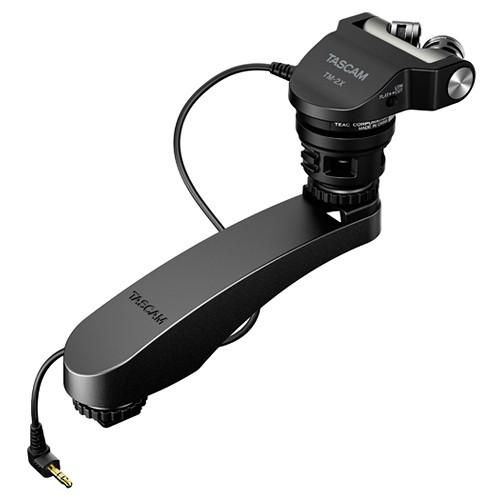

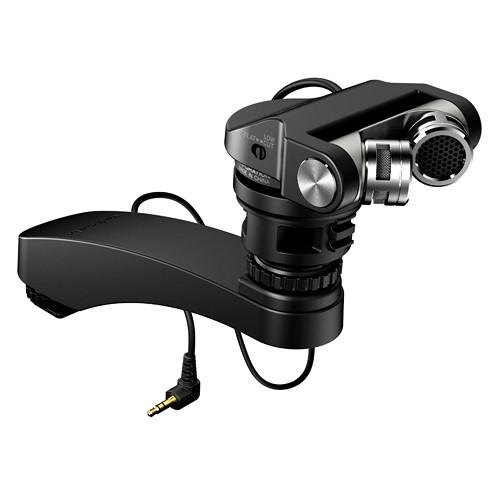

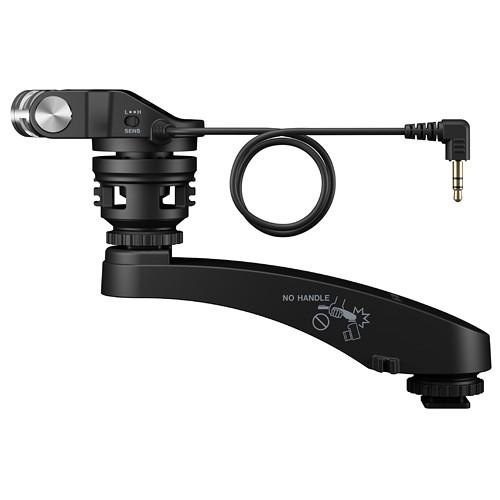

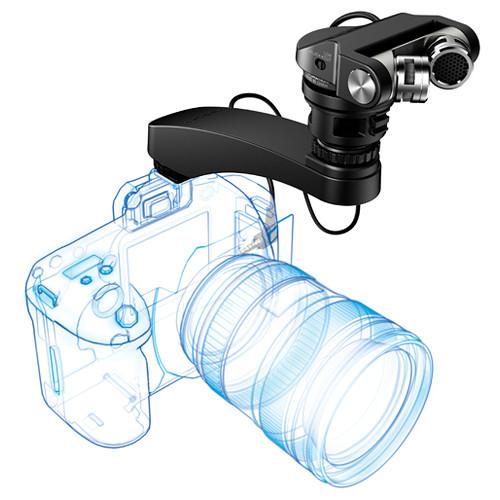

- Included noise isolation arm reduces possible noise being recorded from the camera's lens or stabilizer mechanisms
- Included fur windscreen reduces wind and environmental noise
UPC: 043774030392 In the Box Tascam TM-2X Stereo XY Condenser DSLR Microphone Furry Windscreen Noise Isolation Arm Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tascam TM-2X Stereo XY Condenser DSLR Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTascam TM-2X Specs | Type | Condenser | | Polar Pattern | Cardioid | | Frequency Response | 50 Hz to 20 kHz | | Maximum Input Level | 120 dB SPL (@ 1 kHz with sensitivity set to H and low-cut filter set to FLAT) | | Output Impedance | 1.6 kΩ (RL = 2.2 kΩ, Vcc = 2.5 V ) | | Signal to Noise Ratio | 74 dB typical (RL = 2.2 kΩ, Vcc = 2.5 V ) | | Sensitivity | H Setting: −37 dB (1 kHz, 0 dB = 1 V/Pa), (RL = 2.2 kΩ, Vcc = 2.5 V )
L Setting: −52 dB (1 kHz, 0 dB = 1 V/Pa), (RL = 2.2 kΩ, Vcc = 2.5 V ) | | Low Cut Filters | 130 Hz (RL = 2.2 kΩ, Vcc = 2.5 V ) | | Cable Length | 13" (33 cm) | | Connector | 1/8" (3.5 mm) TRS stereo mini plug (Tip: left channel, Ring: right channel, Sleeve: ground) | | Power Requirement | Plug-in power (JEITA standard CP-1203A) | | Operating Temperature Range | 41 to 95°F (5 to 35°C) | | Dimensions (WxHxD) | 2.2 x 2.3 x 2.7" (57 x 59 x 69 mm), excluding cable and accessories) | | Weight | 2.6 oz (75.0 g) | | | | Package Weight | 0.605 lb | | Box Dimensions (LxWxH) | 8.55 x 6.35 x 3.25" |
