Product description

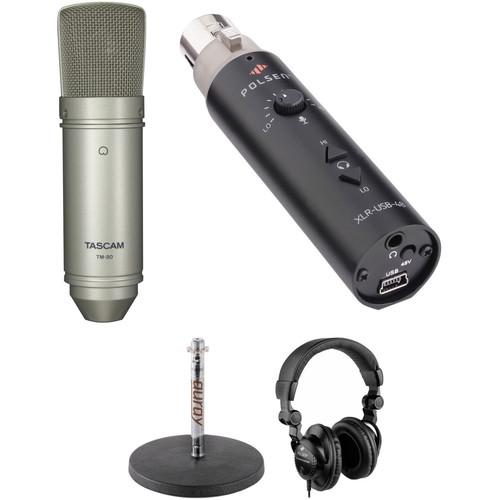

• Tascam TM-80 Studio Condenser Microphone The TM-80 Studio Condenser Microphone from Tascam is a condenser microphone with an 18mm aluminum diaphragm, a cardioid pickup pattern, and internal circuitry optimized to reduce noise and distortion while retaining a rich and full sound quality. It can be used to capture audio for vocal and acoustic instrument applications in home and project studios. A desktop stand, a shockmount to reduce rumble during recording, and an XLR cable are also included.
  • 18mm, pure-aluminum diaphragm
  • Cardioid polar pattern
  • Frequency response: 20 Hz to 20 kHz
  • Phantom power required: 9-48 VDC
  • Housing: die-cast zinc
  UPC: 043774031634
• Polsen XLR-USB-48 - XLR to USB Audio Interface The Polsen XLR-USB-48 is a compact and easy-to-use XLR to USB interface that allows users to connect an XLR microphone directly to a computer via the USB port. It’s an ideal tool for singer/songwriters, podcasters, or musicians who need a simple yet high-quality solution for recording with an XLR microphone directly to a laptop or desktop computer.Connecting the adapter to an XLR microphone and to your computer’s USB port is all that’s needed to start recording. Due to the plug-and-play capability, no drivers are needed, and the computer will instantly recognize the adapter allowing for quick and easy setup. The adapter features selectable phantom power for condenser microphones, and the 1/8” headphone output allows for input monitoring and playback.Polsen’s XLR-USB-48 is an all-in-one adapter that allows the musician or podcaster to set up quickly and record high-quality audio easily and affordably.
  XLR to USB
  • Connect an XLR microphone to your computer's USB port for high-quality recording directly to your laptop or desktop computer
  Phantom Power
  • Selectable 48V phantom power provides compatibility with condenser microphones
  Plug-and-Play
  • No drivers are needed. Your computer will instantly recognize the XLR-USB-48. Select it in your audio setup preferences, and you're ready to record
  Adjustable Gain Control
  • Using the mic gain knob allows users to set optimal recording levels
  Headphone Monitoring
  • Monitor playback of the recording through the 1/8" headphone output. Volume control allows for setting optimal monitoring levels
  UPC: 847628588509
• Auray TT-6110 Desktop Microphone Stand (Chrome) The chrome Auray TT-6110 Desktop Microphone Stand features durable, steel construction. Its fixed 5.3" height makes it an ideal desktop stand. The weighted round base and non-slip rubber feet keep it firmly in place. UPC: 847628015999
• Polsen HPC-A30 Closed-Back Studio Monitor Headphones The HPC-A30 Closed-Back Studio Monitor Headphones from Polsen are designed for monitoring audio in studio, field, mobile, and DJ applications. They feature 50mm drivers that provide a frequency response of 18Hz to 22kHz for accurate reproduction of your audio.

  The ear cups on the HPC-A30 have an around-ear (circumaural), closed-back design, allowing for the increased isolation often desired while tracking or monitoring playback. Additionally, the ear cups can be pivoted for single-ear monitoring. The headphones have a collapsible folding mechanism for compact storage and transport. A padded and adjustable headband provides comfort during extended use. The 32 ohm impedance allows for ample volume when used with mobile devices. The headphones have a single-sided, 9.8-foot cable that terminates in a 3.5mm stereo connector. A 1/4" adapter is included for additional compatibility. UPC: 847628568488

• TM-80 Studio Condenser Microphone tfbaadzvbtvqyc
• Shockmount
• Mini Desk Stand
• 5.9' XLR Cable
• Limited 1-Year Warranty

• Polsen - XLR-USB-48 - XLR to USB Audio Interface

• Auray - TT-6110 Desktop Microphone Stand (Chrome)

• Polsen - HPC-A30 Closed-Back Studio Monitor Headphones

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Tascam TM-80 Studio Condenser Microphone

  Sound Field	Mono
  Operating Principle	Pressure Gradient
  Transducer	Condenser
  Polar Pattern	Cardioid
  Frequency Range	20 Hz to 20 kHz
  Signal to Noise Ratio	77 dB
  Maximum SPL	136 dB SPL
  THD	1%
  Impedance	200 Ohms ± 30% @ 1 kHz
  Load Impedance	1000 Ohms
  Sensitivity	-38 dB at 1 kHz

  Output Connectors	1 x 3-Pin XLR
  Operating Voltage	9 to 48 V
  Length	6.50" / 165 mm
  Diameter	1.89" / 48 mm
  Weight	10.6 oz / 301 g

  Box Dimensions (LxWxH)	11.7 x 4.95 x 3.05"

• Polsen XLR-USB-48 - XLR to USB Audio Interface

  Max Sample Rate/Resolution	48 kHz / 16-Bit

  Host Connection	Mini-USB (USB 2.0)
  Analog I/O	1 x XLR 3-Pin Input 1 x 1/8" (3.5 mm) TRS Headphone Output
  Phantom Power	+48 V
  Digital I/O	None
  MIDI I/O	None

  Frequency Response	20 Hz to 20 kHz
  Impedance	Inputs: ≥32 Ohms

  Sample Rates	44.1 and 48 kHz
  Bit Depth	16-Bit

  Dimensions	4 x 0.85" / 10.2 x 2.2 cm
  Weight	1.6 oz / 45.4 g

  Box Dimensions (LxWxH)	6.5 x 3.6 x 0.7"

• Auray TT-6110 Desktop Microphone Stand (Chrome)

  Construction	Steel
  Thread Size	5/8"-27 thread for microphone mounts
  Base Type	Weighted round base
  Base Diameter	6.2" (15.6 cm)
  Height Range	5.3" (13.5 cm)
  Weight	2.1 lb (0.95 kg)

  Box Dimensions (LxWxH)	7.15 x 7.15 x 1.0"

• Polsen HPC-A30 Closed-Back Studio Monitor Headphones

  Driver Size	2" / 50 mm
  Design	Over-Ear (Circumaural)
  Earcup Style	Closed-Back

  Frequency Response	18 Hz to 22 kHz
  Sensitivity	93 dB at 1 kHz / 1 mW
  Impedance	32 Ohms
  Maximum Power Handling	600 mW
  Total Harmonic Distortion (THD)	5%

  Audio Connector	1/8" (3.5 mm) TRS
  Adapter (Included)	1/4" (6.3 mm)

  Design	Single-Sided
  Color	Black
  Detachable	No
  In-Line Remote/Microphone	No
  Cable Length	9.84' / 3 m

  Certifications	CE, RoHS, as per Manufacturer
  Weight	6.5 oz / 184 g

  Box Dimensions (LxWxH)	8.7 x 7.4 x 3.8"
