User Manual for Tascam TM-90BM Boundary Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Tascam TM-90BM Boundary Condenser Microphone
- Product category: Boundary Microphones Tascam
- Brand: Tascam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tascam Boundary Microphones
 |
User manual for the Tascam TM-90BM Boundary Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tascam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tascam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tascam product will considerably shorten its lifespan!
|

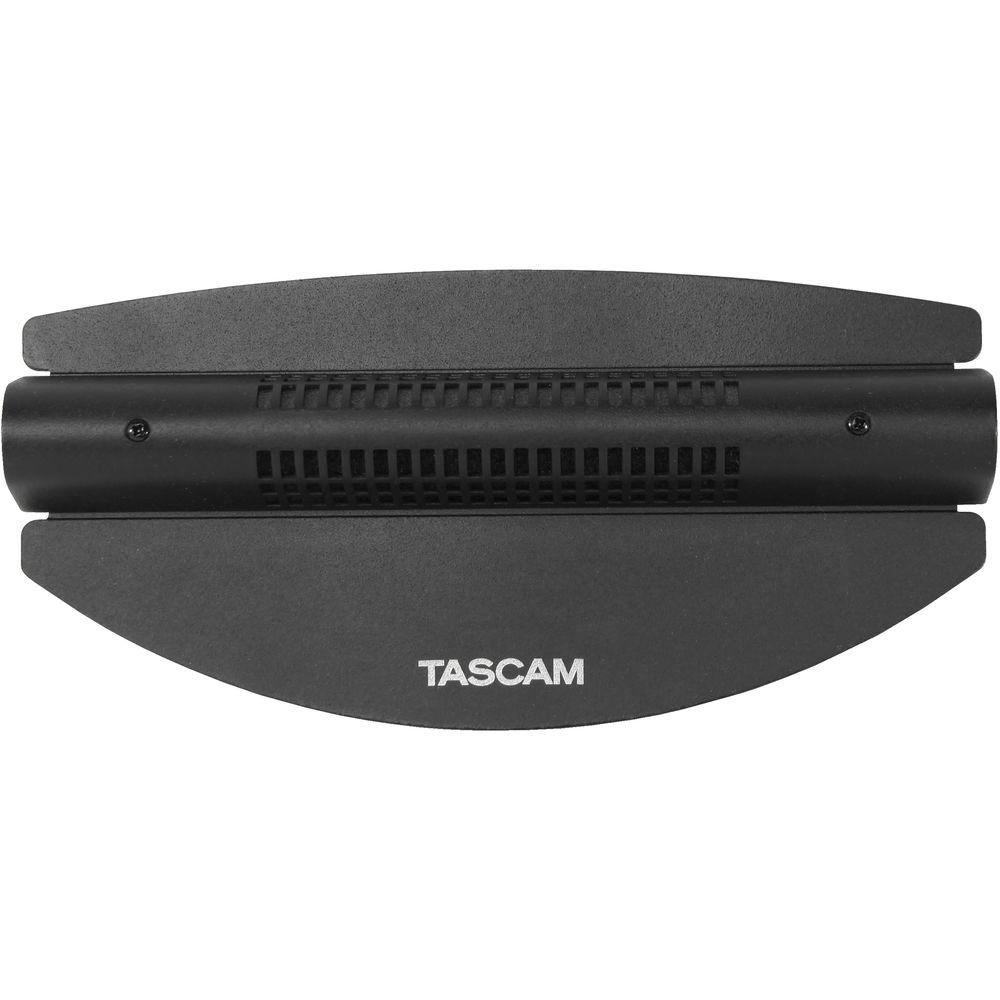

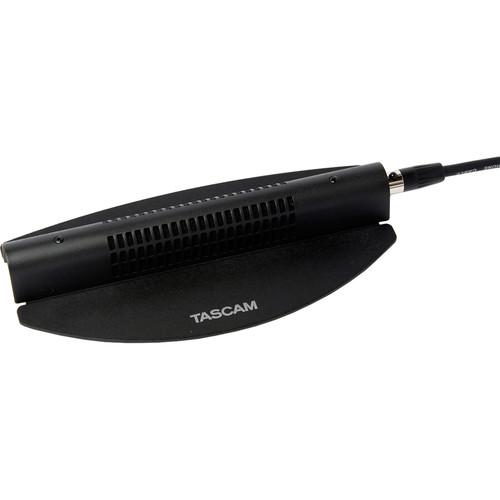

Product description The Tascam TM-90BM is a boundary condenser microphone designed to deliver low-profile vocal and instrument reproduction for speakers, musicians, and audio engineers in conference and office rooms, recording studios, and live stage applications. Its half-supercardioid polar pattern aids in rejection of off-axis sounds and a maximum SPL of 140 dB allows distortion-free capture of loud sources such as drums.The 50 Hz to 18 kHz frequency response is well-suited to speech and many musical instruments due to its natural attenuation of sub-low frequencies. Further control of the low end is provided via a 3-position Bass Tilt switch. The supplied patch cable, which is terminated with an XLR 3-pin male jack, allows for easy connection to a mixer or microphone preamp. Mic preamps that supply 9 to 52V phantom power are sufficient for operation of the mic.The TM-90BM ships with a hardshell carry case for safe transport between gigs. - Suitable for tabletop, wall, or floor placement
- Low-profile design and matte black finish are ideal for on-camera use
- Half-supercardioid polar pattern reduces pickup of ambient sound from the rear of the mic
- 50 Hz to 18 kHz frequency response attenuates low-frequency rumble
- Works with 9 to 52V phantom power
- Dedicated 9.6' patch cable with XLR 3-pin male jack
- High maximum SPL of 140 dB enables handling of high-level sound sources

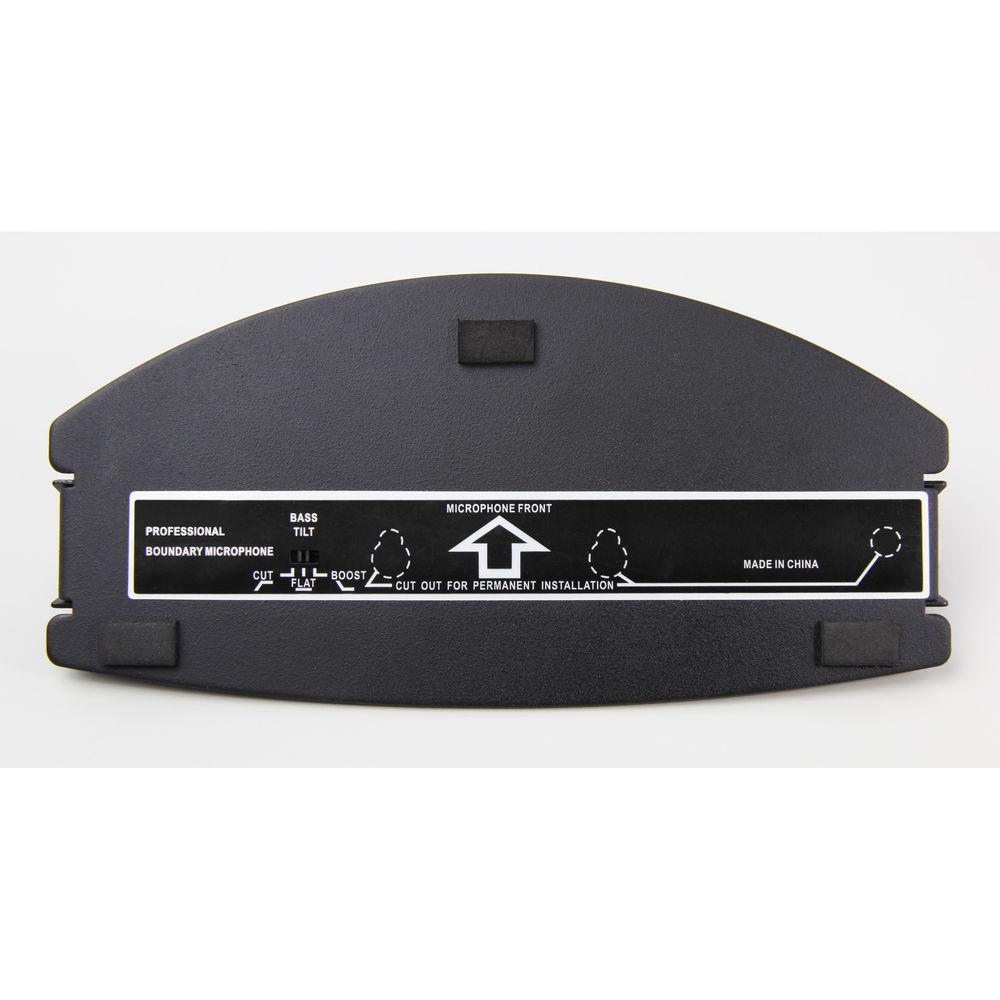

- 3-position bass switch offers -5 dB cut, flat, and +5 dB boost settings at 100 Hz
- Includes hardshell carry case for safe and simple transport

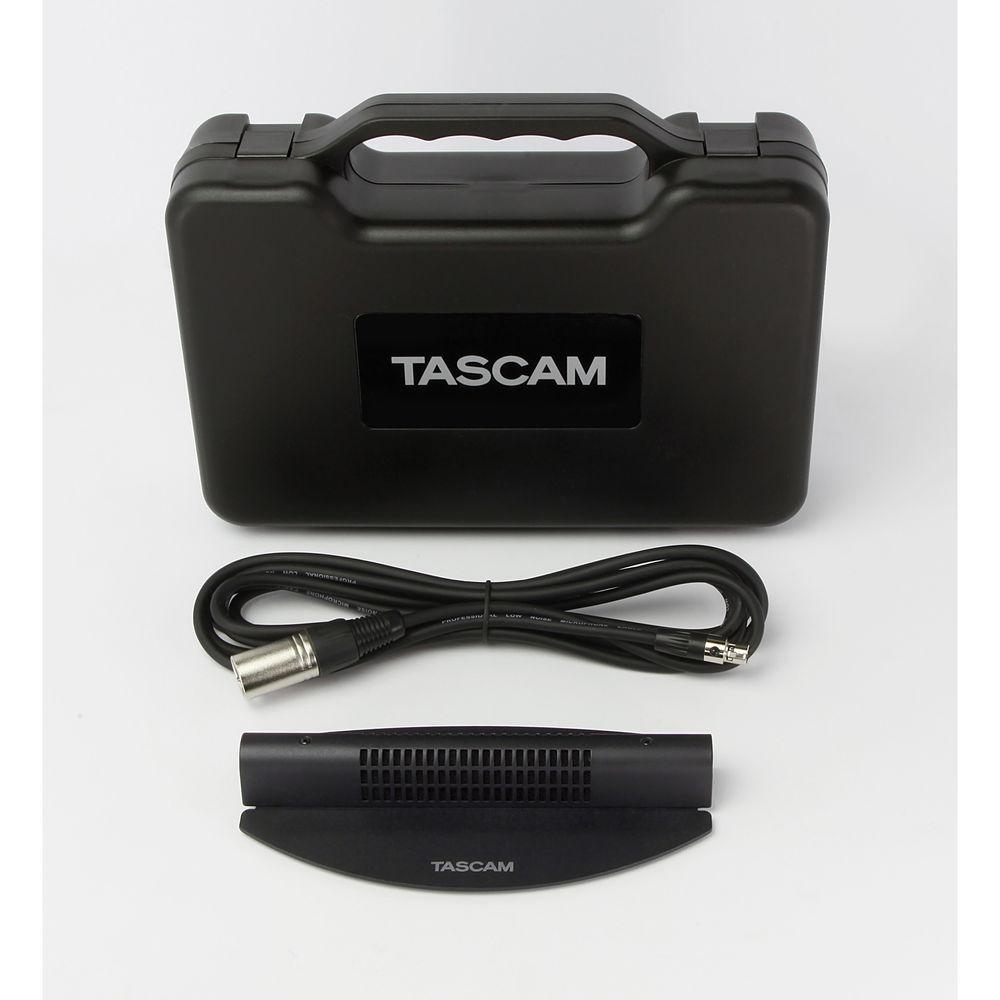

UPC: 043774033119 In the Box Tascam TM-90BM Boundary Condenser Microphone Dedicated 9.6' Patch Cable Hardshell Carry Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tascam TM-90BM Boundary Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTascam TM-90BM Specs | | | Sound Field | Mono | | Operating Principle | Pressure Gradient | | Transducer | Electret Condenser | | Tube | No | | Polar Pattern | Unidirectional Half-supercardioid | | Frequency Range | 50 Hz to 18 kHz | | Signal to Noise Ratio | 68 dB | | Maximum SPL | 140 dB SPL RMS | | Pad | None | | Impedance | 150 Ohms | | Load Impedance | 1 kOhms | | Sensitivity | -35 dB at 1 kHz | | Low-Cut Filter | @ 100 Hz | | | | Output Connectors | 1 x 3-Pin XLR XLR 3-pin using the included cable | | Operating Voltage | 9 to 52 V | | Dimensions (W x H x D) | 6.7 x 0.9 x 3.2" / 170.0 x 24.0 x 81.5 mm | | Weight | 9.17 oz / 260 g | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 10.2 x 7.6 x 3.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 47 owners. Add your rating and experience with the product.
