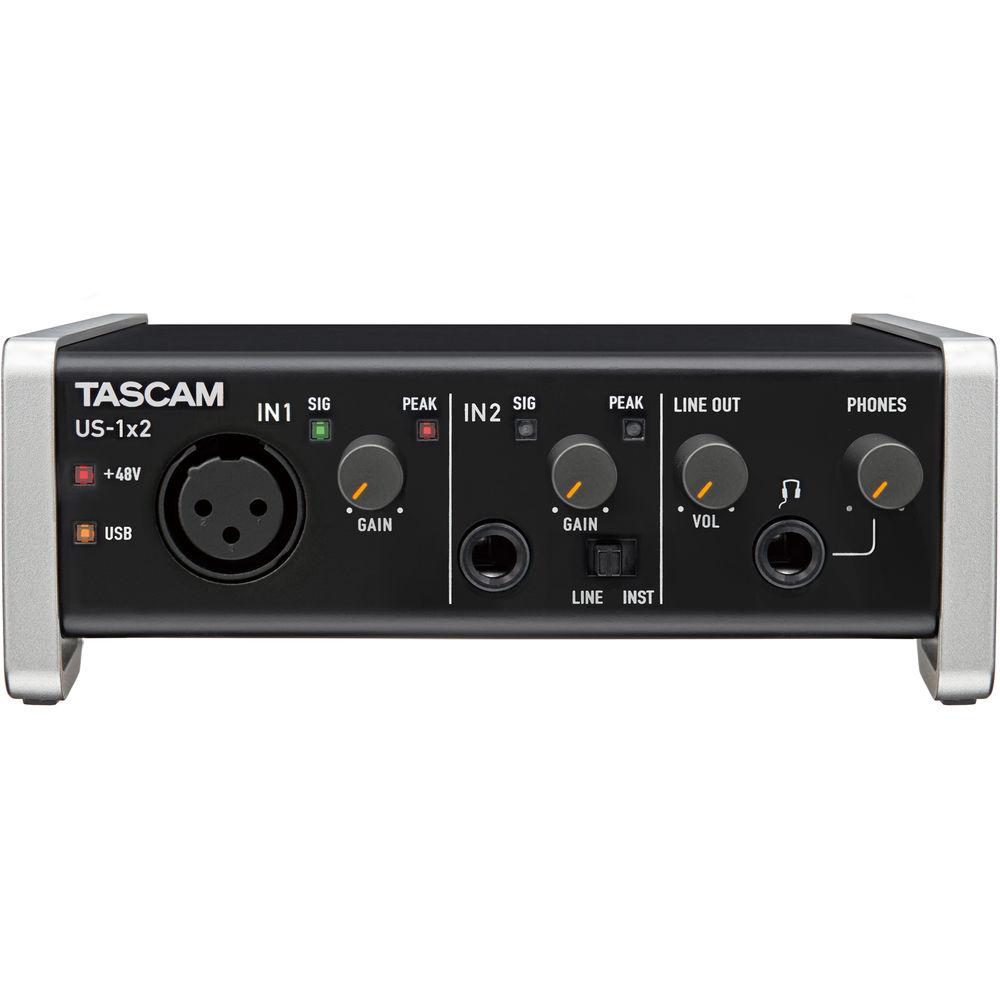

User Manual for Tascam US-1X2 1 In 2 Out USB Audio Interface Click to enlarge the picture
Contents of the user manual for the Tascam US-1X2 1 In 2 Out
- Product category: Audio Interfaces & Systems Tascam
- Brand: Tascam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tascam Audio Interfaces & Systems
 |
User manual for the Tascam US-1X2 1 In 2 Out contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tascam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tascam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tascam product will considerably shorten its lifespan!
|

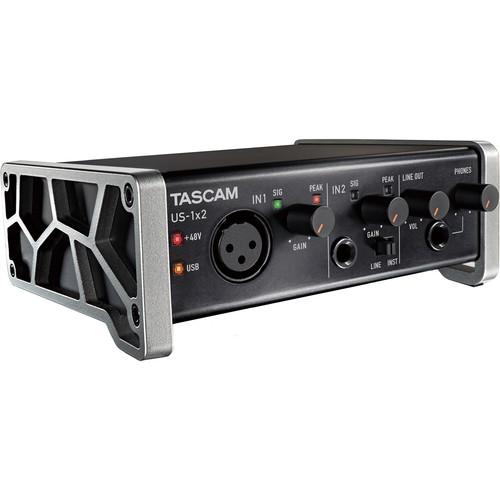

Product description Featuring one of the company's Ultra-HDDA low-noise microphone preamp, the Tascam US-1X2 1-In/2-Out USB Audio Interface is capable of recording one channel in up to 24-bit / 96 kHz resolution to your compatible Mac, Windows, Android, or iOS device. The unit features an all-metal, angled design, optimized for viewing and operation when placed on a desktop. To use with mobile devices, you can power the US-1X2 via USB bus or AC power source with an AC adapter (available separately) . Quality Desktop Recording - Ultra-HDDA Mic Preamp
-
- Ultra-HDDA (High Definition Discrete Architecture) mic preamp design is based on discrete components, similar to classic professional gear
- Key components selected following extensive listening tests
- Low noise level with EIN rating of -125 dBu and signal-to-noise ratio of 101 dB
- Microphone preamp gain range of 57 dB supports dynamic and ribbon microphones
- NE5532 Op-Amps
-
- NE5532 op-amps at the audio input and output stages
- Famously used in classic recording consoles and signal processors due to their sweet, musical sound
- Mic and Line Inputs
-
- Microphone input features a heavy-duty, metal XLR connector, which stays in place even when moving microphones
- XLR connector supplies +48V phantom power for condenser microphones
- 1/4" TRS input for balanced line-level signals from professional processors and synthesizers
- XLR and 1/4" inputs can be switched to high impedance for direct recording of electric guitar and bass (only the XLR or 1/4" input can be used, not both at the same time)
- High-Resolution Recording
-
- Records at up to 96 kHz / 24-bit resolution
- Mic preamp and A/D converters work together to capture the clearest signal path, at 96 kHz or at lower sampling rates
Simple Operation - Installation
-
- USB class-compliant 2.0 support (Windows/Mac)
- USB 2.0 computer connection supplies appropriate bandwidth, even for multi-channel 96 kHz recordings
- Works with high-performance ASIO or Core Audio drivers, or built-in class-compliant driver
- Simple-to-use, on-screen control panel lets you monitor and adjust critical interface settings
- USB bus-powered for mobile recording with computer
- Connects with Android, Windows-based tablets, iPad, iPhone, and other iOS devices (AC adapter required – available separately)
- Confirmed operation with major DAW software (SONAR, Pro-Tools, Cubase, Live, Studio One, Garage Band)
- Zero-Latency Monitoring
-
- A direct monitoring path is included to monitor the input signal before it is sent to the computer and provide zero-latency monitoring
- Monitoring Options
-
- Stereo RCA output suitable for connection to powered monitors
- Standard headphones TRS output jack
- Separate controls for line and headphones output volumes
- Input sound monitoring can be set to stereo or mono
- MIDI
-
- MIDI input and output via USB
Sleek Industrial Design -
- Tough, all-metal casing for durability
- Bio-cell side panels add style
- Angled design is optimized for desktop viewing and operation
- Cubase LE for MAC/PC
-
- Compact DAW offers the basic tools for recording, editing, and mixing everything from the initial musical idea to the final track
- Ideal for songwriter, guitar player, vocalist, or electronic music producer
- Cubasis LE for iOS
-
- Compact version of Steinberg’s streamlined, multitouch sequencer for the iPad
- Touch-intuitive production tool for recording, editing, and mixing your songs
UPC: 043774032969 In the Box Tascam US-1X2 1 In 2 Out USB Audio Interface USB Cable Limited 1-Year Warranty User Manual PDF 1.6mbcaaaesbzdxtzrveeduevwdba Table of Contents
|
Upload User Manual
Have you got an user manual for the Tascam US-1X2 1 In 2 Out USB Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

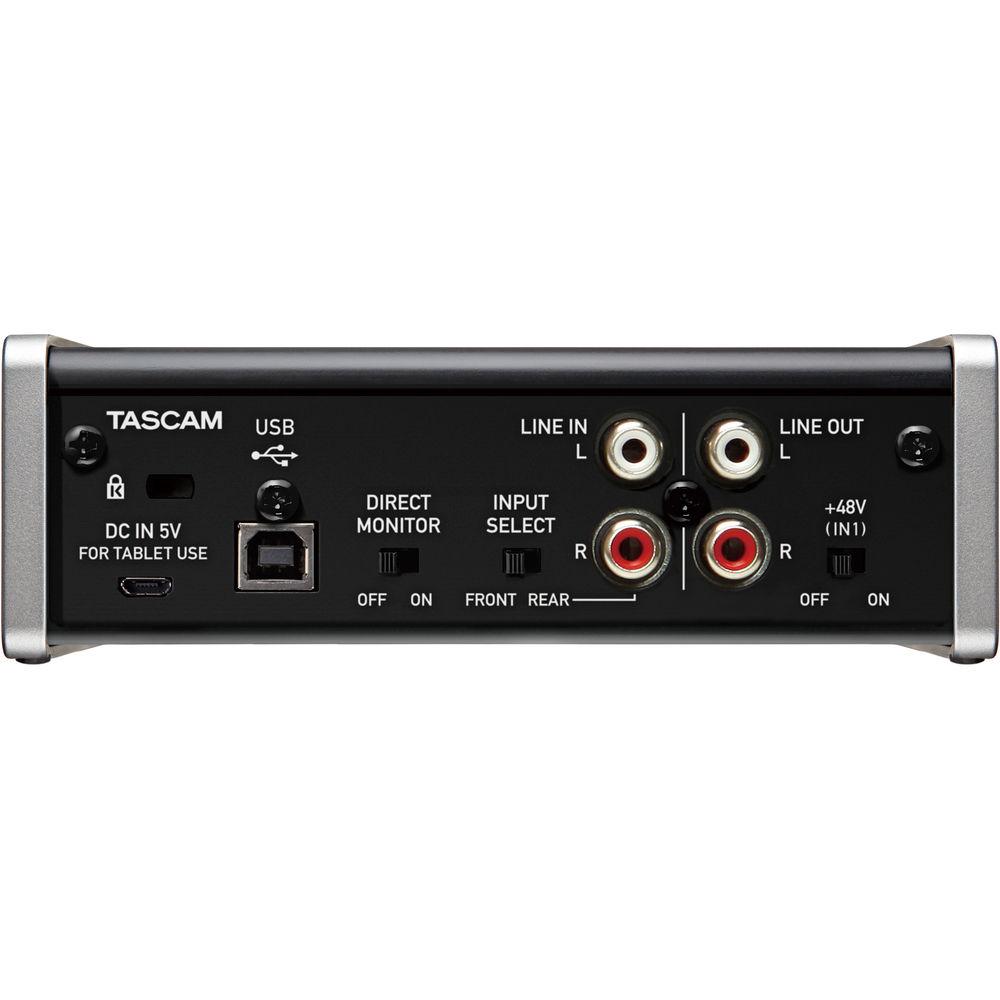

Technical parametersTascam US-1X2 Specs | | | Max Sample Rate/Resolution | 96 kHz / 24-Bit | | | | Host Connection | USB Type-B (USB 2.0) | | Analog I/O | 1 x XLR 3-Pin Input
1 x 1/4" (6.3 mm) Line/Hi-Z Input
1 x 1/4" (6.3 mm) TRS Headphone Output
1 x Stereo RCA Line Input
1 x Stereo RCA Line Output | | Digital I/O | None | | MIDI I/O | None | | | | Frequency Response | Headphone Outputs:
20 Hz to 20 kHz +0/-1 dB (at 48 kHz)
20 Hz to 40 kHz +0/-3 dB (at 96 kHz)
Line Outputs:
20 Hz to 20 kHz +0/-0.5 dB (at 48 kHz)
20 Hz to 40 kHz +0/-1 dB (at 96 kHz) | | Gain Range | Inputs:
57 dB
Hi-Z Inputs:
57 dB
Line Inputs:
57 dB | | Max Input Level | Hi-Z Inputs:
+10 dBV
Line Inputs:
+20 dBu (Balanced)
+6 dBV (Unbalanced)
Mic Inputs:
+8 dBu | | Max Output Level | Line Outputs:
+6 dBu (Balanced) | | Headphone Output Power | 18 mW per Channel | | Impedance | Headphone Outputs:
32 Ohms
Hi-Z Inputs:
10 kOhms
Line Inputs:
10 kOhms
Line Outputs:
100 Ohms
Mic Inputs:
2.4 kOhms | | THD+N | Headphone Outputs:
< 0.1% | | THD | < 0.006% | | SNR | 100 dB | | EIN | < -127 dBu | | Crosstalk | >95 dB | | | | Sample Rates | 44.1, 48, 88.2, and 96 kHz | | Bit Depth | 16 and 24-Bit | | | | OS Compatibility | iOS 7
macOS 10.8
macOS 10.9
Windows 7
Windows 8
Windows 8.1 | | Processor Requirement | 2 GHz | | RAM Requirements | 2 GB | | Required Hardware | Available USB 2.0 Port
Available USB 2.0 Port | | | | Power Requirements | AC/DC Power Adapter (Not Included), USB Bus-Power | | Power Consumption | 2.5 W | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | | | Dimensions | 5.7 x 2.2 x 4.7" / 146 x 55 x 120 mm | | Weight | 1.4 lb / 623.0 g | | | | Package Weight | 2.05 lb | | Box Dimensions (LxWxH) | 8.6 x 6.7 x 3.6" |
