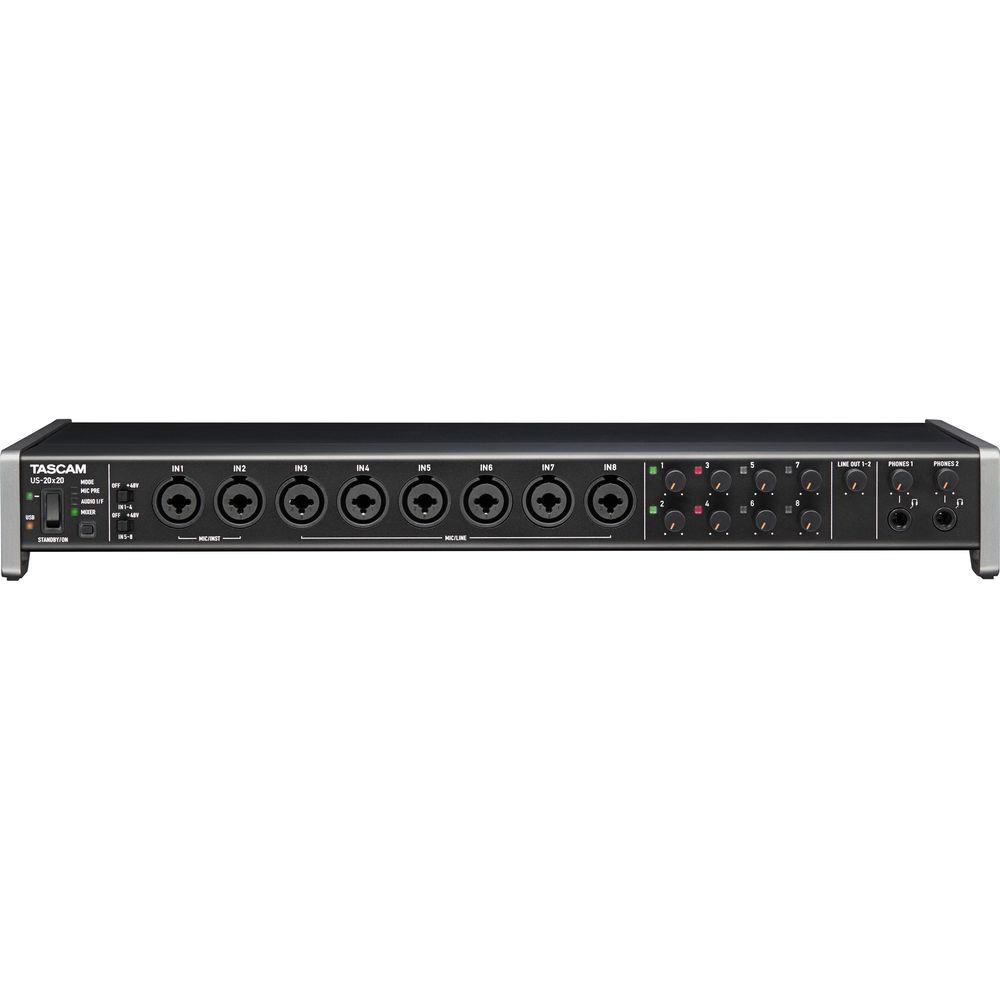

Product description The Celesonic US-20x20 from Tascam is a single rack space USB audio MIDI interface that delivers twenty channels of analog and digital inputs and outputs. Eight of the analog inputs feature Ultra-HDDA microphone preamps that provide 56 dB of gain, suitable for a wide range of microphone types. Up to ten channels of digital I/O can be accessed via ADAT and S/PDIF connectors, while Wordclock is available for use with external clocks. MIDI I/O allows use with controllers and synthesizers, and sample rates up to 24-bit/192 kHz are supported.

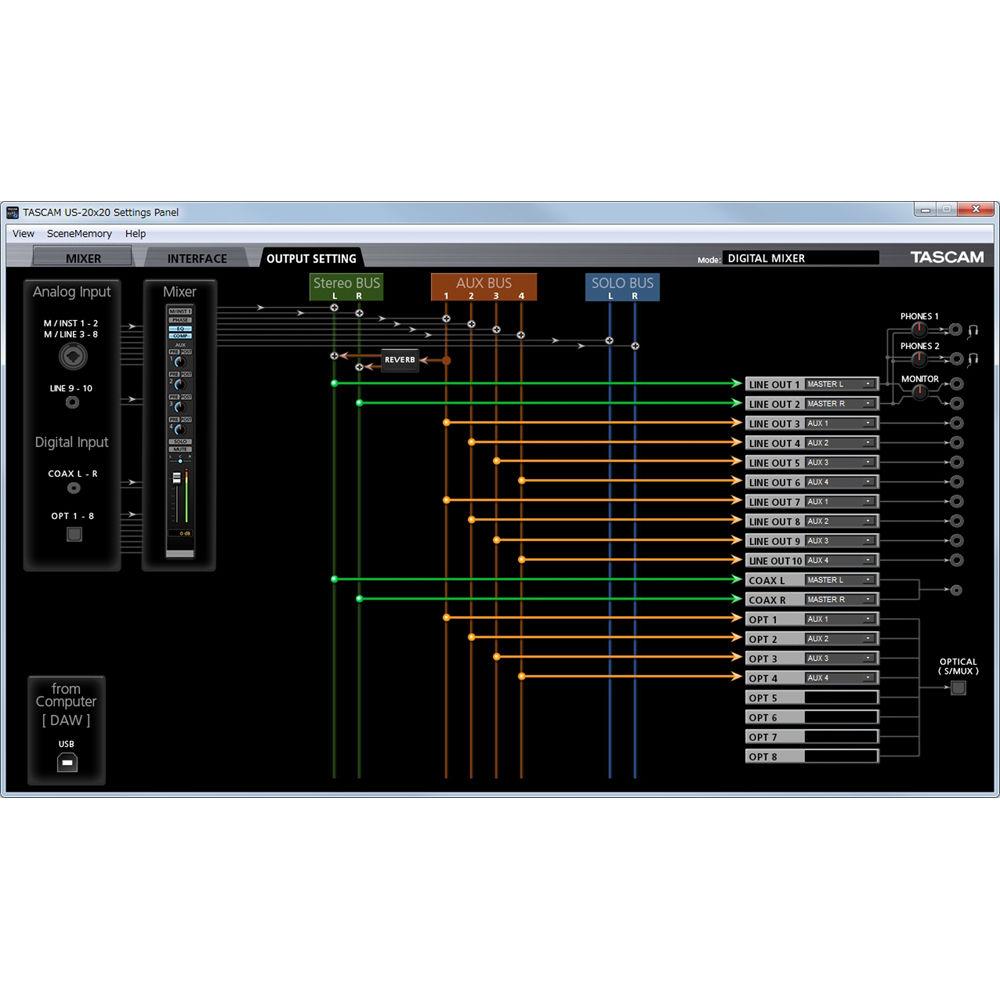

The unit features three operation modes for maximum flexibility - audio interface, digital mixer, and eight-channel digital microphone preamp. The USB 3.0 interface uses class-compliant drivers for future-proof use with computers and tablets, while a built-in DSP mixer includes parametric EQ and compression on every channel, and a stereo reverb send for enhancing monitor mixes. The DSP mixer can store up to ten snapshots as scenes, making it easy to recall mixer settings, and can also be used as a live mixer or sub-mixer with computer control.

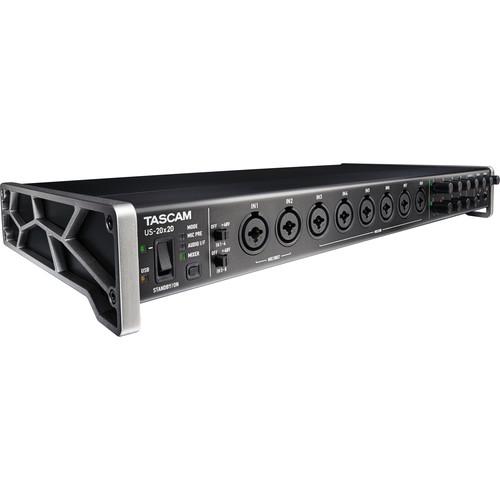

Two instrument-level inputs are provided for direct input of guitar or bass. The angled design of the interface makes desktop viewing and operation much easier than a flat box sitting on a table, and the separate headphone and line output volume controls allow for setting an optimum level when both powered monitors and headphones are connected. For users who prefer rack mounting the unit, the company includes adapters and hex keys. -
- Ultra-HDDA (High Definition Discrete Architecture) microphone preamps with −125 dBu EIN
- Eight Ultra-HDDA microphone preamps with XLR/TRS connectors, plus two TRS inputs
- Ten 1/4" balanced analog outputs
- Three-mode switching between interface/microphone preamp/mixer
- Up to 24-bit/192 kHz recording
- 48V phantom power for all microphone inputs
- High-impedance inputs available
- Input level specifications boast a range of 56 dB for using dynamic microphones
- Two standard TRS headphone output jacks with 70 mW + 70 mW output power
- Separate controls for line and headphones output volumes
- MIDI input and output
- Low-latency monitoring via on-board DSP mixer

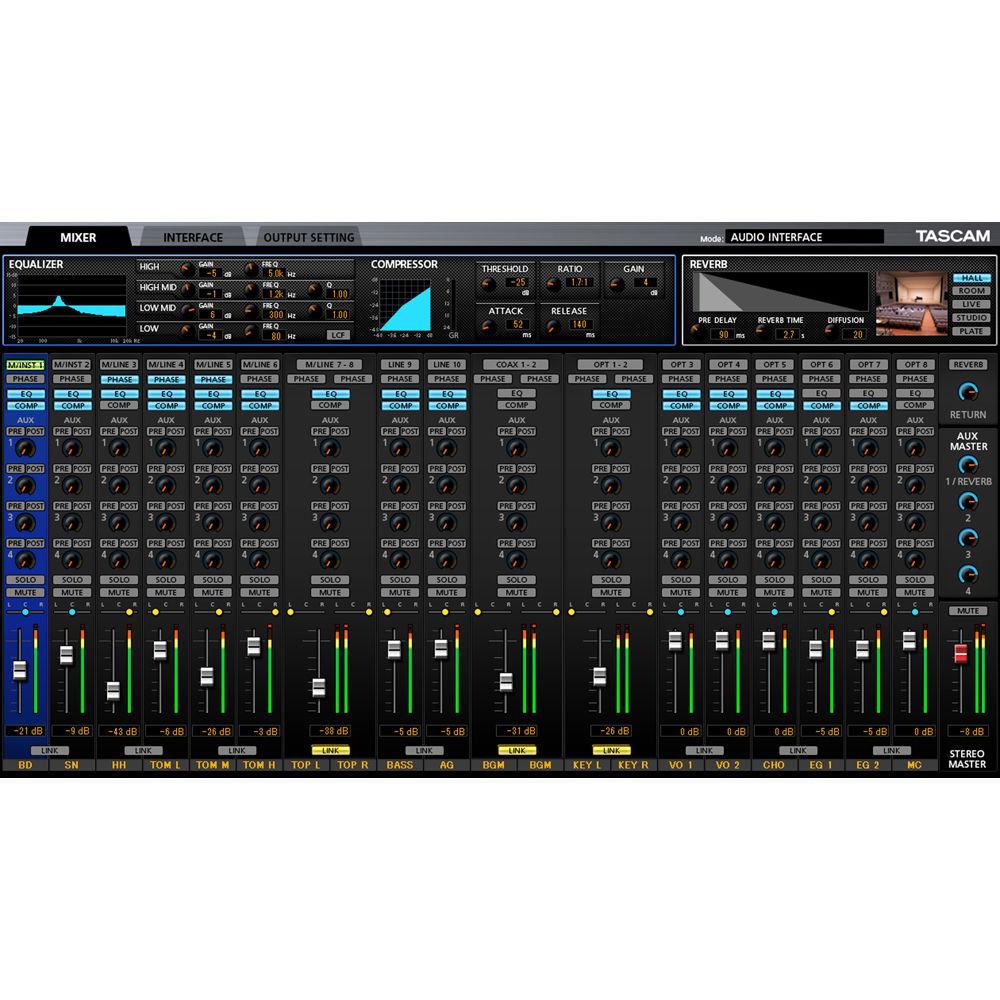

- DSP mixer with 4-band EQ and compression on each input channel (can be used in interface/mixer mode)
- On-board reverb effect ideal for monitoring on interface mode or PA/SR on mixer mode

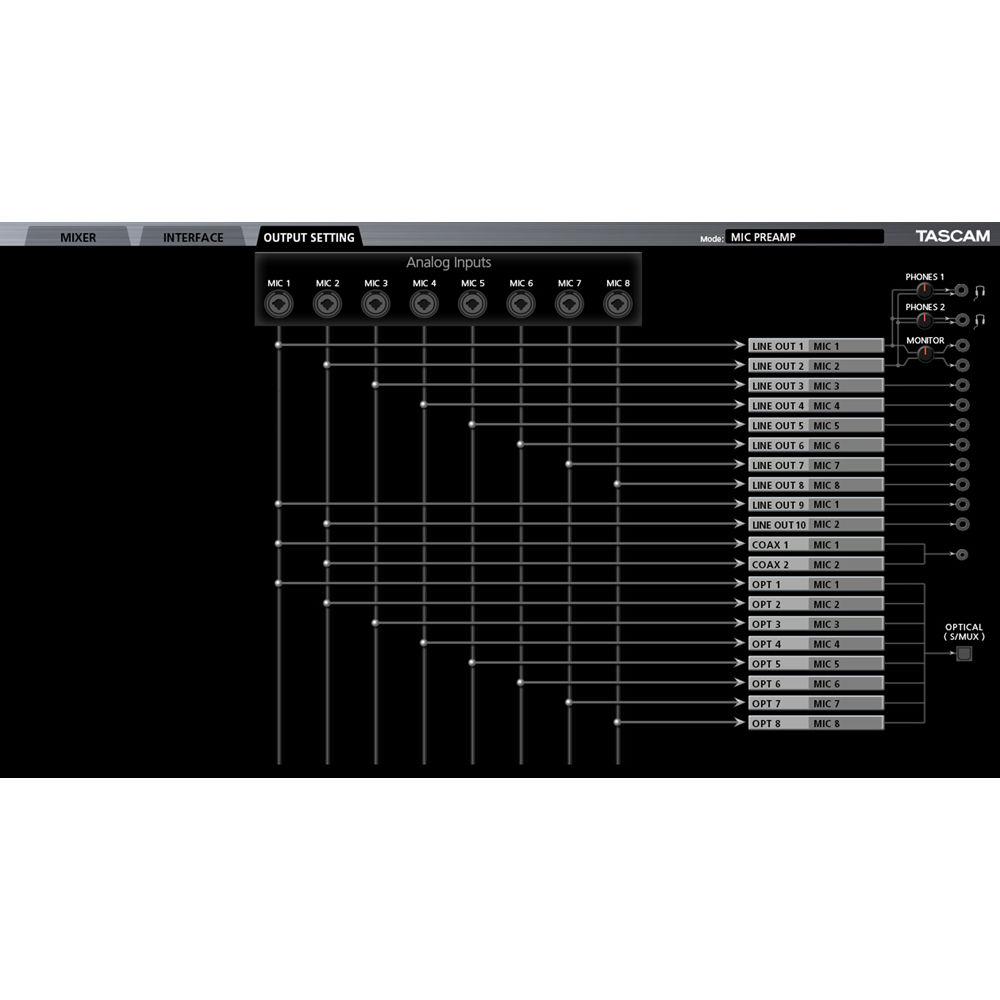

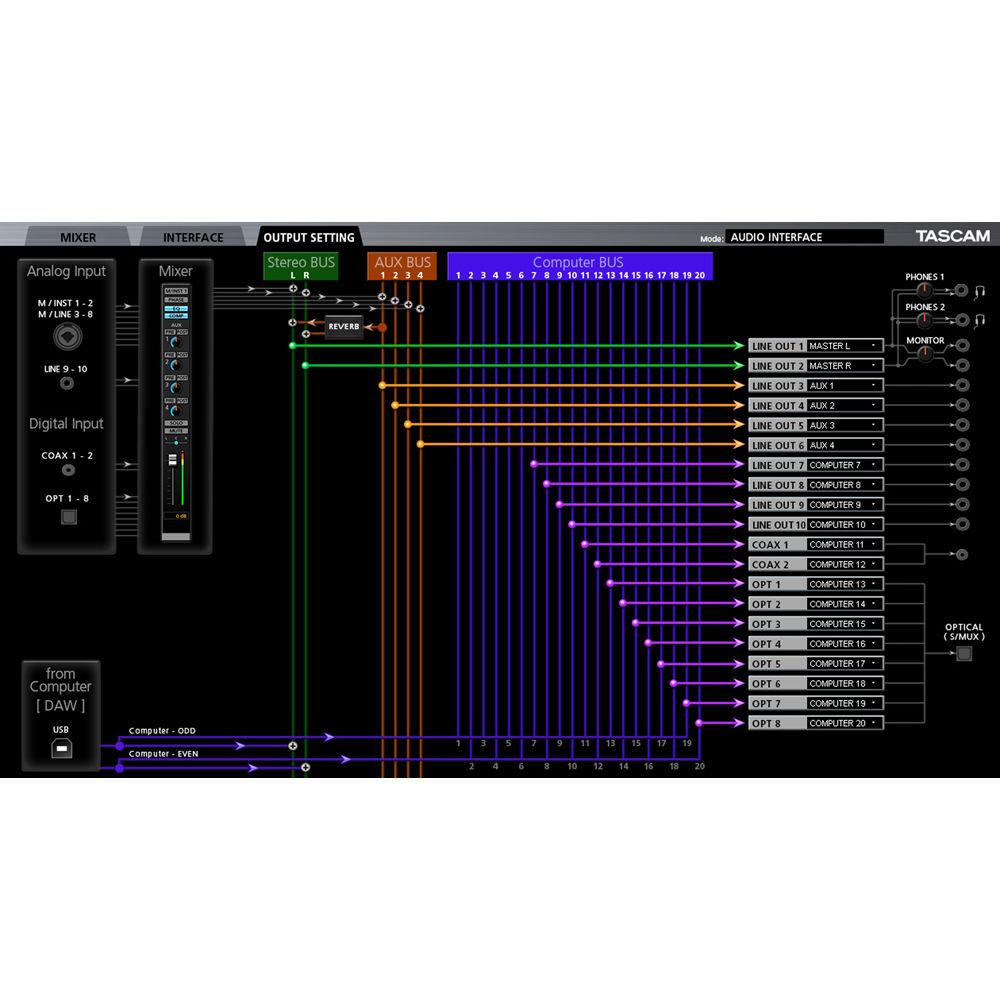

- Patch bay allows outputs to be assigned freely (can be used in interface/mixer mode)
- Scenes can store DSP mixer settings (up to 10 + 1 scenes can be stored and named＿

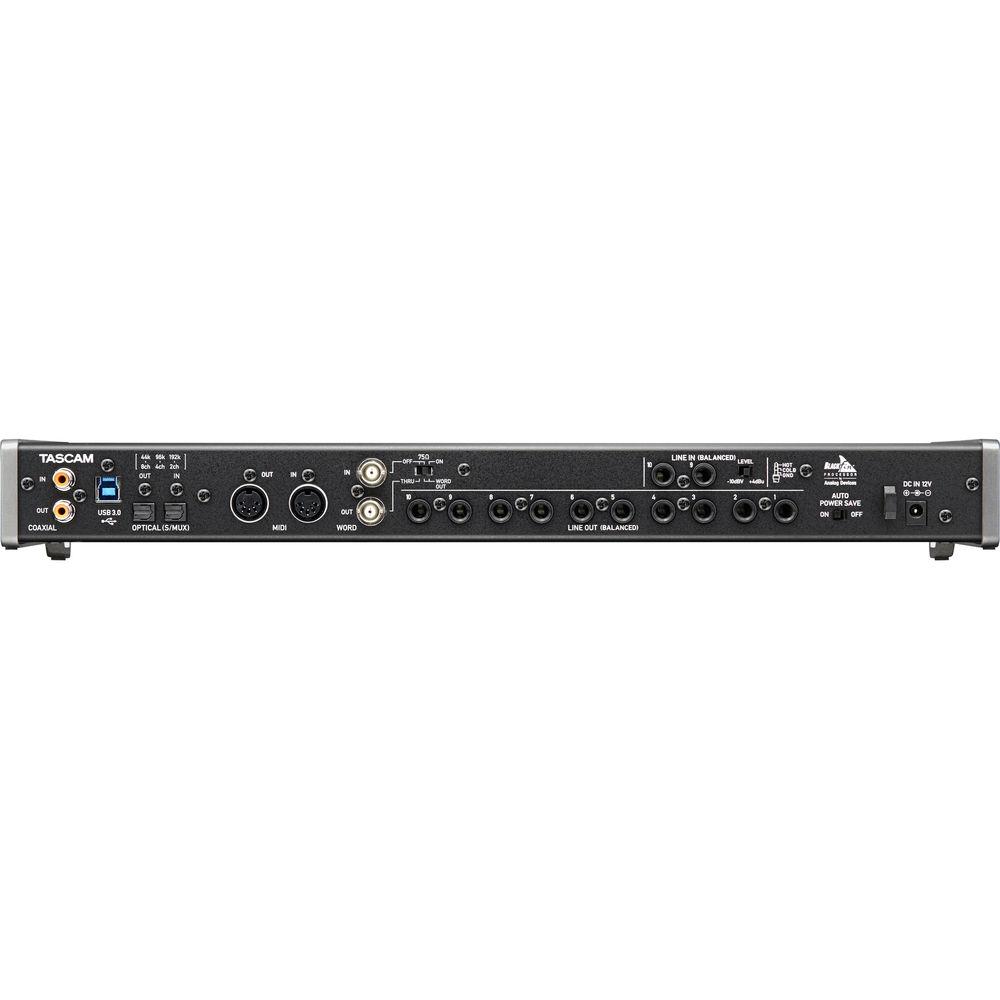

- S/PDIF coaxial digital input/output connectors
- TOSLink optical digital multi-channel input/output connectors (supporting SMUX2 and SMUX4)
- BNC word clock input/output connectors
- Support for Mac and Windows OS
- USB 2.0 class compliant
- USB 3.0/2.0 computer connection (USB 3.0 requires Windows 10)
- Connect with iPads and other iOS devices
- Tough metal casing for durability
- Angled design provides for efficient usability on a desktop

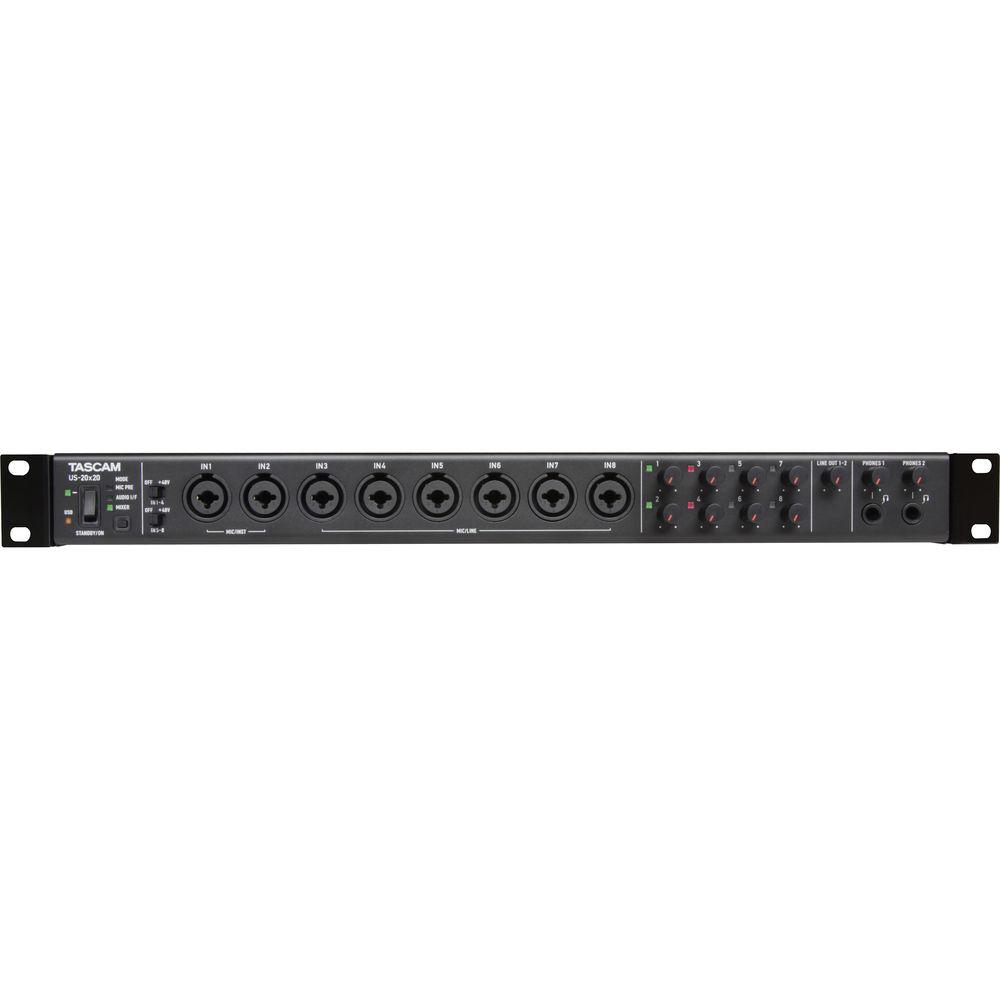

- Rack-mount adapter included
- RoHS certified
UPC: 043774031184 In the Box Tascam US-20x20 - USB Audio Interface with Mic Preamps/Mixer External Power Suply USB 3.0 Cable USB 2.0 Cable Rackmount Adapter One (1) Year Limited Warranty User Manual PDF 11.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Tascam US-20x20 - USB Audio Interface with Mic Preamps Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTascam US-20X20 Specs | | | Max Sample Rate/Resolution | 192 kHz / 24-Bit | | | | Host Connection | 1 x USB Type-B (USB 3.0) | | Analog I/O | 2 x Combo XLR / 1/4" Mic Input
6 x Combo XLR / 1/4" Mic/Line Input
2 x 1/4" (6.3 mm) TRS Balanced Line Input
10 x 1/4" (6.3 mm) TRS Balanced Line Output
2 x 1/4" (6.3 mm) TRS Headphone Output | | Digital I/O | 1 x TOSLINK / ADAT, S/MUX, S/PDIF Input
1 x TOSLINK / ADAT, S/MUX, S/PDIF Output
1 x BNC (Word Clock) Input
1 x BNC (Word Clock) Out/Thru
1 x RCA Coaxial / AES/EBU, S/PDIF Input
1 x RCA Coaxial / AES/EBU, S/PDIF Output | | MIDI I/O | 1 x 5-Pin MIDI In
1 x 5-Pin MIDI Out | | | | Frequency Response | Line Outputs:
20 Hz to 20 kHz
